THE POTENTIAL OF GEOTHERMAL ENERGY Summary Ø An underestimated and largely untapped resource Ø Not Geographically limited, as hydrothermal sites are Ø Less costly than solar or wind, in ¢ per KWhr Ø Largest return on investment of R&D Dollars Ø Renewable, small footprint, negligible emissions Ø BEG’s skills in reservoir characterization, flow modeling and carbon sequestration are directly applicable to geothermal energy assessment and development. Bruce L. Cutright

THE POTENTIAL OF GEOTHERMAL ENERGY • Bureau of Economic Geology lead earlier studies during the late 1970 s, 1980 s and up to 1992 investigating the Geothermal Energy potential of the Northern Gulf of Mexico Bebout, Loucks, Gregory 1978 Bruce L. Cutright

THE POTENTIAL OF GEOTHERMAL ENERGY What Changed from 1980 to Today? Ø Advances in Drilling Technology that made 8 to 10 km holes possible (polycrystalline diamond compact bits, slimhole drilling) Ø Advances in controlled fracture development that made “Engineered Geothermal Systems” practical Ø Advances in Binary-Cycle Heat Exchange Systems that made 100 o C heat sources and up economical. Bruce L. Cutright

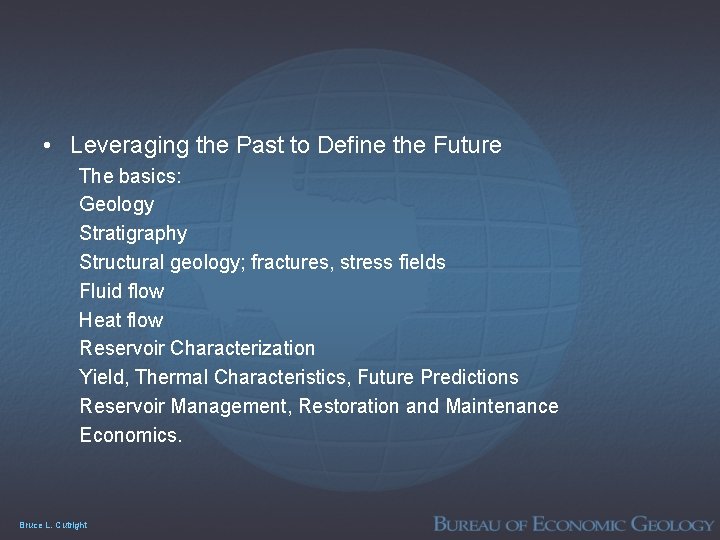

• Leveraging the Past to Define the Future The basics: Geology Stratigraphy Structural geology; fractures, stress fields Fluid flow Heat flow Reservoir Characterization Yield, Thermal Characteristics, Future Predictions Reservoir Management, Restoration and Maintenance Economics. Bruce L. Cutright

Bruce L. Cutright

Bruce L. Cutright

Bruce L. Cutright

Bruce L. Cutright

Bruce L. Cutright

Bruce L. Cutright

Bruce L. Cutright

Bruce L. Cutright

THE POTENTIAL OF GEOTHERMAL ENERGY • Critical Re-assessment: DOE - MIT (2006) Study Found: Ø THE EXTRACTABLE RESOURCE BASE IS ESTIMATED AT 2, 000 TIMES THE ANNUAL PRIMARY ENERGY CONSUMPTION OF THE UNITED STATES IN 2005. Ø OVER HALF OF THIS ENERGY IS IN GEOPRESSURED ZONES IN THE NORTHERN GULF OF MEXICO Bruce L. Cutright Sediment Thickness Map of US

THE POTENTIAL OF GEOTHERMAL ENERGY Table 1. 1 Estimated U. S. Geothermal Resource Base to 10 km Depth by Category (Modified from "The Future of Geothermal Energy, MIT 2006) Category of Resource Thermal Energy, in Exa. Joules (1 EJ = 1018 J) Thermal Energy in Barrels of Oil Equivalent Hydrothermal 2. 40 E+03 9. 60 E+03 4. 13 E+11 1. 65 E+12 Co-Produced Fluids 9. 44 E-02 4. 51 E-01 1. 62 E+07 7. 76 E+07 Geopressured Systems 7. 10 E+04 1. 70 E+05 1. 22 E+13 2. 92 E+13 US Primary Energy Consumption (2008) 94. 14 1. 81 E+10 COMPARISON OF FOSSIL FUEL EXTRACTABLE RESERVES TO GEOTHERMAL GEOPRESSURED/CO-PRODUCED FLUIDS EQUIVALENT ENERGY RESERVES Source Estimate of Extractable Reserves Reference Canadian Tar Sands 300 BBLSOE Edwards, 1997 Orinoco Heavy Oils 267 BBLSOE Edwards, 1997 Green River Shales 139 BBLSOE Edwards, 1997 U. S. Proven Reserves of Crude Oil 21. 3 BBLSOE EIA 2008 Geothermal Geopressured Geothermal Resources 29, 200 BBLSOE Blackwell, 2006 Bruce L. Cutright

THE POTENTIAL OF GEOTHERMAL ENERGY Comparison of the costs per kilowatt hour to generate electricity from alternative/renewable sources versus hydrocarbon sources Geothermal is cost competitive with oil and natural gas and is less expensive than solar and wind. Only coal, without carbon tax costs, is less expensive than geothermal Data from NREL in constant 2005 dollars Bruce L. Cutright

What Our Partners are doing • Chevron is the largest producer of geothermal energy in the world, with operations in Indonesia and the Philippines. • US energy companies Unocal and Gulf Resources are willing to invest US$1. 2 billion in geothermal and natural gas projects in the Philippines Source: Chevron Geothermal Bruce L. Cutright

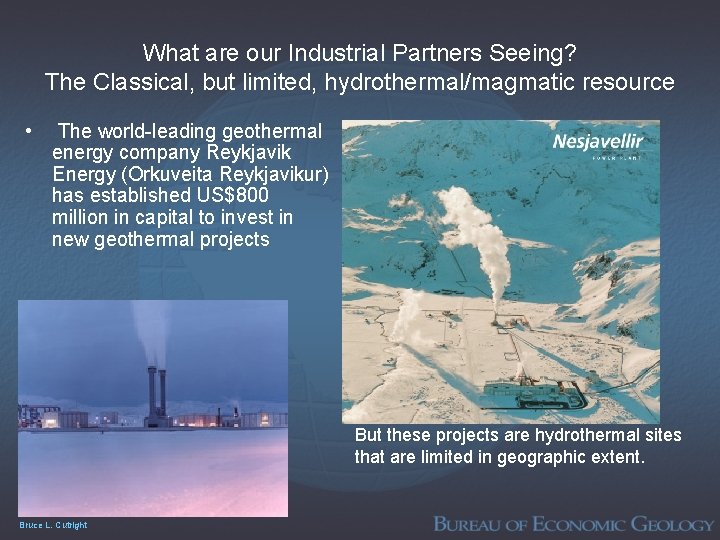

What are our Industrial Partners Seeing? The Classical, but limited, hydrothermal/magmatic resource • The world-leading geothermal energy company Reykjavik Energy (Orkuveita Reykjavikur) has established US$800 million in capital to invest in new geothermal projects But these projects are hydrothermal sites that are limited in geographic extent. Bruce L. Cutright

What Our Partners are doing Binary Cycle Rankine Engine • Raser Technologies Hatch Geothermal Power Plant • constructed in just six months • Modular power plant design. • Can produce power from geothermal resources that were previously thought to be not hot enough for commercial power production. Bruce L. Cutright

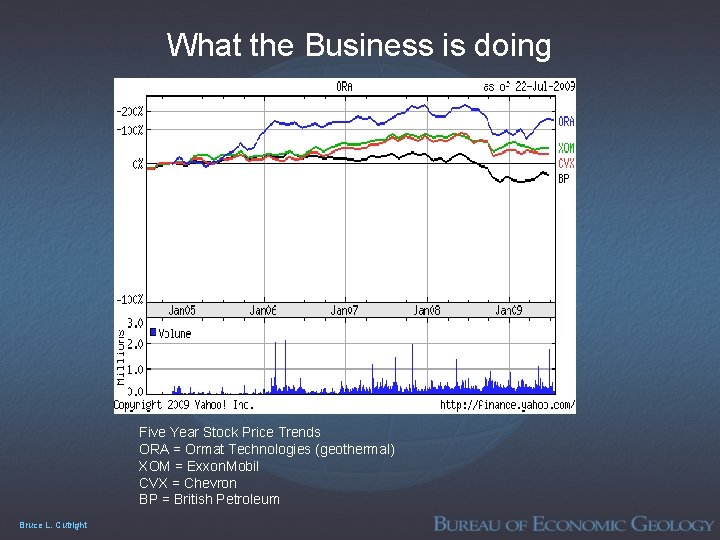

What the Business is doing Five Year Stock Price Trends ORA = Ormat Technologies (geothermal) XOM = Exxon. Mobil CVX = Chevron BP = British Petroleum Bruce L. Cutright

Why Geothermal? Why Now? Ø The Economics have changed Ø geothermal is now cost-competitive with petroleum, and lower cost than solar and wind. Ø The Resource Base has changed Ø no longer only hydrothermal-magmatic but widely distributed geothermal heat flow Ø The extractable resource is 2000 times the annual demand of the US. Ø The regulations have, or will change Ø Favoring non-CO 2 emitting energy sources Bruce L. Cutright

Sponsored Research Opportunities Ø Geothermal Energy – Sponsored Opportunities Ø The American Recovery and Reinvestment Act: $350 million new investment in this technology. • Geothermal Demonstration Projects = $140 Million • Enhanced Geothermal Systems Technology Research and Development = $80 Million • Innovative Exploration Techniques = $100 Million. • National Geothermal Data System, Resource Assessment, and Classification System = $30 Million Ø Private funding opportunities for BEG, at this time, equal or exceed the federal or state opportunities. Bruce L. Cutright

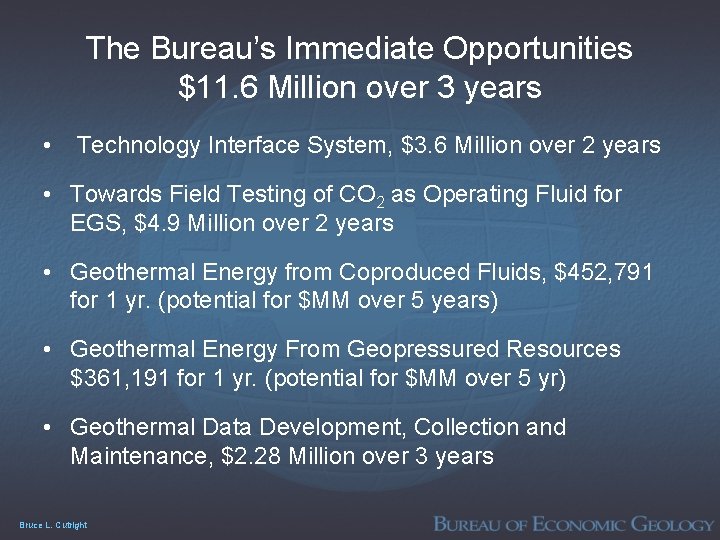

The Bureau’s Immediate Opportunities $11. 6 Million over 3 years • Technology Interface System, $3. 6 Million over 2 years • Towards Field Testing of CO 2 as Operating Fluid for EGS, $4. 9 Million over 2 years • Geothermal Energy from Coproduced Fluids, $452, 791 for 1 yr. (potential for $MM over 5 years) • Geothermal Energy From Geopressured Resources $361, 191 for 1 yr. (potential for $MM over 5 yr) • Geothermal Data Development, Collection and Maintenance, $2. 28 Million over 3 years Bruce L. Cutright

The Bureau’s Long Range Opportunities • Everything we have learned about petroleum reservoir characterization, development and production is applicable to Geopressured / Geothermal Development 3 -D Geo-Model Streamline Modeling of Fluid Allocation Factors Streamline Fluid Allocation Factors Source: BEG and I-Reservoir, Inc. Bruce L. Cutright

Where is the Cutting Edge? Ø Primary Focus is on Geopressured Zones having Thermal-Kinetic-Chemical Energy Content Ø Combining geothermal heat extraction using supercritical carbon dioxide q Links geologic sequestration of CO 2 with non-polluting, renewable energy production q Results in improvement of heat extraction efficiency by 40% to 180% (Pruess, K. 2006) q Provides a methodology for coal fired power plants to recover the energy penalty incurred in CO 2 capture Ø Metal – Organic heat carriers (MOHC) offer additional improvements in efficiency, at a cost. Bruce L. Cutright

Cooper Basin Thank you Flow tests at Cooper Basin EGS Site, Australia (Geodynamics, 2005) Bruce L. Cutright
