The Company CM Machinery is a manufacturer of

The Company… �CM Machinery is a manufacturer of customised downstream equipment for use in extruded plastic sheet and film production lines and continuous production of insulation and panels. www. cmmachinery. co. uk

Background �Established in 1971 �Located in Craigavon, approx 50 kilometres from Belfast, Northern Ireland

Industries Served �Plastic sheet and film extrusion �Mineral wool and rigid foam insulation �Non woven fabrics �Paper/flexible packaging converting �Medical dressings and pouches �Rubber sheet, conveyor belting and vinyl flooring www. cmmachinery. co. uk

Applications � Cutting to length of sheet products � Slitting – winding - tension control of web products � Unwinding and lamination of web products � Stacking and handling of sheet and board products � In line crosscuts for continuous board/sheet product lines � Off line converting machines � Heat seal cutting and welding � Rotary die cutting of web products � Automatic splicing of web products www. cmmachinery. co. uk

Medical Products � � Wound dressing manufacture Ostomy bag manufacture www. cmmachinery. co. uk

Sheet Trimmers � � � In-line trim/slit station using high speed rotary saws for heavy sheet In-line trim/slit stations using static blades for lightweight sheet Twin rotary shear cutters for reinforced/ fibrous sheet www. cmmachinery. co. uk

Trim Stations � � Dual stations for stand by set up and quick size changeover Off-line sheet squaring stations www. cmmachinery. co. uk

Winding Stations � � Unwind Stations In-Line Shaft-less Turret Winder Twin Roller Surface Winder Off-Line Slitter/Winders www. cmmachinery. co. uk

Winders… � � In-Line Turret Winder In-Line Shaft-less Turret Winder Twin Roller Surface Winder Off-Line Slitter/Winders www. cmmachinery. co. uk

Trim Guillotines � In-line guillotine cutters for rigid edge trims with conveying system for automatic feed into recycling system www. cmmachinery. co. uk

Cross-Cuts… � � In-Line Travelling Crosscut with Rotary Saw Cutter In-Line Travelling Crosscut with Heated Static Blade Cutter In-Line Combined Travelling Crosscut Saw and Guillotine Unit In-Line Guillotines for flat/corrugated plastic sheet www. cmmachinery. co. uk

Others � � End of line stacking stations Protective film unwind stations Corrugated sheet forming units PP sheet squaring machines www. cmmachinery. co. uk

� � Cooling Rollers In-Line Film Folder Frame www. cmmachinery. co. uk

Tubing Let-Off Stations � � � For Telecommunications Ducting Single Reel Let-Off Stations Dual Reel Let-Off Stations www. cmmachinery. co. uk

Flexible Webs � Slitter Winders/In Line Accumulators www. cmmachinery. co. uk

Case Study � � European sheet producer required downstream equipment to complete a new extruded sheet line that was being developed to produce a new composite sheet product. CM provides bespoke end of line equipment including trimming-slitting saws station, crosscut saw, overhead vacuum stacking station and fence guarding and electrical controls. Special features were developed for the customer including the provision of a number of discrete safety zones, which allowed production personnel safe access to some parts of the equipment for set up and maintenance while other areas continued to operate. Full communication with the customer’s factory SAP system for production data download and machine set up history was also a feature. www. cmmachinery. co. uk

CM Machinery offers � � � Customised design and manufacture of machines to satisfy individual customer requirements A large back catalogue of proven machines for unique and specialised applications The ability to develop new solutions for individual customer needs Experience through our design and manufacturing engineers in providing operator friendly, high specification equipment Complete machine supply service from initial assessment, through the design and manufacture of the machinery and onto site commissioning and after sales support 40 Years of expertise www. cmmachinery. co. uk

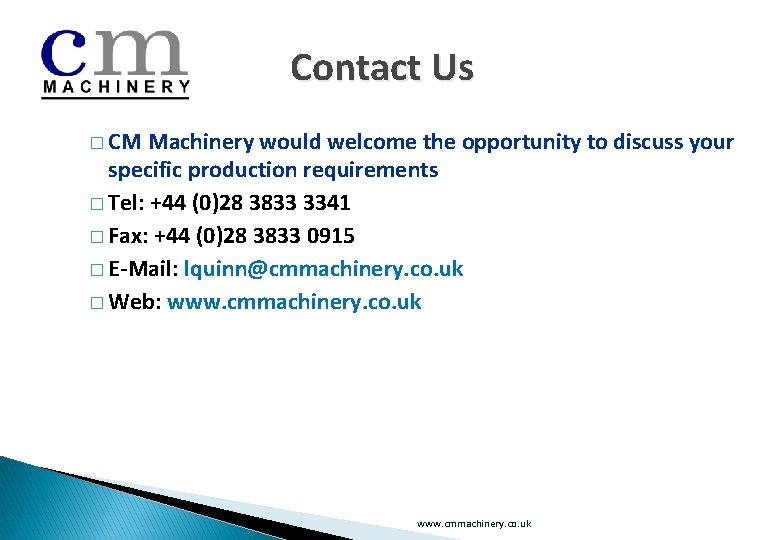

Contact Us � CM Machinery would welcome the opportunity to discuss your specific production requirements � Tel: +44 (0)28 3833 3341 � Fax: +44 (0)28 3833 0915 � E-Mail: lquinn@cmmachinery. co. uk � Web: www. cmmachinery. co. uk
