TFTP The Trivial File Transfer Protocol
Background RFC 1350 Much simpler than FTP Designed for simplicity Supported Actions Read a file from a remote machine. Write a file to a remote machine. Unsupported Actions User Authentication Directory information exchange
Uses UDP Other underlying protocols are possible But TFTP implements Insurance of in order delivery Error detection and correction Lost packet detection
Implementation Client - Server Client tftp Initiates contact from a random port Server tftpd Listens at port 69 Responds to initial contact on a new random port.

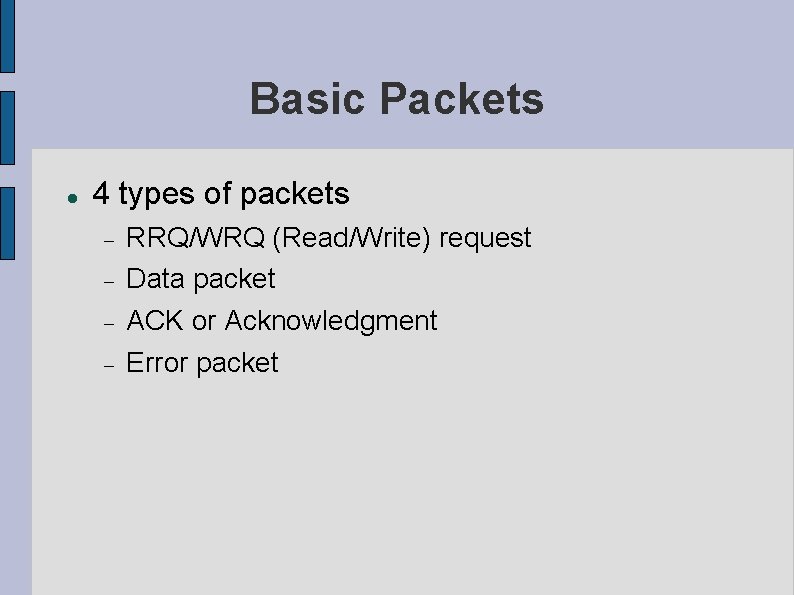

Basic Packets 4 types of packets RRQ/WRQ (Read/Write) request Data packet ACK or Acknowledgment Error packet

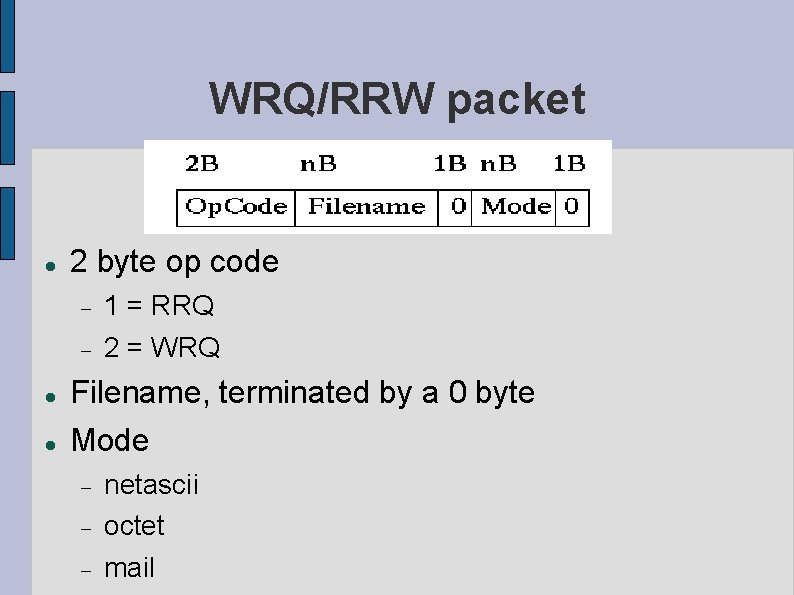

WRQ/RRW packet 2 byte op code 1 = RRQ 2 = WRQ Filename, terminated by a 0 byte Mode netascii octet mail
Data packet 2 byte opcode (3) 2 byte block number 0 to 512 bytes of data A data block of less than 512 bytes indicates the end of transmission

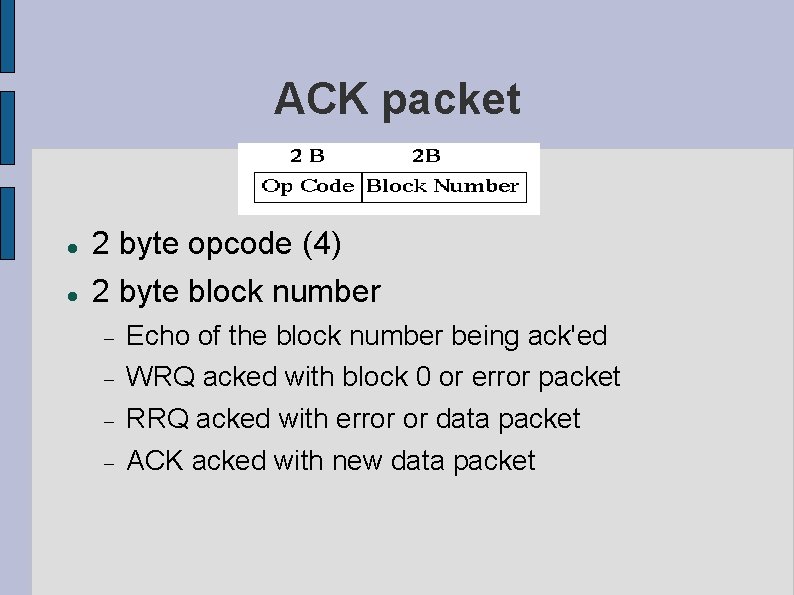

ACK packet 2 byte opcode (4) 2 byte block number Echo of the block number being ack'ed WRQ acked with block 0 or error packet RRQ acked with error or data packet ACK acked with new data packet

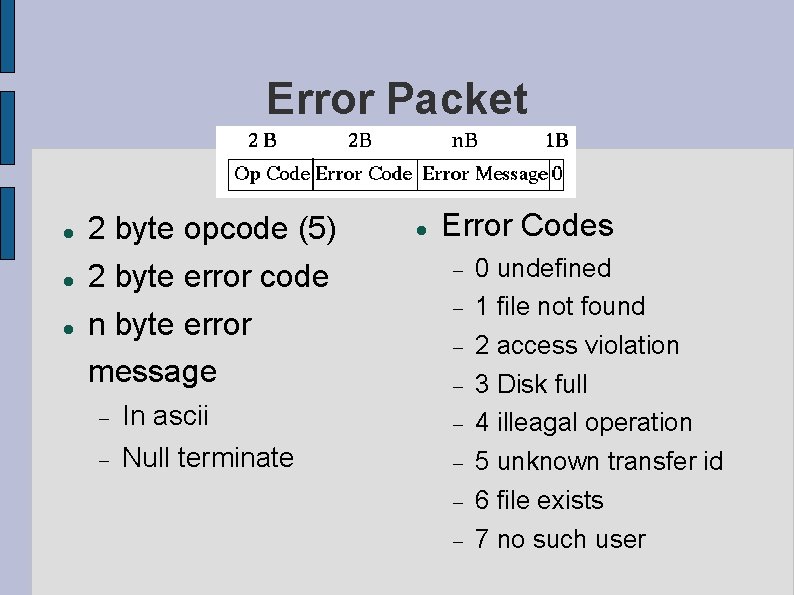

Error Packet 2 byte opcode (5) 2 byte error code n byte error message In ascii Null terminate Error Codes 0 undefined 1 file not found 2 access violation 3 Disk full 4 illeagal operation 5 unknown transfer id 6 file exists 7 no such user

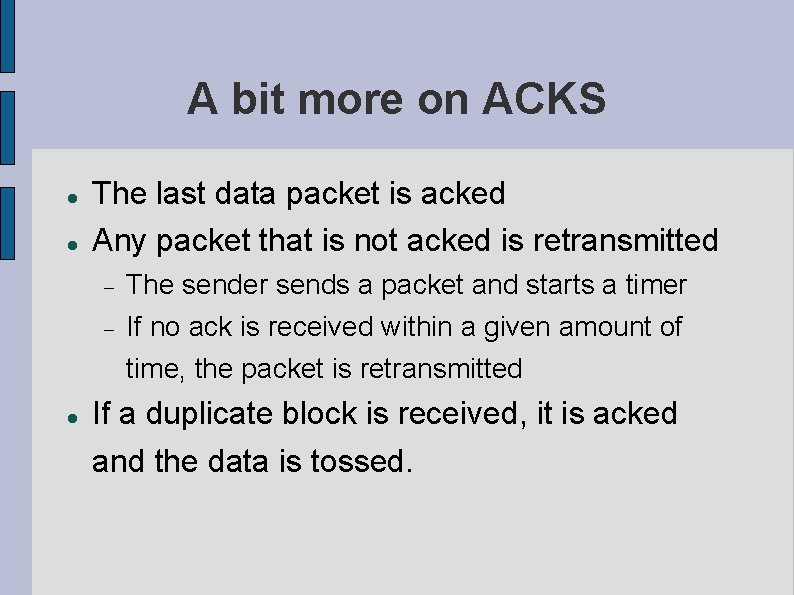

A bit more on ACKS The last data packet is acked Any packet that is not acked is retransmitted The sender sends a packet and starts a timer If no ack is received within a given amount of time, the packet is retransmitted If a duplicate block is received, it is acked and the data is tossed.

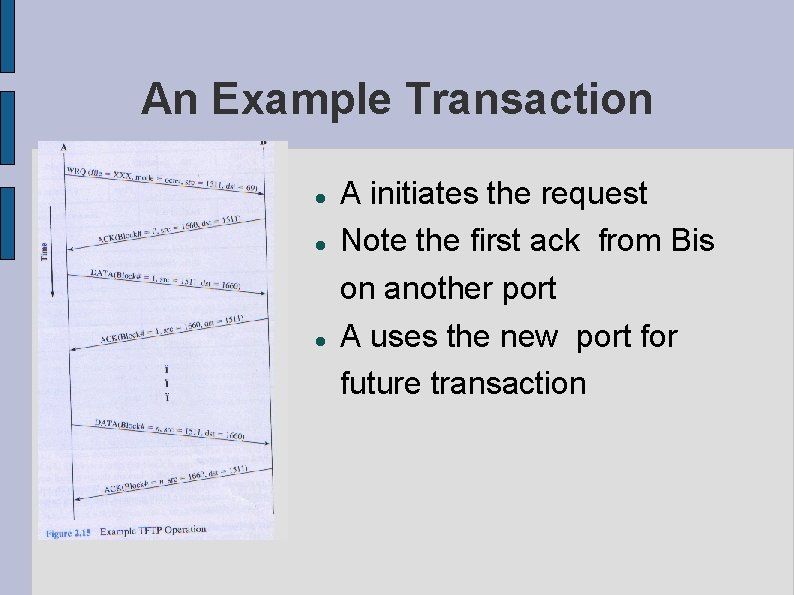

An Example Transaction A initiates the request Note the first ack from Bis on another port A uses the new port for future transaction
Sources RFC 1350 http: //www. faqs. org/rfcs/rfc 1350. html Stallings Pages 57 to 61
