T 24 STEP Manufacturing Team leader Martin Hardwick

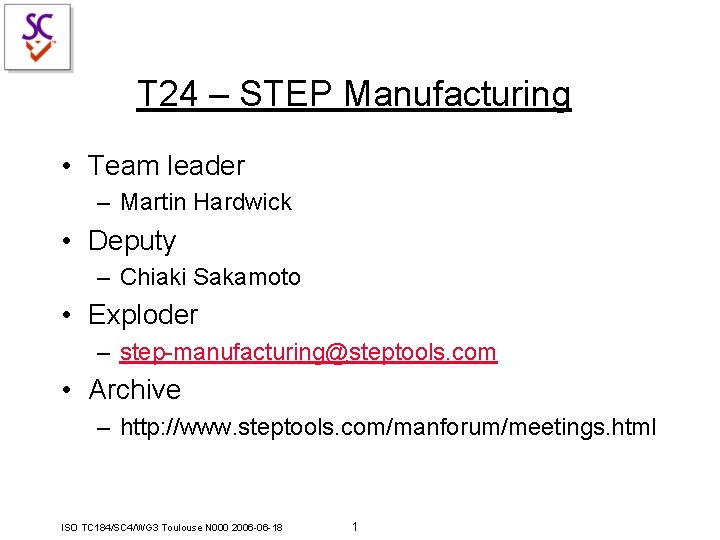

T 24 – STEP Manufacturing • Team leader – Martin Hardwick • Deputy – Chiaki Sakamoto • Exploder – step-manufacturing@steptools. com • Archive – http: //www. steptools. com/manforum/meetings. html ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 1

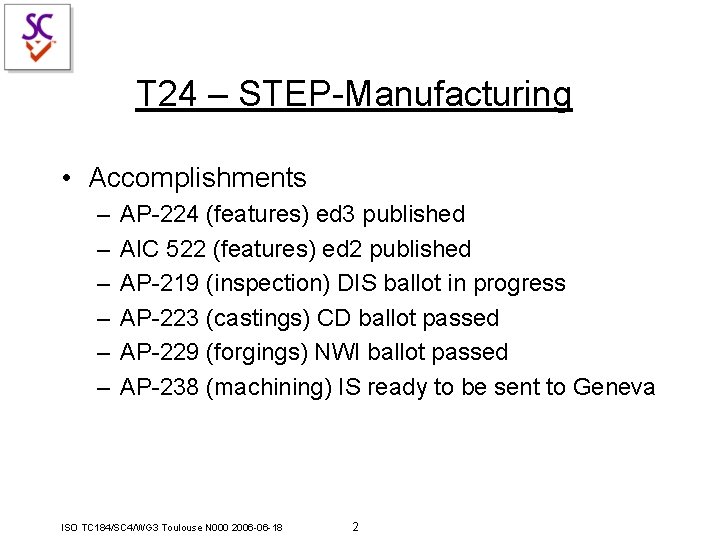

T 24 – STEP-Manufacturing • Accomplishments – – – AP-224 (features) ed 3 published AIC 522 (features) ed 2 published AP-219 (inspection) DIS ballot in progress AP-223 (castings) CD ballot passed AP-229 (forgings) NWI ballot passed AP-238 (machining) IS ready to be sent to Geneva ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 2

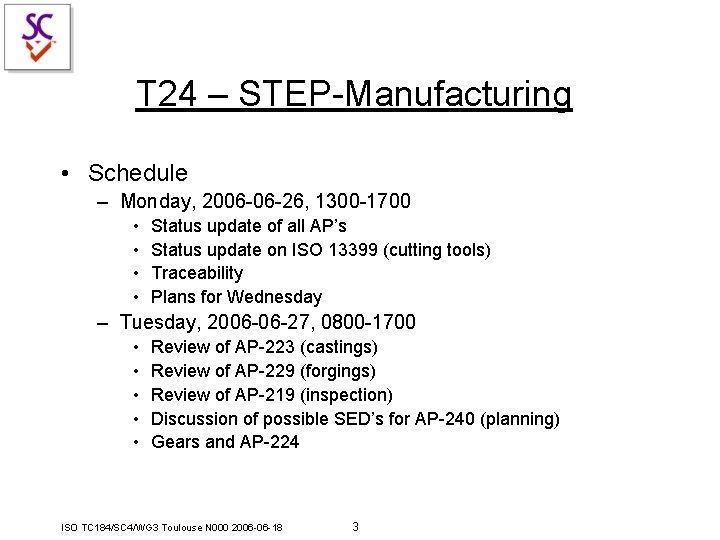

T 24 – STEP-Manufacturing • Schedule – Monday, 2006 -06 -26, 1300 -1700 • • Status update of all AP’s Status update on ISO 13399 (cutting tools) Traceability Plans for Wednesday – Tuesday, 2006 -06 -27, 0800 -1700 • • • Review of AP-223 (castings) Review of AP-229 (forgings) Review of AP-219 (inspection) Discussion of possible SED’s for AP-240 (planning) Gears and AP-224 ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 3

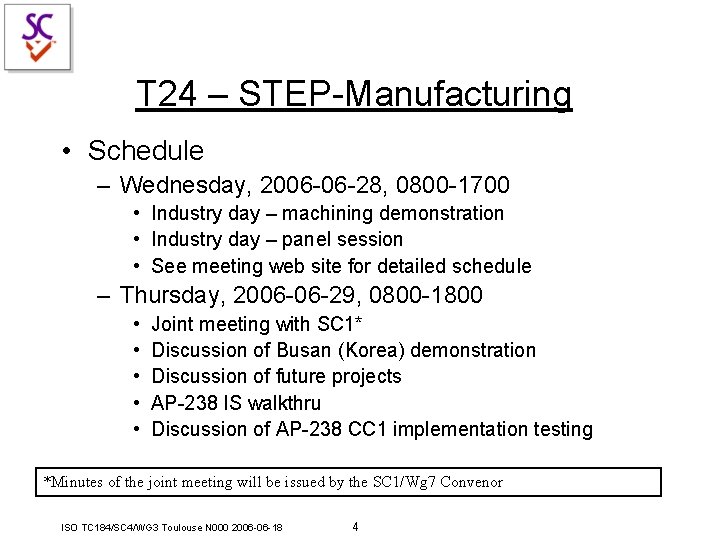

T 24 – STEP-Manufacturing • Schedule – Wednesday, 2006 -06 -28, 0800 -1700 • Industry day – machining demonstration • Industry day – panel session • See meeting web site for detailed schedule – Thursday, 2006 -06 -29, 0800 -1800 • • • Joint meeting with SC 1* Discussion of Busan (Korea) demonstration Discussion of future projects AP-238 IS walkthru Discussion of AP-238 CC 1 implementation testing *Minutes of the joint meeting will be issued by the SC 1/Wg 7 Convenor ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 4

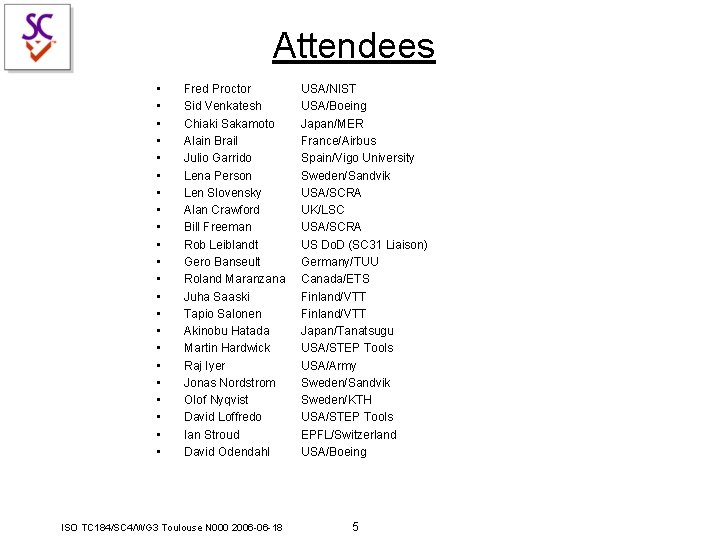

Attendees • • • • • • Fred Proctor Sid Venkatesh Chiaki Sakamoto Alain Brail Julio Garrido Lena Person Len Slovensky Alan Crawford Bill Freeman Rob Leiblandt Gero Banseult Roland Maranzana Juha Saaski Tapio Salonen Akinobu Hatada Martin Hardwick Raj Iyer Jonas Nordstrom Olof Nyqvist David Loffredo Ian Stroud David Odendahl ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 USA/NIST USA/Boeing Japan/MER France/Airbus Spain/Vigo University Sweden/Sandvik USA/SCRA UK/LSC USA/SCRA US Do. D (SC 31 Liaison) Germany/TUU Canada/ETS Finland/VTT Japan/Tanatsugu USA/STEP Tools USA/Army Sweden/Sandvik Sweden/KTH USA/STEP Tools EPFL/Switzerland USA/Boeing 5

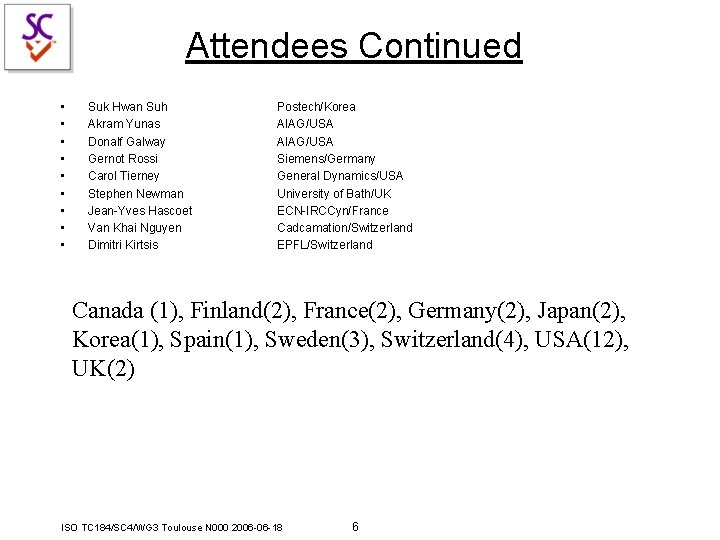

Attendees Continued • • • Suk Hwan Suh Akram Yunas Donalf Galway Gernot Rossi Carol Tierney Stephen Newman Jean-Yves Hascoet Van Khai Nguyen Dimitri Kirtsis Postech/Korea AIAG/USA Siemens/Germany General Dynamics/USA University of Bath/UK ECN-IRCCyn/France Cadcamation/Switzerland EPFL/Switzerland Canada (1), Finland(2), France(2), Germany(2), Japan(2), Korea(1), Spain(1), Sweden(3), Switzerland(4), USA(12), UK(2) ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 6

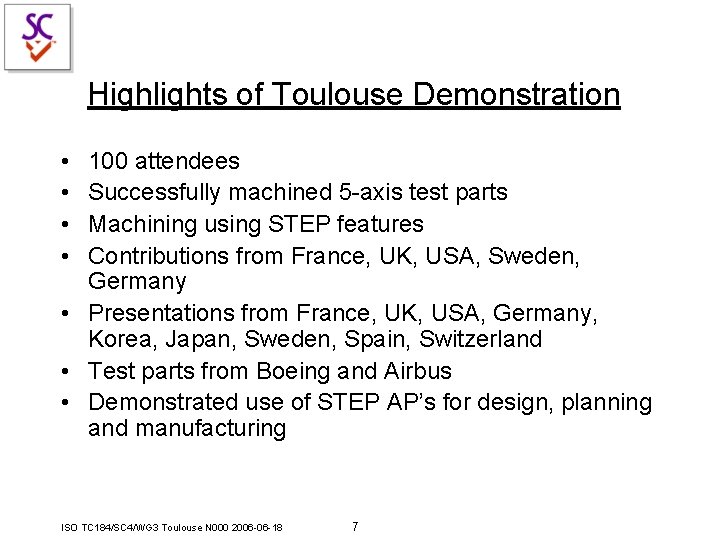

Highlights of Toulouse Demonstration • • 100 attendees Successfully machined 5 -axis test parts Machining using STEP features Contributions from France, UK, USA, Sweden, Germany • Presentations from France, UK, USA, Germany, Korea, Japan, Sweden, Spain, Switzerland • Test parts from Boeing and Airbus • Demonstrated use of STEP AP’s for design, planning and manufacturing ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 7

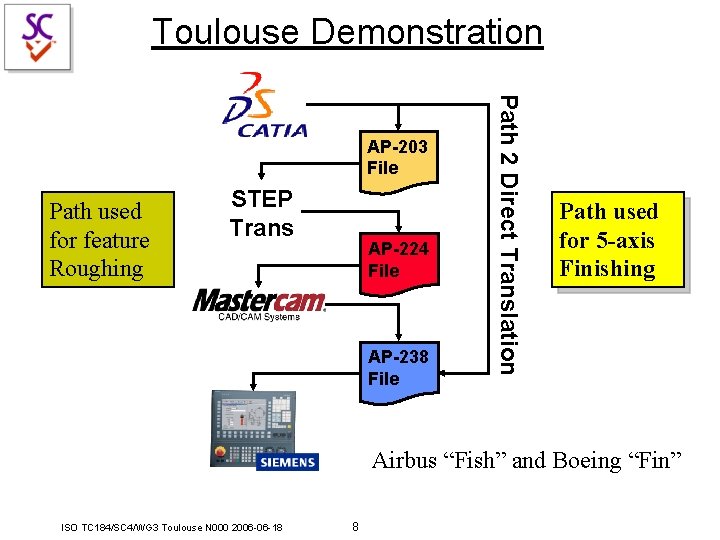

Toulouse Demonstration Path used for feature Roughing STEP Trans AP-224 File AP-238 File Path 2 Direct Translation AP-203 File Path used for 5 -axis Finishing Airbus “Fish” and Boeing “Fin” ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 8

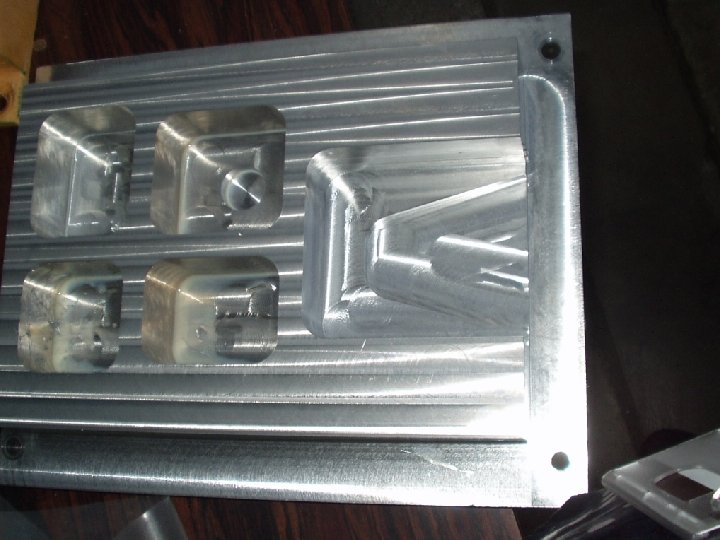

ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 9

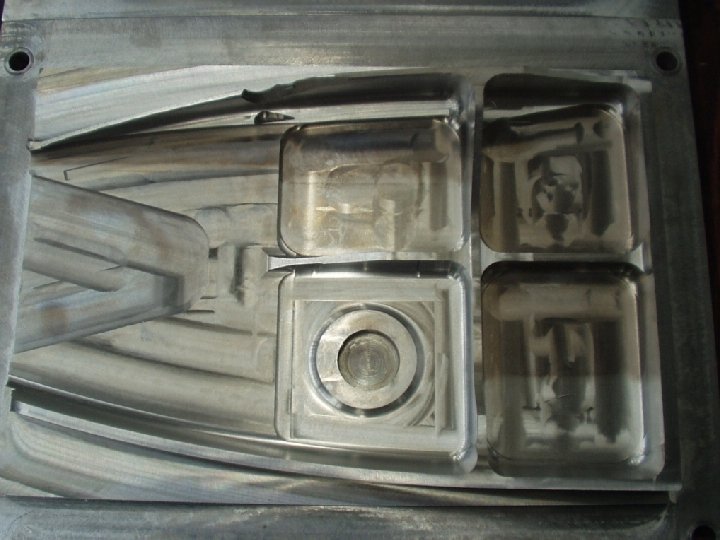

ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 10

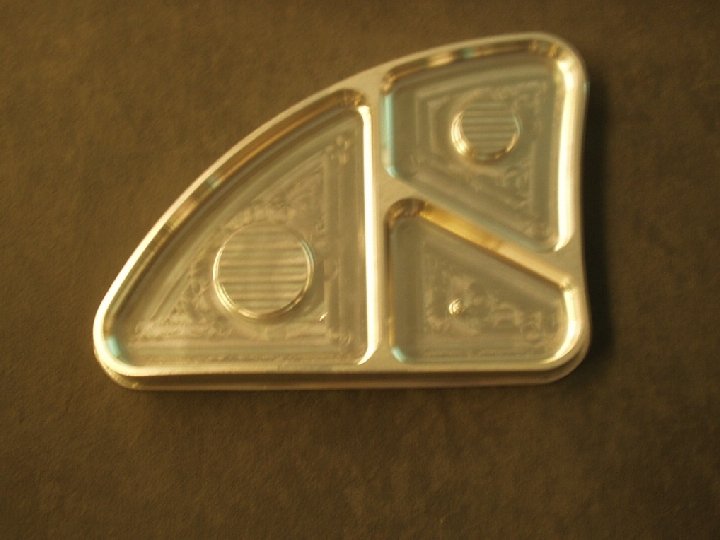

ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 11

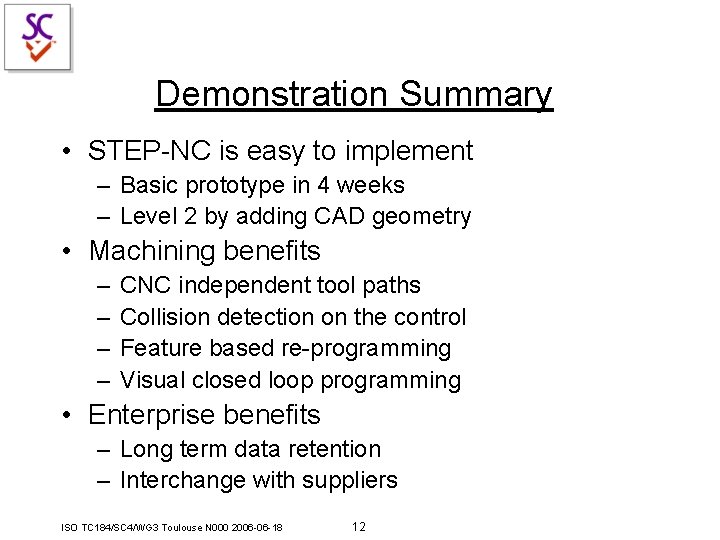

Demonstration Summary • STEP-NC is easy to implement – Basic prototype in 4 weeks – Level 2 by adding CAD geometry • Machining benefits – – CNC independent tool paths Collision detection on the control Feature based re-programming Visual closed loop programming • Enterprise benefits – Long term data retention – Interchange with suppliers ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 12

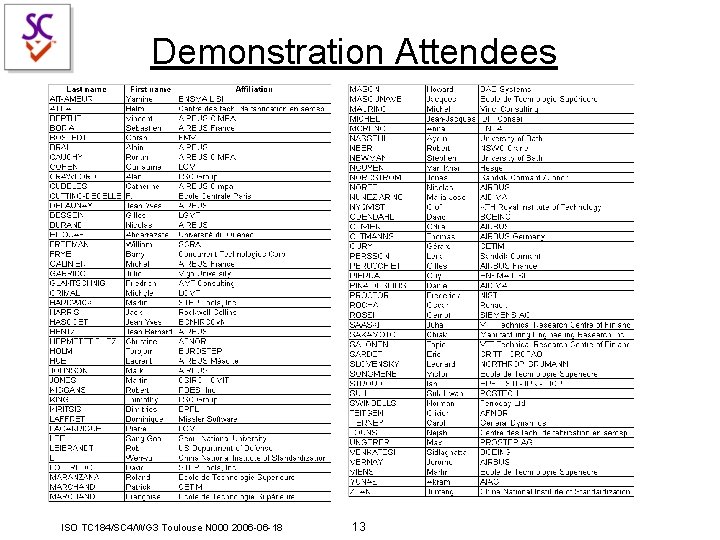

Demonstration Attendees ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 13

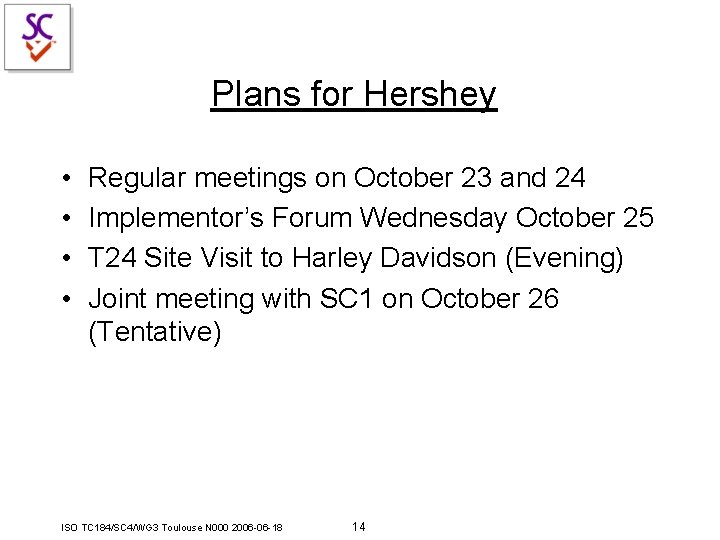

Plans for Hershey • • Regular meetings on October 23 and 24 Implementor’s Forum Wednesday October 25 T 24 Site Visit to Harley Davidson (Evening) Joint meeting with SC 1 on October 26 (Tentative) ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 14

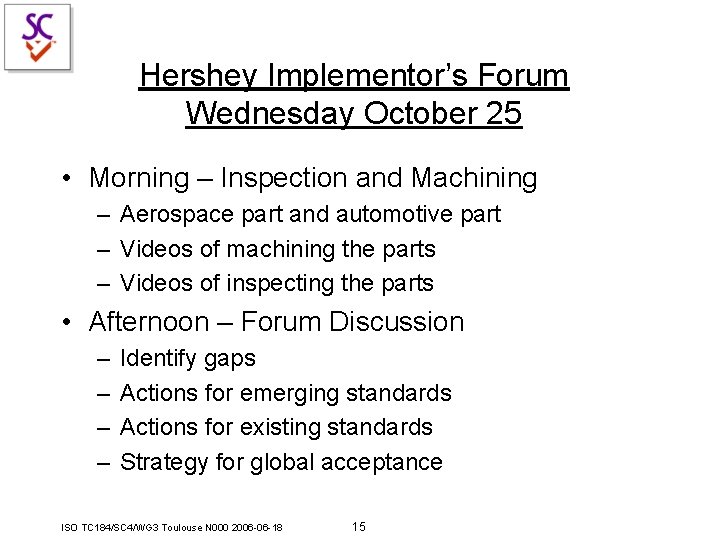

Hershey Implementor’s Forum Wednesday October 25 • Morning – Inspection and Machining – Aerospace part and automotive part – Videos of machining the parts – Videos of inspecting the parts • Afternoon – Forum Discussion – – Identify gaps Actions for emerging standards Actions for existing standards Strategy for global acceptance ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 15

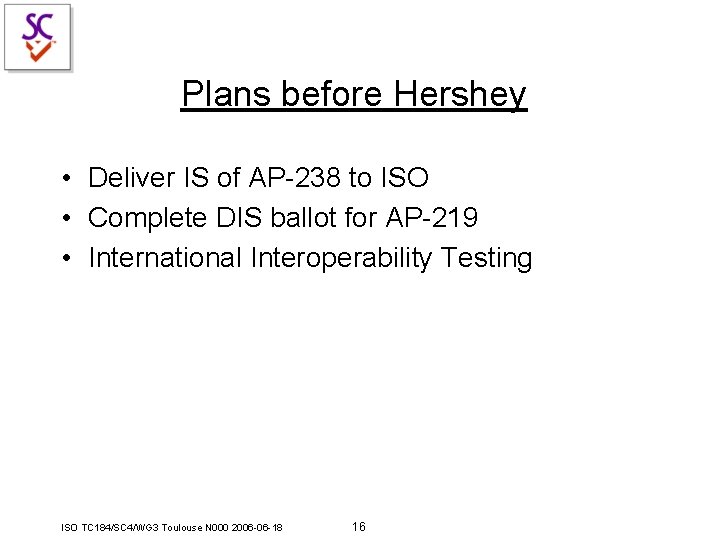

Plans before Hershey • Deliver IS of AP-238 to ISO • Complete DIS ballot for AP-219 • International Interoperability Testing ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 16

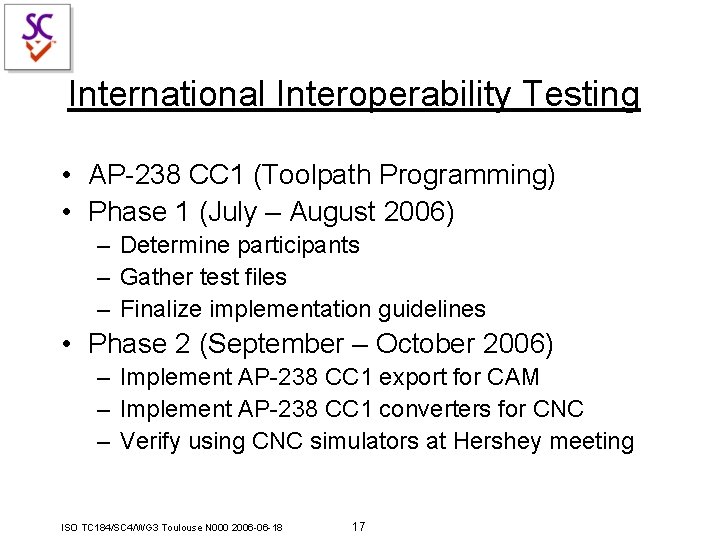

International Interoperability Testing • AP-238 CC 1 (Toolpath Programming) • Phase 1 (July – August 2006) – Determine participants – Gather test files – Finalize implementation guidelines • Phase 2 (September – October 2006) – Implement AP-238 CC 1 export for CAM – Implement AP-238 CC 1 converters for CNC – Verify using CNC simulators at Hershey meeting ISO TC 184/SC 4/WG 3 Toulouse N 000 2006 -06 -18 17
