STM 32Nano 030 KITMCU STM 32 F 0
- Slides: 13

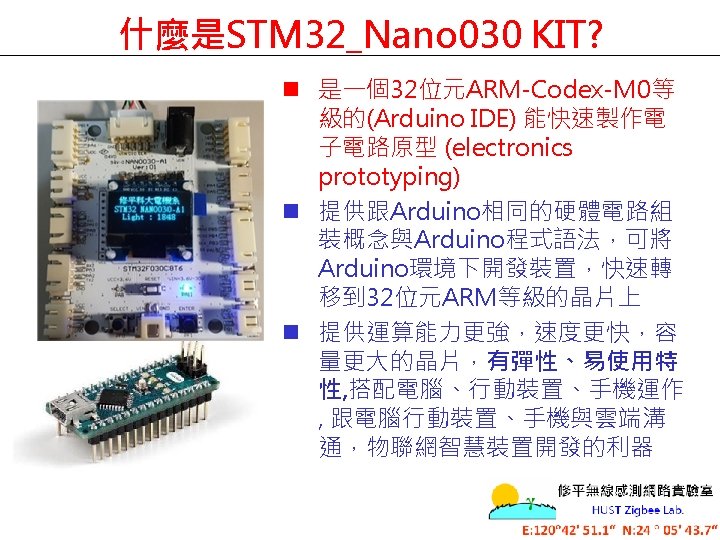

STM 32_Nano 030 KIT模組MCU核心 STM 32 F 0系列

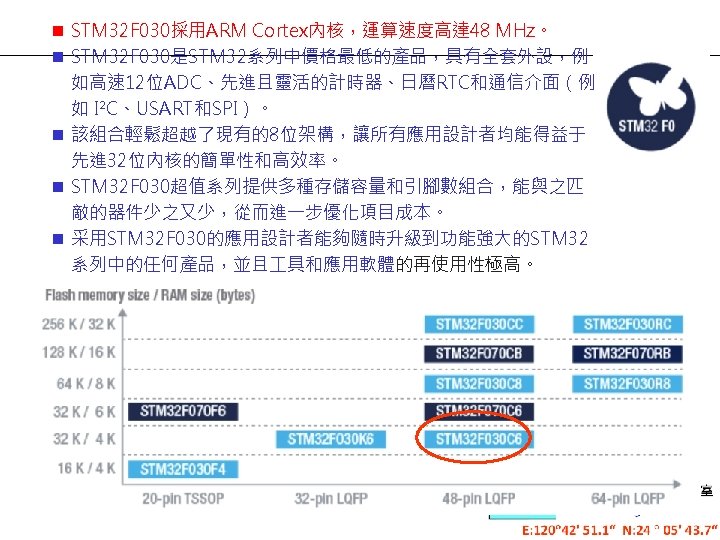

STM 32 F 030 C 8功能架構
STM 32 F 030 C 8架構
STM 32 F 030 C 8基本電路

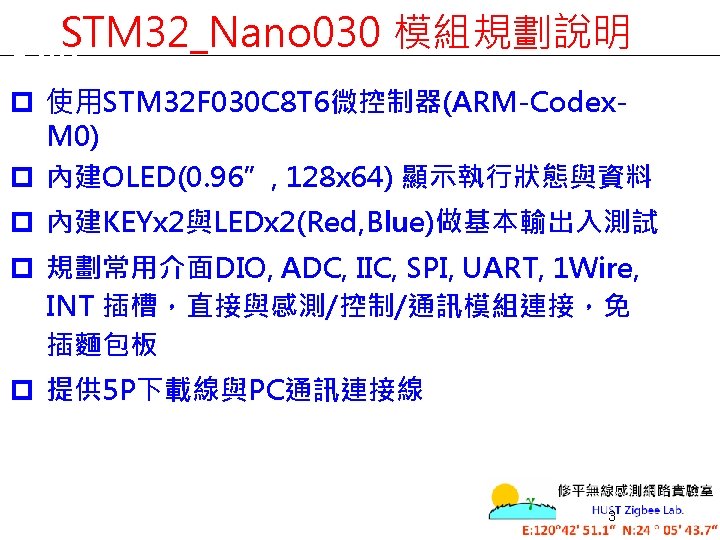

Nano. STM 32 模組架構規劃 Ｎo. 1插槽-5 PIN (5 VDIO) PA 14, PA 6, PA 7 顯示器 (OLED) PC-USB 燒錄與通訊 Ｎo. 2插槽-3 PIN (ADC/1 Wire) PA 0 Ｎo. 3插槽-4 PIN (Tx. Rx/PC) PA 9~PA 10 Ｎo. 4插槽-4 PIN (Tx. Rx/IIC) PA 2~PA 3 Ｎo. 5插槽-3 PIN (ADC/1 Wire) A 0 Ｎo. 10插槽-5 PIN (5 VDIO) D 10, D 11, D 12 Ｎo. 9插槽-4 PIN (IIC/Tx. Tx) A 4/A 5 5 V圓孔電 池插座 單晶片/MCU STM 32 F 030 C 8 T 6 LEDRED PA 8 LEDRED PA 11 Select PF 0 Enter PF 1 3 V電池插座 Ｎo. 8插槽-6 PIN (SPI) D 10~D 13 Ｎo. 7插槽-2 PIN (DIO) PB 0 Ｎo. 6插槽-2 PIN (DIO) PB 1
Nano. STM 32配置
Nano. STM 32 電路

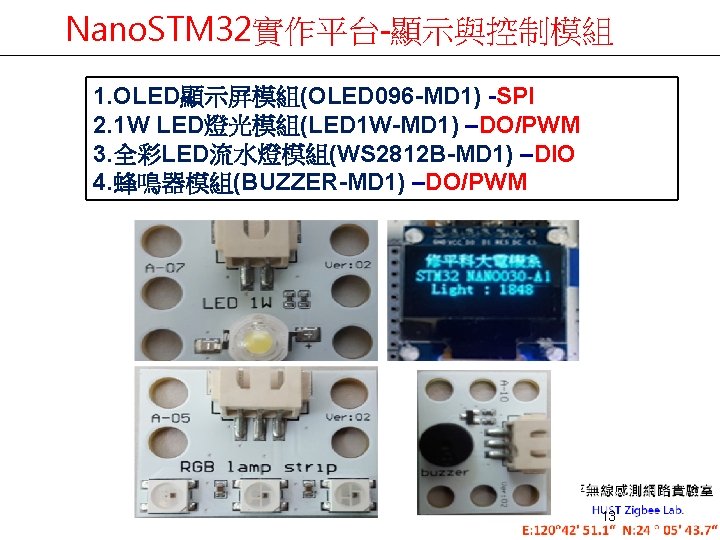

Nano. STM 32實作平台-顯示與控制模組 1. OLED顯示屏模組(OLED 096 -MD 1) -SPI 2. 1 W LED燈光模組(LED 1 W-MD 1) –DO/PWM 3. 全彩LED流水燈模組(WS 2812 B-MD 1) –DIO 4. 蜂鳴器模組(BUZZER-MD 1) –DO/PWM 13
