First STM images Phys Rev Lett 49 57
- Slides: 9
First STM images Phys. Rev. Lett. 49, 57 (1982) Phys. Rev. Lett. 50, 120 (1983)

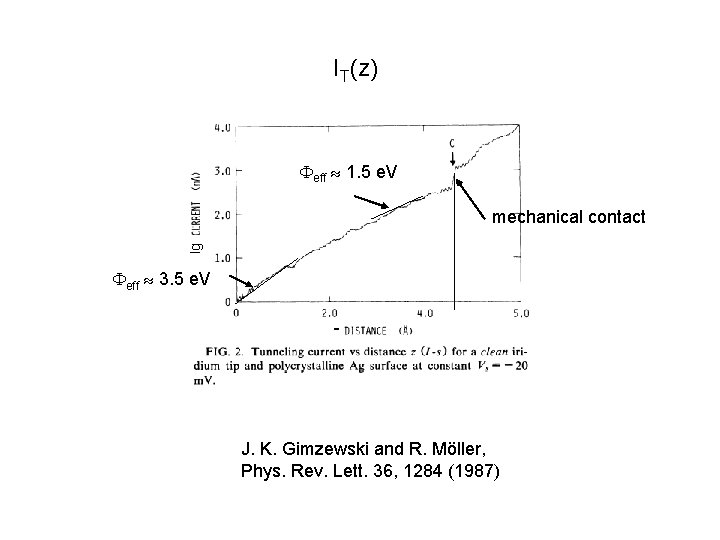

IT(z) Feff » 1. 5 e. V lg mechanical contact Feff » 3. 5 e. V - J. K. Gimzewski and R. Möller, Phys. Rev. Lett. 36, 1284 (1987)
Structural information from STM (1 x 2) missing row reconstruction on Au(110) calculated LDOS at EF T. Gritsch, D. Coulman, R. J. Behm, and G. Ertl, Surf. Sci. 257, 297 (1991) J. Tersoff. D. R. Hamann, Phys. Rev. Lett. 31, 805 (1985)
STM at semiconductors Si(111) 7 x 7 R. J. Hamers, R. M. Tromp, and J. E. Demuth, Phys. Rev. Lett. 56, 1972 (1986)
STM at close-packed metal surfaces C. J. Chen, Phys. Rev. Lett. 65, 448 (1990) D. Wang et al. , Phys. Rev. Lett. 23, 1685 (1981) J. Wintterlin et al. , Phys. Rev. Lett. 62, 59 (1989) J. V. Barth et al. , Phys. Rev. B 42, 9307 (1990)

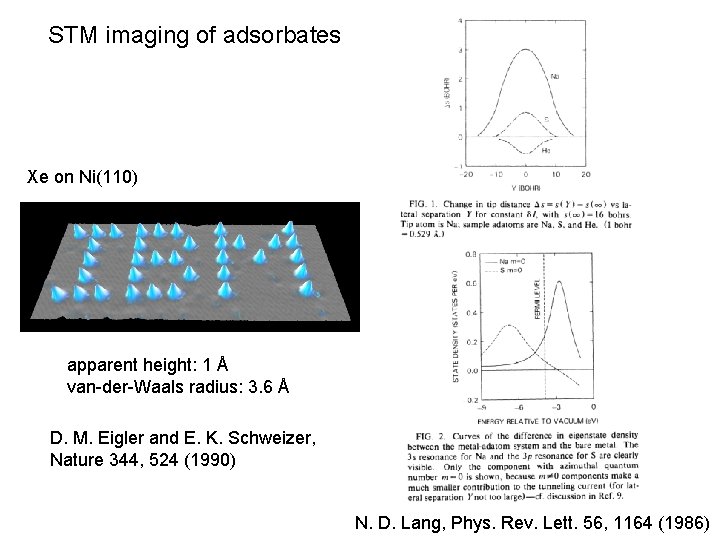

STM imaging of adsorbates Xe on Ni(110) apparent height: 1 Å van-der-Waals radius: 3. 6 Å D. M. Eigler and E. K. Schweizer, Nature 344, 524 (1990) N. D. Lang, Phys. Rev. Lett. 56, 1164 (1986)
Scanning Tunneling Spectroscopy In. As Banin et al. , Nature 400, 542 (1999) B. C. Stipe, M. A. Rezaei, and W. Ho, Phys. Rev. Lett. 82, 1724 (1999)
Atomic force microscopy T. R. Albrecht et al. , J. Vac. Soc. A 8, 3386 (1990) G. Meyer and N. M. Amer, Appl. Phys. Lett. 56, 2101 (1990)

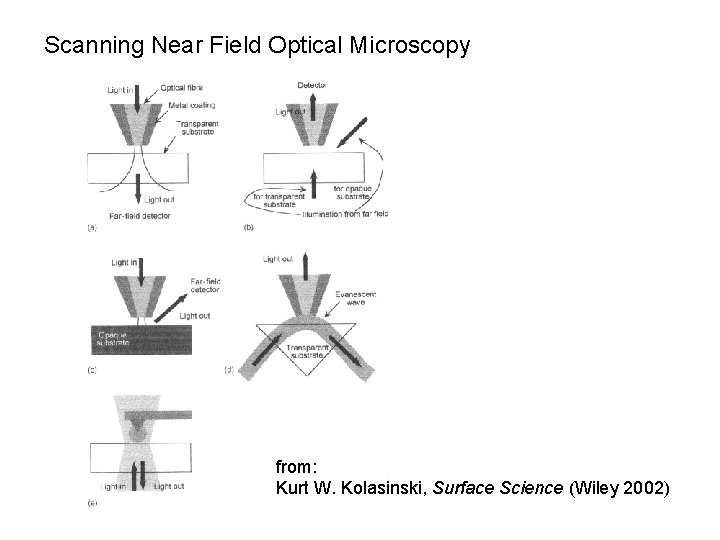

Scanning Near Field Optical Microscopy from: Kurt W. Kolasinski, Surface Science (Wiley 2002)
