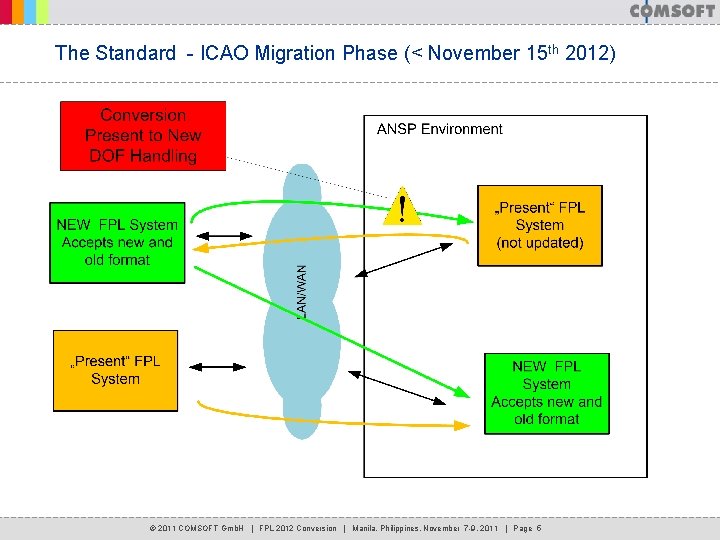

The Standard - ICAO Migration Phase (< November 15 th 2012) © 2011 COMSOFT

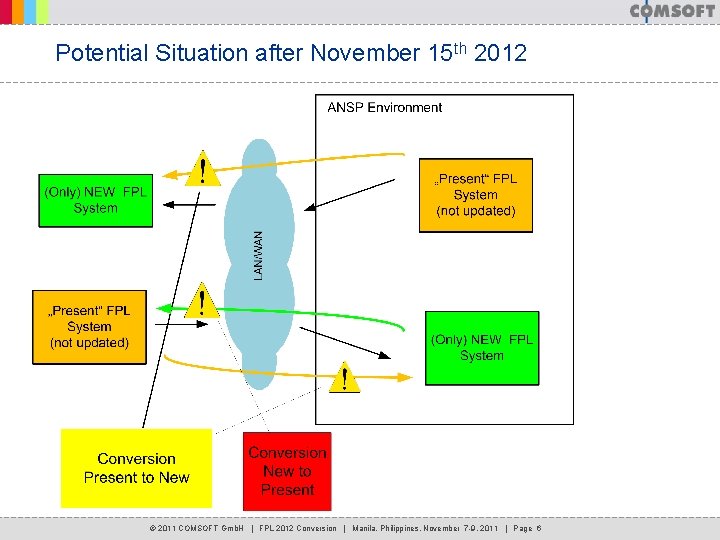

Potential Situation after November 15 th 2012 © 2011 COMSOFT Gmb. H | FPL

COMSOFT – Support of the Bidirectional Conversion New F 10 a J 1 J

Special Case of the Conversion: Date of Flight (DOF) New Format allows to file

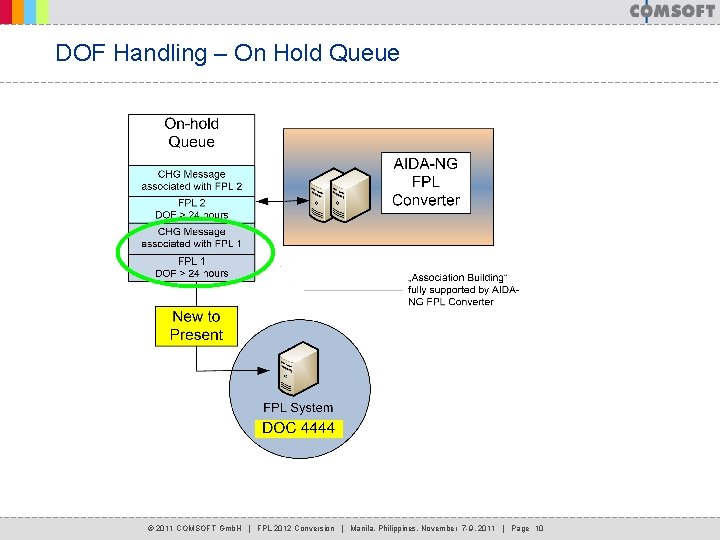

DOF Handling – On Hold Queue © 2011 COMSOFT Gmb. H | FPL 2012

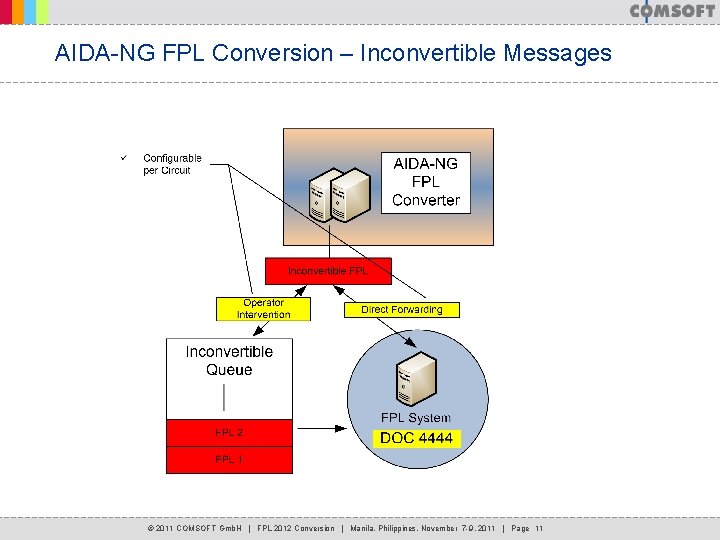

AIDA-NG FPL Conversion – Inconvertible Messages © 2011 COMSOFT Gmb. H | FPL 2012

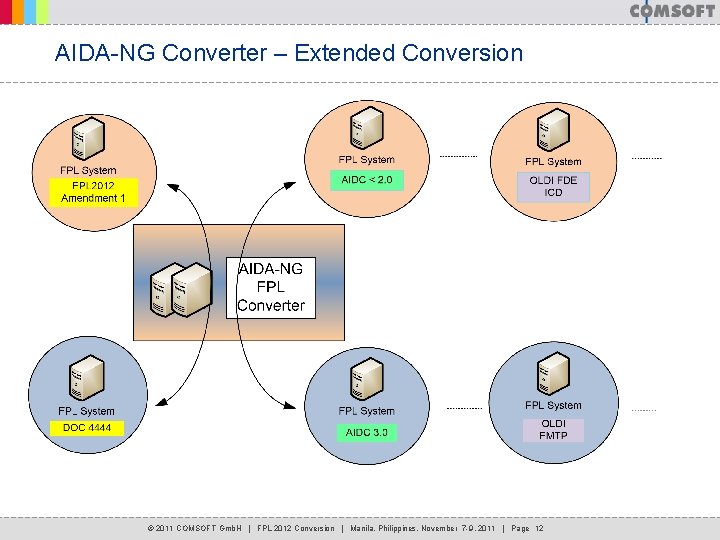

AIDA-NG Converter – Extended Conversion © 2011 COMSOFT Gmb. H | FPL 2012 Conversion

Management Framework Ø The AIDA-NG FPL Converter includes the outstanding features of COMSOFT’s Flagship

COMSOFT AIDA-FPL – The Universal Converter AIDA-FPL Flight Plan Converter üMature solution applying elaborate

References ▮ AIDA-FPL Contracted/Converter Systems in the Field ▮ ▮ ▮ United Arab Emirates

AIDA-FPL Deployment Options AIDA-FPL is an integral part of COMSOFT’s AIDA-NG AFTN/AMHS System (for

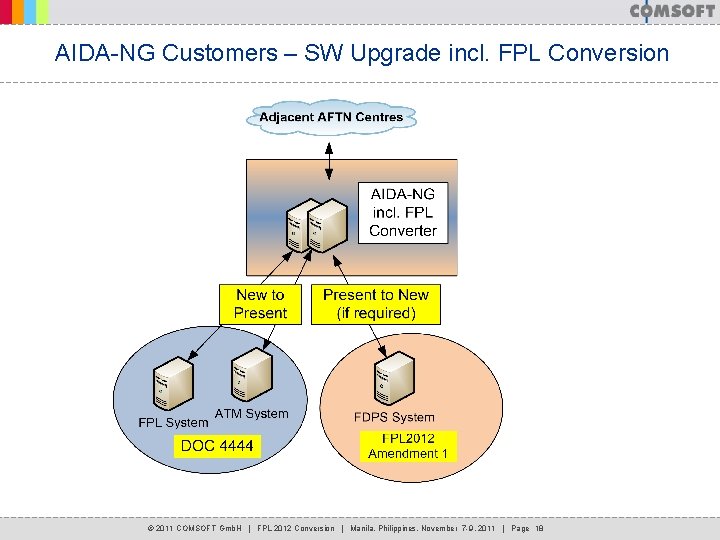

AIDA-NG Customers – SW Upgrade incl. FPL Conversion © 2011 COMSOFT Gmb. H |

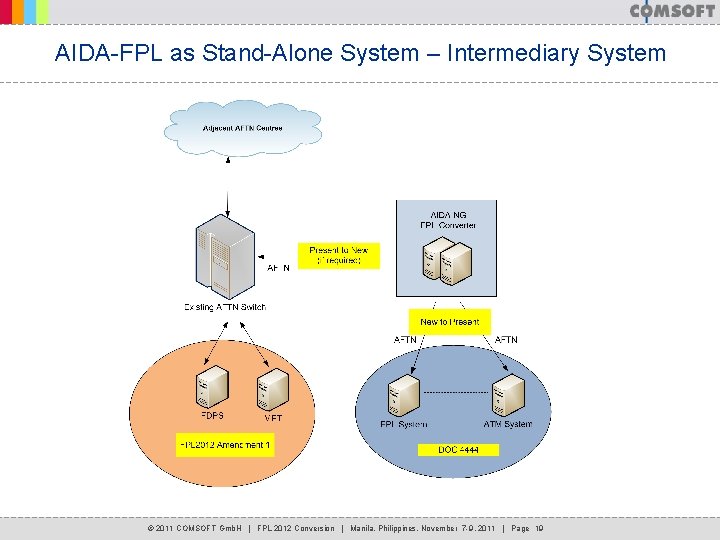

AIDA-FPL as Stand-Alone System – Intermediary System © 2011 COMSOFT Gmb. H | FPL

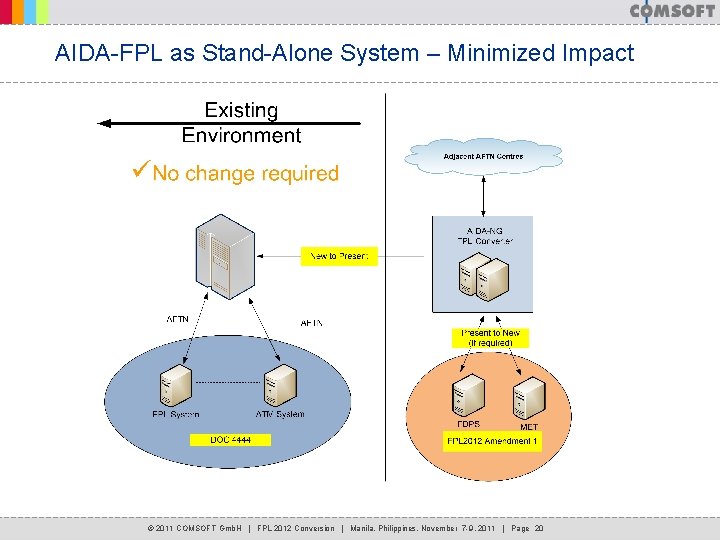

AIDA-FPL as Stand-Alone System – Minimized Impact © 2011 COMSOFT Gmb. H | FPL

© 2011 COMSOFT Gmb. H | FPL 2012 Conversion | Manila, Philippines, November 7

Your COMSOFT Resources. Uwe Kurpat uwe. kurpat@comsoft. aero +49 721 9497 2600 © 2011

Slides: 21

Download presentation

SP/7 (Revised) FPL 2012 Message Conversion and Migration COMSOFT Gmb. H 03 | 2012 AIDA-FPL 2012 Flight Plan Conversion

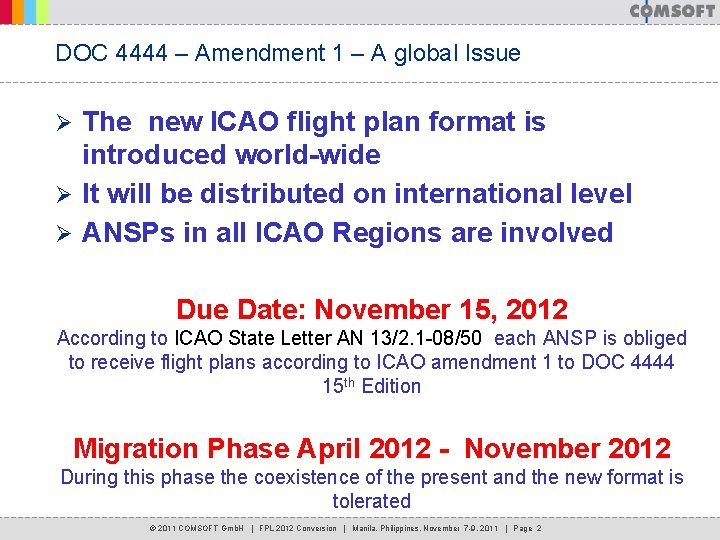

DOC 4444 – Amendment 1 – A global Issue The new ICAO flight plan format is introduced world-wide Ø It will be distributed on international level Ø ANSPs in all ICAO Regions are involved Ø Due Date: November 15, 2012 According to ICAO State Letter AN 13/2. 1 -08/50, each ANSP is obliged to receive flight plans according to ICAO amendment 1 to DOC 4444 15 th Edition Migration Phase April 2012 - November 2012 During this phase the coexistence of the present and the new format is tolerated © 2011 COMSOFT Gmb. H | FPL 2012 Conversion | Manila, Philippines, November 7 -9, 2011 | Page 2

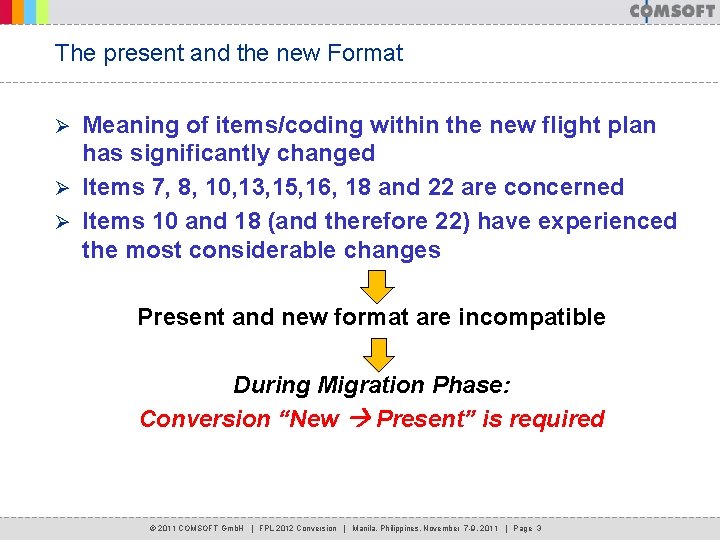

The present and the new Format Meaning of items/coding within the new flight plan has significantly changed Ø Items 7, 8, 10, 13, 15, 16, 18 and 22 are concerned Ø Items 10 and 18 (and therefore 22) have experienced the most considerable changes Ø Present and new format are incompatible During Migration Phase: Conversion “New Present” is required © 2011 COMSOFT Gmb. H | FPL 2012 Conversion | Manila, Philippines, November 7 -9, 2011 | Page 3

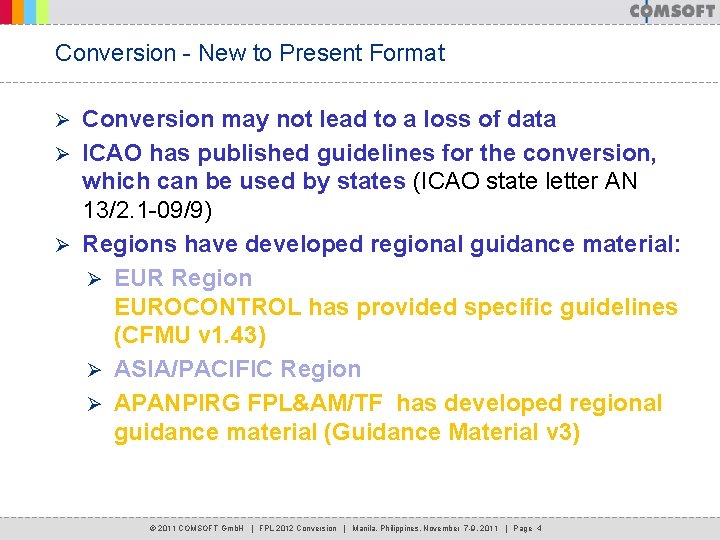

Conversion - New to Present Format Conversion may not lead to a loss of data Ø ICAO has published guidelines for the conversion, which can be used by states (ICAO state letter AN 13/2. 1 -09/9) Ø Regions have developed regional guidance material: Ø EUR Region EUROCONTROL has provided specific guidelines (CFMU v 1. 43) Ø ASIA/PACIFIC Region Ø APANPIRG FPL&AM/TF has developed regional guidance material (Guidance Material v 3) Ø © 2011 COMSOFT Gmb. H | FPL 2012 Conversion | Manila, Philippines, November 7 -9, 2011 | Page 4

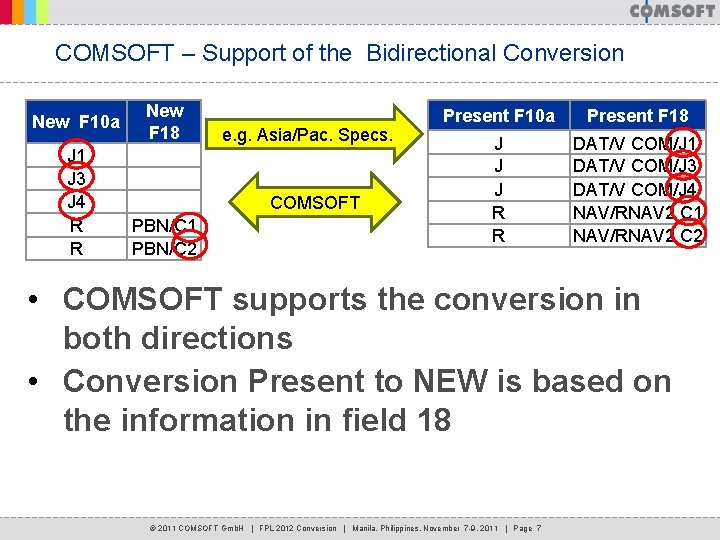

COMSOFT – Support of the Bidirectional Conversion New F 10 a J 1 J 3 J 4 R R New F 18 e. g. Asia/Pac. Specs. COMSOFT PBN/C 1 PBN/C 2 Present F 10 a Present F 18 J J J R R DAT/V COM/J 1 DAT/V COM/J 3 DAT/V COM/J 4 NAV/RNAV 2 C 1 NAV/RNAV 2 C 2 • COMSOFT supports the conversion in both directions • Conversion Present to NEW is based on the information in field 18 © 2011 COMSOFT Gmb. H | FPL 2012 Conversion | Manila, Philippines, November 7 -9, 2011 | Page 7

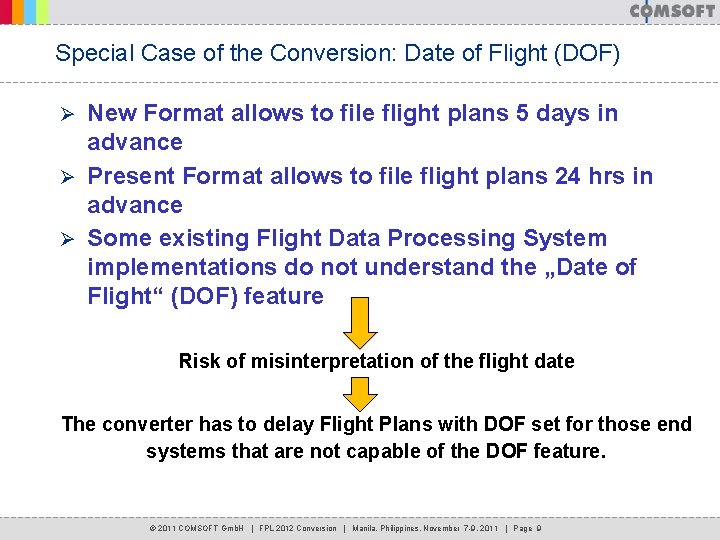

Special Case of the Conversion: Date of Flight (DOF) New Format allows to file flight plans 5 days in advance Ø Present Format allows to file flight plans 24 hrs in advance Ø Some existing Flight Data Processing System implementations do not understand the „Date of Flight“ (DOF) feature Ø Risk of misinterpretation of the flight date The converter has to delay Flight Plans with DOF set for those end systems that are not capable of the DOF feature. © 2011 COMSOFT Gmb. H | FPL 2012 Conversion | Manila, Philippines, November 7 -9, 2011 | Page 8

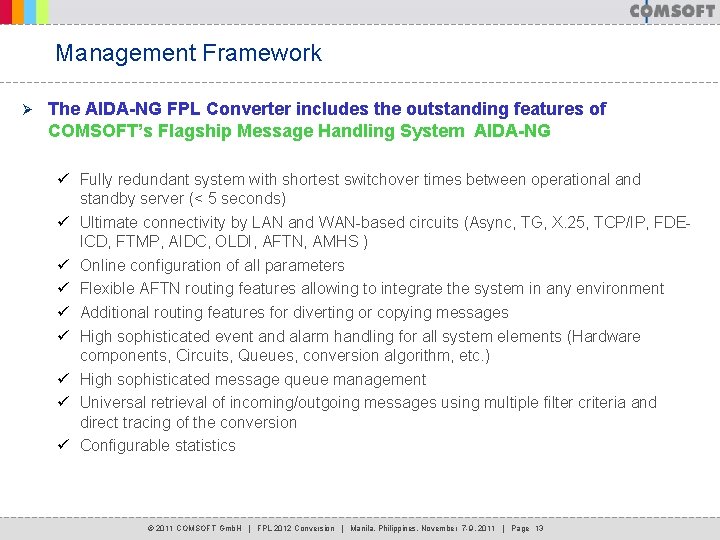

Management Framework Ø The AIDA-NG FPL Converter includes the outstanding features of COMSOFT’s Flagship Message Handling System AIDA-NG ü Fully redundant system with shortest switchover times between operational and standby server (< 5 seconds) ü Ultimate connectivity by LAN and WAN-based circuits (Async, TG, X. 25, TCP/IP, FDEICD, FTMP, AIDC, OLDI, AFTN, AMHS ) ü Online configuration of all parameters ü Flexible AFTN routing features allowing to integrate the system in any environment ü Additional routing features for diverting or copying messages ü High sophisticated event and alarm handling for all system elements (Hardware components, Circuits, Queues, conversion algorithm, etc. ) ü High sophisticated message queue management ü Universal retrieval of incoming/outgoing messages using multiple filter criteria and direct tracing of the conversion ü Configurable statistics © 2011 COMSOFT Gmb. H | FPL 2012 Conversion | Manila, Philippines, November 7 -9, 2011 | Page 13

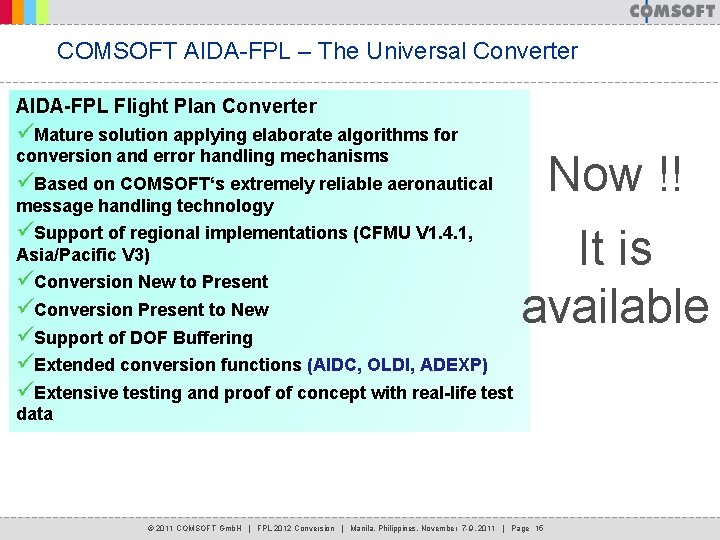

COMSOFT AIDA-FPL – The Universal Converter AIDA-FPL Flight Plan Converter üMature solution applying elaborate algorithms for conversion and error handling mechanisms Now !! üBased on COMSOFT‘s extremely reliable aeronautical message handling technology üSupport of regional implementations (CFMU V 1. 4. 1, Asia/Pacific V 3) üConversion New to Present üConversion Present to New üSupport of DOF Buffering üExtended conversion functions (AIDC, OLDI, ADEXP) üExtensive testing and proof of concept with real-life test It is available data © 2011 COMSOFT Gmb. H | FPL 2012 Conversion | Manila, Philippines, November 7 -9, 2011 | Page 15

References ▮ AIDA-FPL Contracted/Converter Systems in the Field ▮ ▮ ▮ United Arab Emirates Egypt Georgia Trinidad/Tobago Australia Bosnia/Herzegowina Morocco Saudi Arabia Singapore Switzerland France Qatar © 2011 COMSOFT Gmb. H | FPL 2012 Conversion | Manila, Philippines, November 7 -9, 2011 | Page 16

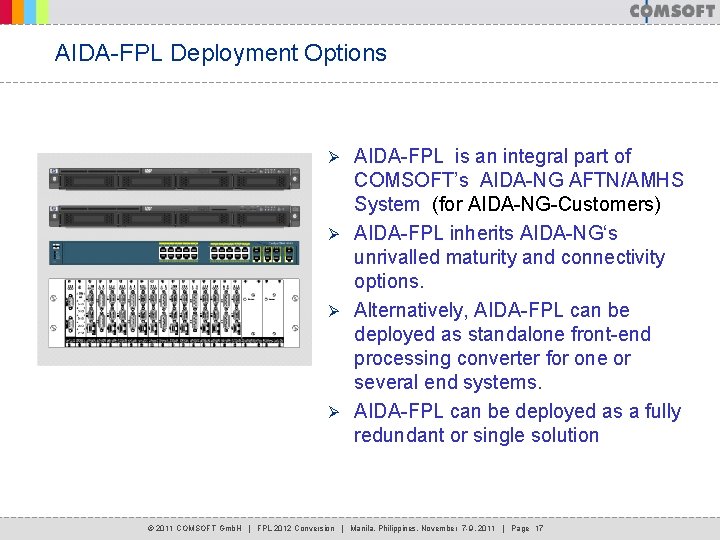

AIDA-FPL Deployment Options AIDA-FPL is an integral part of COMSOFT’s AIDA-NG AFTN/AMHS System (for AIDA-NG-Customers) Ø AIDA-FPL inherits AIDA-NG‘s unrivalled maturity and connectivity options. Ø Alternatively, AIDA-FPL can be deployed as standalone front-end processing converter for one or several end systems. Ø AIDA-FPL can be deployed as a fully redundant or single solution Ø © 2011 COMSOFT Gmb. H | FPL 2012 Conversion | Manila, Philippines, November 7 -9, 2011 | Page 17
