SOLAR Products

SOLAR Products

SOLAR: Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Serial example Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Serial example Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Junction Boxes • Description: Junction Boxes are the initial connection to a PV

SOLAR: Junction Boxes • Description: Junction Boxes are the initial connection to a PV (Photovoltaic) panel. They bring the DC current to modules that convert DC to AC. • Customers: PV panel OEM’s and Installers • Applications: PV panels. • Key Features: Std versions (2 -6 rail) and customs. Serial and parallel configurations. Variable wiring options. Innovative foil termination method to PV panel. Simple, fast and cost effective assembly. Meets UL 1703. 6 -rail • Literature: 3 -1773458 -7 Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute 3 -rail

SOLAR: Decentralized 2 -rail Junction Box • Description: Three pieces: + plus j-box, -

SOLAR: Decentralized 2 -rail Junction Box • Description: Three pieces: + plus j-box, - neg jbox and a middle j-box w/o connection. • Customers: PV panel OEM’s and Installers • Applications: PV panel connection. • Key Features: New innovative layouts are possible due to separation of the diodes into independent housings. Reduces the amount of cable lead length resulting in cost savings. Low profile. Requires 50% less jumper cable. • Literature: 9 -1773457 -2 Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Slim 2 -rail Junction Box • Description: 2 -rail junction box assembly which

SOLAR: Slim 2 -rail Junction Box • Description: 2 -rail junction box assembly which includes the cable and connectors • Customers: PV panel OEM’s and Installers • Applications: PV panel connection. • Key Features: Slim size. It’s only 52 mm wide and 15. 5 mm high. No potting. No soldering – uses spring clamp design to terminate to foils. TUV approved and UL pending. • Literature: 7 -1773458 -3 Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Straddle Edge 2 -rail Junction Box • Description: 2 -rail junction box assembly

SOLAR: Straddle Edge 2 -rail Junction Box • Description: 2 -rail junction box assembly designed to be mounted at the edge of the PV panel. • Customers: PV panel OEM’s and Installers • Applications: PV panel connection. • Key Features: One of the smallest edge mount j -boxes in the market. Connectorized for easy field installation. • Literature: 9 -1773457 -4 Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Compact Medium 4 -rail Junction Box • Description: 4 -rail junction box designed

SOLAR: Compact Medium 4 -rail Junction Box • Description: 4 -rail junction box designed for soldering and potting of the foil leads to the PV panel. • Customers: PV panel OEM’s and Installers • Applications: PV panel connection. • Key Features: Low profile. Isolated foil contact rails. Solder and potting technique • Literature: 9 -1773457 -3 Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Residential Combiner Box • Description: Combines multiple strings of PV panels into one

SOLAR: Residential Combiner Box • Description: Combines multiple strings of PV panels into one box. • Customers: PV panel, Combiner Box, Charge Controller and/or Inverter OEM’s and Installers • Applications: Combines multiple strings pf PV panels into one box. • Key Features: Combines up to 5 separate strings (12 - in Dev) and 1 grounding string. Includes fuse holders. Uses TE Solarlok connectors. UL pending. • Literature: Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Solarlok Connectors • Description: High voltage and high current connectors for PV Photovoltaic)

SOLAR: Solarlok Connectors • Description: High voltage and high current connectors for PV Photovoltaic) systems. • Customers: PV panel, Combiner Box, Charge Controller and/or Inverter OEM’s and Installers PV Panel connectors • Applications: Connections between the panels, inverters and grids/batteries. • Key Features: High voltage and high current. UV and IP 67 water resistant. Meets UL 1703. Short circuit prevention with polarized coupler. Silver plated contact to preserve high quality low resistance conductivity. Finger safe. Inverter connectors • Literature: 3 -1773458 -7 T-Branch connectors Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Cable and Cable Assemblies • Description: Special Cable is needed for the PV

SOLAR: Cable and Cable Assemblies • Description: Special Cable is needed for the PV (Photovoltaic) industry. • Customers: PV panel, Combiner Box, Charge Controller and/or Inverter OEM’s and Installers • Applications: Connections between the panels, inverters and grids/batteries. • Key Features: Two types: PV and USE 2. UV, abrasion and water resistant. UL listings E 317230 and E 314123 (USE 2) Available in: 2. 5 mm² (exceeds 14 AWG) 4. 0 mm² (exceeds 12 AWG) 6. 0 mm² (exceeds 10 AWG) • Literature: 3 -1773458 -7 Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Cable and Cable Assemblies PV wire Type USE 2 cable Evaluation Standard Subject

SOLAR: Cable and Cable Assemblies PV wire Type USE 2 cable Evaluation Standard Subject 4703 UL 854 CCN ZKLA TYLZ Voltage 600, 1000 or 2000 V 600 V only Temperature 90~150ºC dry 90ºC wet Conductor size 14 ~4/0 AWG 14 AWG ~2000 kcmil Conductor material Stranded Cu Cu, CCA, Al Number of conductors Single-conductor Construction without jacket √ √ Construction with jacket √ √ Physical properties (unaged and air oven aged) √ √ Sunlight resistance 720 hrs 300 hrs Crushing resistance test X √ Impact test X √ Overload test X √ Flexibility at low temperature - 40ºC - 25ºC Capacitance and relative permittivity Insulation resistance (long-term in water for 90ºC wet rating) √ √ Insulation resistance (long-term in air for 105~150ºC dry rating) √ - Dielectric withstand test √ √ Flame test Vertical flame test (mandatory), VW-1 flame test (opt) X Ratings Construction Critical Test Program Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Sol. Klip & Sol. Klamp Grounding • Description: NEC requires each module to

SOLAR: Sol. Klip & Sol. Klamp Grounding • Description: NEC requires each module to be independently & continuously grounded. Sol. Klip • Customers: PV panel, Combiner Box, Charge Controller and/or Inverter OEM’s and Installers • Applications: Connections between the panels, inverters and grids/batteries. • Key Features: Sol. Klip is IDC termination for 10 or 12 awg. Sol. Klamp is bolt tightning termination for 6 to 12 awg. • Literature: 2 -1773447 -2 Sol. Klip Grounding 8 -1773454 -6 Sol. Klamp Grounding Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute Sol. Klamp

SOLAR: Labels • Description: High performance labels specific to this industry. • Customers: PV

SOLAR: Labels • Description: High performance labels specific to this industry. • Customers: PV panel, Combiner Box, Charge Controller and/or Inverter OEM’s and Installers • Applications: Labels used on PV products. For use on painted smooth and textured metal surfaces. • Key Features: Designed to meet extreme outdoor exposure. Ultraviolet (UV) resistant ink, permanent acrylic adhesive and base material. Reflective marking to provide emergency responders with appropriate warning and guidance. Requirement of UL 1703, NEC, and local municipalities. UL 969 approved. • Literature: 1 -1773449 -6 Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

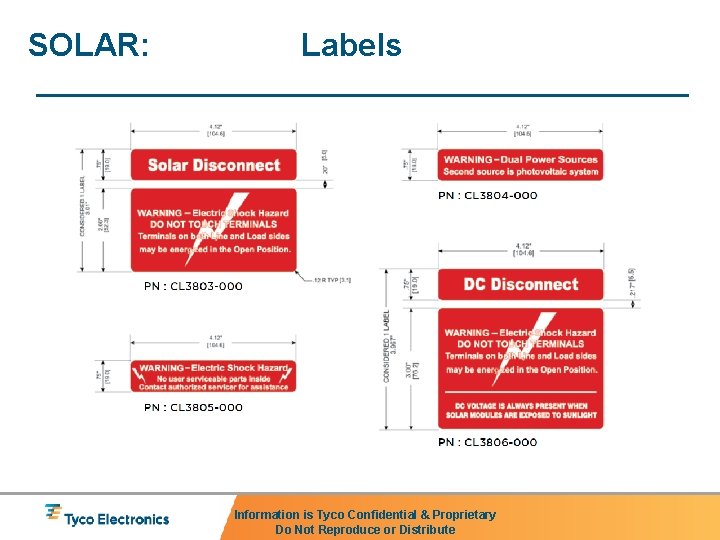

SOLAR: Labels Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Labels Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Labels Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Labels Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Literature 3 -1773458 -7 3 -1773458 -6 Solarlok for PV Mfg Solarlok for

SOLAR: Literature 3 -1773458 -7 3 -1773458 -6 Solarlok for PV Mfg Solarlok for PV Installers 9 -1773457 -2 7 -1773458 -3 9 -1773457 -4 9 -1773457 -3 pending 3 -1773458 -7 2 -1773447 -2 8 -1773454 -6 1 -1773449 -6 Decentralized 2 -rail J-box Slim 2 -rail J-box Straddle Edge 2 -rail J-box Compact Med 4 -rail J-box Residential Combiner Box Solarlok Connectors Cable and Cable Ass’ys Sol. Klip Grounding Sol. Klamp Grounding Labels Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute

SOLAR: Website www. tycoelectronics/solar Information is Tyco Confidential & Proprietary Do Not Reproduce or

SOLAR: Website www. tycoelectronics/solar Information is Tyco Confidential & Proprietary Do Not Reproduce or Distribute
