RENATER The National Research and Education Network in France Dany. Vandromme@renater. fr www. renater. fr GRID@LARGE Workshop, Lisbon, 29 -30 August 2005 1
The network infrastructure • Based on ~30 Points of Presence (NR) in mainland France • 7 Points of Presence overseas (worldwide) • Backbone infrastructure provided by several telcos (CEGETEL, France Telecom, Level 3, 9 Telecom) • WDM lightpaths and dark fibres • A unique NMS provider: Communications & Systems (CS) GRID@LARGE Workshop, Lisbon, 29 -30 August 2005 2
The network infrastructure • 2 components • IP routed on a meshed architecture provided by telcos lightpaths • Switched lightpaths produced by RENATER from leased dark fibres GRID@LARGE Workshop, Lisbon, 29 -30 August 2005 3
The network infrastructure • IP routed • Nodes equipments are routers to interconnect WDM circuits • Dual stack IPv 4/IPv 6 + multicast (v 4 and v 6) + MPLS • VPN capabilities: CNES, DEISA, GRID 5000, etc… GRID@LARGE Workshop, Lisbon, 29 -30 August 2005 4
Infrastructure: RENATER-4 Corte GRID@LARGE Workshop, Lisbon, 29 -30 August 2005 5
Infrastructure: RENATER-3 SYRHANO+ VIKMAN MEGALIS NOROPALE PICARDIE RELIER Lille Rouen Compiègne Caen Paris Nantes Orléans SRHD RECIA Clermont. Ferrand Limoges Bordeaux ESRA DOM - TOM Nancy Dijon MEGALIS Poitiers ASTER+REMIP Toulouse. 2. 4 Gbit/s CLONYS 155 Mbit/s Besançon E-BELIN CRATERE Lyon AMPLIVIA+RMU Sophia Marseille Alsace 622 Mbit/s Grenoble Montpellier Pau LOTHAIRE Strasbourg Reims Rennes TELEMUS AMPLIVIA+TIGRE RRHD+CNRS-UNSA CORSE Corte R 3 LR RRHD+ PHOCEAN GRID@LARGE Workshop, Lisbon, 29 -30 August 2005 6

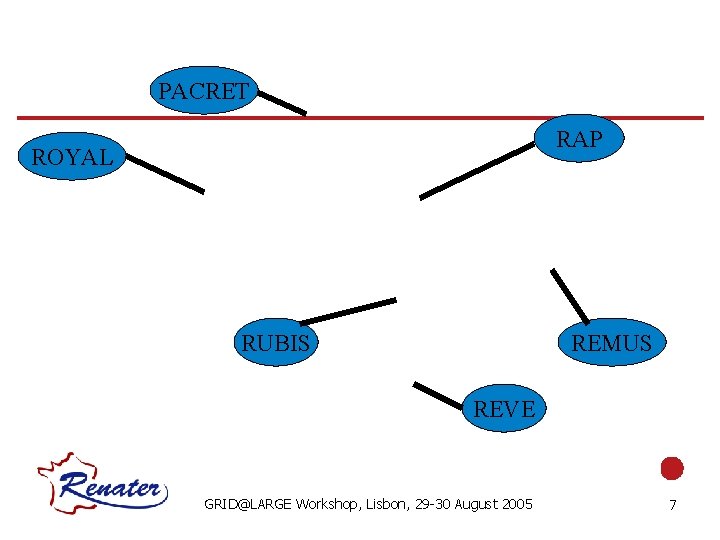

PACRET RAP ROYAL RUBIS REMUS REVE GRID@LARGE Workshop, Lisbon, 29 -30 August 2005 7

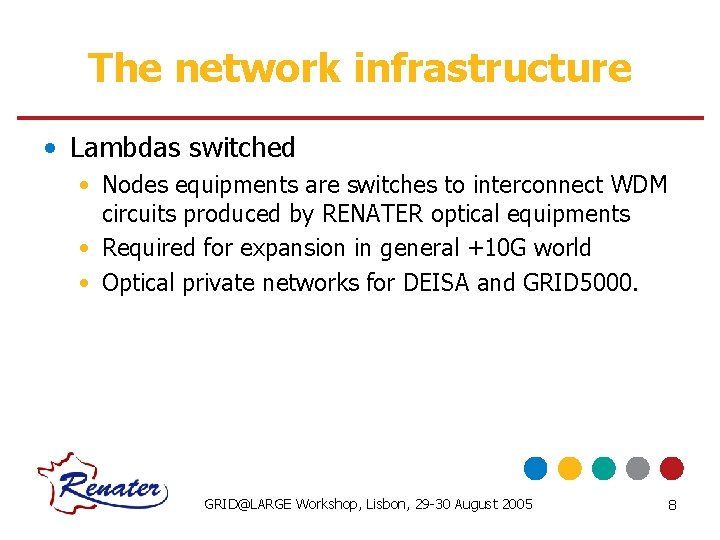

The network infrastructure • Lambdas switched • Nodes equipments are switches to interconnect WDM circuits produced by RENATER optical equipments • Required for expansion in general +10 G world • Optical private networks for DEISA and GRID 5000. GRID@LARGE Workshop, Lisbon, 29 -30 August 2005 8
R 4: Project infrastructure Lille Rouen Caen Compiègne Reims Paris Strasbourg Nancy Rennes Dijon Orléans Nantes Besançon Poitiers Cern Clermont Lyon Limoges Grenoble Bordeaux Toulouse Pau Nice Montpellier Marseille Corte Espagne GRID@LARGE Workshop, Lisbon, 29 -30 August 2005 9
END OF PRESENTATION ? Questions GRID@LARGE Workshop, Lisbon, 29 -30 August 2005 10
