Processor Architecture Kieran Mathieson

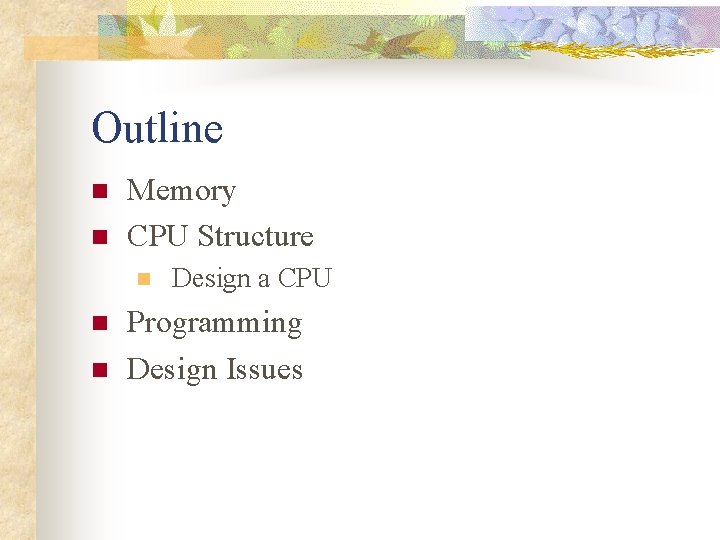

Outline n n Memory CPU Structure n n n Design a CPU Programming Design Issues

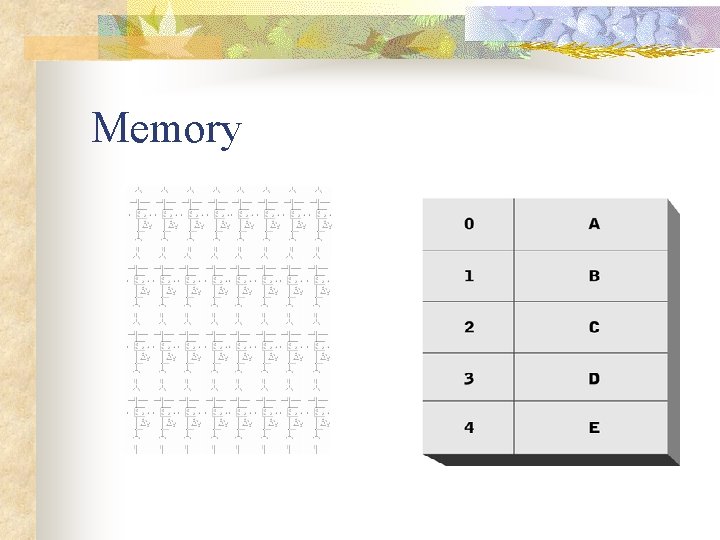

Memory

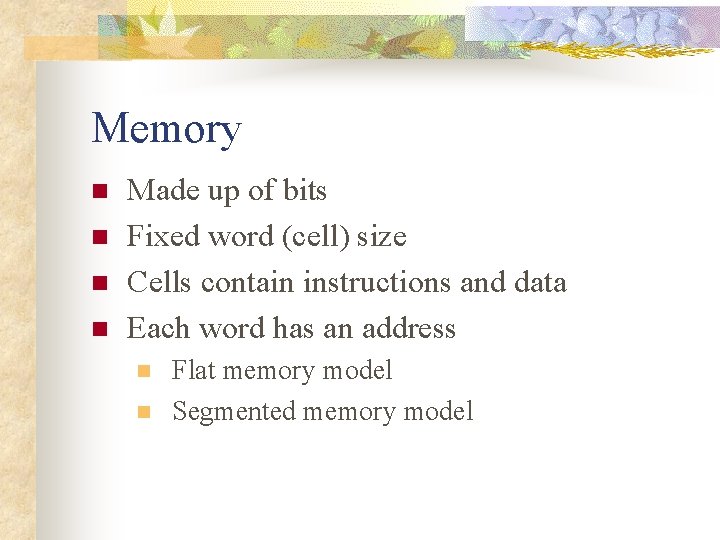

Memory n n Made up of bits Fixed word (cell) size Cells contain instructions and data Each word has an address n n Flat memory model Segmented memory model

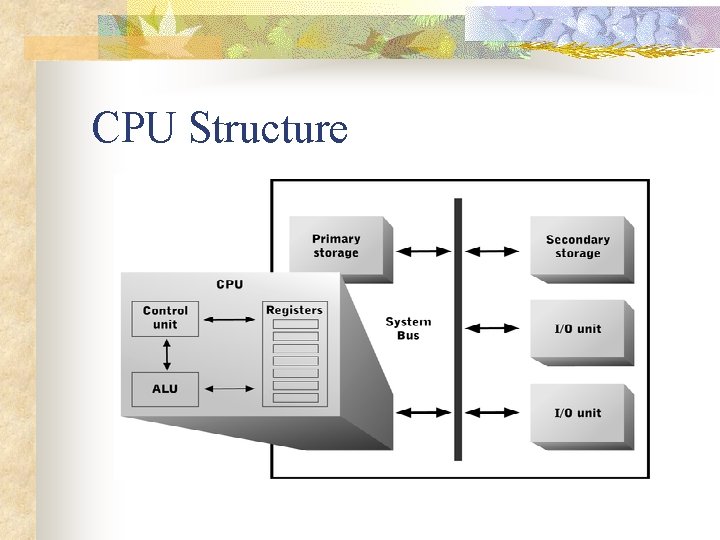

CPU Structure

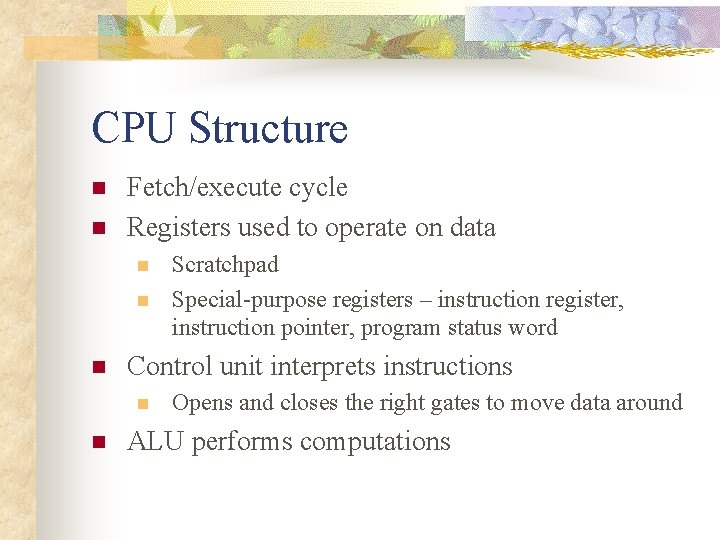

CPU Structure n n Fetch/execute cycle Registers used to operate on data n n n Control unit interprets instructions n n Scratchpad Special-purpose registers – instruction register, instruction pointer, program status word Opens and closes the right gates to move data around ALU performs computations

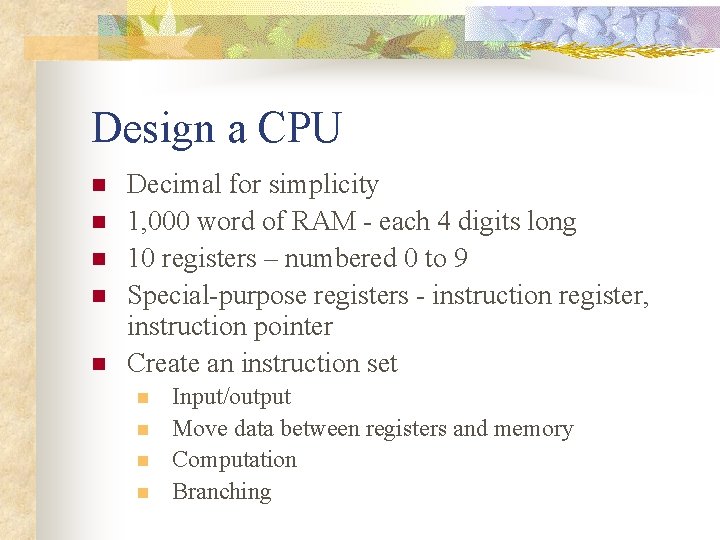

Design a CPU n n n Decimal for simplicity 1, 000 word of RAM - each 4 digits long 10 registers – numbered 0 to 9 Special-purpose registers - instruction register, instruction pointer Create an instruction set n n Input/output Move data between registers and memory Computation Branching

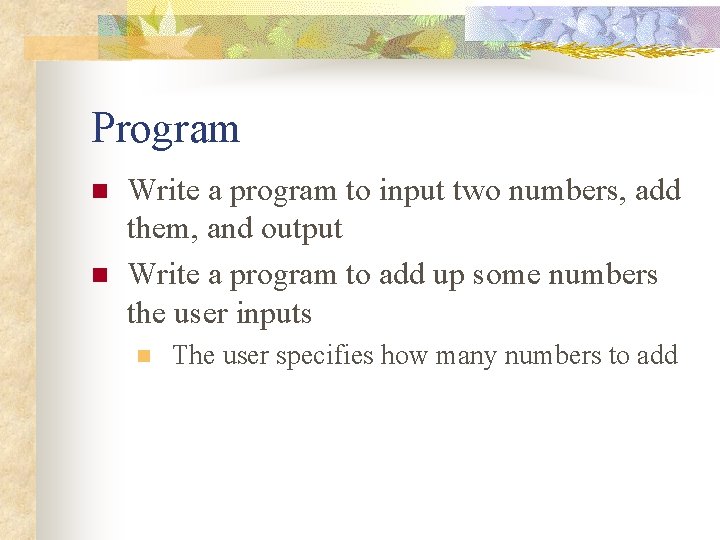

Program n n Write a program to input two numbers, add them, and output Write a program to add up some numbers the user inputs n The user specifies how many numbers to add

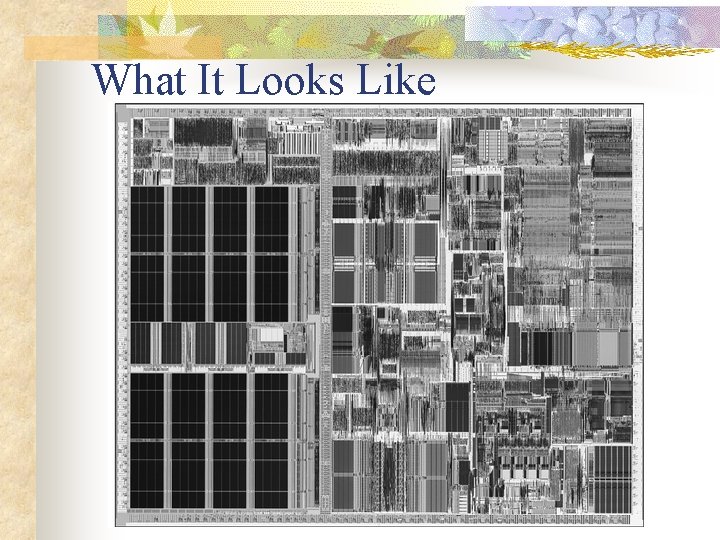

What It Looks Like

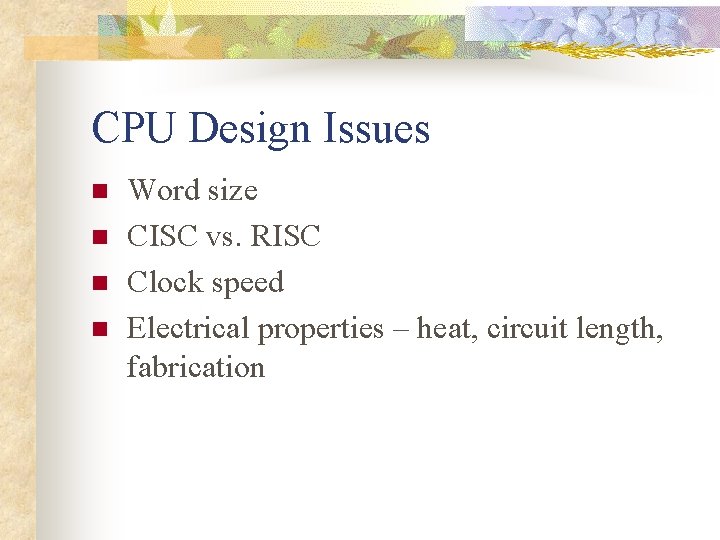

CPU Design Issues n n Word size CISC vs. RISC Clock speed Electrical properties – heat, circuit length, fabrication

Outline n n Memory CPU Structure n n n Design a CPU Programming Design Issues
