Powr Port HIMA DEIGN Powr Port View of

Powr Port HIMA DEIGN

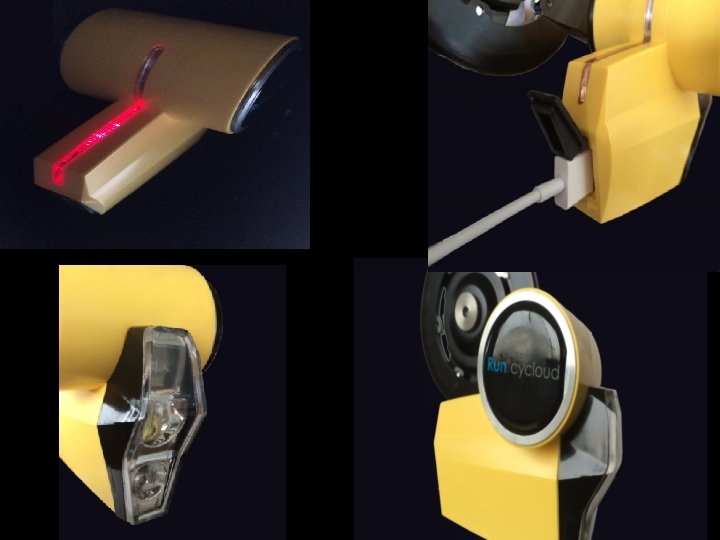

Powr Port View of Powr. Port HIMA DSIGN

Powr Port Feature of Powr. Port(PL 102) • Best choice of green power bicycle Light. • High-efficiency generator (5 VDC 4 Watts). The electronic appliance on bike gets power as you pedal. Don't need to worry about power discontinuity. • High power LED of front Headlight provides bright light for night ride. • Taillight warns the car behind and ensures the ride safety. • Wireless design. Eliminate wire problem of ageing or interference • Dynamo completely separate from wheel. Rider does not feel extra resistance. • Water proof to ensure the electronic components function. • Light weight Design: Dynamo+Front Light+Tail Light+Charger =465 g only.

Powr Port Feature of Powr. Port(PL 302) Beside the PL 102 features, PL 103 has APP 5. APP 1)Blue tooth Speedometer 2)Distance calculation 3)Body fat calculation 4)Charging watts display 5)Heart rate display 6)GPS include 7) Padometer function 8) Course record 9) Watt competitiom ranking 10) ID binding 11)Apple Watch Applicable

Powr Port

Powr Port

Powr Port

Powr Port Generator Rotor Gear set Clutch plate How Powr. Port works? Powr. Port is driven by wheel spokes. Set the “clutch plate” in-between spokes which is in the direction as per photo, it will actuate the generator. Set “clutch plate” at reverse direction, the dynamo is separated from front wheel, thus gain no power. What it does is the spokes drive “clutch plate”, thus spin the gear set. The gear set drives generator rotor to turn. Consequently, it generate power. This power can supply the electricity to all electric appliance.

Powr Port Nd. Fe. B permanent magnetic Ball Bearing Generator Armature Generator Rotor Ball Bearing The generator uses Nd. Fe. B magnets and has high efficiency. It requires little resistance to pedal. It generates 4 watts at low speed of 15 km/h making rider more comfortable. The ball bearings greatly enhance smooth motion substantially and increase generator life.

Powr Port Power Table

Powr Port During riding, this dynamo device not only provides 5 VDC 500 m. A to the mobile， camera, MP 3, GPS, but also can charge these electronics appliances。

Powr Port Common Q&A • • • Q: How many lumens A: 110 lumens Q: Power output A: DC 5 plus or minus 5%Volt Q: How many speed to charge the light and mobile phone? A: It can charge light and mobile phone about 11 miles and charge light about 4 miles on 26 inch wheel. If the speed maintain to 11 mile, about 2 to 3 hours the battery of mobile phone can fully charged. • Q: The speed limitation • A: The speed limitation of this device is 32 miles.

Powr Port Please contact to me： Mobile：+86 -13776288866 E-mail：cjansen 66@powerplusco. com Jansen Chang THANK YOU
