Piling Codes in Finland Design Code for Driven

Piling Codes in Finland Design Code for Driven Piles (LPO) Design Code for High Capacity Piles Design Code for Steel Micropiles • LPO-87 (wooden, concrete, steel) • Updating started 2002, ready 2004 • New version will only deal with precast concrete and wooden piles • SPO-2001 (RIL 212 -2001) • D>300 mm and capacity >1, 5 MN • Bored, steel pipe, Vibrex-, Franki- and "onion" piles • Code not available • Steel piles 60 mm<D<300 mm • RR, RD-, RS-, CSG and jacked piles • Titan- ja Mai-piles w codes would cover the most commonly used pile types in Finland (excluding CFA and D>300 m SFS-EN 1536 Bored Piles pr. EN 14199 Micro Piles SFS-EN 12699 Displacement Piles pr. EN 12794 Precast Concrete Piles Steel pipe piles (TIEL 2173448 E-99) Drilled steel piles (TIEH 2000002 -01) Handbook for RR-piling Design and execution of CSG-piles Instructions for jacked piles (draft) Steel Pipe Piles in Railway Bridges (VR) 1 22. 09. 2003 Pasi Korkeakoski

2 22. 09. 2003 Pasi Korkeakoski SBA Building / S. Eronen 3. 10. . 2002 2

Instructions for Drilled Piling Design and execution guide Table of contents 1 Piles Covered By Instructions Andrequirements Of Piling Site 2 Status Of Instructions 3 Definition 4 Required Piling Documentation 5 Ground Investigations 6 Pile Materials And Reinforcements 7 Design 8 Piling Work 9 Quality Control And Measurements 10 Documentation Of The Piling Work 11 Labour Protection And Environmental Control 3 22. 09. 2003 Pasi Korkeakoski

Instructions for Drilled Piling Design and execution guide 7 DESIGN 7. 1 General 7. 2 Tasks Included in the Design 7. 3 Limit States and Dimensioning Mechanisms to Be Considered 7. 4 Geotechnical Design of Piles 7. 5. Structural Design 7. 6 Position of Piles 7. 7 Drilling of Piles 7. 8 Reinforcement 4 22. 09. 2003 Pasi Korkeakoski

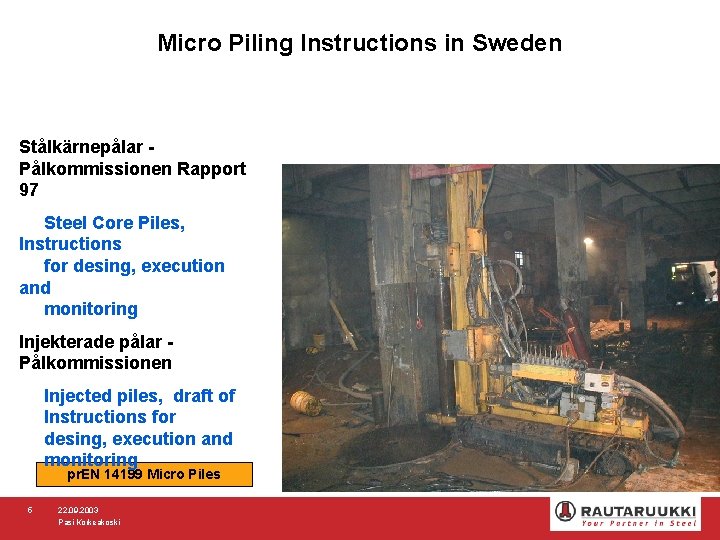

Micro Piling Instructions in Sweden Stålkärnepålar Pålkommissionen Rapport 97 Steel Core Piles, Instructions for desing, execution and monitoring Injekterade pålar Pålkommissionen Injected piles, draft of Instructions for desing, execution and monitoring pr. EN 14199 Micro Piles 5 22. 09. 2003 Pasi Korkeakoski
