MPEG 4 Shaojie Zhang Anjum Gupta Dept. of Computer Science and Engineering

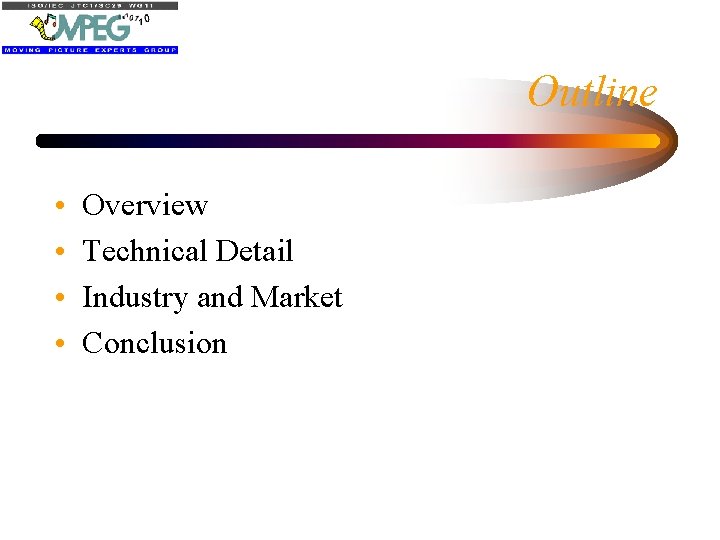

Outline • • Overview Technical Detail Industry and Market Conclusion

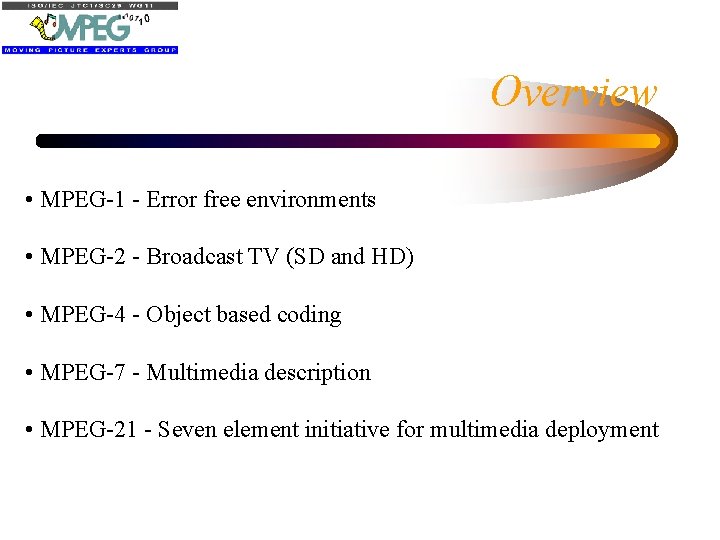

Overview • MPEG-1 - Error free environments • MPEG-2 - Broadcast TV (SD and HD) • MPEG-4 - Object based coding • MPEG-7 - Multimedia description • MPEG-21 - Seven element initiative for multimedia deployment

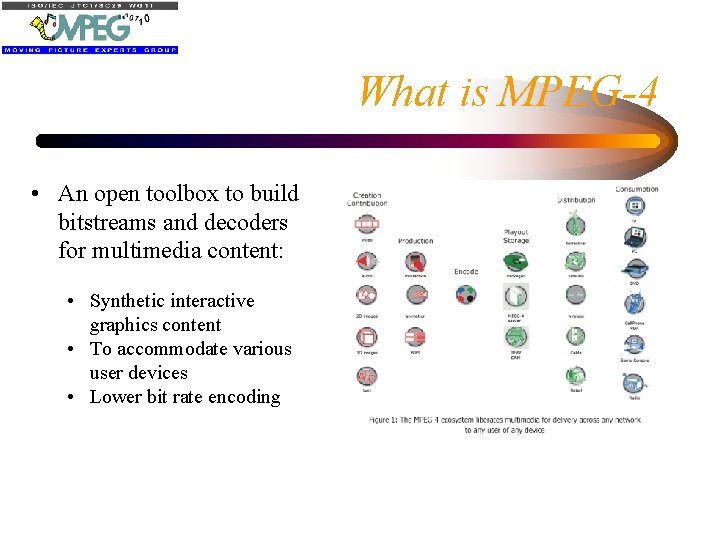

What is MPEG-4 • An open toolbox to build bitstreams and decoders for multimedia content: • Synthetic interactive graphics content • To accommodate various user devices • Lower bit rate encoding

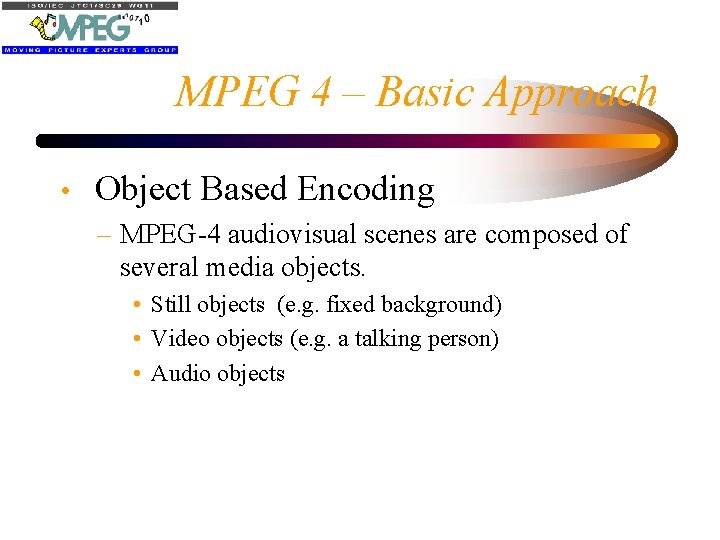

MPEG 4 – Basic Approach • Object Based Encoding – MPEG-4 audiovisual scenes are composed of several media objects. • Still objects (e. g. fixed background) • Video objects (e. g. a talking person) • Audio objects

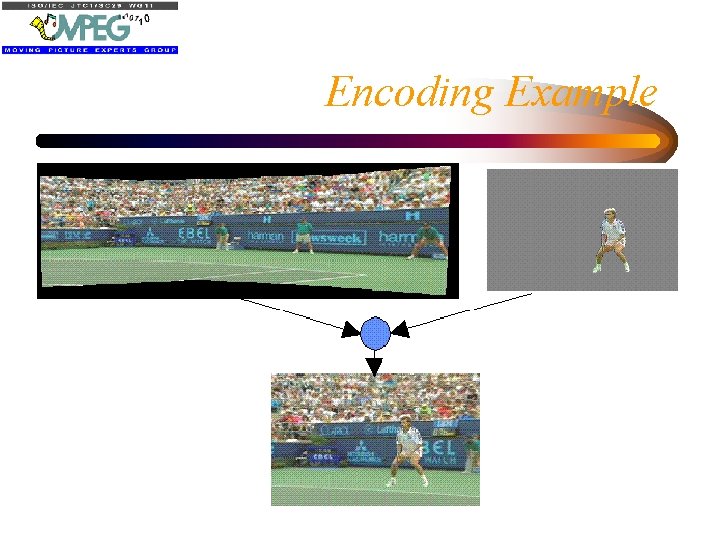

Encoding Example

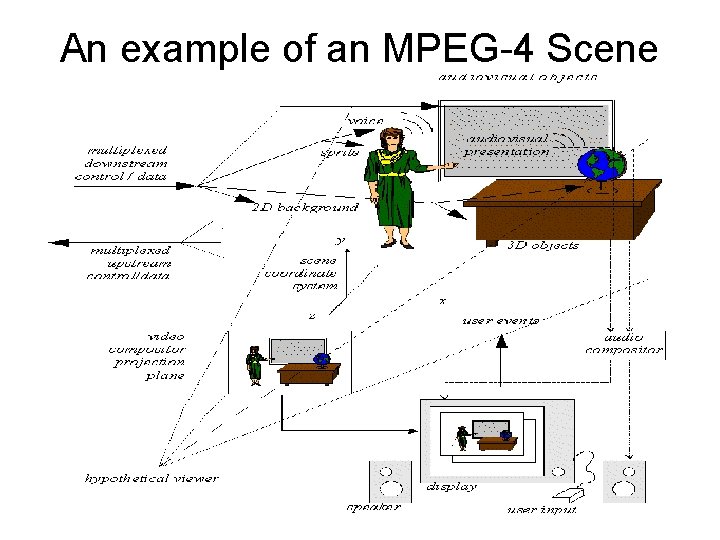

An example of an MPEG-4 Scene

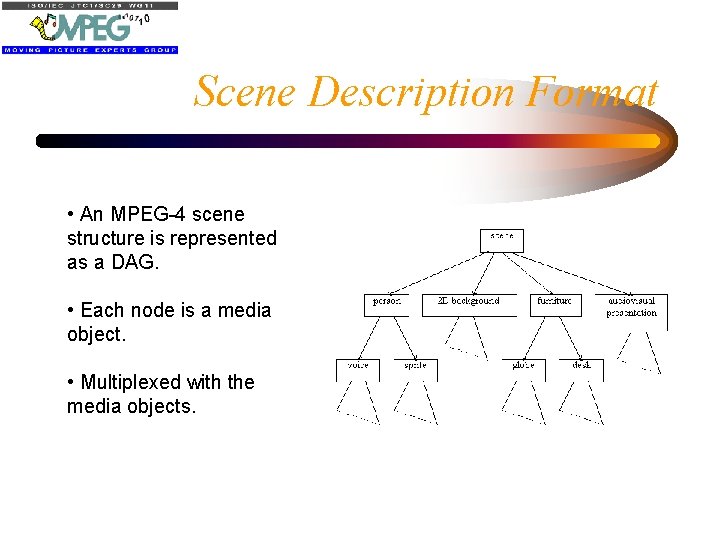

Scene Description Format • An MPEG-4 scene structure is represented as a DAG. • Each node is a media object. • Multiplexed with the media objects.

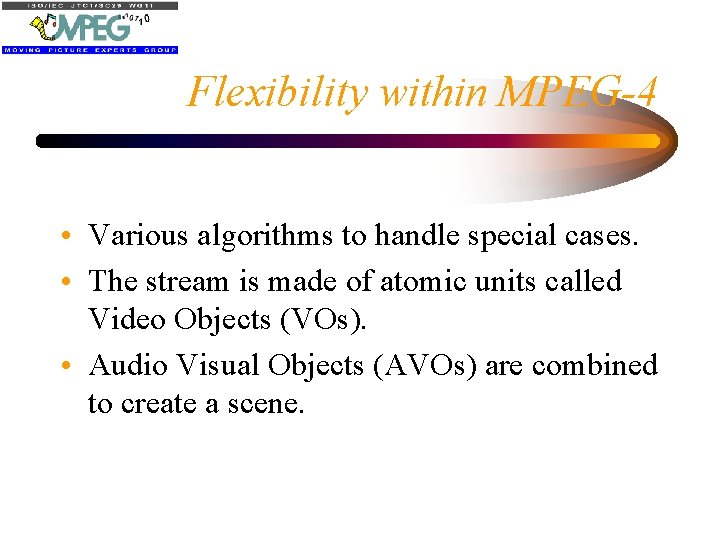

Flexibility within MPEG-4 • Various algorithms to handle special cases. • The stream is made of atomic units called Video Objects (VOs). • Audio Visual Objects (AVOs) are combined to create a scene.

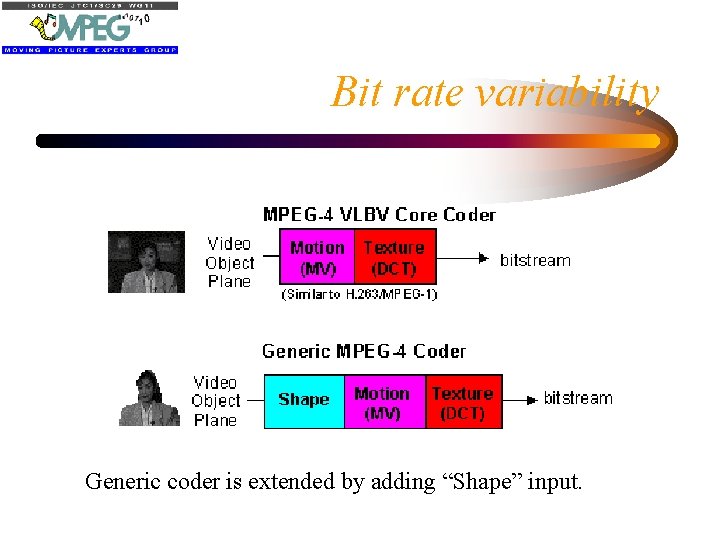

Bit rate variability Generic coder is extended by adding “Shape” input.

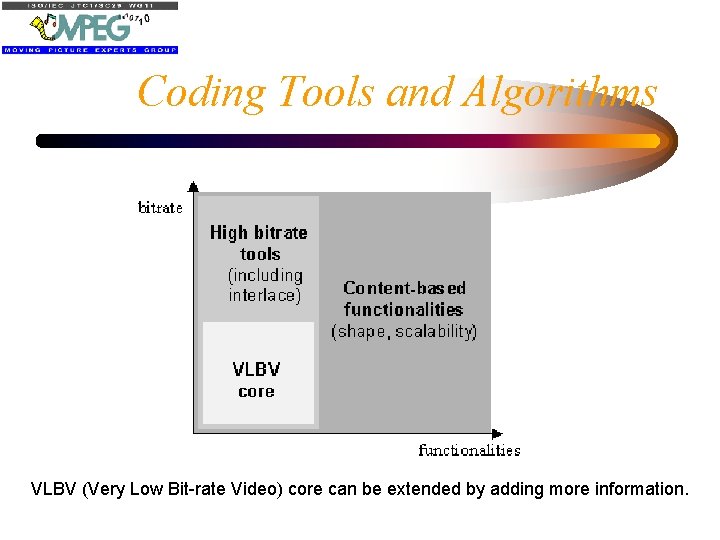

Coding Tools and Algorithms VLBV (Very Low Bit-rate Video) core can be extended by adding more information.

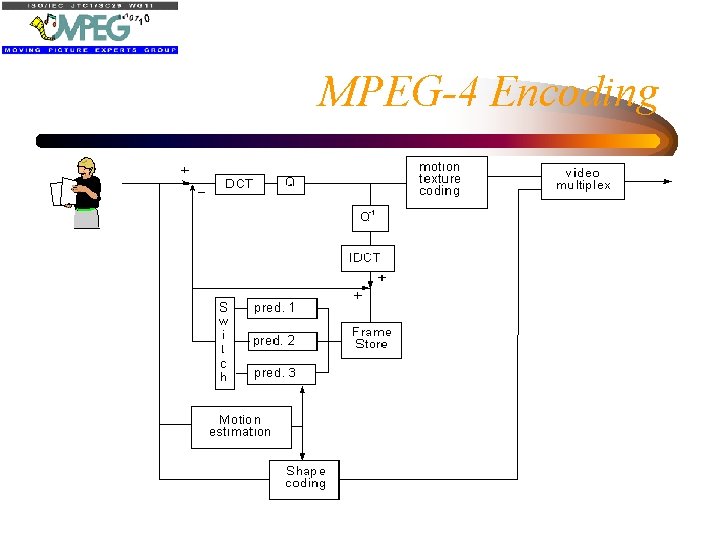

MPEG-4 Encoding

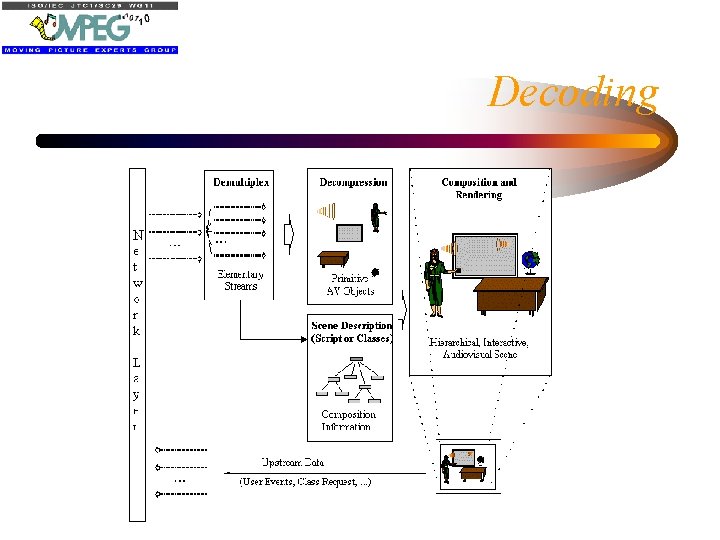

Decoding

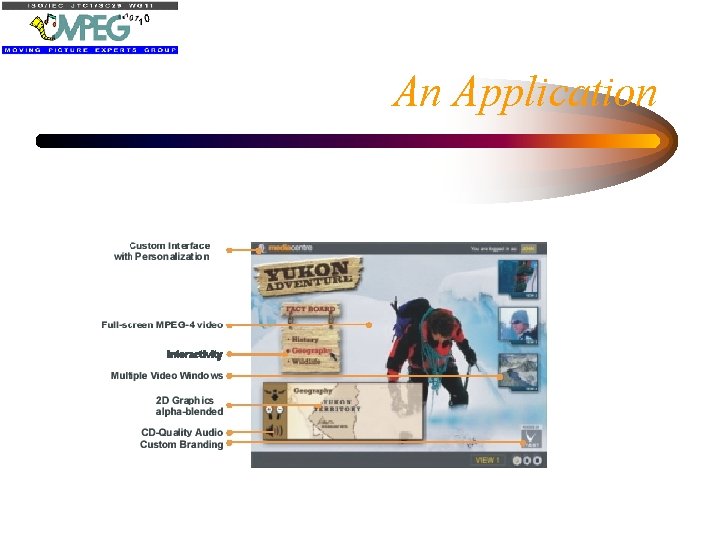

An Application

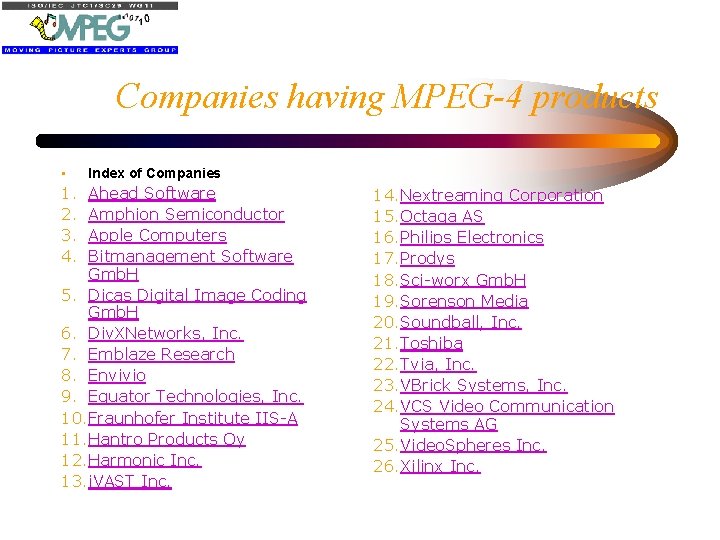

Companies having MPEG-4 products • 1. 2. 3. 4. Index of Companies Ahead Software Amphion Semiconductor Apple Computers Bitmanagement Software Gmb. H 5. Dicas Digital Image Coding Gmb. H 6. Div. XNetworks, Inc. 7. Emblaze Research 8. Envivio 9. Equator Technologies, Inc. 10. Fraunhofer Institute IIS-A 11. Hantro Products Oy 12. Harmonic Inc. 13. i. VAST Inc. 14. Nextreaming Corporation 15. Octaga AS 16. Philips Electronics 17. Prodys 18. Sci-worx Gmb. H 19. Sorenson Media 20. Soundball, Inc. 21. Toshiba 22. Tvia, Inc. 23. VBrick Systems, Inc. 24. VCS Video Communication Systems AG 25. Video. Spheres Inc. 26. Xilinx Inc.

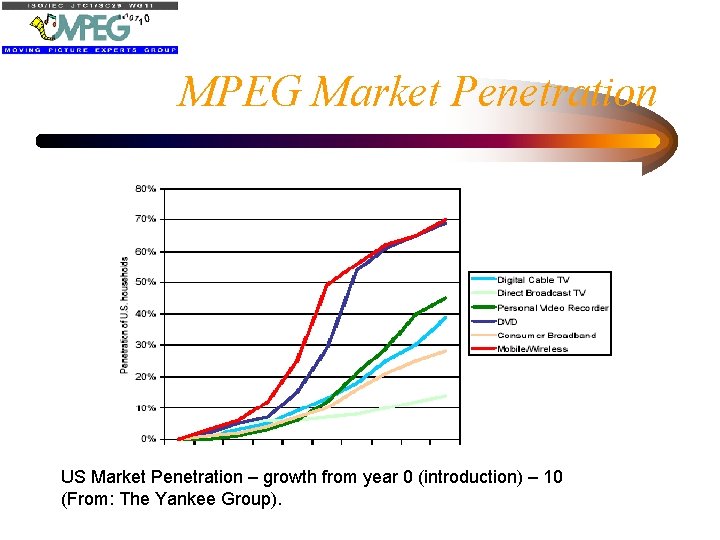

MPEG Market Penetration US Market Penetration – growth from year 0 (introduction) – 10 (From: The Yankee Group).

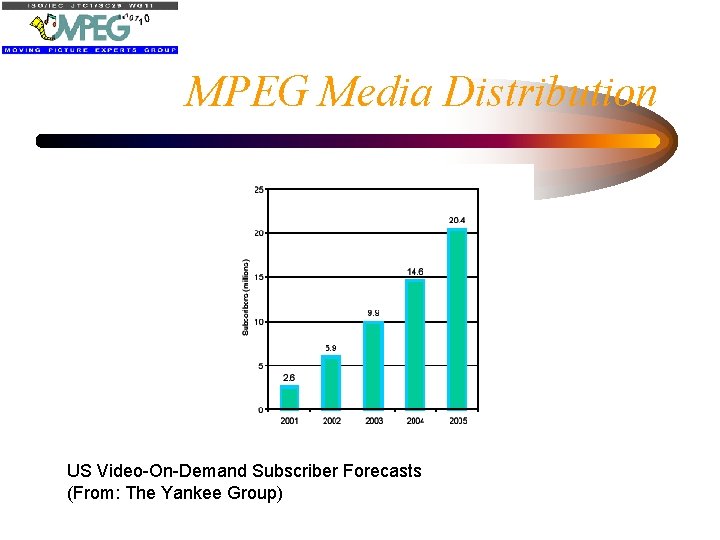

MPEG Media Distribution US Video-On-Demand Subscriber Forecasts (From: The Yankee Group)

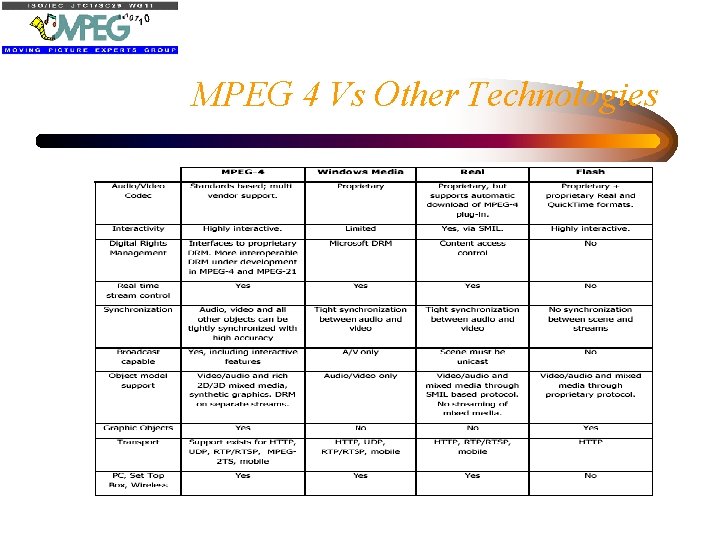

MPEG 4 Vs Other Technologies

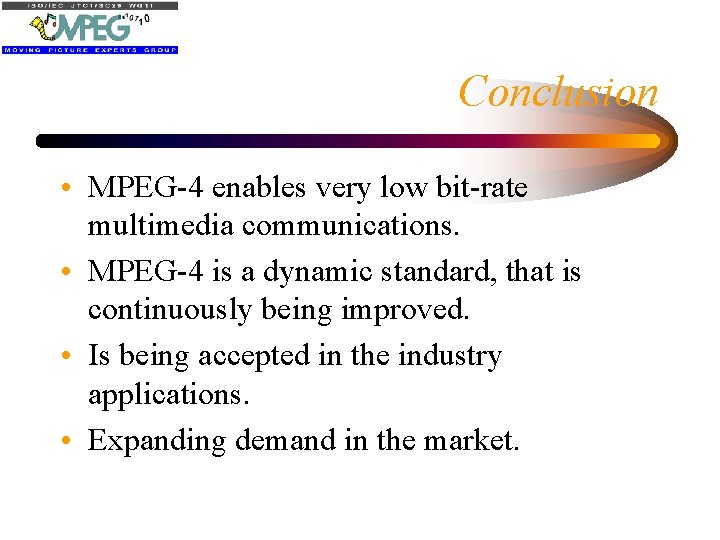

Conclusion • MPEG-4 enables very low bit-rate multimedia communications. • MPEG-4 is a dynamic standard, that is continuously being improved. • Is being accepted in the industry applications. • Expanding demand in the market.

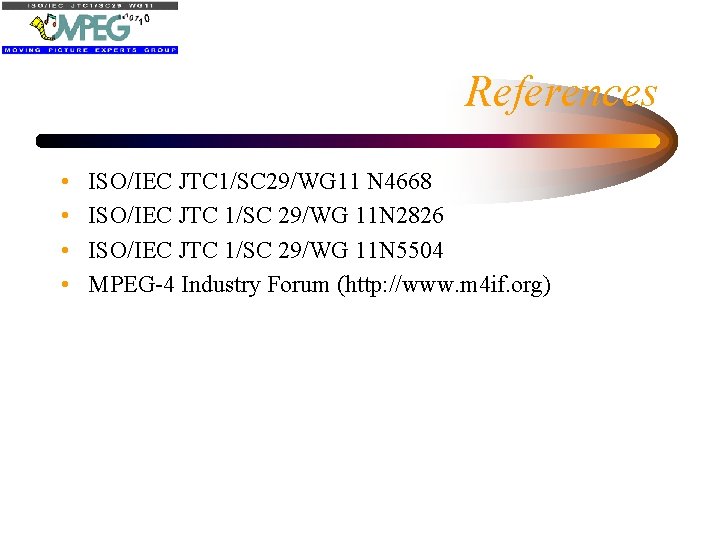

References • • ISO/IEC JTC 1/SC 29/WG 11 N 4668 ISO/IEC JTC 1/SC 29/WG 11 N 2826 ISO/IEC JTC 1/SC 29/WG 11 N 5504 MPEG-4 Industry Forum (http: //www. m 4 if. org)

Acknowledgement • Dr. Wo Chang, NIST, U. S. • Dr. Kai-Kuang Ma, NTU, Singapore
