MIPS Aptiv Classic MIPS Products Aptiv Generation Family

«Классические» ядра и новое поколение - MIPS Aptiv Classic MIPS Products Aptiv Generation Family 1074 K Series Fused triple-dispatch superscalar Oo. O CPU EVA, hi speed FPU 1 ->6 core versions • Highest Core. Mark/MHz score reported for any licensable IP core • Leading silicon efficiency in its class 4. 4 Core. Mark/MHz 3. 5 DMIPS/MHZ 1004 K Series 34 K Series 24 K Series Family Multi-threaded core, EVA, low power higher perf CM & L 2$, 1 ->4 core versions • Higher Core. Mark/MHz than competing cores in similar die area • Leading performance efficiency in its class 3. 2 Core. Mark/MHz ~1. 7 DMIPS/MHZ Family M 14 K Series DSP enhanced microcontroller and microprocessor core • Highest Core. Mark/MHz score among microcontroller-class cores • Added DSP acceleration and security 3. 1 Core. Mark/MHz 1. 57 DMIPS/MHZ 3 © 2012 MIPS Technologies, Inc. All rights reserved.

«Классические» ядра MIPS Technologies t g en sin r e h es Co roc 1074 K p lti u M 20 -30% faster than competing ARM cores with same technology Superscalar; 15 -stage pipeline >1. 5 GHz prod, >2. 4 GHz typ (40 nm) >6000 Coremark @ 2. 4 GHz 74 K d de a e e hr anc t le m ng rfor i S e p (1 -4 cores) Max ~1. 5 GHz prod (40 nm) >12, 000 Coremark 10, 000 DMIPS @ 1. 25 GHz 1004 K t g en sin r e s h e Co roc tip ul M 34 K ng 24 KE 24 K 4 K th lti u M i ad re M 14 Kc M 4 K 4 KS 4 micro. MIPS advanced code compression & Enhanced MCU Features © 2012 MIPS Technologies, Inc. All rights reserved. M 14 K

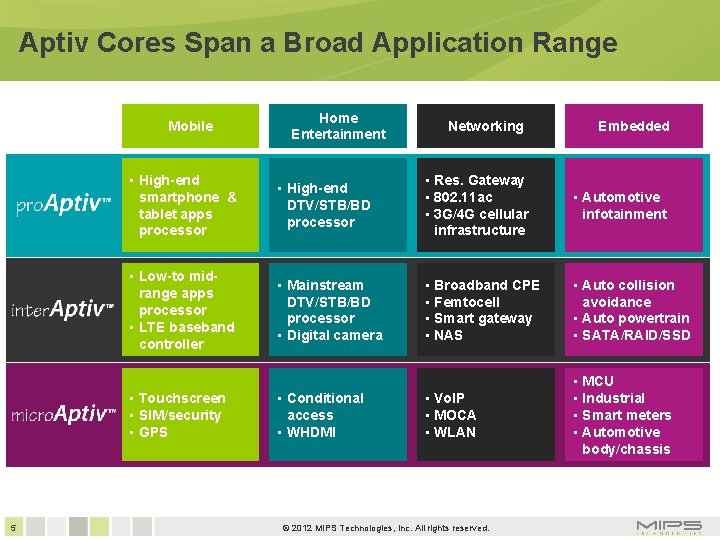

Aptiv Cores Span a Broad Application Range Mobile Networking Embedded • High-end smartphone & tablet apps processor • High-end DTV/STB/BD processor • Res. Gateway • 802. 11 ac • 3 G/4 G cellular infrastructure • Automotive infotainment • Low-to midrange apps processor • LTE baseband controller • Mainstream DTV/STB/BD processor • Digital camera • • • Auto collision avoidance • Auto powertrain • SATA/RAID/SSD • Touchscreen • SIM/security • GPS 5 Home Entertainment • Conditional access • WHDMI Broadband CPE Femtocell Smart gateway NAS • Vo. IP • MOCA • WLAN © 2012 MIPS Technologies, Inc. All rights reserved. • • MCU Industrial Smart meters Automotive body/chassis

MIPS M 4 K, M 14 K и micro. Aptiv – ядра для микроконтроллеров (M 14 K = micro. Aptiv) Same Architecture & ISA Same Development Tools M 14 KEc M 14 Kc 4 KEc + micro. MIPS ISA Reduced Interrupt Latency Enhanced Debug AHB-Lite + DSP ASE r 2 Enhanced MDU 2 -wire Debug 6 • I&D SRAM I/F • FMT MMU • MPU • Flash Pre-Fetch M 14 K MIPS 32, MIPS 16 e 5 -stage pipeline 1. 5 DMIPS/MHz Low area & power M 14 KE • Cache Controller • I&D Cache • TLB MMU • I&D SPRAM MIPS 32, micro. MIPS 5 -stage pipeline 1. 57 DMIPS/MHz 2. 76 Core. Mark/MHz 250 MHz, 0. 25 mm 2 @ 90 LP Up to 35% code size reduction © 2012 MIPS Technologies, Inc. All rights reserved. MIPS 32, micro. MIPS 5 -stage pipeline 1. 57 DMIPS/MHz 2. 76 Core. Mark/MHz 400 MHz, 0. 25 mm 2 @ 65 LP DSP & SIMD Engines

Демо: Retro. BSD на Microchip PIC 32 v Retro. BSD – версия Unix для микроконтроллеров Microchip PIC 32 на основе ядра MIPS M 4 K v http: //retrobsd. org v Создана Сергеем Вакуленко – сотрудником MIPS Technologies 8 © 2012 MIPS Technologies, Inc. All rights reserved.

Демо: Терминал линуксного компьютера с MIPS 24 KE 12 © 2012 MIPS Technologies, Inc. All rights reserved.

MIPS 74 K – суперскалярная производительность v Асимметричный конвейер с 15 стадиями, выборкой до 4 инструкций за цикл и out-of-order (Oo. O) dispatch v 1080 MHz на 65 nm GP, 2. 57 Coremark / MHz, 2. 03 DMIPS / MHz, 0. 52 m. W / MHz, 1. 7 mm 2 без L 2$, 2. 5 mm 2 с L 2$ 15 © 2012 MIPS Technologies, Inc. All rights reserved.

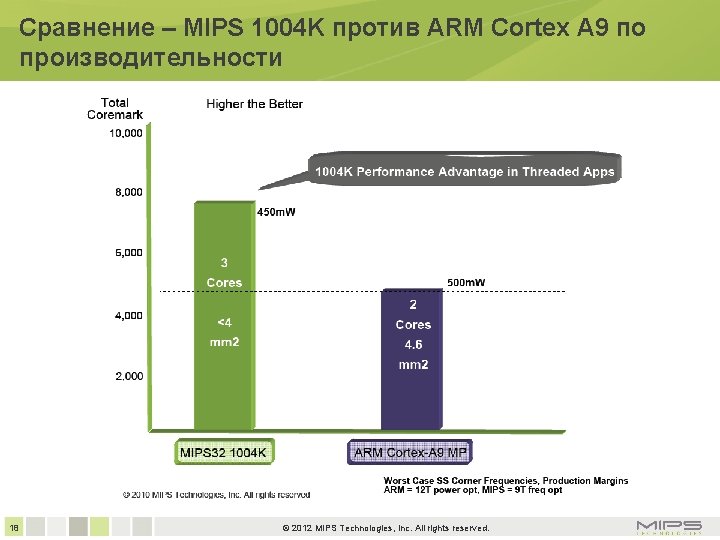

Сравнение – MIPS 1004 K против ARM Cortex A 9 по производительности 18 © 2012 MIPS Technologies, Inc. All rights reserved.

Три ядра MIPS 1004 K - меньше площади и энергопотребления, чем два ядра ARM Cortex A 9 19 © 2012 MIPS Technologies, Inc. All rights reserved.

Многоядерная система MIPS 1074 K против Intel Atom = 9 mm 2 (45 nm) 1074 Kf Core @ 1. 2 GHz (45 nm) 1074 Kf Core 1074 Kf (3 core) Atom (1 core) Total Core. Mark 9180 3830 Total DMIPS 7200 2880 ~6. 2/7. 5 ~9 <1. 4 W ~ 2 W core? /7 -9 W chip Performance Area (mm 2, 40 nm/45 nm) Power (total dyn m. W) Data sources: Atom: www. intel. com, Anandtech, other web content (Z 5 xx and CE 4100 data) MIPS: prelim synthesis data for 1074 Kf for 3 core CPS including fully configured FPU cores, plus CM functions 21 © 2012 MIPS Technologies, Inc. All rights reserved.

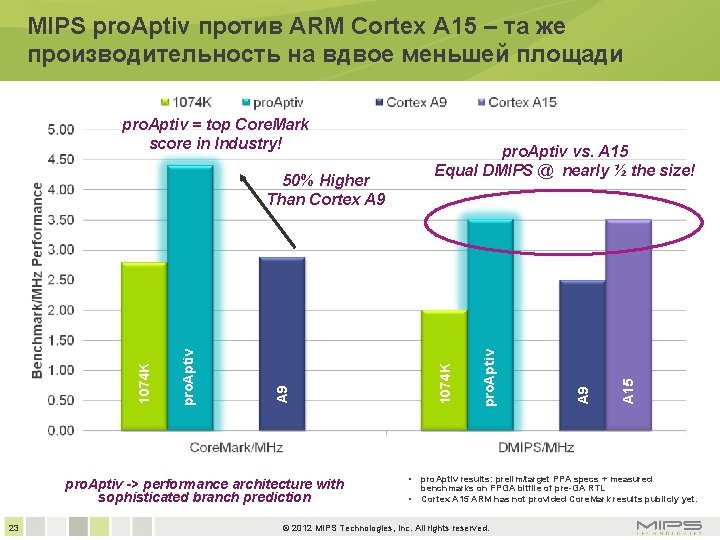

MIPS pro. Aptiv против ARM Cortex A 15 – та же производительность на вдвое меньшей площади pro. Aptiv = top Core. Mark score in Industry! pro. Aptiv vs. A 15 Equal DMIPS @ nearly ½ the size! 50% Higher Than Cortex A 9 pro. Aptiv -> performance architecture with sophisticated branch prediction 23 • • A 15 A 9 pro. Aptiv 1074 K A 15 Score? pro. Aptiv results: prelim/target PPA specs + measured benchmarks on FPGA bitfile of pre-GA RTL Cortex A 15 ARM has not provided Core. Mark results publicly yet. © 2012 MIPS Technologies, Inc. All rights reserved.

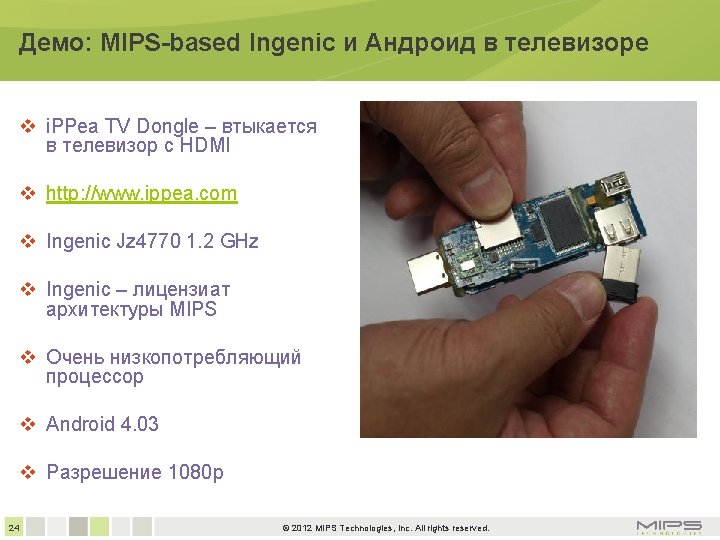

Демо: MIPS-based Ingenic и Андроид в телевизоре v i. PPea TV Dongle – втыкается в телевизор с HDMI v http: //www. ippea. com v Ingenic Jz 4770 1. 2 GHz v Ingenic – лицензиат архитектуры MIPS v Очень низкопотребляющий процессор v Android 4. 03 v Разрешение 1080 p 24 © 2012 MIPS Technologies, Inc. All rights reserved.

Спасибо! At the core of the user experience® MIPS, MIPS 32, MIPS 64, MIPS-Based, MIPS-Verified, MIPS Technologies logo are trademarks of MIPS Technologies, Inc. and registered in the U. S. Patent and Trademark Office. MIPS, MIPS 32, MIPS 64, MIPS-Based, MIPS Logo, MIPS Technologies Logo, Aptiv, micro. Aptiv, inter. Aptiv, pro. Aptiv, Cor. Extend, Pro Series, micro. MIPS, M 14 K, M 4 K, 4 KEc, 24 KE, 34 K, 74 K, 1004 K, 1074 K, MIPS Navigator, and FS 2 are trademarks or registered trademarks of MIPS Technologies, Inc. in the United States and other countries. 25 © 2012 MIPS Technologies, Inc. All rights reserved.
