Low Dimensional Representations And Multidimensional Scaling MDS Sec

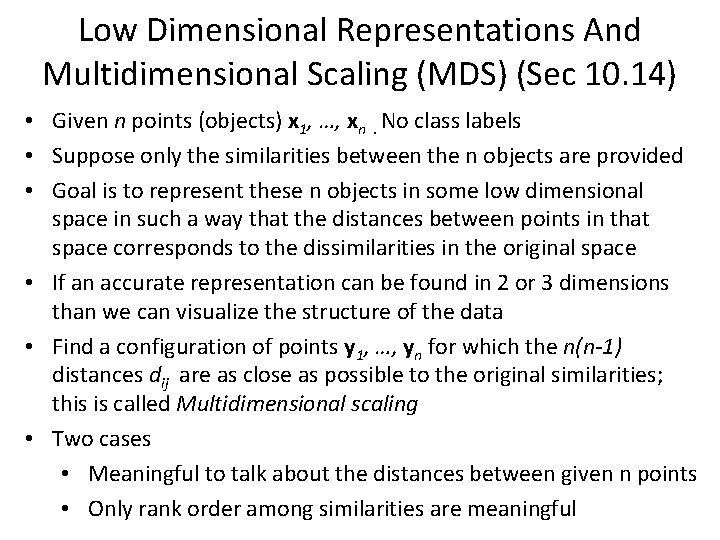

Low Dimensional Representations And Multidimensional Scaling (MDS) (Sec 10. 14) • Given n points (objects) x 1, …, xn. No class labels • Suppose only the similarities between the n objects are provided • Goal is to represent these n objects in some low dimensional space in such a way that the distances between points in that space corresponds to the dissimilarities in the original space • If an accurate representation can be found in 2 or 3 dimensions than we can visualize the structure of the data • Find a configuration of points y 1, …, yn for which the n(n-1) distances dij are as close as possible to the original similarities; this is called Multidimensional scaling • Two cases • Meaningful to talk about the distances between given n points • Only rank order among similarities are meaningful

Distances Between Given Points is Meaningful

Criterion Functions • Sum of squared error functions • Since they only involve distances between points, they are invariant to rigid body motions of the configuration • Criterion functions have been normalized so their minimum values are invariant to dilations of the sample points

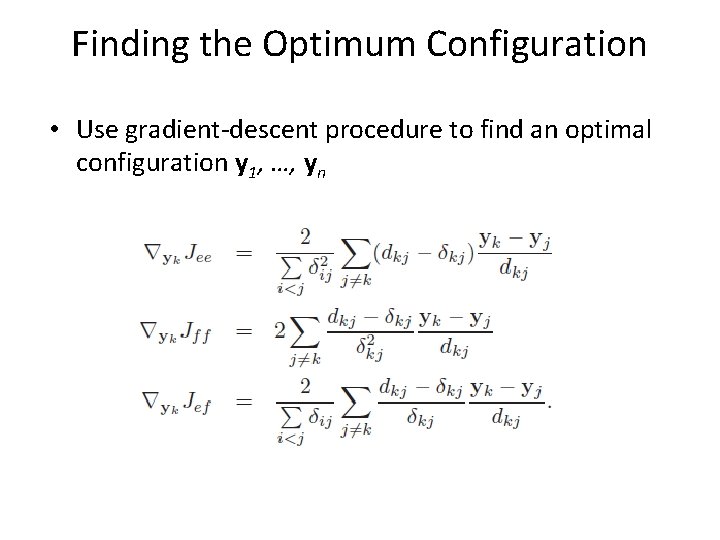

Finding the Optimum Configuration • Use gradient-descent procedure to find an optimal configuration y 1, …, yn

Example 20 iterations with Jef

Nonmetric Multidimensional Scaling • Numerical values of dissimilarities are not as important as their rank order • Monotonicity constraint: rank order of dij = rank order of ij • The degree to which dij satisfy the monotonicy constraint is measured by • Normalize to prevent it from being collapsed
