Landroid M (WG 794 E) Repair Guide
WORX Lawn and Garden Repair Guide Step 1 Open the machine referring to the steps shown in Boundary sensors assembly replacement Find the retaining washer of the front wheel axle. retaining washer Landroid
WORX Lawn and Garden Repair Guide Landroid Step 2 Use a slotted screwdriver to prize up the retaining washer Tips: Firstly use a smaller screwdriver to pry open a gap. Then insert a bigger screwdriver to the gap to remove the retaining washer
WORX Lawn and Garden Repair Guide Step 3 Use a hammer and a screwdriver to tap the front wheel assembly axle out of the machine body Landroid
WORX Lawn and Garden Repair Guide Landroid Step 4 Replace the front wheel assembly with the new one. 4. 1 Remove the washer from the old wheel assembly and fix it on the new one 4. 2 Insert the wheel assembly into the bearing Fix the washer remove from the old wheel
WORX Lawn and Garden Repair Guide Landroid Step 4 Replace the front wheel assembly with the new one. 4. 3 Press the upper washer and insert the wheel assembly into the hole. 4. 4 Press the retaining washer by a suitable Cylindrical tool(Supply by Positec) Note: Please refer to step 3&step 4 in Boundary sensors assembly replacement instruction to re-assemble the machine
WORX Lawn and Garden Repair Guide Landroid Step 4 Replace the front wheel assembly with the new one. 4. 5 Check if the wheel assembly works well. Rotate the axle to check if it can rotate flexibly. If not, recommend to use a rubber hammer to tap the axle to micro-adjust the position of the washer

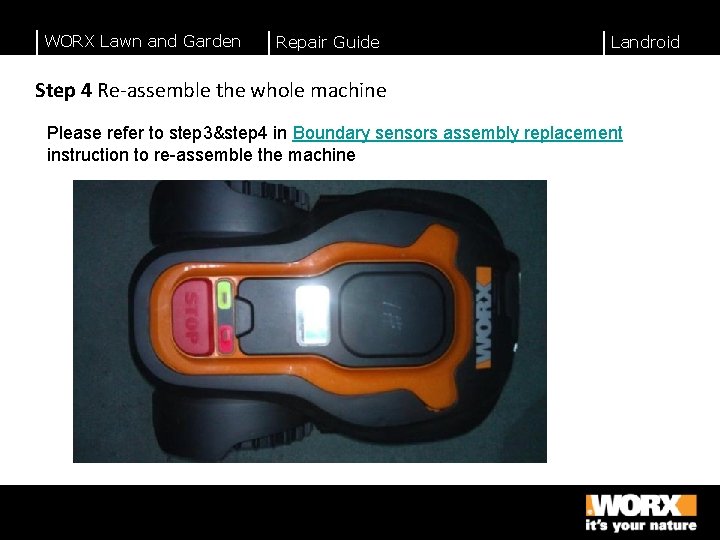

WORX Lawn and Garden Repair Guide Landroid Step 4 Re-assemble the whole machine Please refer to step 3&step 4 in Boundary sensors assembly replacement instruction to re-assemble the machine
