Fusion Light Nuclei Light nuclei have relatively high
![Fusion Fusion](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-1.jpg)
![Light Nuclei ] Light nuclei have relatively high rest masses. • • • H-1: Light Nuclei ] Light nuclei have relatively high rest masses. • • • H-1:](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-2.jpg)
![The Sun ] The energy output of the sun is inconsistent with chemical processes. The Sun ] The energy output of the sun is inconsistent with chemical processes.](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-3.jpg)
![Nuclear Fusion ] Electric charge causes positive nuclei to repel. ] At high temperatures Nuclear Fusion ] Electric charge causes positive nuclei to repel. ] At high temperatures](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-4.jpg)
![Proton-Proton Cycle ] Fusion takes place two particles at a time. ] Step 1: Proton-Proton Cycle ] Fusion takes place two particles at a time. ] Step 1:](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-5.jpg)
![Proton Fusion 2 ] Step 2: A deuterium nucleus absorbs a proton and becomes Proton Fusion 2 ] Step 2: A deuterium nucleus absorbs a proton and becomes](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-6.jpg)
![Proton Fusion 3 ] Step 3: Two helium-3 nuclei collide. ] They rearrange particles Proton Fusion 3 ] Step 3: Two helium-3 nuclei collide. ] They rearrange particles](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-7.jpg)
![Excess Energy ] The fusion reaction in a star is exothermic. • H-1: 1. Excess Energy ] The fusion reaction in a star is exothermic. • H-1: 1.](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-8.jpg)
![Thermonuclear Blast ] Fusion of deuterium into helium is exothermic. ] The high temperature Thermonuclear Blast ] Fusion of deuterium into helium is exothermic. ] The high temperature](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-9.jpg)
- Slides: 9
![Fusion Fusion](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-1.jpg)
Fusion
![Light Nuclei Light nuclei have relatively high rest masses H1 Light Nuclei ] Light nuclei have relatively high rest masses. • • • H-1:](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-2.jpg)

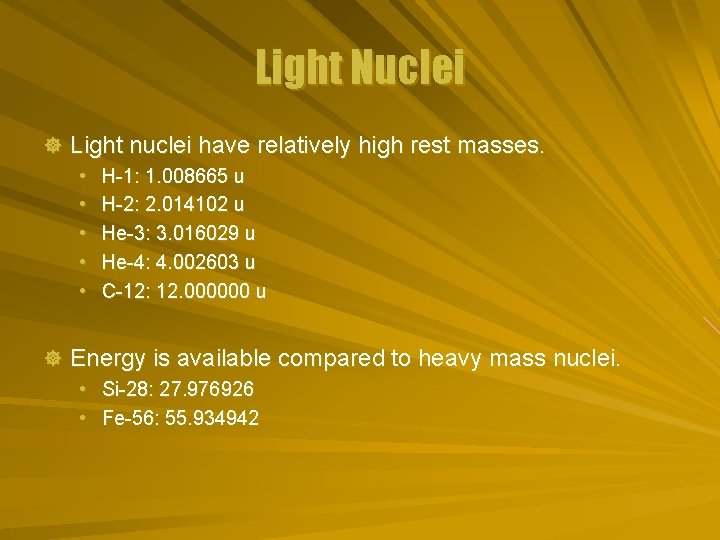

Light Nuclei ] Light nuclei have relatively high rest masses. • • • H-1: 1. 008665 u H-2: 2. 014102 u He-3: 3. 016029 u He-4: 4. 002603 u C-12: 12. 000000 u ] Energy is available compared to heavy mass nuclei. • Si-28: 27. 976926 • Fe-56: 55. 934942
![The Sun The energy output of the sun is inconsistent with chemical processes The Sun ] The energy output of the sun is inconsistent with chemical processes.](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-3.jpg)

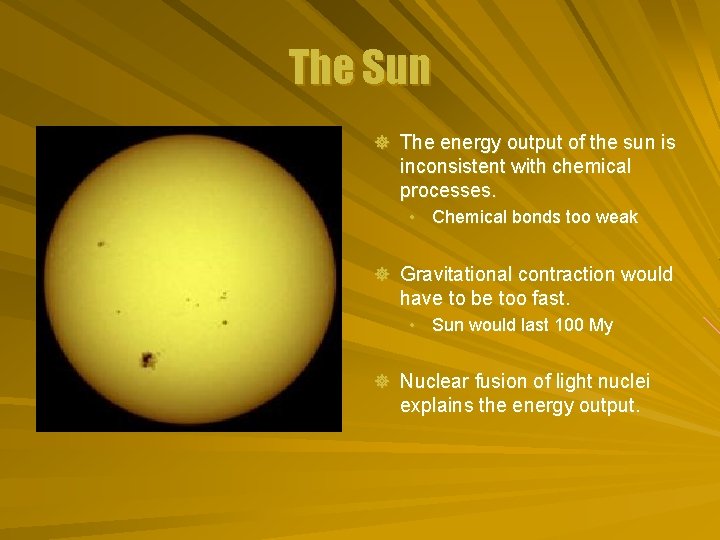

The Sun ] The energy output of the sun is inconsistent with chemical processes. • Chemical bonds too weak ] Gravitational contraction would have to be too fast. • Sun would last 100 My ] Nuclear fusion of light nuclei explains the energy output.
![Nuclear Fusion Electric charge causes positive nuclei to repel At high temperatures Nuclear Fusion ] Electric charge causes positive nuclei to repel. ] At high temperatures](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-4.jpg)

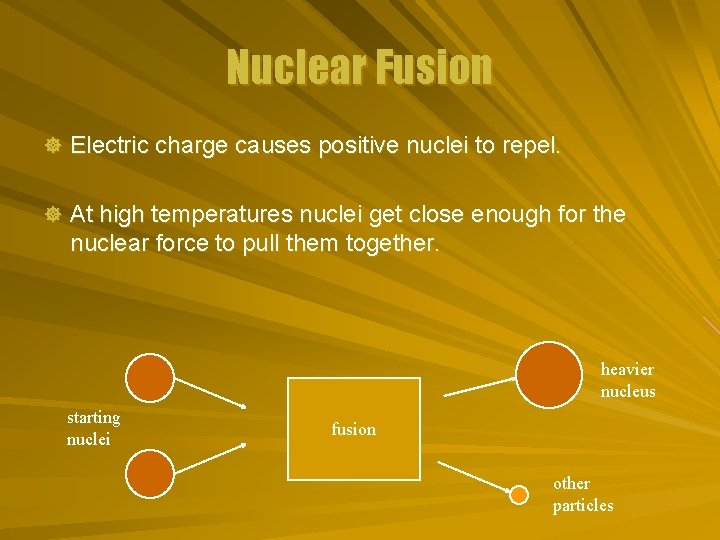

Nuclear Fusion ] Electric charge causes positive nuclei to repel. ] At high temperatures nuclei get close enough for the nuclear force to pull them together. heavier nucleus starting nuclei fusion other particles
![ProtonProton Cycle Fusion takes place two particles at a time Step 1 Proton-Proton Cycle ] Fusion takes place two particles at a time. ] Step 1:](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-5.jpg)

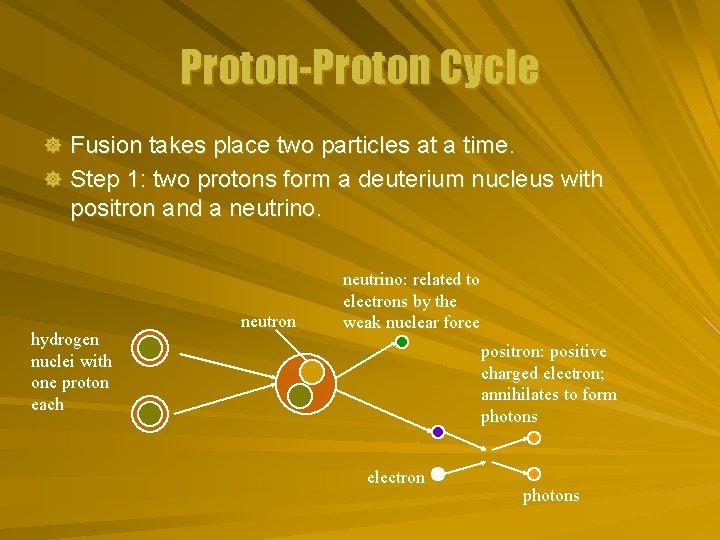

Proton-Proton Cycle ] Fusion takes place two particles at a time. ] Step 1: two protons form a deuterium nucleus with positron and a neutrino. hydrogen nuclei with one proton each neutron neutrino: related to electrons by the weak nuclear force positron: positive charged electron; annihilates to form photons electron photons
![Proton Fusion 2 Step 2 A deuterium nucleus absorbs a proton and becomes Proton Fusion 2 ] Step 2: A deuterium nucleus absorbs a proton and becomes](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-6.jpg)

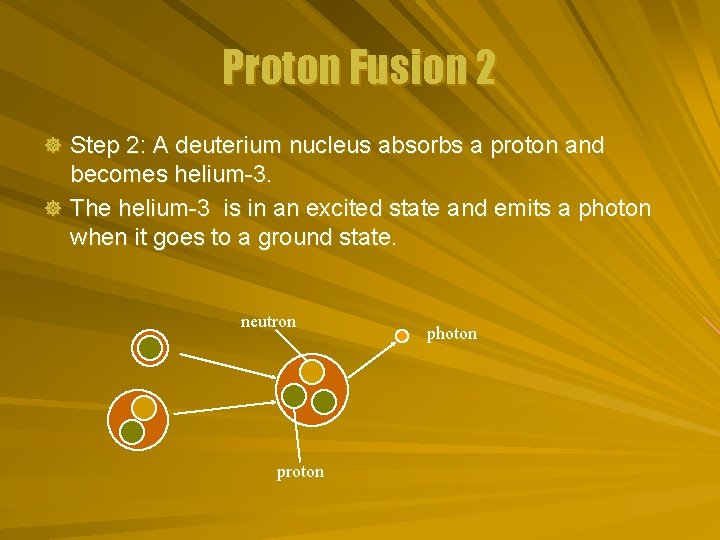

Proton Fusion 2 ] Step 2: A deuterium nucleus absorbs a proton and becomes helium-3. ] The helium-3 is in an excited state and emits a photon when it goes to a ground state. neutron proton photon
![Proton Fusion 3 Step 3 Two helium3 nuclei collide They rearrange particles Proton Fusion 3 ] Step 3: Two helium-3 nuclei collide. ] They rearrange particles](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-7.jpg)
Proton Fusion 3 ] Step 3: Two helium-3 nuclei collide. ] They rearrange particles so that very stable helium-4 is formed with two extra protons spit out. proton helium-3 helium-4 next
![Excess Energy The fusion reaction in a star is exothermic H1 1 Excess Energy ] The fusion reaction in a star is exothermic. • H-1: 1.](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-8.jpg)

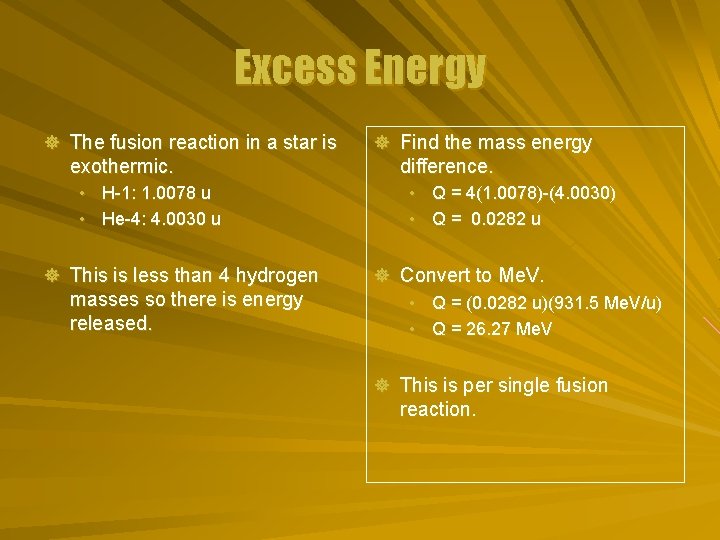

Excess Energy ] The fusion reaction in a star is exothermic. • H-1: 1. 0078 u • He-4: 4. 0030 u ] This is less than 4 hydrogen masses so there is energy released. ] Find the mass energy difference. • Q = 4(1. 0078)-(4. 0030) • Q = 0. 0282 u ] Convert to Me. V. • Q = (0. 0282 u)(931. 5 Me. V/u) • Q = 26. 27 Me. V ] This is per single fusion reaction.
![Thermonuclear Blast Fusion of deuterium into helium is exothermic The high temperature Thermonuclear Blast ] Fusion of deuterium into helium is exothermic. ] The high temperature](https://slidetodoc.com/presentation_image_h2/55ad3eb0d14a7c16a41693205fe5f3a3/image-9.jpg)

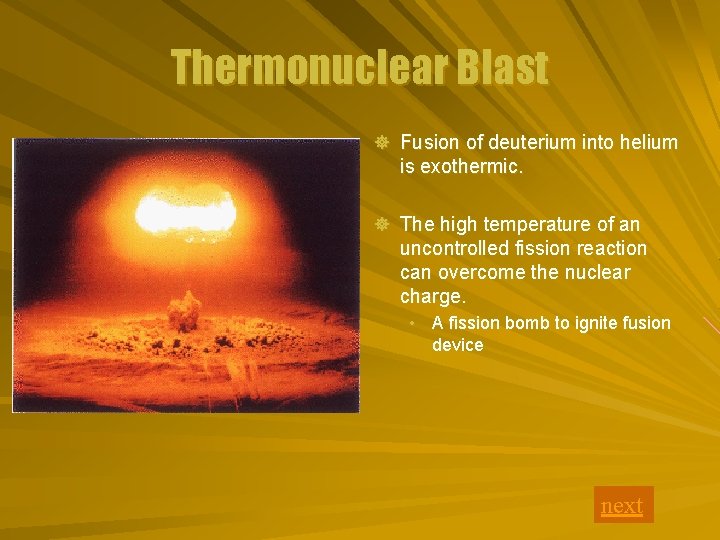

Thermonuclear Blast ] Fusion of deuterium into helium is exothermic. ] The high temperature of an uncontrolled fission reaction can overcome the nuclear charge. • A fission bomb to ignite fusion device next
