Fastis TFK metal clamps When design and function

Fastis™ TFK metal clamps When design and function are equally important

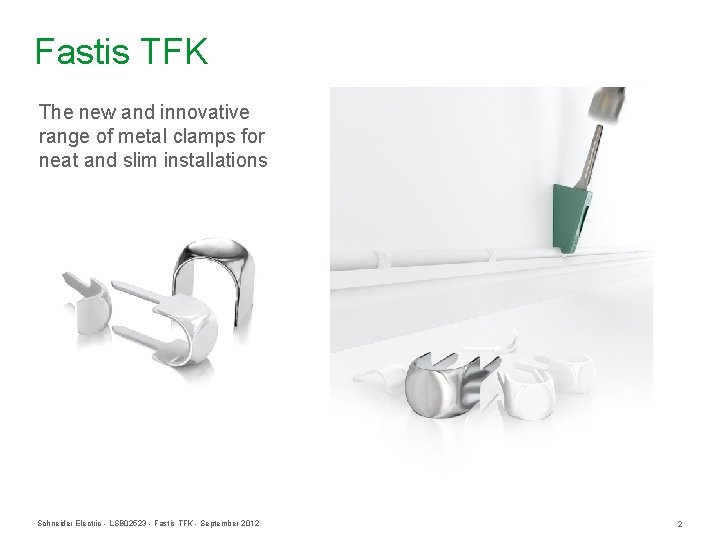

Fastis TFK The new and innovative range of metal clamps for neat and slim installations Schneider Electric - LSB 02523 - Fastis TFK - September 2012 2

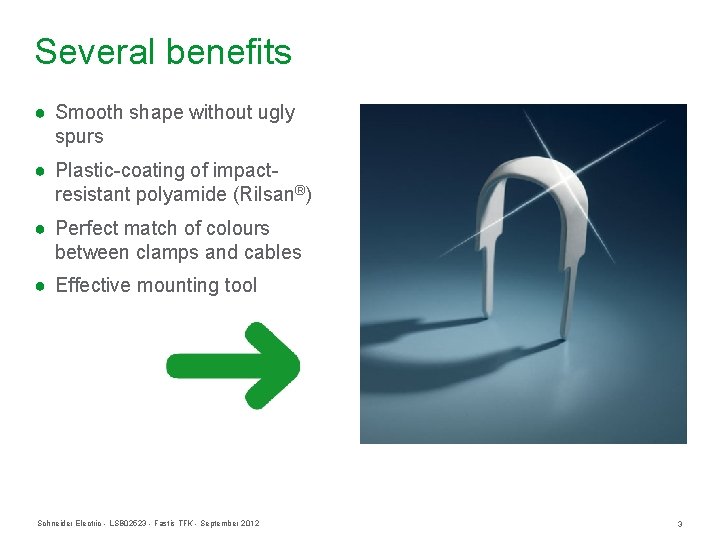

Several benefits ● Smooth shape without ugly spurs ● Plastic-coating of impactresistant polyamide (Rilsan®) ● Perfect match of colours between clamps and cables ● Effective mounting tool Schneider Electric - LSB 02523 - Fastis TFK - September 2012 3

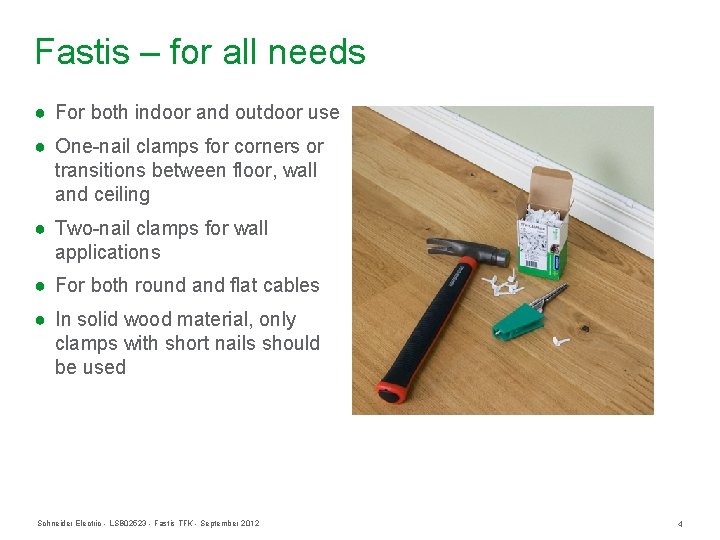

Fastis – for all needs ● For both indoor and outdoor use ● One-nail clamps for corners or transitions between floor, wall and ceiling ● Two-nail clamps for wall applications ● For both round and flat cables ● In solid wood material, only clamps with short nails should be used Schneider Electric - LSB 02523 - Fastis TFK - September 2012 4

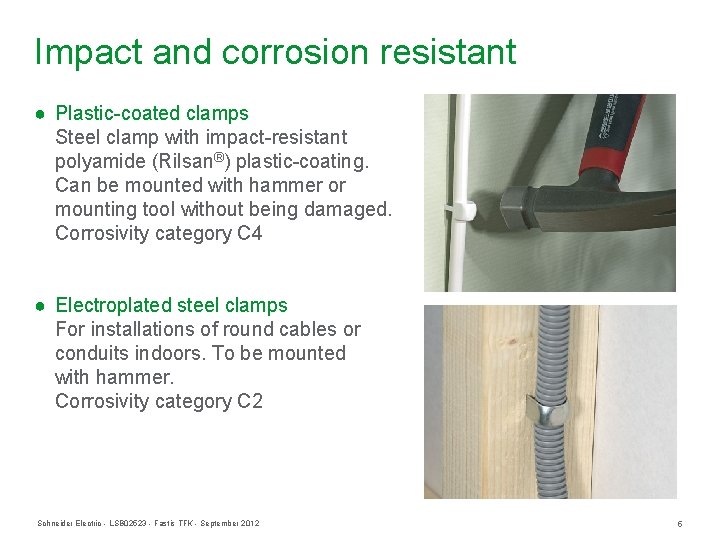

Impact and corrosion resistant ● Plastic-coated clamps Steel clamp with impact-resistant polyamide (Rilsan®) plastic-coating. Can be mounted with hammer or mounting tool without being damaged. Corrosivity category C 4 ● Electroplated steel clamps For installations of round cables or conduits indoors. To be mounted with hammer. Corrosivity category C 2 Schneider Electric - LSB 02523 - Fastis TFK - September 2012 5

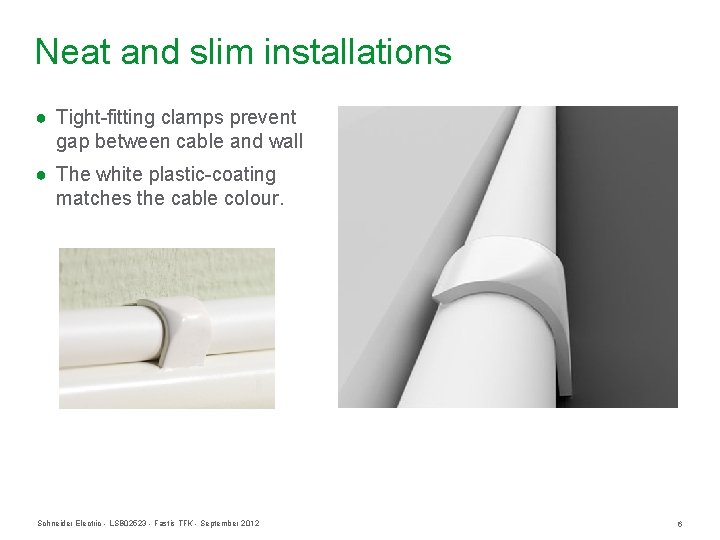

Neat and slim installations ● Tight-fitting clamps prevent gap between cable and wall ● The white plastic-coating matches the cable colour. Schneider Electric - LSB 02523 - Fastis TFK - September 2012 6

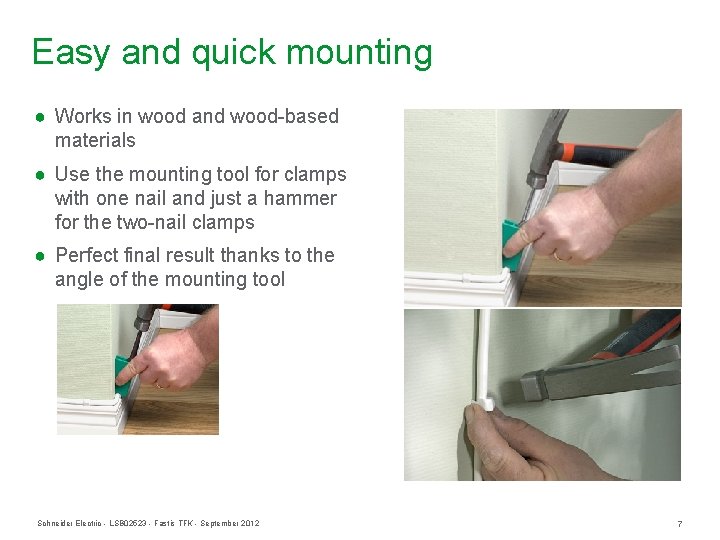

Easy and quick mounting ● Works in wood and wood-based materials ● Use the mounting tool for clamps with one nail and just a hammer for the two-nail clamps ● Perfect final result thanks to the angle of the mounting tool Schneider Electric - LSB 02523 - Fastis TFK - September 2012 7

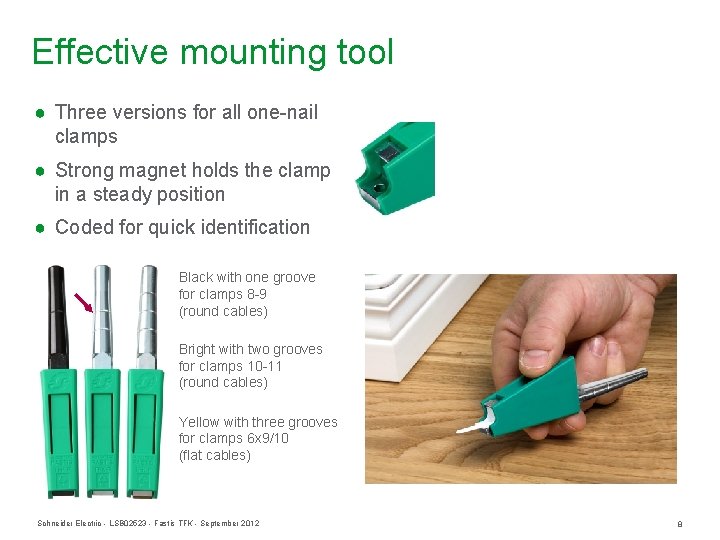

Effective mounting tool ● Three versions for all one-nail clamps ● Strong magnet holds the clamp in a steady position ● Coded for quick identification Black with one groove for clamps 8 -9 (round cables) Bright with two grooves for clamps 10 -11 (round cables) Yellow with three grooves for clamps 6 x 9/10 (flat cables) Schneider Electric - LSB 02523 - Fastis TFK - September 2012 8

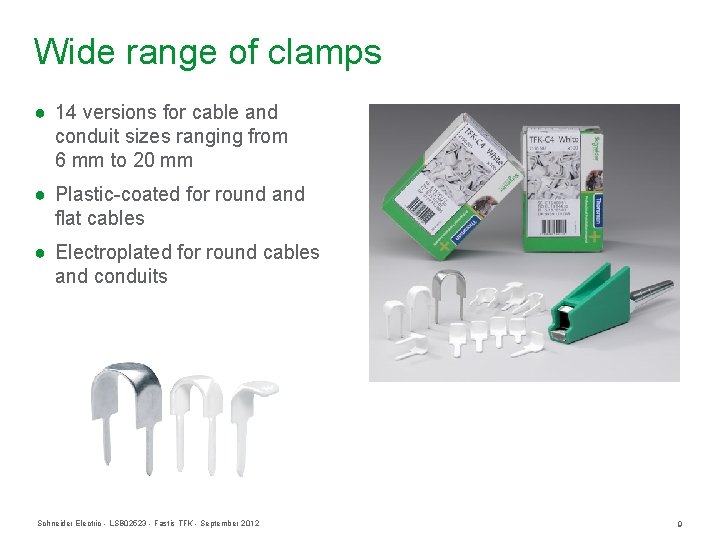

Wide range of clamps ● 14 versions for cable and conduit sizes ranging from 6 mm to 20 mm ● Plastic-coated for round and flat cables ● Electroplated for round cables and conduits Schneider Electric - LSB 02523 - Fastis TFK - September 2012 9

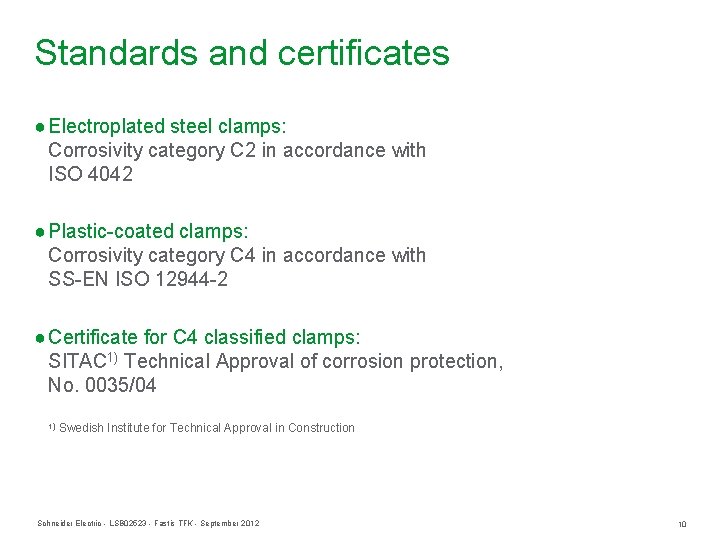

Standards and certificates ● Electroplated steel clamps: Corrosivity category C 2 in accordance with ISO 4042 ● Plastic-coated clamps: Corrosivity category C 4 in accordance with SS-EN ISO 12944 -2 ● Certificate for C 4 classified clamps: SITAC 1) Technical Approval of corrosion protection, No. 0035/04 1) Swedish Institute for Technical Approval in Construction Schneider Electric - LSB 02523 - Fastis TFK - September 2012 10

Fastis ™ • Reliable • Smooth • C 4 -classified
