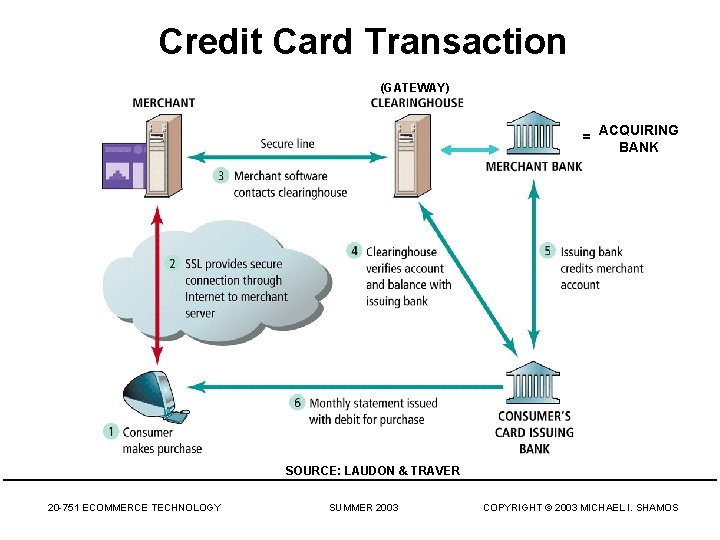

Credit Card Transaction (GATEWAY) = ACQUIRING BANK SOURCE: LAUDON & TRAVER 20 -751 ECOMMERCE

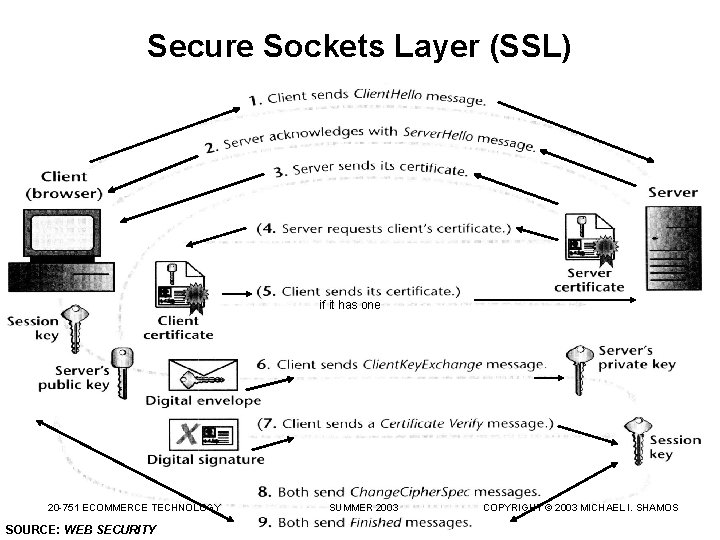

Secure Sockets Layer (SSL) if it has one 20 -751 ECOMMERCE TECHNOLOGY SOURCE: WEB

Pay. Pal • Pay anyone, anywhere via email • Draws funds from user’s bank

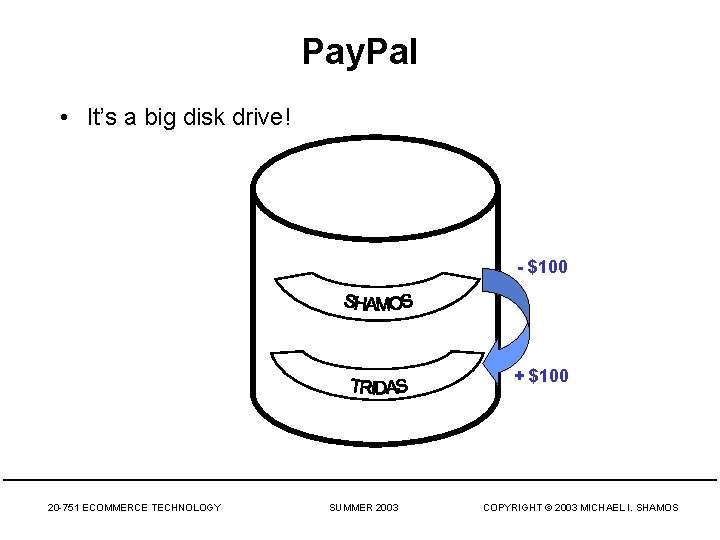

Pay. Pal • It’s a big disk drive! - $100 + $100 20 -751

Pay. Pal ACCOUNT HOLDER A’S CREDIT CARD 1. A PAYS X VIA PAYPAL (A

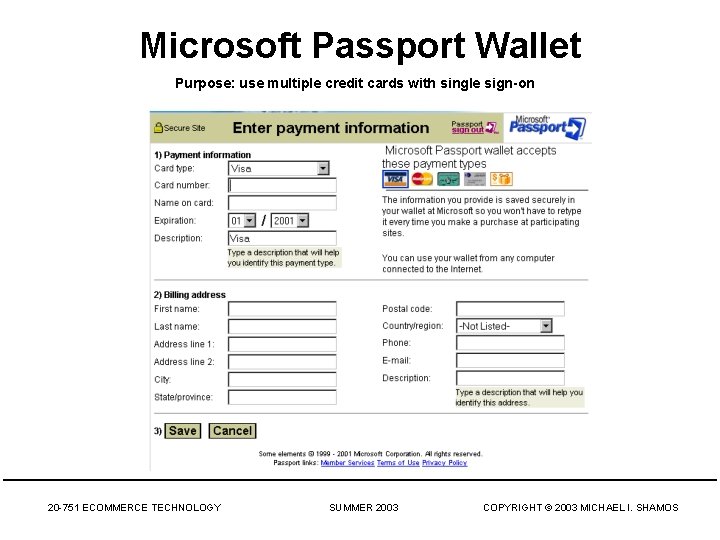

Microsoft Passport Wallet Purpose: use multiple credit cards with single sign-on 20 -751 ECOMMERCE

Microsoft Passport 1. ACCESS MERCHANT PAGE 2. MERCHANT AUTHENTICATION REQUEST 3. USER LOGS IN

Smart Cards • Magnetic stripe – 140 bytes, cost $0. 20 -0. 75 •

Smart Card Applications • Ticketless travel: Seoul bus system – 4 M cards, 1

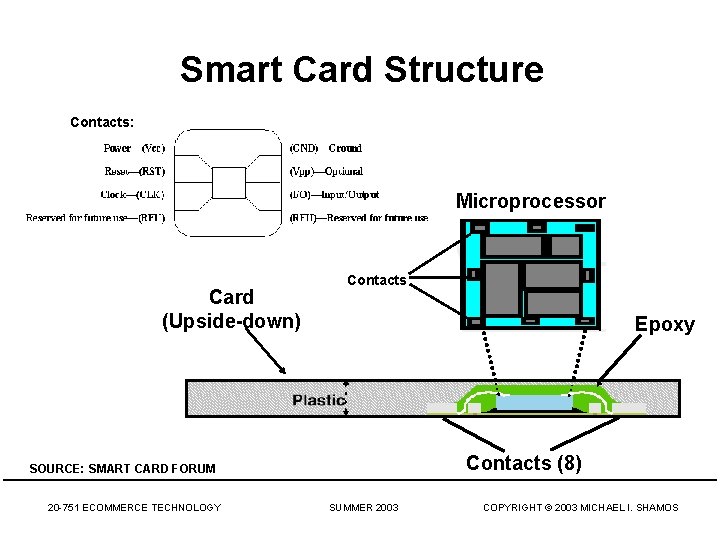

Smart Card Structure Contacts: Microprocessor Card (Upside-down) Contacts Epoxy Contacts (8) SOURCE: SMART CARD

Mondex • • • Smart-card-based, stored-value card (SVC) Subsidiary of Master. Card Nat. West

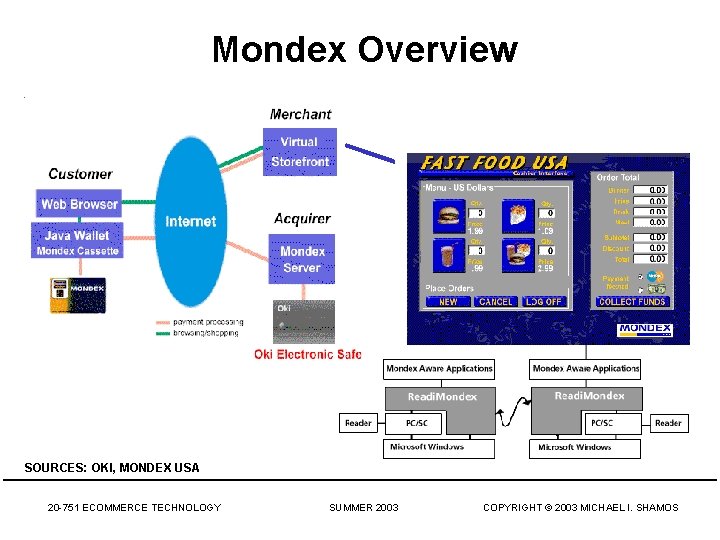

Mondex Overview SOURCES: OKI, MONDEX USA 20 -751 ECOMMERCE TECHNOLOGY SUMMER 2003 COPYRIGHT ©

Mondex Components (Hitachi) Cashless ATM PCMCIA Reader/Writer Electronic Cash Register Key Fob Balance Reader

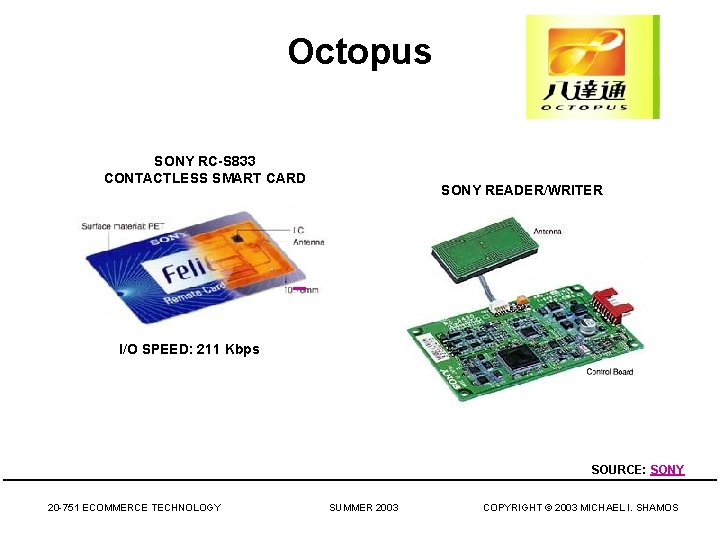

Octopus SONY RC-S 833 CONTACTLESS SMART CARD SONY READER/WRITER I/O SPEED: 211 Kbps SOURCE:

Financial Aggregation • Idea: allow access to all assets through a single portal •

EBPP Participants PERSONAL FINANCE SYSTEM, AGGREGATOR, BANK DATA PARSING BILL FORMATTING BILLER HOSTING DATA

Key Takeaways • epayment security accomplished with PKI • Pay. Pal is the fastest-growing

Q&A 20 -751 ECOMMERCE TECHNOLOGY SUMMER 2003 COPYRIGHT © 2003 MICHAEL I. SHAMOS

Slides: 27

Download presentation

Electronic Payment Systems

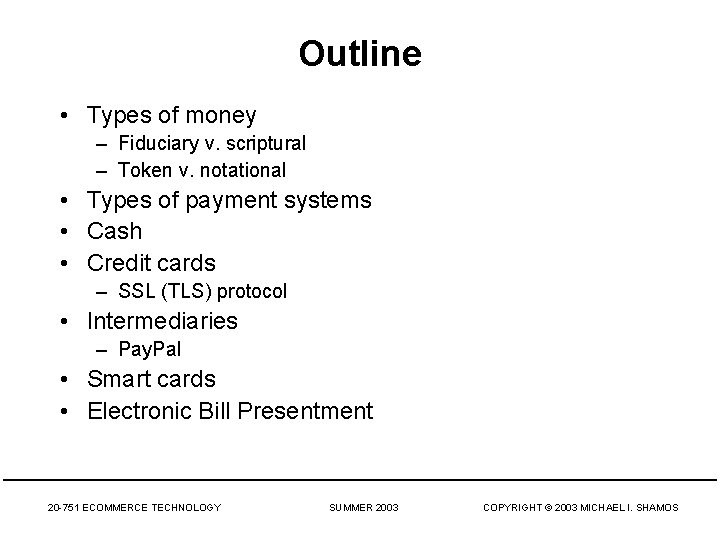

Outline • Types of money – Fiduciary v. scriptural – Token v. notational • Types of payment systems • Cash • Credit cards – SSL (TLS) protocol • Intermediaries – Pay. Pal • Smart cards • Electronic Bill Presentment 20 -751 ECOMMERCE TECHNOLOGY SUMMER 2003 COPYRIGHT © 2003 MICHAEL I. SHAMOS

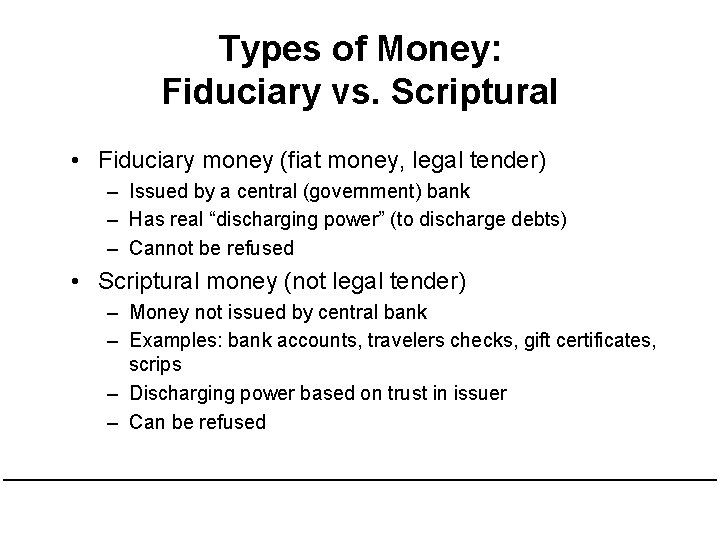

Types of Money: Fiduciary vs. Scriptural • Fiduciary money (fiat money, legal tender) – Issued by a central (government) bank – Has real “discharging power” (to discharge debts) – Cannot be refused • Scriptural money (not legal tender) – Money not issued by central bank – Examples: bank accounts, travelers checks, gift certificates, scrips – Discharging power based on trust in issuer – Can be refused

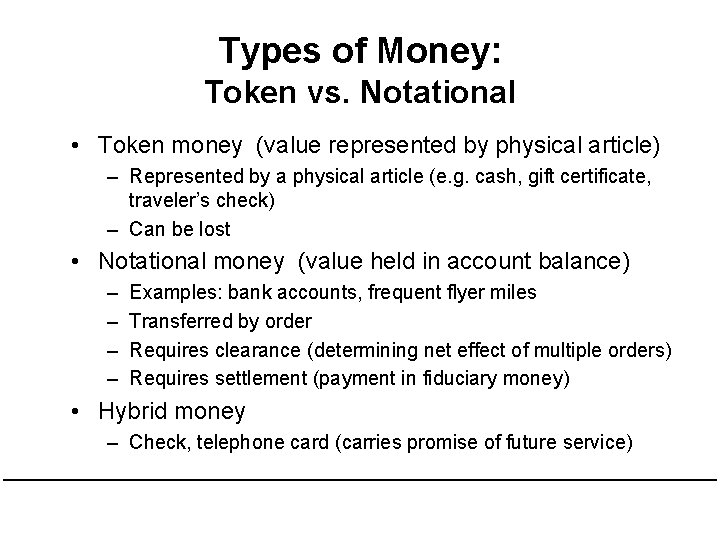

Types of Money: Token vs. Notational • Token money (value represented by physical article) – Represented by a physical article (e. g. cash, gift certificate, traveler’s check) – Can be lost • Notational money (value held in account balance) – – Examples: bank accounts, frequent flyer miles Transferred by order Requires clearance (determining net effect of multiple orders) Requires settlement (payment in fiduciary money) • Hybrid money – Check, telephone card (carries promise of future service)

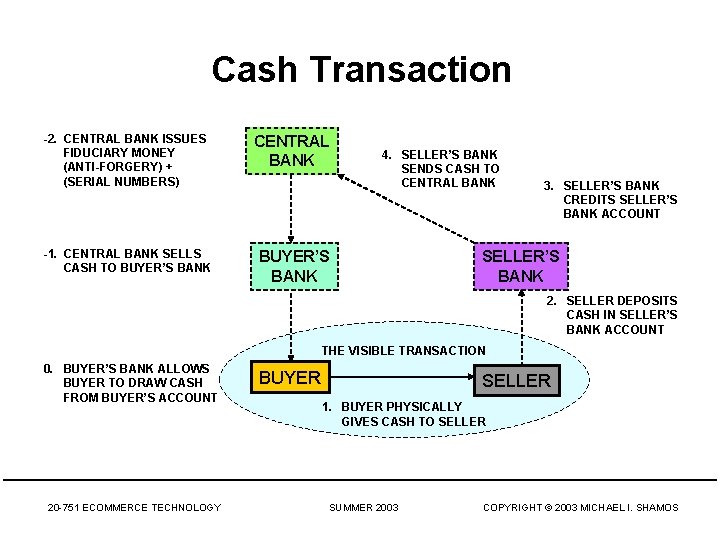

Cash Transaction -2. CENTRAL BANK ISSUES FIDUCIARY MONEY (ANTI-FORGERY) + (SERIAL NUMBERS) CENTRAL BANK -1. CENTRAL BANK SELLS CASH TO BUYER’S BANK 4. SELLER’S BANK SENDS CASH TO CENTRAL BANK 3. SELLER’S BANK CREDITS SELLER’S BANK ACCOUNT SELLER’S BANK 2. SELLER DEPOSITS CASH IN SELLER’S BANK ACCOUNT THE VISIBLE TRANSACTION 0. BUYER’S BANK ALLOWS BUYER TO DRAW CASH FROM BUYER’S ACCOUNT 20 -751 ECOMMERCE TECHNOLOGY BUYER SELLER 1. BUYER PHYSICALLY GIVES CASH TO SELLER SUMMER 2003 COPYRIGHT © 2003 MICHAEL I. SHAMOS

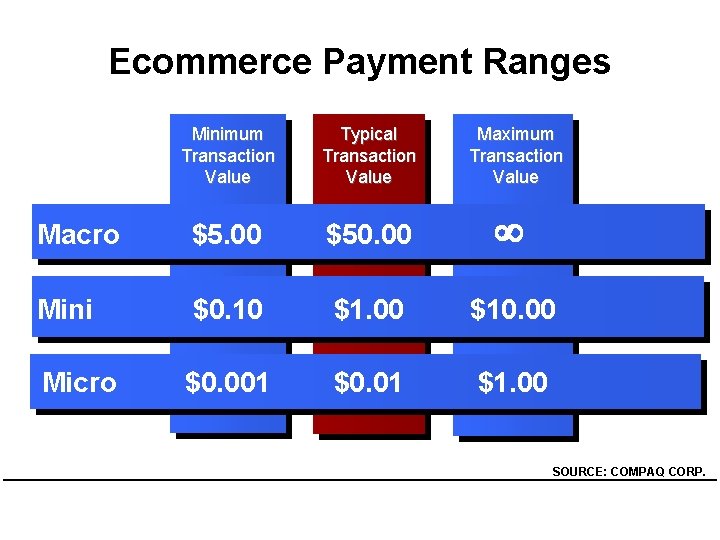

Ecommerce Payment Ranges Minimum Transaction Value Typical Transaction Value Maximum Transaction Value Macro $5. 00 $50. 00 Mini $0. 10 $1. 00 $10. 00 Micro $0. 001 $0. 01 $1. 00 SOURCE: COMPAQ CORP.

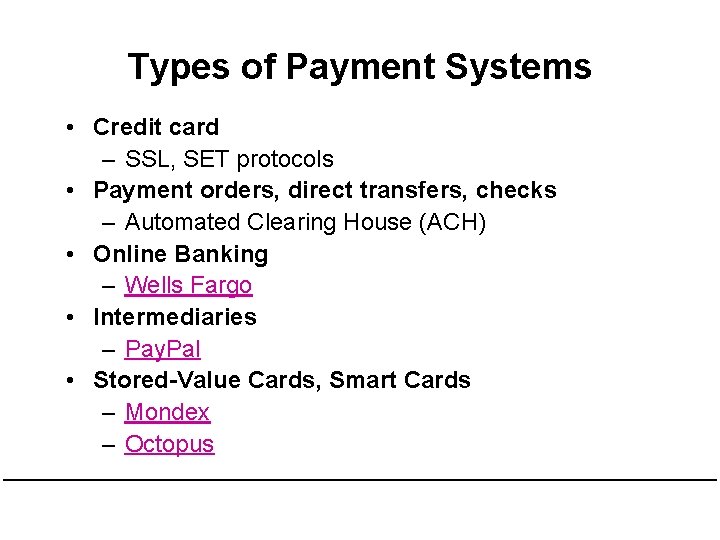

Types of Payment Systems • Credit card – SSL, SET protocols • Payment orders, direct transfers, checks – Automated Clearing House (ACH) • Online Banking – Wells Fargo • Intermediaries – Pay. Pal • Stored-Value Cards, Smart Cards – Mondex – Octopus

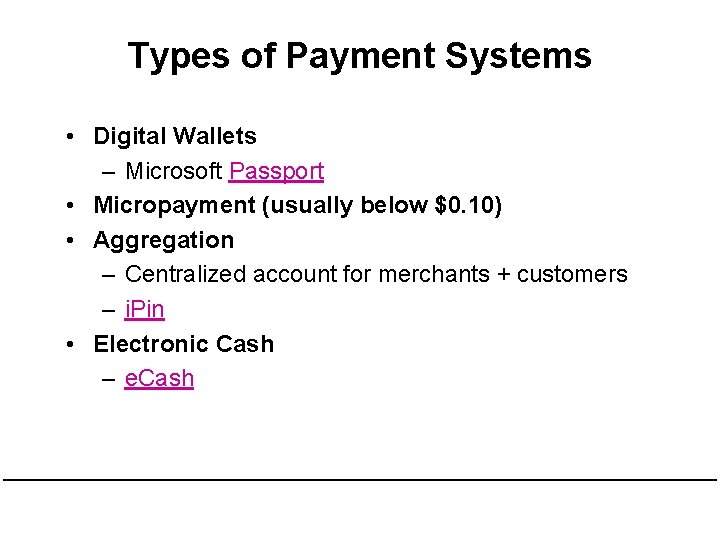

Types of Payment Systems • Digital Wallets – Microsoft Passport • Micropayment (usually below $0. 10) • Aggregation – Centralized account for merchants + customers – i. Pin • Electronic Cash – e. Cash

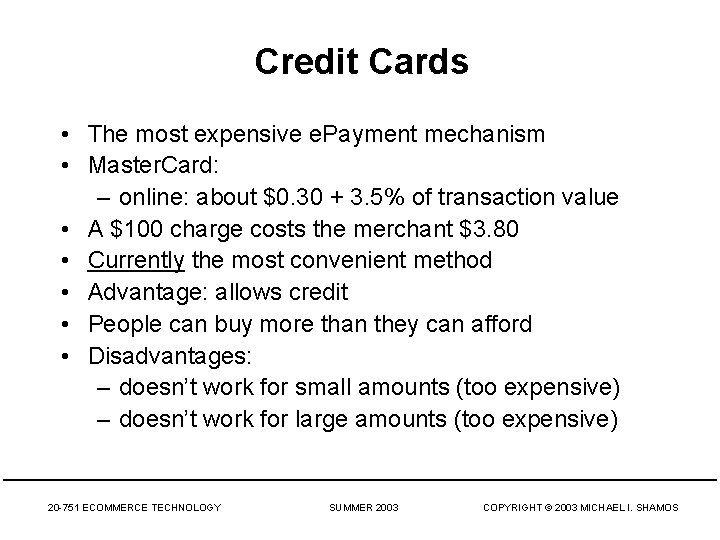

Credit Cards • The most expensive e. Payment mechanism • Master. Card: – online: about $0. 30 + 3. 5% of transaction value • A $100 charge costs the merchant $3. 80 • Currently the most convenient method • Advantage: allows credit • People can buy more than they can afford • Disadvantages: – doesn’t work for small amounts (too expensive) – doesn’t work for large amounts (too expensive) 20 -751 ECOMMERCE TECHNOLOGY SUMMER 2003 COPYRIGHT © 2003 MICHAEL I. SHAMOS

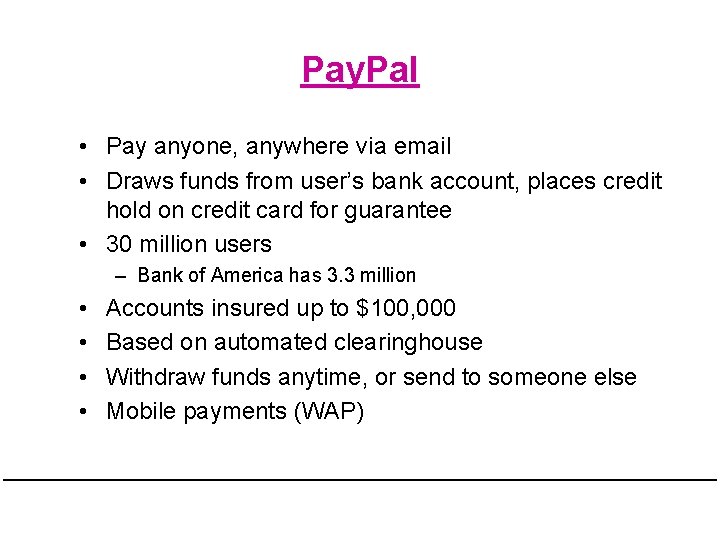

Pay. Pal • Pay anyone, anywhere via email • Draws funds from user’s bank account, places credit hold on credit card for guarantee • 30 million users – Bank of America has 3. 3 million • • Accounts insured up to $100, 000 Based on automated clearinghouse Withdraw funds anytime, or send to someone else Mobile payments (WAP)

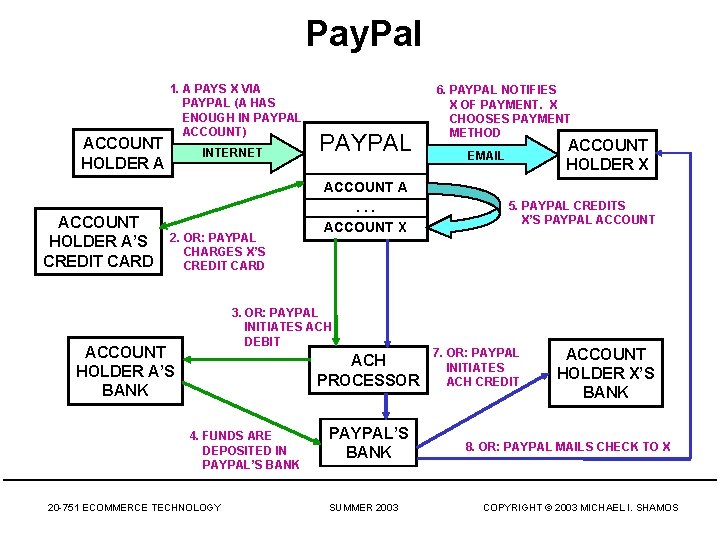

Pay. Pal ACCOUNT HOLDER A’S CREDIT CARD 1. A PAYS X VIA PAYPAL (A HAS ENOUGH IN PAYPAL ACCOUNT) INTERNET 2. OR: PAYPAL CHARGES X’S CREDIT CARD PAYPAL ACCOUNT A. . . ACCOUNT X 3. OR: PAYPAL INITIATES ACH DEBIT ACCOUNT HOLDER A’S BANK ACH PROCESSOR 4. FUNDS ARE DEPOSITED IN PAYPAL’S BANK 20 -751 ECOMMERCE TECHNOLOGY PAYPAL’S BANK SUMMER 2003 6. PAYPAL NOTIFIES X OF PAYMENT. X CHOOSES PAYMENT METHOD ACCOUNT HOLDER X EMAIL 5. PAYPAL CREDITS X’S PAYPAL ACCOUNT 7. OR: PAYPAL INITIATES ACH CREDIT ACCOUNT HOLDER X’S BANK 8. OR: PAYPAL MAILS CHECK TO X COPYRIGHT © 2003 MICHAEL I. SHAMOS

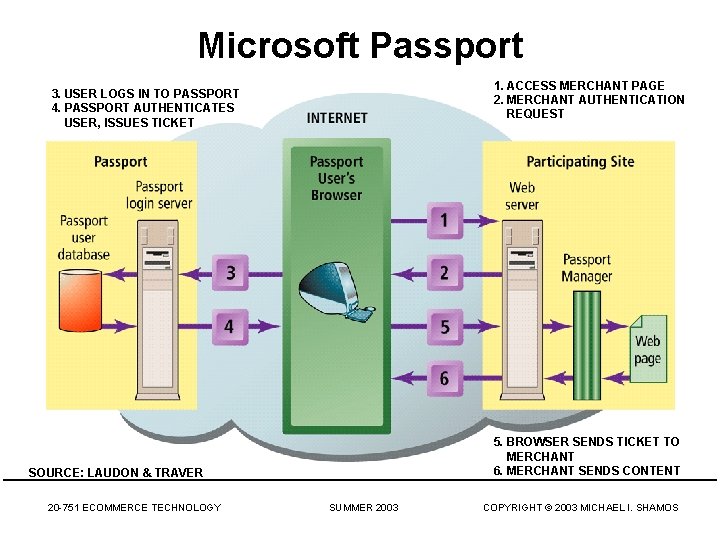

Microsoft Passport 1. ACCESS MERCHANT PAGE 2. MERCHANT AUTHENTICATION REQUEST 3. USER LOGS IN TO PASSPORT 4. PASSPORT AUTHENTICATES USER, ISSUES TICKET 5. BROWSER SENDS TICKET TO MERCHANT 6. MERCHANT SENDS CONTENT SOURCE: LAUDON & TRAVER 20 -751 ECOMMERCE TECHNOLOGY SUMMER 2003 COPYRIGHT © 2003 MICHAEL I. SHAMOS

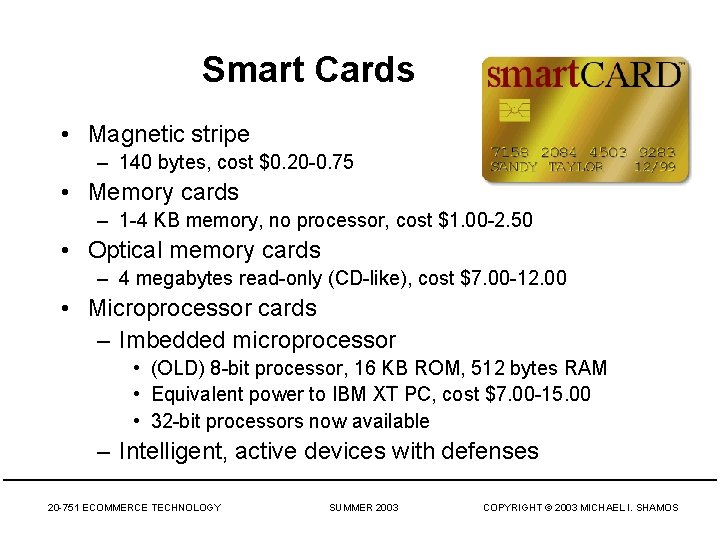

Smart Cards • Magnetic stripe – 140 bytes, cost $0. 20 -0. 75 • Memory cards – 1 -4 KB memory, no processor, cost $1. 00 -2. 50 • Optical memory cards – 4 megabytes read-only (CD-like), cost $7. 00 -12. 00 • Microprocessor cards – Imbedded microprocessor • (OLD) 8 -bit processor, 16 KB ROM, 512 bytes RAM • Equivalent power to IBM XT PC, cost $7. 00 -15. 00 • 32 -bit processors now available – Intelligent, active devices with defenses 20 -751 ECOMMERCE TECHNOLOGY SUMMER 2003 COPYRIGHT © 2003 MICHAEL I. SHAMOS

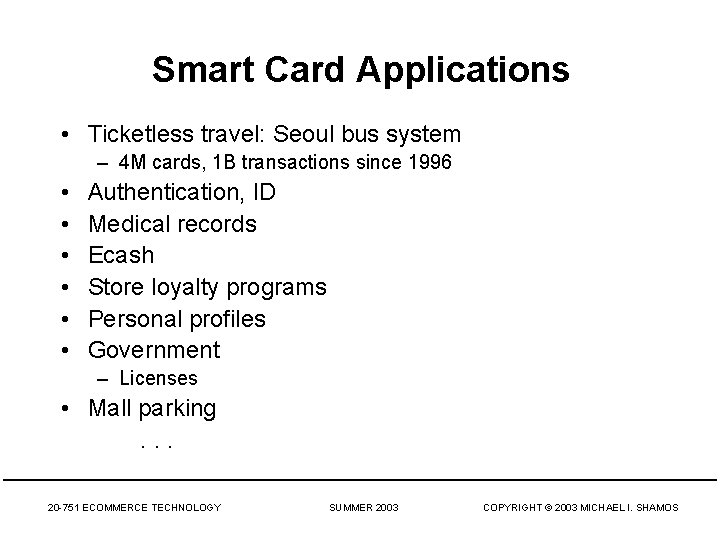

Smart Card Applications • Ticketless travel: Seoul bus system – 4 M cards, 1 B transactions since 1996 • • • Authentication, ID Medical records Ecash Store loyalty programs Personal profiles Government – Licenses • Mall parking. . . 20 -751 ECOMMERCE TECHNOLOGY SUMMER 2003 COPYRIGHT © 2003 MICHAEL I. SHAMOS

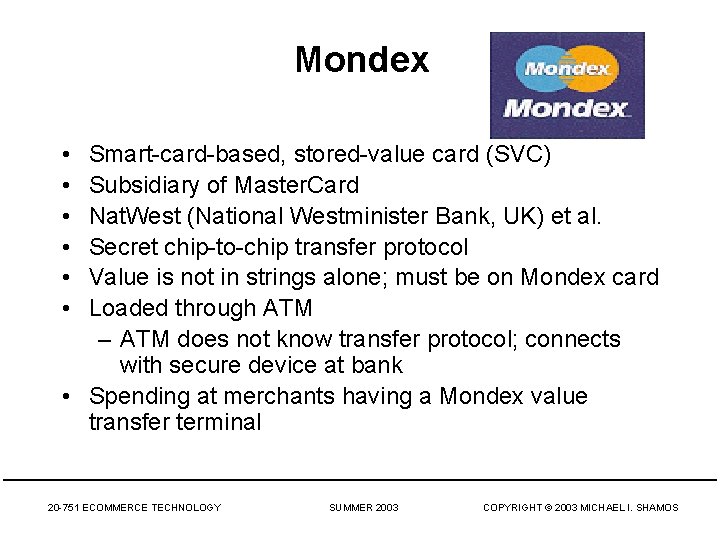

Mondex • • • Smart-card-based, stored-value card (SVC) Subsidiary of Master. Card Nat. West (National Westminister Bank, UK) et al. Secret chip-to-chip transfer protocol Value is not in strings alone; must be on Mondex card Loaded through ATM – ATM does not know transfer protocol; connects with secure device at bank • Spending at merchants having a Mondex value transfer terminal 20 -751 ECOMMERCE TECHNOLOGY SUMMER 2003 COPYRIGHT © 2003 MICHAEL I. SHAMOS

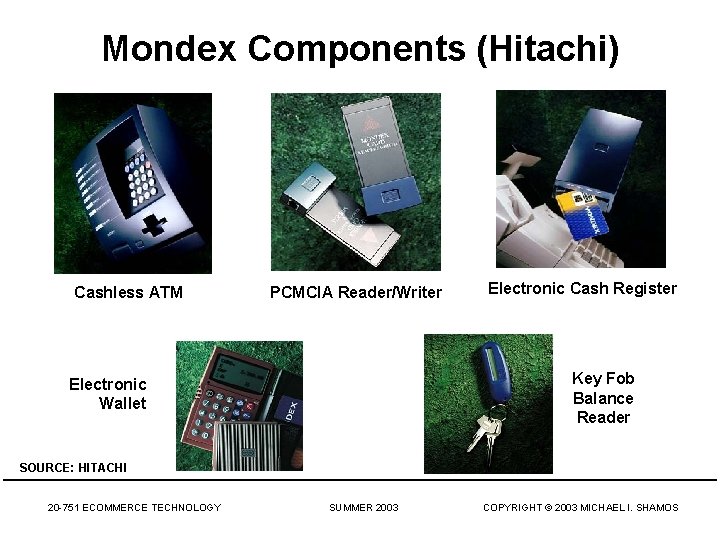

Mondex Components (Hitachi) Cashless ATM PCMCIA Reader/Writer Electronic Cash Register Key Fob Balance Reader Electronic Wallet SOURCE: HITACHI 20 -751 ECOMMERCE TECHNOLOGY SUMMER 2003 COPYRIGHT © 2003 MICHAEL I. SHAMOS

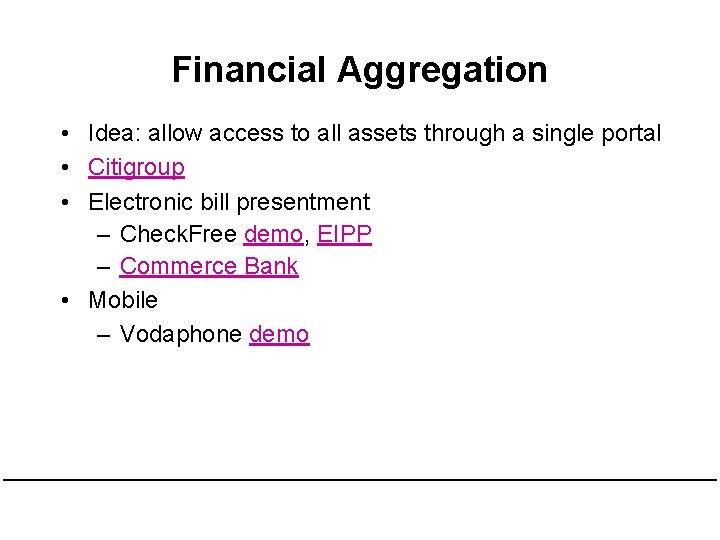

Financial Aggregation • Idea: allow access to all assets through a single portal • Citigroup • Electronic bill presentment – Check. Free demo, EIPP – Commerce Bank • Mobile – Vodaphone demo

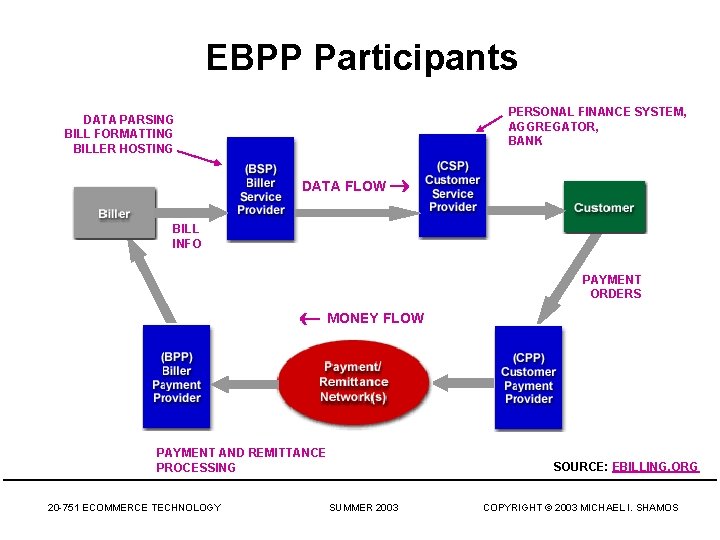

EBPP Participants PERSONAL FINANCE SYSTEM, AGGREGATOR, BANK DATA PARSING BILL FORMATTING BILLER HOSTING DATA FLOW BILL INFO PAYMENT ORDERS MONEY FLOW PAYMENT AND REMITTANCE PROCESSING 20 -751 ECOMMERCE TECHNOLOGY SOURCE: EBILLING. ORG SUMMER 2003 COPYRIGHT © 2003 MICHAEL I. SHAMOS

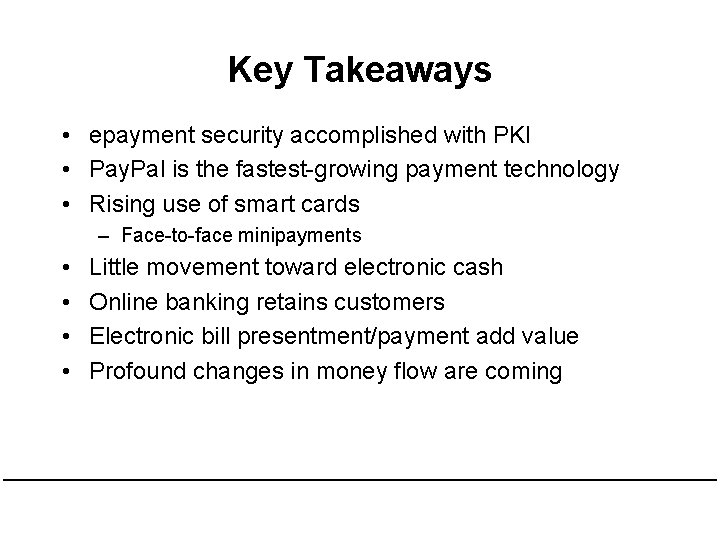

Key Takeaways • epayment security accomplished with PKI • Pay. Pal is the fastest-growing payment technology • Rising use of smart cards – Face-to-face minipayments • • Little movement toward electronic cash Online banking retains customers Electronic bill presentment/payment add value Profound changes in money flow are coming
