Discrete Fourier Transform FFT and Its Applications FFTSHIFT

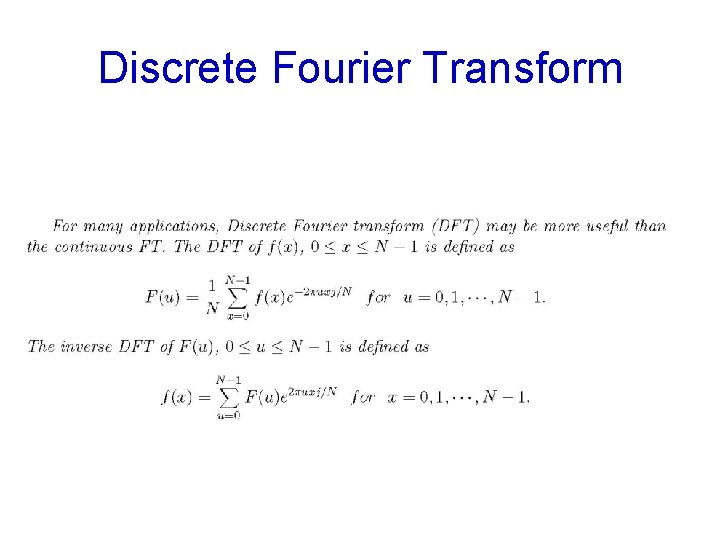

Discrete Fourier Transform

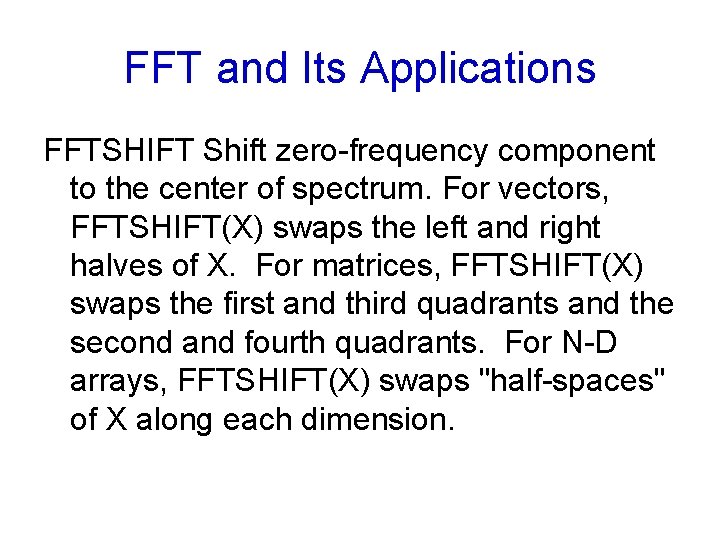

FFT and Its Applications FFTSHIFT Shift zero-frequency component to the center of spectrum. For vectors, FFTSHIFT(X) swaps the left and right halves of X. For matrices, FFTSHIFT(X) swaps the first and third quadrants and the second and fourth quadrants. For N-D arrays, FFTSHIFT(X) swaps "half-spaces" of X along each dimension.

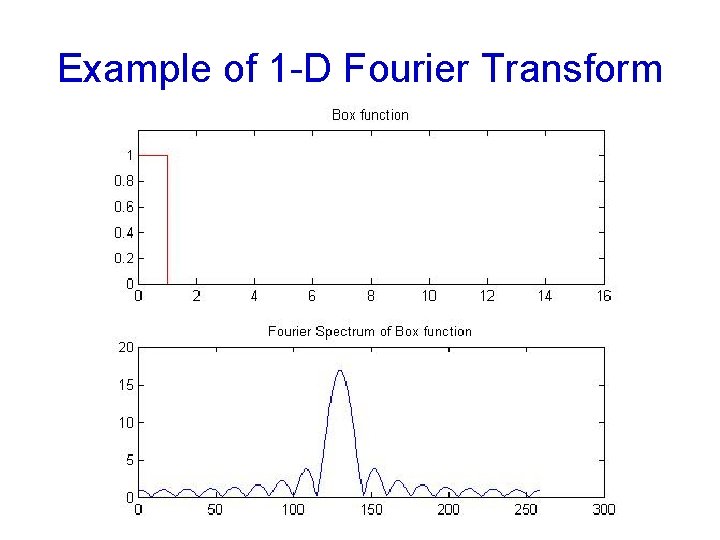

Example of 1 -D Fourier Transform

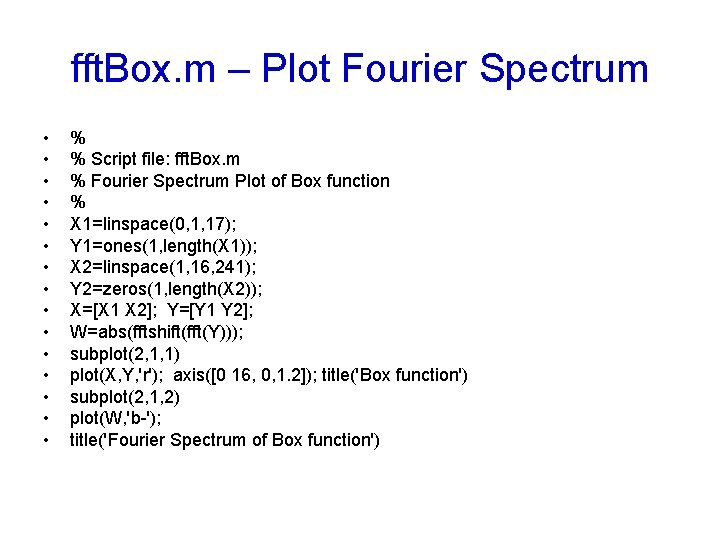

fft. Box. m – Plot Fourier Spectrum • • • • % % Script file: fft. Box. m % Fourier Spectrum Plot of Box function % X 1=linspace(0, 1, 17); Y 1=ones(1, length(X 1)); X 2=linspace(1, 16, 241); Y 2=zeros(1, length(X 2)); X=[X 1 X 2]; Y=[Y 1 Y 2]; W=abs(fftshift(fft(Y))); subplot(2, 1, 1) plot(X, Y, 'r'); axis([0 16, 0, 1. 2]); title('Box function') subplot(2, 1, 2) plot(W, 'b-'); title('Fourier Spectrum of Box function')

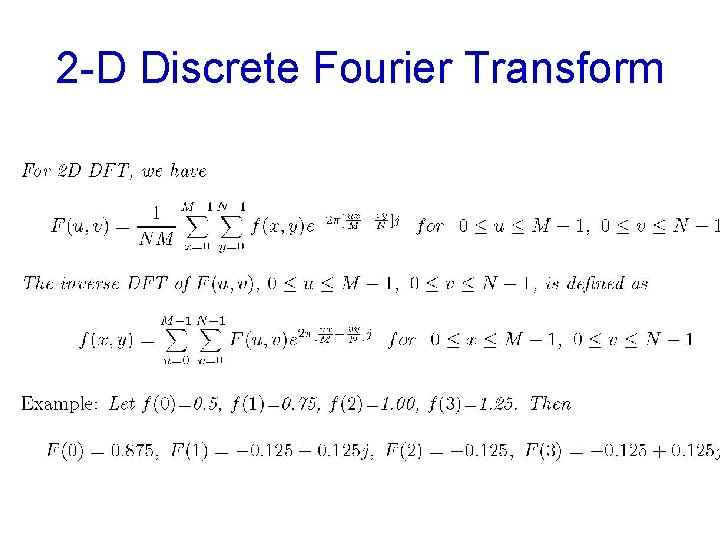

2 -D Discrete Fourier Transform

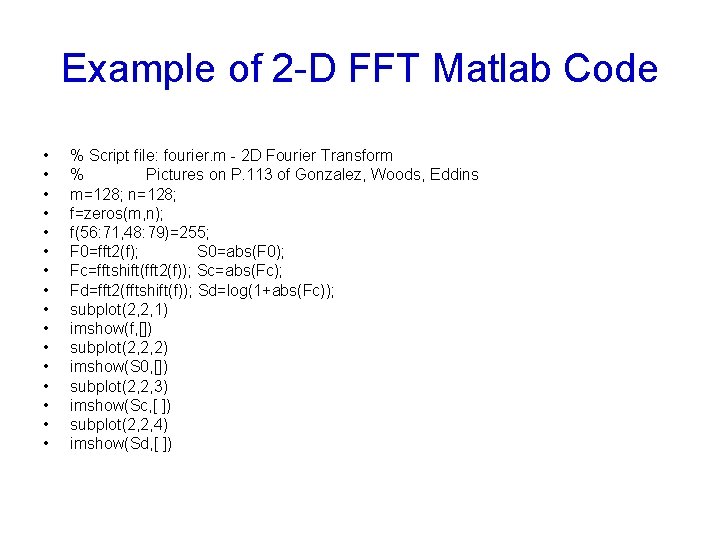

Example of 2 -D FFT Matlab Code • • • • % Script file: fourier. m - 2 D Fourier Transform % Pictures on P. 113 of Gonzalez, Woods, Eddins m=128; n=128; f=zeros(m, n); f(56: 71, 48: 79)=255; F 0=fft 2(f); S 0=abs(F 0); Fc=fftshift(fft 2(f)); Sc=abs(Fc); Fd=fft 2(fftshift(f)); Sd=log(1+abs(Fc)); subplot(2, 2, 1) imshow(f, []) subplot(2, 2, 2) imshow(S 0, []) subplot(2, 2, 3) imshow(Sc, [ ]) subplot(2, 2, 4) imshow(Sd, [ ])

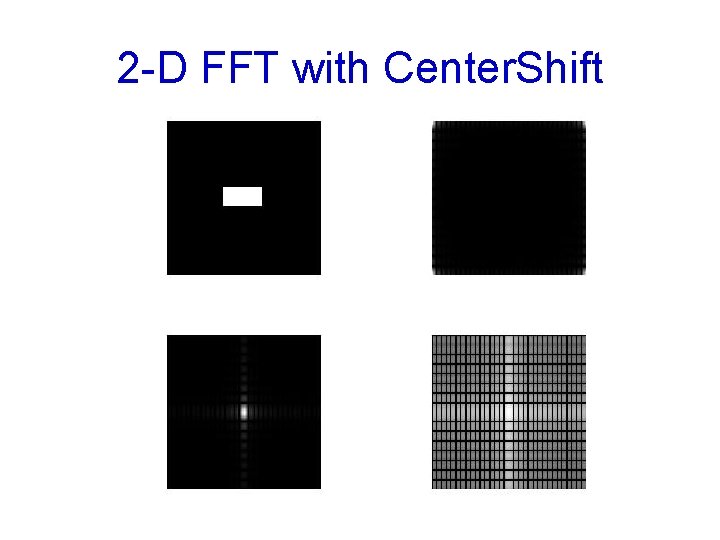

2 -D FFT with Center. Shift

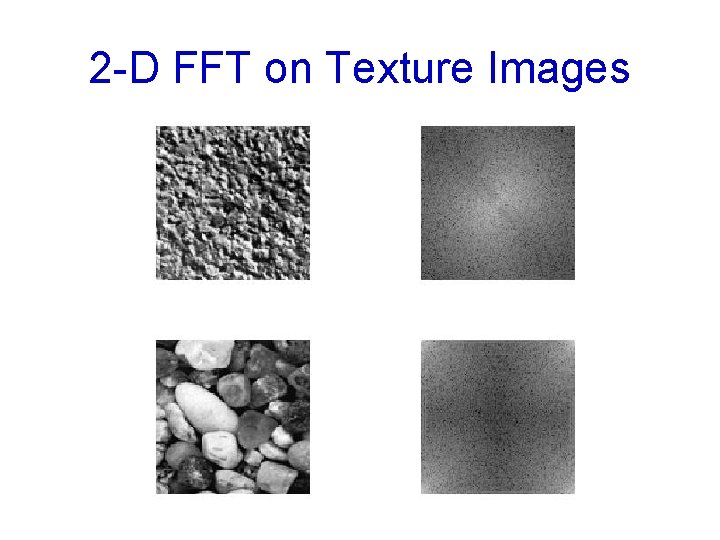

2 -D FFT on Texture Images
