Devoir surveillé Vendredi 22 février 14 h-15 h 20 Amphi Turing Programme n Tous les sujets traités en TD jusqu’au mercredi 20 inclus Sans document
Adaptation par J. Bétréma Machine-Level Programming : Stack and Procedures Topics n IA 32 stack discipline n Procedure calls Register saving conventions n Randal E. Bryant & David R. O'Hallaron Carnegie Mellon University http: //csapp. cs. cmu. edu class 07. ppt
Y 86 Program Stack n Region of memory holding program data n Used in Y 86 (and IA 32) for supporting procedure calls Stack top indicated by %esp (Stack Pointer) Code n Increasing Addresses l Address of top stack element Stack “Top” n %esp Stack “Bottom” – 3– Stack grows toward lower addresses l Top element is at highest address in the stack l When pushing, must first decrement stack pointer l When popping, increment stack pointer Pile et procédures
Stack Operations pushl r. A n Decrement %esp by 4 Store word from r. A to memory at %esp n Like IA 32 n popl r. A – 4– a 0 r. A 8 b 0 r. A 8 n Read word from memory at %esp n n Save in r. A Increment %esp by 4 n Like IA 32 Pile et procédures
IA 32 Stack Pushing n pushl Src n Fetch operand at Src Decrement %esp by 4 n n Stack Pointer %esp -4 %eax Write operand at address given by %esp Y 86 n n – 5– Src = registre Exemple : pushl %eax empile le contenu du registre %eax Pile et procédures
IA 32 Stack Popping n popl Dest n n Read operand at address given by %esp Increment %esp by 4 n Write to Dest Stack Pointer + 4 %esp Y 86 n n – 6– Dest = registre Exemple : popl %edx dépile dans %edx le mot en sommet de pile Pile et procédures

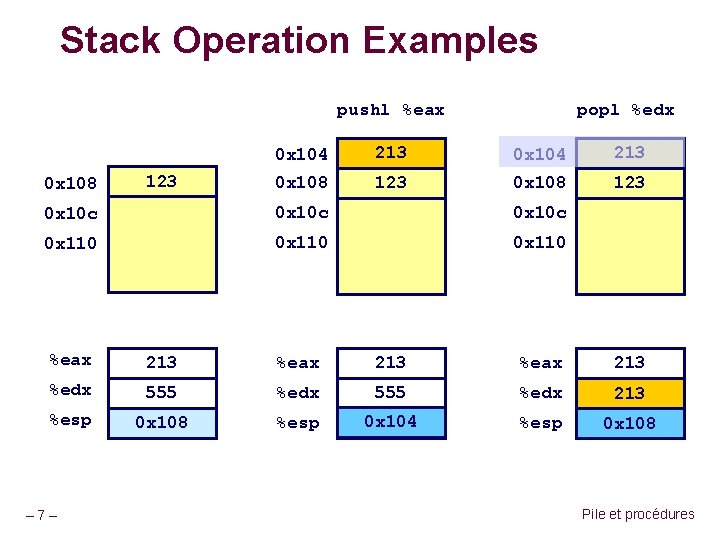

Stack Operation Examples pushl %eax 0 x 108 123 popl %edx 0 x 104 213 0 x 108 123 0 x 10 c 0 x 110 %eax 213 %edx 555 213 %esp 0 x 108 %esp 0 x 104 0 x 108 – 7– Pile et procédures
Call Chain Example Code Structure f(…) { • • g(); • • } – 8– Vocabulaire : fonction C = procédure = subroutine g(…) { • • • h(); • • • } Call Chain f g Profondeur de l’arbre des appels non bornée h h . . . Pile et procédures
Adresse de retour Procédure appelée Procédure appelante f(…) { • • g(); • • } jmp g jmp ? ? ? g(…) { • • • h(); • • • } Solution : la procédure appelante sauve l’adresse de retour avant l’appel. – 9– La procédure appelée ignore l’adresse de retour, car elle ignore qui l’a appelée. Où ? sur la pile ! Pile et procédures
Procedure Control Flow n Use stack to support procedure call and return Procedure call: Push return address on stack; Jump call label to label Return address value n n Address of instruction beyond call Example from disassembly 804854 e: e 8 3 d 06 00 00 8048553: 8 b 45 0 c call mov 8048 b 90 0 xc(%ebp), %eax l Return address = 0 x 8048553 Procedure return: n – 10 – ret Pop address from stack; Jump to address Pile et procédures
Subroutine Call and Return call Dest n Push address of next instruction onto stack Start executing instructions at Dest n Like IA 32 n ret 9 0 n Pop value from stack Use as address for next instruction n Like IA 32 n – 11 – 8 0 Pile et procédures
Stack-Based Languages that Support Recursion n Code must be “Reentrant” l Multiple simultaneous instantiations of single procedure n Need some place to store state of each instantiation l Arguments l Local variables l Return pointer Stack Discipline n State for given procedure needed for limited time l From when called to when return n Callee returns before caller does Stack Allocated in Frames n – 12 – state for single procedure instantiation Pile et procédures
Stack Frames Contents n Local variables n Return information Temporary space n f g h Management n Space allocated when enter procedure l “Set-up” code n Deallocated when return proc l “Finish” code Pointers n n – 13 – Stack pointer %esp indicates stack top Frame pointer %ebp indicates start of current frame Stack “Top” Stack Pointer %esp %ebp Frame Pointer Pile et procédures
Stack Operation f(…) { • • g(); • • } Call Chain f Stack Pointer %esp f %ebp Frame Pointer – 14 – • • • Pile et procédures
Stack Operation g(…) { • • • h(); • • • } Call Chain f g Stack Pointer %esp g %ebp Frame Pointer f • • • – 15 – Pile et procédures
Stack Operation h(…) { • • } Call Chain f g h Stack Pointer %esp h %ebp Frame Pointer g f • • • – 16 – Pile et procédures
Stack Operation g(…) { • • • h(); • • • } Call Chain f g h Stack Pointer %esp g %ebp Frame Pointer f • • • – 17 – Pile et procédures
Stack Operation h(…) { • • } Call Chain f h g h Stack Pointer %esp h %ebp Frame Pointer g f • • • – 18 – Pile et procédures
Stack Operation g(…) { • • • h(); • • • } Call Chain f Stack Pointer %esp g h h g %ebp Frame Pointer f • • • – 19 – Pile et procédures
Stack Operation f(…) { • • g(); • • } Call Chain f g h h Stack Pointer %esp f %ebp Frame Pointer – 20 – • • • Pile et procédures

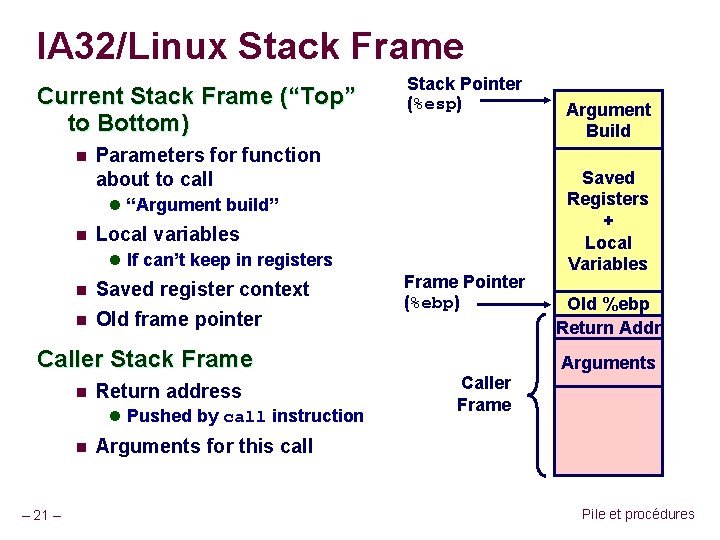

IA 32/Linux Stack Frame Current Stack Frame (“Top” to Bottom) n Stack Pointer (%esp) Parameters for function about to call l “Argument build” n Local variables l If can’t keep in registers n n Saved register context Old frame pointer Caller Stack Frame n Return address l Pushed by call instruction n – 21 – Frame Pointer (%ebp) Argument Build Saved Registers + Local Variables Old %ebp Return Addr Arguments Caller Frame Arguments for this call Pile et procédures
Example: swap Calling swap from call_swap int zip 1 = 15213; int zip 2 = 91125; void call_swap() {. . . swap(&zip 1, &zip 2); . . . } call_swap: • • • pushl $zip 2 pushl $zip 1 call swap • • • %esp # Global Var Rtn adr &zip 1 void swap(int *xp, int *yp) { int t 0 = *xp; int t 1 = *yp; *xp = t 1; *yp = t 0; } – 22 – Resulting Stack &zip 2 • • • Pile et procédures
swap void swap(int *xp, int *yp) { int t 0 = *xp; int t 1 = *yp; *xp = t 1; *yp = t 0; } swap: pushl %ebp movl %esp, %ebp pushl %ebx movl movl Set Up 12(%ebp), %ecx 8(%ebp), %edx (%ecx), %eax (%edx), %ebx %eax, (%edx) %ebx, (%ecx) movl -4(%ebp), %ebx movl %ebp, %esp popl %ebp ret – 23 – Body Finish Pile et procédures
swap Setup %ebp %esp Old %ebx %esp %ebp Old %ebp %esp Rtn adr &zip 1 swap: pushl %ebp movl %esp, %ebp pushl %ebx &zip 2 • • • %ebp – 24 – Pile et procédures
Effect of swap Setup movl 12(%ebp), %ecx # get yp movl 8(%ebp), %edx # get xp. . . Entering Stack %esp Rtn adr &zip 1 &zip 2 • • • Resulting Stack Body Old %ebx %esp Offset (relative to %ebp) 0 Old %ebp 4 Rtn adr 8 xp 12 yp %ebp • • • %ebp – 25 – Pile et procédures
swap Finish %esp Old %ebx %ebp Old %ebp %esp Rtn adr %esp xp Restores %ebx movl -4(%ebp), %ebx movl %ebp, %esp popl %ebp ret yp • • • %ebp – 26 – Observation n Saved & restored register %ebx n Didn’t do so for %eax, %ecx, or %edx Pile et procédures
Register Saving Conventions When procedure f calls g: n f is the caller, g is the callee Can Register be Used for Temporary Storage? f: g: • • • movl $15213, %edx call g addl %edx, %eax • • • ret n – 27 – • • • movl 8(%ebp), %edx addl $91125, %edx • • • ret Contents of register %edx overwritten by g Pile et procédures
Register Saving Conventions When procedure f calls g: n f is the caller, g is the callee Can Register be Used for Temporary Storage? Conventions n “Caller Save” l Caller saves temporary in its frame before calling n “Callee Save” l Callee saves temporary in its frame before using – 28 – Pile et procédures
IA 32/Linux Register Usage Integer Registers n Two have special uses %ebp, %esp n Three managed as callee-save %eax Caller-Save Temporaries %edx %ebx, %esi, %edi l Old values saved on stack prior to using n Callee-Save Temporaries l Do what you please, %esi %edi Three managed as caller-save %eax, %ecx, %edx %ecx Special %ebp %esp but expect any callee to do so, as well n – 29 – Register %eax also stores returned value Pile et procédures
Procédures récursives Le protocole précédent ne limite pas la profondeur de l’arbre des appels. n Pièces bien placées sur l’échiquier = position solide. n Prêt à parer une attaque inattendue : l Procédure récursive = procédure qui s’appelle-même l Procédure appelante (caller) = procédure appelée (callee) – 30 – Pile et procédures

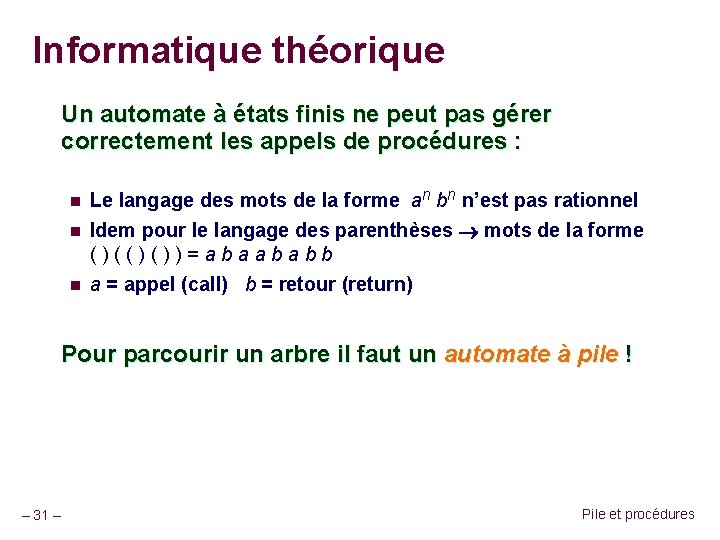

Informatique théorique Un automate à états finis ne peut pas gérer correctement les appels de procédures : n Le langage des mots de la forme an bn n’est pas rationnel n Idem pour le langage des parenthèses mots de la forme ()(()())=abaababb a = appel (call) b = retour (return) n Pour parcourir un arbre il faut un automate à pile ! – 31 – Pile et procédures
rfact: pushl %ebp movl %esp, %ebp int rfact (int x) pushl %ebx lit l’argument { movl 8(%ebp), %ebx int rval; cmpl $1, %ebx if (x <= 1) jle. L 78 return 1; calcule x-1 leal -1(%ebx), %eax rval = rfact (x-1); pushl %eax return rval * x; call rfact } imull %ebx, %eax jmp. L 79 empile l’argument. align 4 avant l’appel récursif. L 78: Registers movl $1, %eax n %eax used without first. L 79: movl -4(%ebp), %ebx saving movl %ebp, %esp n %ebx used, but save at popl %ebp beginning & restore at end ret Recursive Factorial – 32 – Pile et procédures
Summary The Stack Makes Procedures Work n Private storage for each instance of procedure call l Instantiations don’t clobber each other l Addressing of locals + arguments can be relative to stack positions n Can be managed by stack discipline l Procedures return in inverse order of calls IA 32 Procedures Combination of Instructions + Conventions n n Call / Ret instructions Register usage conventions l Caller / Callee save l %ebp and %esp n – 33 – Stack frame organization conventions Pile et procédures
