UPSentry Smart 2000 Advantages: Supports RS 232 and USB protocols Multi-lingual design (English, French, German, Spanish, Portuguese, Italian, Polish, Chinese and Japanese) Multi-servers shutdown/wakeup in various operating systems, use the Master/Slave software structure need not to purchase another SNMP card Unattended operating systems shutdown and files saving Supports hibernation feature in Windows 2000/XP Programmable actions(Flex. Action) Remote and local UPS real-time management Supports SNMP get, set and trap commands Built-in mini Web server Network Slave Serial Operating Systems supported: Slave HUB Master Microsoft Windows 95, 98, Me, NT 4, 2000, XP, 2003 Mac OSX Linux Free. BSD SCO Open. Server Sun Sparc and x 86 HP-UX IBM AIX UPS Delta Confidential

UPSentry Smart 2000 – continue Display: Real-time monitoring Multiple views formats: Meters and gauges, block diagram, lamp alarms, graph chart Flex. Action: Shutdown Event log Network broadcast External command file Audible alarm E-mail SMS(Short Message) Pager SNMP trap Receptacle control Event Tracking: Records of date/time/description of power events Data logging for analyzing power quality Schedule: Shutdown/Restart Quick test, deep battery test Outlet bank control Delta Confidential

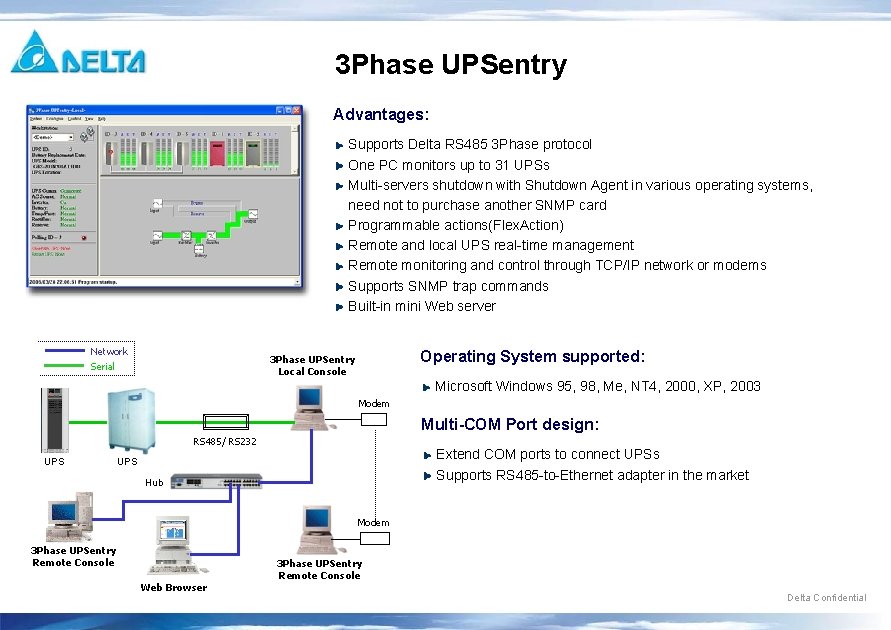

3 Phase UPSentry Advantages: Supports Delta RS 485 3 Phase protocol One PC monitors up to 31 UPSs Multi-servers shutdown with Shutdown Agent in various operating systems, need not to purchase another SNMP card Programmable actions(Flex. Action) Remote and local UPS real-time management Remote monitoring and control through TCP/IP network or modems Supports SNMP trap commands Built-in mini Web server Network Operating System supported: 3 Phase UPSentry Local Console Serial Microsoft Windows 95, 98, Me, NT 4, 2000, XP, 2003 Modem Multi-COM Port design: RS 485/ RS 232 UPS Extend COM ports to connect UPSs Supports RS 485 -to-Ethernet adapter in the market UPS Hub Modem 3 Phase UPSentry Remote Console Web Browser 3 Phase UPSentry Remote Console Delta Confidential

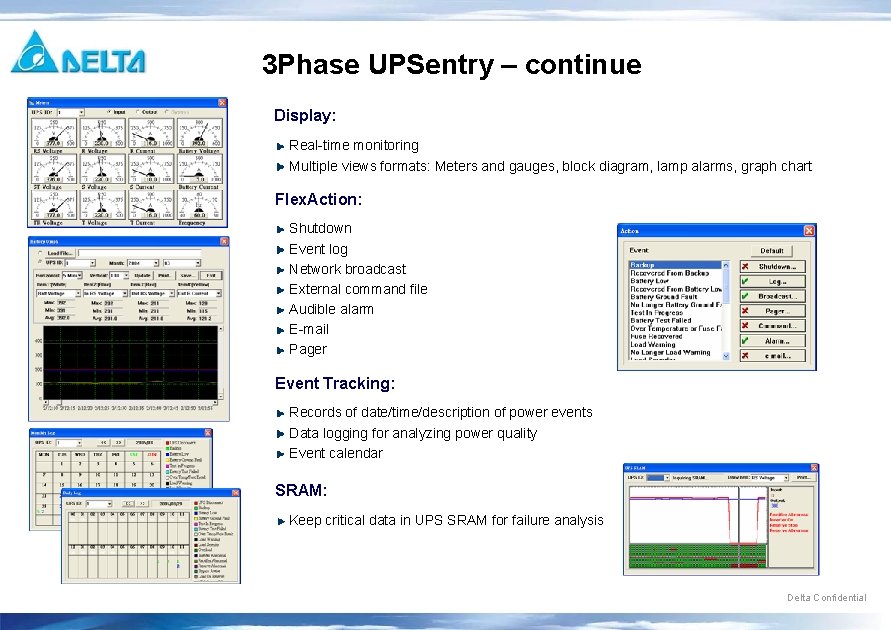

3 Phase UPSentry – continue Display: Real-time monitoring Multiple views formats: Meters and gauges, block diagram, lamp alarms, graph chart Flex. Action: Shutdown Event log Network broadcast External command file Audible alarm E-mail Pager Event Tracking: Records of date/time/description of power events Data logging for analyzing power quality Event calendar SRAM: Keep critical data in UPS SRAM for failure analysis Delta Confidential

UPSentry Manager Advantages: 3 F 2 F Centralized UPS monitoring system Supports RS 232, RS 485, SNMP and proprietorial TCP/IP protocols Hierarchical design, allows unlimited nodes Programmable actions(Flex. Action) Remote and local UPS real-time management Generate routine report 4 levels alarm management Operating System supported: Microsoft Windows 95, 98, Me, NT 4, 2000, XP, 2003 Hub UPSentry Manager Client software/device: SNMP Card UPSentry Smart 2000 Network 3 Phase UPSentry SNMP card UPSentry Smart 2000 3 Phase UPSentry RS 232 RS 485 Delta Confidential

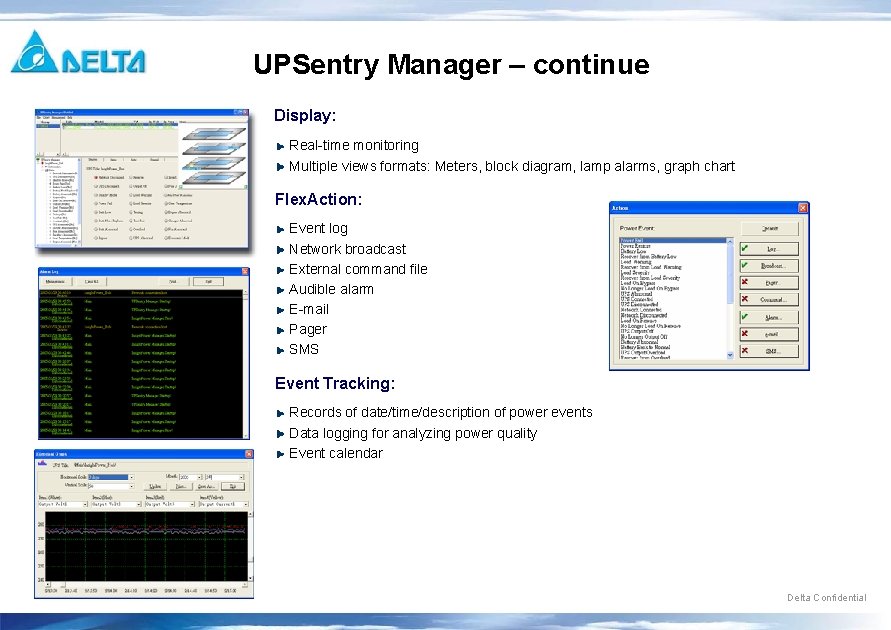

UPSentry Manager – continue Display: Real-time monitoring Multiple views formats: Meters, block diagram, lamp alarms, graph chart Flex. Action: Event log Network broadcast External command file Audible alarm E-mail Pager SMS Event Tracking: Records of date/time/description of power events Data logging for analyzing power quality Event calendar Delta Confidential

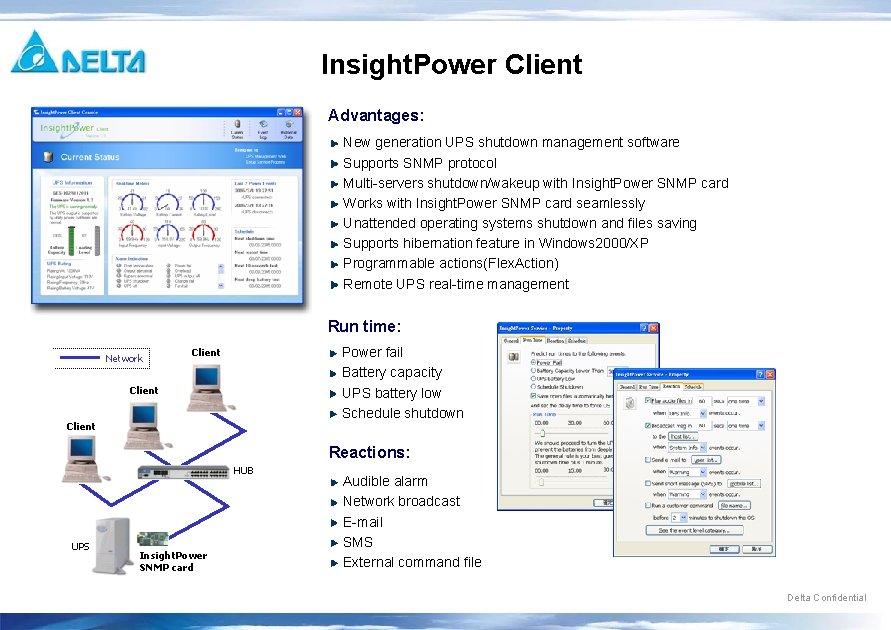

Insight. Power Client Advantages: New generation UPS shutdown management software Supports SNMP protocol Multi-servers shutdown/wakeup with Insight. Power SNMP card Works with Insight. Power SNMP card seamlessly Unattended operating systems shutdown and files saving Supports hibernation feature in Windows 2000/XP Programmable actions(Flex. Action) Remote UPS real-time management Run time: Network Power fail Battery capacity UPS battery low Schedule shutdown Client Reactions: HUB UPS Insight. Power SNMP card Audible alarm Network broadcast E-mail SMS External command file Delta Confidential

Insight. Power Client – continue Schedule: Weekly and specific date Shutdown and restart Quick battery test Deep battery test Display: Real-time monitoring Multiple views formats: Meters and gauges, lamp alarms, graph chart Fast look up data log by cursor Statistic values automatically Event Tracking: Records of date/time/description of power events Data logging for analyzing power quality Smart Shutdown: Shutdown the operating system gracefully while users press the Smart Shutdown button from Insight. Power SNMP card Use the low battery run time settings when Smart Shutdown initiates Delta Confidential

Shutdown Agent Advantages: Supports SNMP trap Multi-servers shutdown in various operating systems, works with SNMP card and 3 Phase UPSentry Unattended operating systems shutdown and files saving Forwards SNMP traps to unlimited hosts Customized UDP port to avoid conflicting from existing SNMP management system Test buttons to verify networking structure Operating Systems supported: Microsoft Windows 95, 98, Me, NT 4, 2000, XP, 2003 Mac OSX Linux Free. BSD SCO Open. Server Sun Sparc and x 86 HP-UX IBM AIX Delta Confidential

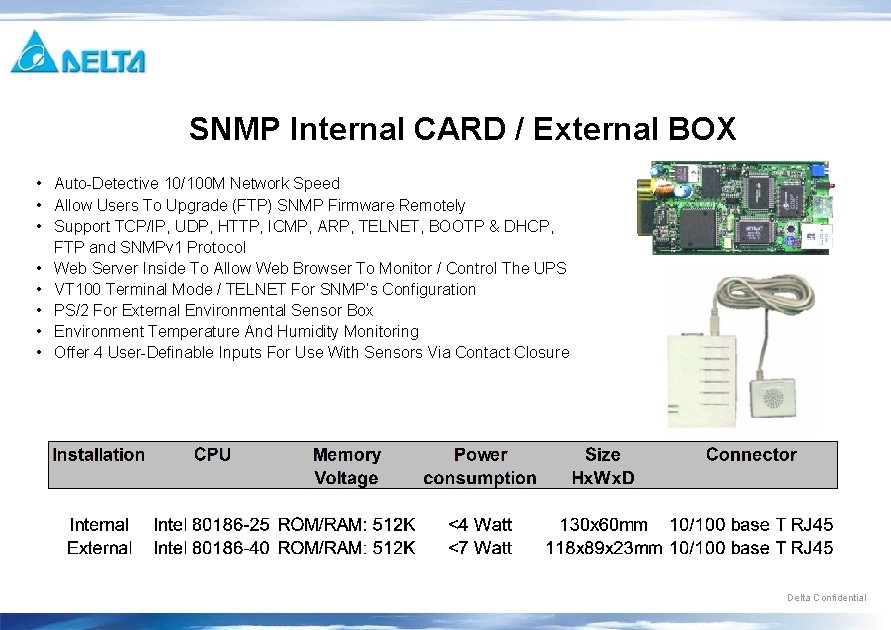

SNMP Internal CARD / External BOX • Auto-Detective 10/100 M Network Speed • Allow Users To Upgrade (FTP) SNMP Firmware Remotely • Support TCP/IP, UDP, HTTP, ICMP, ARP, TELNET, BOOTP & DHCP, FTP and SNMPv 1 Protocol • Web Server Inside To Allow Web Browser To Monitor / Control The UPS • VT 100 Terminal Mode / TELNET For SNMP’s Configuration • PS/2 For External Environmental Sensor Box • Environment Temperature And Humidity Monitoring • Offer 4 User-Definable Inputs For Use With Sensors Via Contact Closure Delta Confidential
