CREATE A NEW FIRE FAMILY PLUS FOLDER ON

  • Slides: 36
Download presentation
CREATE A NEW “FIRE FAMILY PLUS” FOLDER ON COMPUTER

CREATE A NEW “FIRE FAMILY PLUS” FOLDER ON COMPUTER

CREATE SUB FOLDERS: FIRE OCCURRENCE STATION CATALOGS WEATHER DATA

CREATE SUB FOLDERS: FIRE OCCURRENCE STATION CATALOGS WEATHER DATA

NAVIGATE IN WEB BROWSER TO: HTTPS: //FAM. NWCG. GOV/FAM-WEB/

NAVIGATE IN WEB BROWSER TO: HTTPS: //FAM. NWCG. GOV/FAM-WEB/

CLICK ON “WILDLAND FIRE RELATED LINKS” THEN “FIRE AND WEATHER DATA”

CLICK ON “WILDLAND FIRE RELATED LINKS” THEN “FIRE AND WEATHER DATA”

CLICK ON “STATE DATA”

CLICK ON “STATE DATA”

CHOOSE A STATE FROM THE DROP DOWN MENU

CHOOSE A STATE FROM THE DROP DOWN MENU

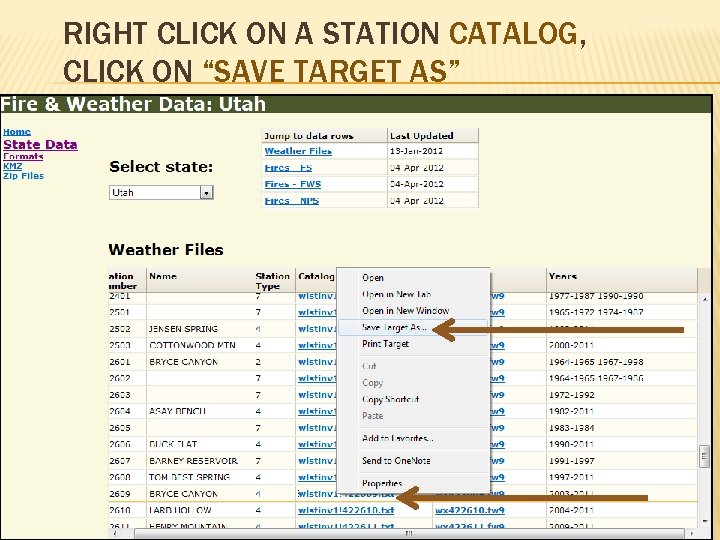

RIGHT CLICK ON A STATION CATALOG, CLICK ON “SAVE TARGET AS”

RIGHT CLICK ON A STATION CATALOG, CLICK ON “SAVE TARGET AS”

SAVE STATION CATALOG TEXT FILE IN THE STATION CATALOG SUB FOLDER IN THE FIRE

SAVE STATION CATALOG TEXT FILE IN THE STATION CATALOG SUB FOLDER IN THE FIRE FAMILY PLUS FOLDER

RIGHT CLICK ON WEATHER DATA FILE, CLICK ON “SAVE TARGET AS”

RIGHT CLICK ON WEATHER DATA FILE, CLICK ON “SAVE TARGET AS”

SAVE WEATHER DATA. FWX FILE IN THE WEATHER DATA SUB FOLDER IN THE FIRE

SAVE WEATHER DATA. FWX FILE IN THE WEATHER DATA SUB FOLDER IN THE FIRE FAMILY PLUS FOLDER

SCROLL DOWN TO THE FIRE OCCURRENCE FILES

SCROLL DOWN TO THE FIRE OCCURRENCE FILES

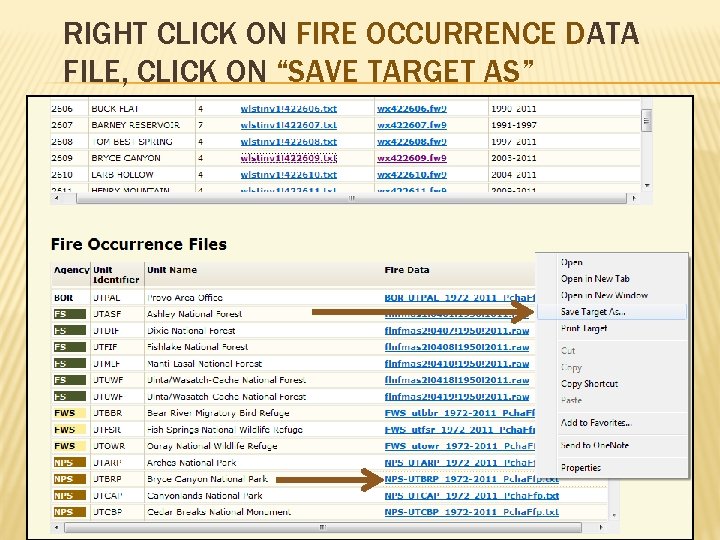

RIGHT CLICK ON FIRE OCCURRENCE DATA FILE, CLICK ON “SAVE TARGET AS”

RIGHT CLICK ON FIRE OCCURRENCE DATA FILE, CLICK ON “SAVE TARGET AS”

SAVE FIRE OCCURRENCE FILE IN THE FIREOCCURRENCE SUB FOLDER IN THE FIRE FAMILY PLUS

SAVE FIRE OCCURRENCE FILE IN THE FIREOCCURRENCE SUB FOLDER IN THE FIRE FAMILY PLUS FOLDER

*ALTERNATIVE DOWNLOAD OPTION* KC FAST Click “KC Fast”

*ALTERNATIVE DOWNLOAD OPTION* KC FAST Click “KC Fast”

CLICK WEATHER

CLICK WEATHER

CLICK STATION CATALOG

CLICK STATION CATALOG

CLICK STATION INFORMATION

CLICK STATION INFORMATION

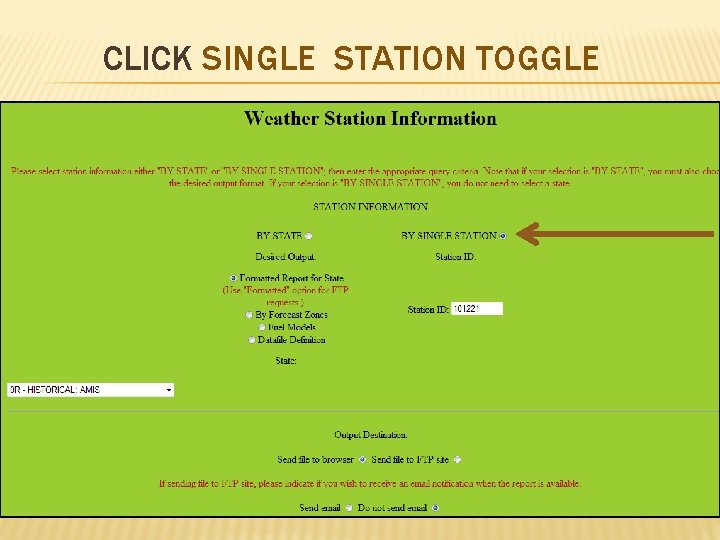

CLICK SINGLE STATION TOGGLE

CLICK SINGLE STATION TOGGLE

TYPE IN WIMS STATION ID

TYPE IN WIMS STATION ID

CLICK SEND FILE TO FTP SITE TOGGLE

CLICK SEND FILE TO FTP SITE TOGGLE

CLICK SUBMIT BUTTON

CLICK SUBMIT BUTTON

REQUESTED FILE SENT TO KCFAST BATCH OUT FTP SITE AFTER A FEW MINUTES Requeste

REQUESTED FILE SENT TO KCFAST BATCH OUT FTP SITE AFTER A FEW MINUTES Requeste d File Name File transferred to KCFast “Batchout Site”

REQUESTED FILES SENT TO BATCHOUT FTP SITE ON KCFAST WEBPAGE Click Here

REQUESTED FILES SENT TO BATCHOUT FTP SITE ON KCFAST WEBPAGE Click Here

SCROLL DOWN, RIGHT CLICK, AND SAVE THE REQUESTED DATA FILE Station Catalog file names

SCROLL DOWN, RIGHT CLICK, AND SAVE THE REQUESTED DATA FILE Station Catalog file names contain the WIMS ID and end in. txt Weather file names contain the WIMS ID and end in. fwx or. fw 9 With your cursor right click on the file you wish to save, select “Save Target As” and then save the file in the proper Fire Family Plus folder.

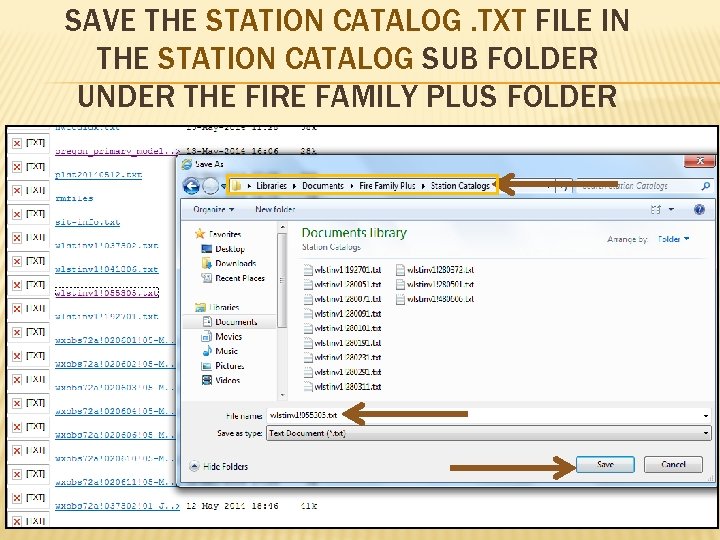

SAVE THE STATION CATALOG. TXT FILE IN THE STATION CATALOG SUB FOLDER UNDER THE

SAVE THE STATION CATALOG. TXT FILE IN THE STATION CATALOG SUB FOLDER UNDER THE FIRE FAMILY PLUS FOLDER

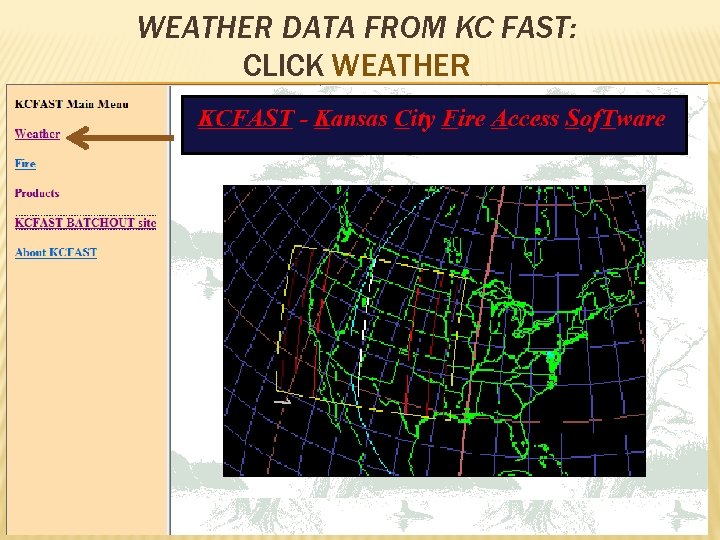

WEATHER DATA FROM KC FAST: CLICK WEATHER

WEATHER DATA FROM KC FAST: CLICK WEATHER

CLICK DATA EXTRACT

CLICK DATA EXTRACT

SUBMIT WEATHER DATA REQUEST Station or WIMS ID Date range Selct Data format: Most

SUBMIT WEATHER DATA REQUEST Station or WIMS ID Date range Selct Data format: Most of the time choose 1998 Raw Data Format (. fw 9 file) Click “Submit”

NOTE WEATHER FILE NAME WHICH WILL BE SENT TO KCFAST BATCHOUT SITE Weather Data

NOTE WEATHER FILE NAME WHICH WILL BE SENT TO KCFAST BATCHOUT SITE Weather Data File Name File transferred to KCFast “Batchout Site”

SCROLL DOWN, RIGHT CLICK, AND SAVE THE REQUESTED DATA FILE Station Catalog file names

SCROLL DOWN, RIGHT CLICK, AND SAVE THE REQUESTED DATA FILE Station Catalog file names contain the WIMS ID and end in. txt Weather file names contain the WIMS ID and end in. fwx or. fw 9 With your cursor right click on the file you wish to save, select “Save Target As” and then save the file in the proper Fire Family Plus folder.

SAVE WEATHER DATA FILE TO WEATHER DATA FOLDER Weather Data Folder

SAVE WEATHER DATA FILE TO WEATHER DATA FOLDER Weather Data Folder

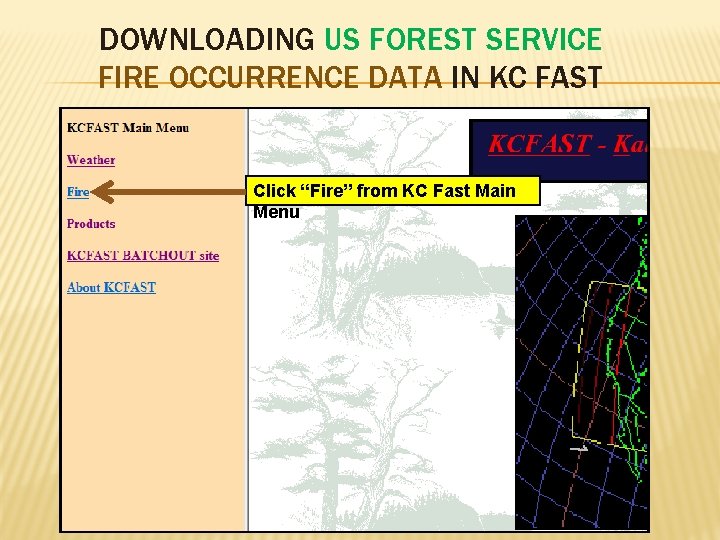

DOWNLOADING US FOREST SERVICE FIRE OCCURRENCE DATA IN KC FAST Click “Fire” from KC

DOWNLOADING US FOREST SERVICE FIRE OCCURRENCE DATA IN KC FAST Click “Fire” from KC Fast Main Menu

SELECT “STANDARD EXTRACT” Click “Standard Extract”

SELECT “STANDARD EXTRACT” Click “Standard Extract”

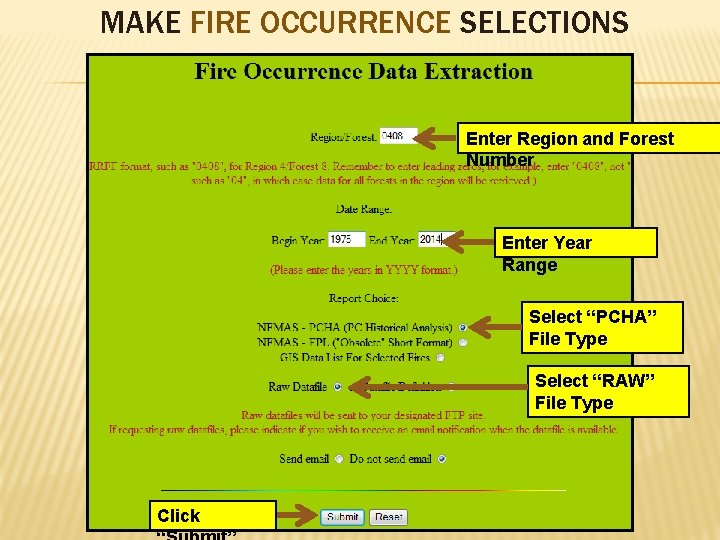

MAKE FIRE OCCURRENCE SELECTIONS Enter Region and Forest Number Enter Year Range Select “PCHA”

MAKE FIRE OCCURRENCE SELECTIONS Enter Region and Forest Number Enter Year Range Select “PCHA” File Type Select “RAW” File Type Click

NOTE FIRE OCCURRENCE FILE NAME WHICH WILL BE SENT TO KCFAST BATCHOUT SITE Fire

NOTE FIRE OCCURRENCE FILE NAME WHICH WILL BE SENT TO KCFAST BATCHOUT SITE Fire Occurrence Data File Name File transferred to KCFast “Batchout Site”

SAVE FIRE OCCURRENCE FILE TO FIRE OCCURRENCE FOLDER

SAVE FIRE OCCURRENCE FILE TO FIRE OCCURRENCE FOLDER

CREATE A NEW FIRE FAMILY PLUS DATABASE ClickCREATE A NEW FIRE FAMILY PLUS DATABASE Click
