Conceptual Architecture of Postgre. SQL S-Queue-L Khurrum A Mujeeb, Adam Abu Hijleh, Adam Ali Stephen Mc. Donald, Wisam Zaghal CISC 322 - Fall 2010
Overview • • • • What is Postgres? Research Methods Considered Alternatives Reference Architecture Conceptual Architecture Inside Subsystems – Query Processor Inside Subsystems – Storage Manager Inside Subsystems – Utilities Use Case Concurrency Control Design Trade-offs Limitations of Research Lessons Learned Summary Q & A

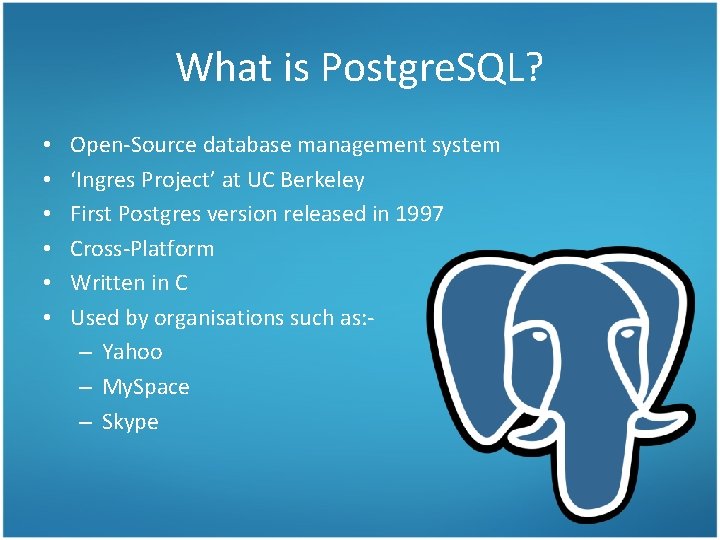

What is Postgre. SQL? • • • Open-Source database management system ‘Ingres Project’ at UC Berkeley First Postgres version released in 1997 Cross-Platform Written in C Used by organisations such as: – Yahoo – My. Space – Skype
Research Methods General understanding of Postgre. SQL – – Developers guide Postgre. SQL wiki page Postgre. SQL manual Wikipedia Reference architecture for Database Management System - Backbone of conceptual architecture Conceptual architecture for Postgre. SQL - Various available online documentation of Conceptual Architectures of Postgre. SQL
Considered Alternatives 1. Client – Server 2. Client – Server w/ Pipe & Filter 3. Client – Server w/ Pipeline & Repository
Reference Architecture Figure. 1
Conceptual Architecture Client Communications Manager Utilities & Shared Components Legend Server (Query Processor) Dependencies Storage Manager Figure 2.
Query Processor Figure 3.
Inside Subsystems Query Processor • Consists of : – – – Parser: Traffic Cop : Utility Command: Rewriter: Planner/Optimizer: Executor: syntax simple/complex simple queries rule augmentation optimal plan execute optimal plan • Models a Pipe & Filter style Architecture • Uses storage management & shared utilities
Inside Subsystems Storage Manager Provides Shared memory for buffers & access to database. Suggests repository style Legend Figure 4.
Inside Subsystems Utilities Legend Consists of : – – Utilities Catalog Access Methods Nodes/Lists Utilities are used by all sub-components of the query processor Figure 5.
Use Case – Select Query Figure 6.

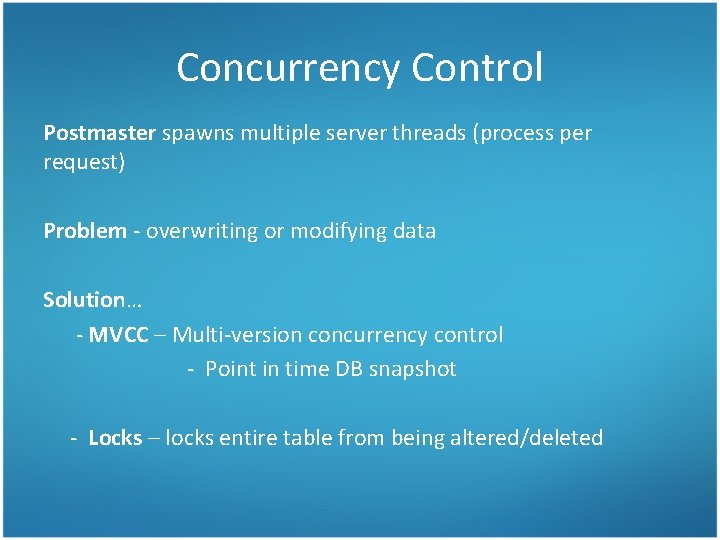

Concurrency Control Postmaster spawns multiple server threads (process per request) Problem - overwriting or modifying data Solution… - MVCC – Multi-version concurrency control - Point in time DB snapshot - Locks – locks entire table from being altered/deleted
Design Trade-offs Reliability vs Performance Scalability vs Maintainability Security vs Performance
Limitations of Research Personal Knowledge as well as experience with architectures & databases Determining depth of research Sources are incomplete
Lessons Learned Cannot rely on one source for information, will have to go through several sources to build a complete picture Hard to decide on an architecture style The value of the reference architecture
Summary Hybrid Conceptual Architecture Client Server – front/back connection Pipe & Filter – back end processes Repository – storage management/access Design Attributes Reliable & Secure - data integrity, strict SQL compliance, user authentication Performance - slower and more complicated
Thank You! Questions?
