COMPILER CONSTRUCTION WEEK1 THE ROLE OF PROGRAMMING LANGUAGE

COMPILER CONSTRUCTION WEEK-1 THE ROLE OF PROGRAMMING LANGUAGE

An Overview • The widespread use of the computer programming languages began in 1957, after the introduction of FORTRAN. • FORTRAN allows Engineers and Scientists to write formulas using traditional symbols of mathematics. • For example + for addition, * for multiplication etc. • Such notations were actually the starting point for the design of programming languages • The formula e. g. B 2 – 4 AC was written in Fortran as the following expression: • B**2 – 4. 0 * A * C • Fortran takes its name from Formula Translation; readable formulas were translated into machine instructions for the IBM-704 (i. e. in the form of zeros and ones) • Besides describing a result, a formula or expression X+Y*Z can be treated as an algorithm for computing the result.

An Overview • The algorithm is to multiply Y with Z and add the result to X. • An expression can be therefore be translated into machine instructions for evaluating the expression. • Since then hundreds of programming languages have been designed and implemented. • Related programming languages are grouped into families. • Members of a family differ in taste more than substance. • Having learned one member, it is easier to learn another, since the concepts from one member carry over to other member of the same family.

An Introduction • Programming languages are notations. • They are used for specifying, organizing, and reasoning about computations. • Programming languages have evolved far beyond their origins in machines. • Languages can help not only by improving the readability of individual program fragments, but also by providing ways of organizing and managing large programs. • A readable program in any programming language cannot be run directly on a machine. • It required adopting two approaches to running or implementing a program: it can be run by compiling it or by interpreting it.

Higher-Level Languages: • Programming languages are invented to make machines easier to use. • Also they make problems easier to solve. • The informal term “level” is useful for gross distinction between languages. • Levels of readability for programs are analogous to levels of readability for English text. • Consider English text: Are the individual words readable? Do the sentences make sense? What are the main ideas? Words, sentences, paragraphs, sections, chapters are levels of structure in English. • Machine computations are low level, full of details that have more to do with the inner workings of the machine than with what the computation is for. • A typical machine-level operation might add numbers or compare characters.

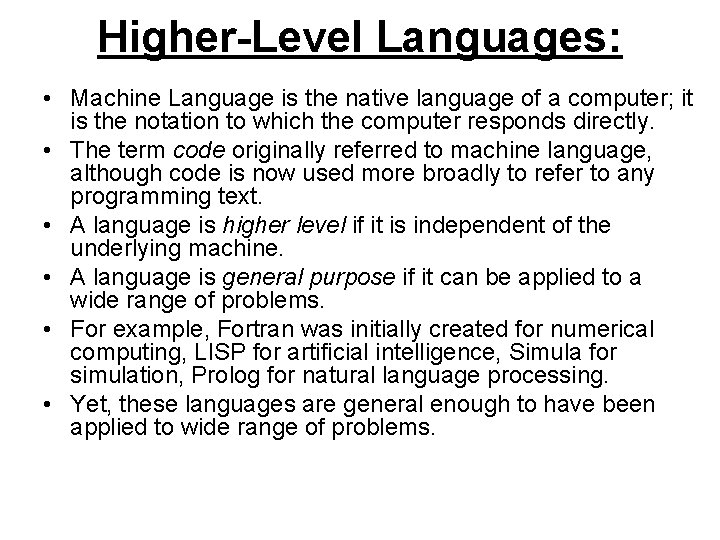

Higher-Level Languages: • Machine Language is the native language of a computer; it is the notation to which the computer responds directly. • The term code originally referred to machine language, although code is now used more broadly to refer to any programming text. • A language is higher level if it is independent of the underlying machine. • A language is general purpose if it can be applied to a wide range of problems. • For example, Fortran was initially created for numerical computing, LISP for artificial intelligence, Simula for simulation, Prolog for natural language processing. • Yet, these languages are general enough to have been applied to wide range of problems.

Machine Language: • Programs in machine language are usually unintelligible (meaningless) at the lowest level, the most detailed level, since they consist only of 0’s and 1’s. • Machine language is unsuitable for programming. • Machine language is unintelligible to a human, while it is exactly what the machine understands. • Then there was a need to develop new language, which can be represented more easily than machine language.

Assembly Language: • Assembly language is a variant of machine language, in which names and symbols take the place of the actual codes for machine operations, values and storage locations, making individual instruction more readable. • Individual instructions in assembly language are readable, but limitations of the underlying machine can lead to make program complicated. • A readable relative of this program has four main components. – – A memory A program An input file An output file

Assembly Language: • The memory consists of a sequence of locations, 0, 1, …. , each capable of holding single integer value at a time. • A machine address is the number of a location in memory. • The integer held in a location will be referred to as the contents of the location. • A program consists of a sequence of instructions. • An input file consists of a sequence of values consumed one at a time by read instructions. • An output file consists of the sequence of values produced one at a time by write instructions.

Benefits of Higher-Level Languages • Higher-level languages have replaced machine and assembly language in virtually all areas of programming, because they provide benefits like the following: – – Readable familiar notations. Machine independence. Availability of program libraries. Consistency checks during implementation that can detect errors. • Portability is another term for machine independence; a language is portable if programs in the language can be run on different machines with little or no change. • Such benefits led to Fortran’s immediate acceptance as the language of choice for scientific programming. • For example, originally written in assembly language, the UNIX operating system kernel was rewritten in the programming language C in 1973, by Denis Ritchie.

Problems of Scale: • The problems of programming are ones of scale. • Any one-change to a program is easy to make. • Any isolated program fragment can be understood and checked in its entirety. • With large programs, the effect of a change can ripple trough the program, perhaps introducing errors or bugs into some forgotten corner. • Programming languages can help in two ways. • First, readable and compact notations reduce the likelihood of errors. • Small programs are easier to get right than large ones. • With large programs, programming languages can help by providing way of organizing computations so that they can be understood one piece at a time.

Factor of Human Error: • Due to programming error, the rocket-carrying Mariner I, an unmanned probe to the planet Venus, had to be destroyed 290 seconds after launch on July 22, 1962. • The program in the ground computer was supposed to behave as follows: • If not in radar contact with the rocket then • Do not correct its flight path • But, in error, the initial “not” was missing. • As a result, the ground computer continued to blindly guide the rocket even after radar contact was lost. • The program had previously been used without fault in four lunar launches.

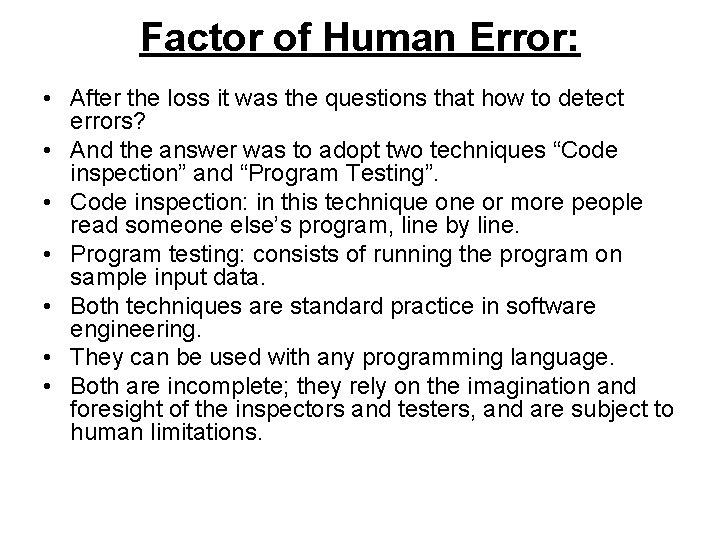

Factor of Human Error: • After the loss it was the questions that how to detect errors? • And the answer was to adopt two techniques “Code inspection” and “Program Testing”. • Code inspection: in this technique one or more people read someone else’s program, line by line. • Program testing: consists of running the program on sample input data. • Both techniques are standard practice in software engineering. • They can be used with any programming language. • Both are incomplete; they rely on the imagination and foresight of the inspectors and testers, and are subject to human limitations.

Role for Programming Languages: • It is hopeless to establish the correctness of a program by testing, unless the internal structure of the program is taken into account. • Our only hope is to carefully design a program so that its correctness can be understood in terms of its structure. • The art of programming is the art of organizing complexity. • We must organize the computations in such a way that our limited powers are sufficient to guarantee that the computation will establish the desired effect.

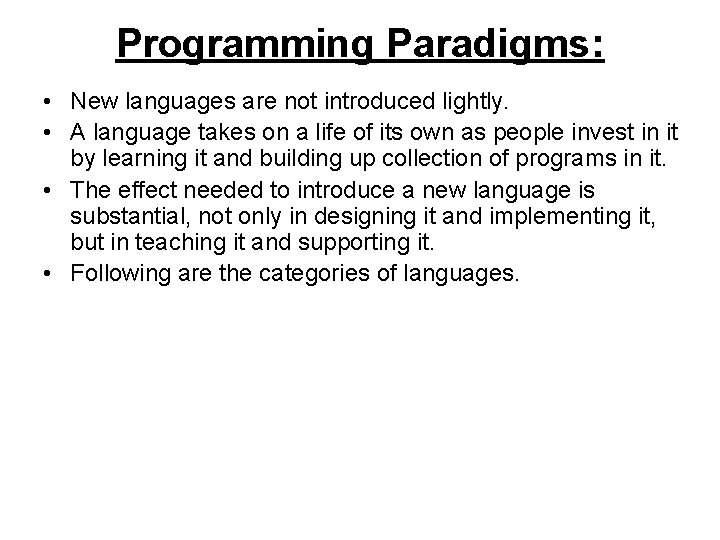

Programming Paradigms: • New languages are not introduced lightly. • A language takes on a life of its own as people invest in it by learning it and building up collection of programs in it. • The effect needed to introduce a new language is substantial, not only in designing it and implementing it, but in teaching it and supporting it. • Following are the categories of languages.

Imperative Programming: • Imperative languages are action oriented, i. e. a computation is viewed as a sequence of actions. • The imperative family began with Fortran; Pascal and C, are general-purpose imperative languages. • Other examples are Algol 60, CPL, BCPL and Algol 68. • Pascal and C embody key ideas of imperative programming. • The term “imperative” comes from command or action; the computation model is that of a sequence of action on an underlying machine.

Functional Programming: • Functional programming is worth studying as a programming style in its own right; as a setting for studying concepts such as types; and as a technique for language description. • The basic concepts of functional languages originated with LISP (LISt Processor), a language designed in 1958 for applications in artificial intelligence. • The LISP language is designed primarily for symbolic data processing. • It has been used for symbolic calculations in differential and integral calculus, electrical circuit theory, mathematical logic, game playing, and other fields of artificial intelligence. • Other examples are ISWIM, SASL, SCHEME, ML etc.

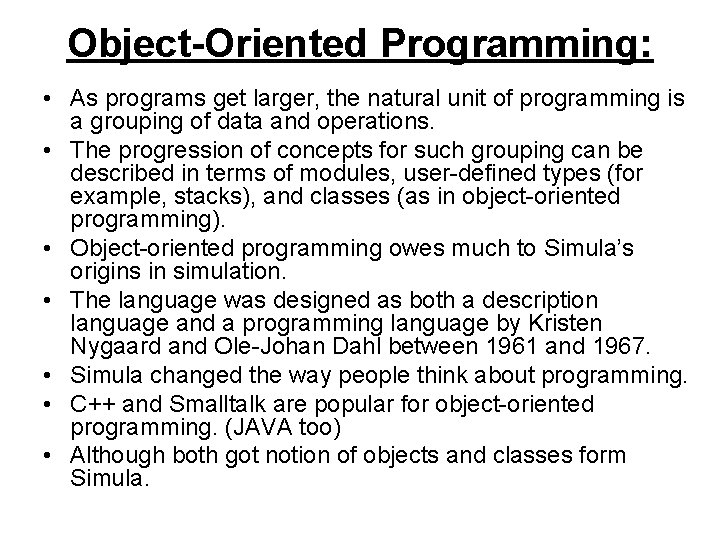

Object-Oriented Programming: • As programs get larger, the natural unit of programming is a grouping of data and operations. • The progression of concepts for such grouping can be described in terms of modules, user-defined types (for example, stacks), and classes (as in object-oriented programming). • Object-oriented programming owes much to Simula’s origins in simulation. • The language was designed as both a description language and a programming language by Kristen Nygaard and Ole-Johan Dahl between 1961 and 1967. • Simula changed the way people think about programming. • C++ and Smalltalk are popular for object-oriented programming. (JAVA too) • Although both got notion of objects and classes form Simula.

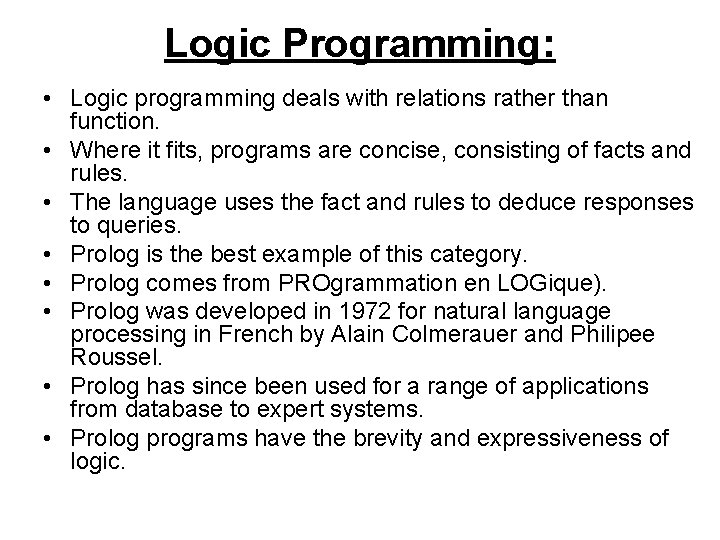

Logic Programming: • Logic programming deals with relations rather than function. • Where it fits, programs are concise, consisting of facts and rules. • The language uses the fact and rules to deduce responses to queries. • Prolog is the best example of this category. • Prolog comes from PROgrammation en LOGique). • Prolog was developed in 1972 for natural language processing in French by Alain Colmerauer and Philipee Roussel. • Prolog has since been used for a range of applications from database to expert systems. • Prolog programs have the brevity and expressiveness of logic.

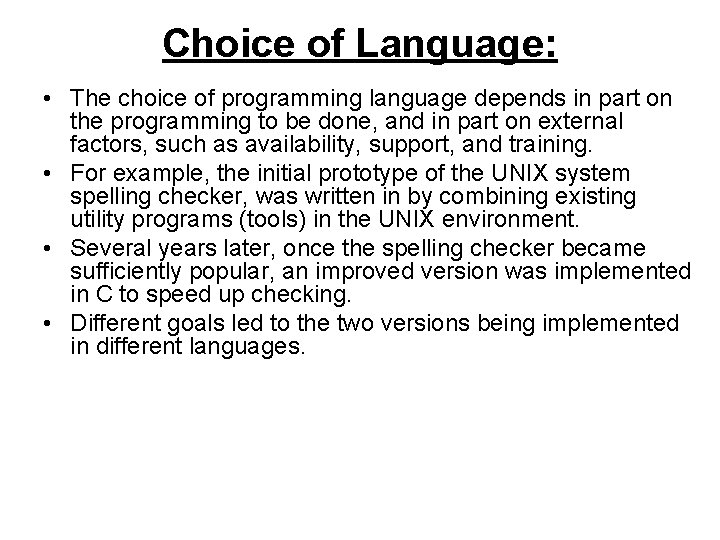

Choice of Language: • The choice of programming language depends in part on the programming to be done, and in part on external factors, such as availability, support, and training. • For example, the initial prototype of the UNIX system spelling checker, was written in by combining existing utility programs (tools) in the UNIX environment. • Several years later, once the spelling checker became sufficiently popular, an improved version was implemented in C to speed up checking. • Different goals led to the two versions being implemented in different languages.
