Columnstore Indexes Questions and Answers Matan Yungman A

Columnstore Indexes Questions and Answers Matan Yungman

A Few Words about Me… @Matan. Yungman 2 Madeira. Data. com SQLServer. Radio. com Image courtesy of Mister GC / Free. Digital. Photos. net

Agenda • What is Columnstore? • How is it built? • What is it good for? • How to make your benchmark successful? • The future

Traditional Approach • Row Store … • Data is stored row-wise • Each page contains data from 1 or more rows

Columnstore C 1 • Each page contains data of a single column • Data is highly compressed • Because of repeating values • Additional tricks • More data fits in memory • Each column fetched independently • Only needed columns are fetched • Can dramatically decrease IO C 2 C 3 C 4

Columnstore • Row Group – 1 million “rows” • Column Segments • • • Contains values from 1 column Each segment contains 100 k-~1 M rows Row Compressed Group Each segment is stored on separate LOB Segment is the unit of transfer from disk Segment C 1 C 2 C 3 C 4 C 5 C 6

Batch-Mode Processing • Data processed in vectors of 1000 rows • Manipulated in the CPU L 1 cache • Much more efficient than row-by-row • Better parallelism • Better algorithms for processing data

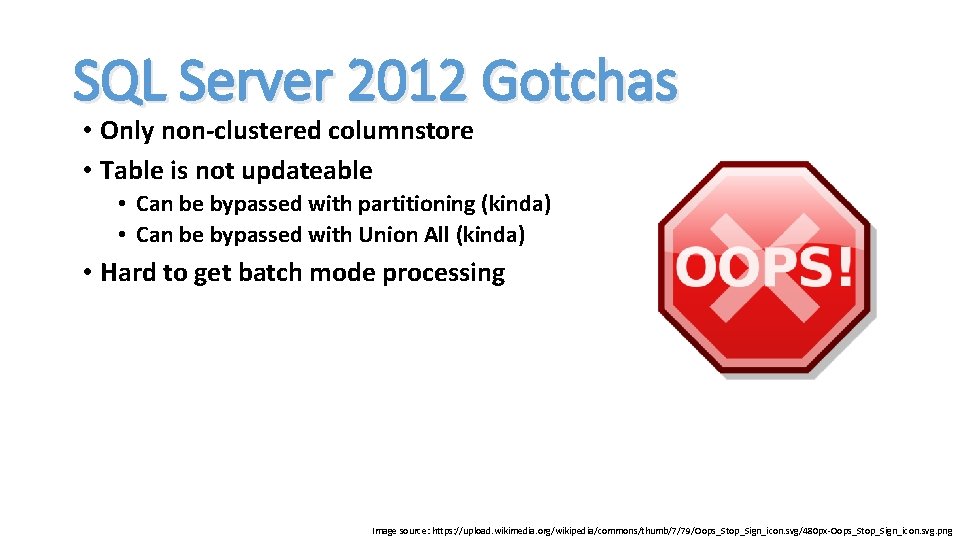

SQL Server 2012 Gotchas • Only non-clustered columnstore • Table is not updateable • Can be bypassed with partitioning (kinda) • Can be bypassed with Union All (kinda) • Hard to get batch mode processing Image source: https: //upload. wikimedia. org/wikipedia/commons/thumb/7/79/Oops_Stop_Sign_icon. svg/480 px-Oops_Stop_Sign_icon. svg. png

SQL Server 2014 • New Clustered Columnstore Index • “Updateable” • Easier to get Batch Mode • Significant space savings • And even more with archival compression • No other indexes allowed • No constraints allowed CREATE CLUSTERED COLUMNSTORE INDEX CCI ON My. Table

How is a Columnstore Index Built?

Separate Horizontally (Row Groups)

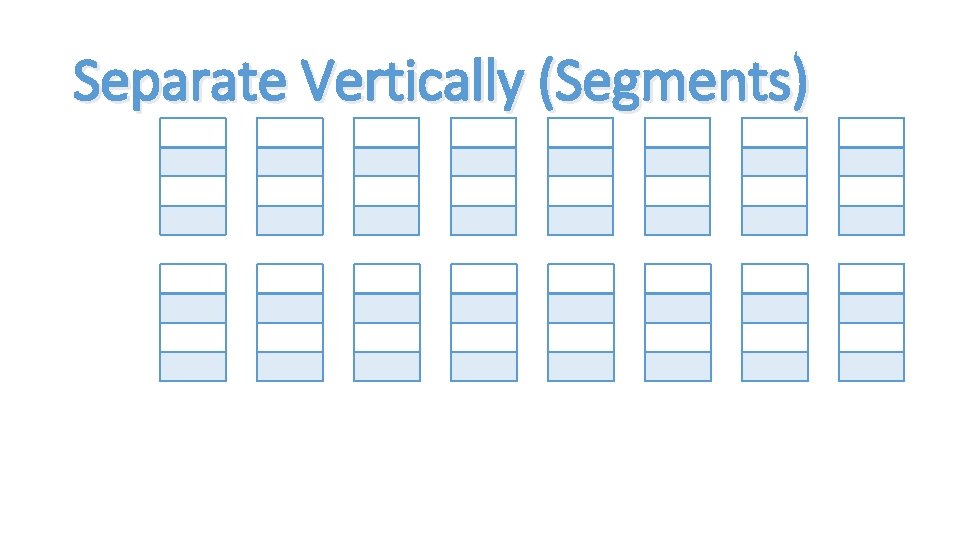

Separate Vertically (Segments)

Compress Image source: https: //www. flickr. com/photos/peasap/4684467836

Compression – Value Scale Height 180 30 150 0 175 25 183 33 200 50 190 40 181 41

Compression – Bit Array Name Michael Guy Maria Matan Michael 1 0 0 0 Guy 0 1 0 0 Maria 0 0 1 0 Matan 0 0 0 1 Michael 1 0 0 0

Compression – Run-Length Name Michael: 3 Guy: 1 Maria: 1 Matan: 2 Matan Michael

Compression – Dictionary Encoding Name ID Name Michael Guy Maria Matan Name 1 Michael 1 Guy 2 Maria 3 Matan 4 2 3 4 4 Michael 1

And More. .

How is Insert Implemented? Tuple Mover Delta Store Column Store

How is Delete Implemented? Column Store Delete Bitmap

How is Update Implemented? Delete Bitmap Delta Store

How is it Rebuilt? • ALTER INDEX. . REBUILD • Recreates the Clustered Columnstore index • Use MAXDOP 1 to improve segment elimination • Build on top of an existing Clustered Index for further optimization • ALTER INDEX. . REORGANIZE • Compresses closed row groups • Use COMPRESS_ALL_ROW_GROUPS=ON to compress all row groups • Use when Tuple-Mover can’t handle the load Image sourcehttps: //farm 4. staticflickr. com/3776/11690157976_7020609 c 77_o_d. jpg

Why is it So Fast? • Compression • Batch Mode • Only needed columns are fetched • Segment Elimination • Improved IO operations • Aggressive read-ahead

What is it good for? • Big aggregation/fact tables • Wide tables when there’s no option to cover all queries • Tables with many repetitive values and low change rate

Demo

Columnstore is not a magic solution for bad design or bad code!!

How to make your benchmark successful? • Don’t neglect database design • Beware of textual columns • Don’t rely on Tuple Mover • Take care of rebuild and reorganize if needed • Load data using • Bulk Insert • Partition Switch • • Delete data using partition switch Partitioning key helps in segment elimination Building on top of Clustered Index helps ordering New Cardinality Estimator can be a factor

Hybrid scenarios? • Nonclustered Columnstore • Indexed View on top of Clustered Columnstore • Regular table + Clustered Columnstore • Duplication? We’ve been doing this for years

SQL Server 2016 • Many performance improvements • Regular indexes on top of Clustered Columnstore • Constrains on Clustered Columnstore • Updateable Non-Clustered Columnstore • Columnstore on top of In-Memory OLTP

The Future? • Rebuild with order on column • Probably next version • Segments maintenance – merge and deletes • Next version • Segment Elimination info in Execution Plan • Already up on Azure SQL Database

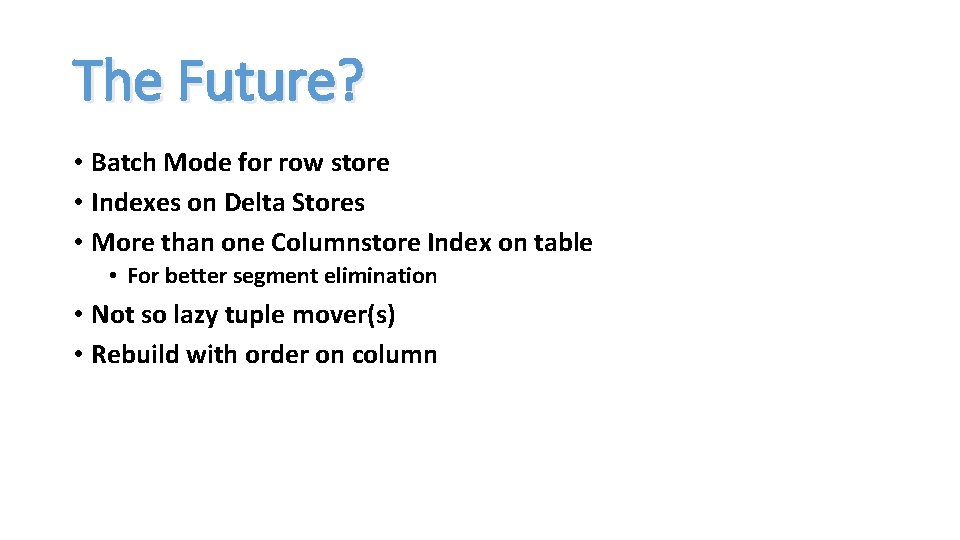

The Future? • Batch Mode for row store • Indexes on Delta Stores • More than one Columnstore Index on table • For better segment elimination • Not so lazy tuple mover(s) • Rebuild with order on column

Resources • Niko Neugebar’s Columnstore Series • http: //www. nikoport. com/columnstore/ • And his SQLBits Presentations • 24 Hours of PASS SQL Server 2014 Launch Edition • http: //www. sqlpass. org/24 hours/2014/ss 2014 launch/Sessions. aspx • Sunil Agarwal’s Columnstore Session • Jimmy May’s Session
