Cloning and Selection

Cloning and Selection

Cloning • Why Do We Need To Clone? – To Isolate Cells With Specialized

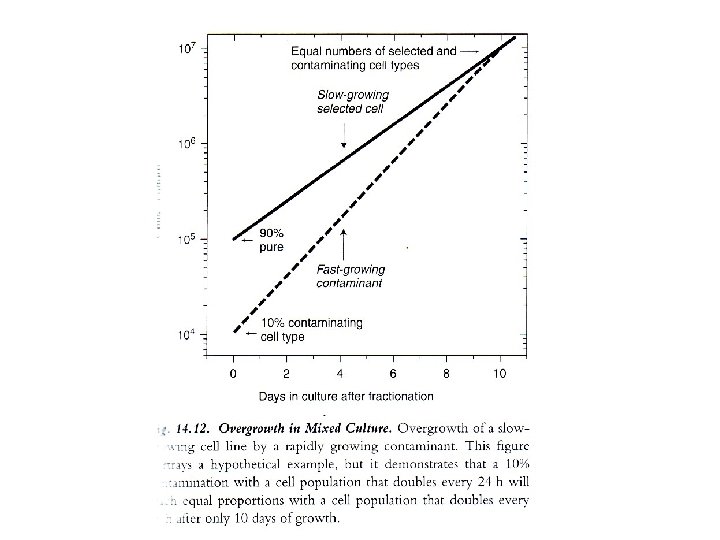

Cloning • Why Do We Need To Clone? – To Isolate Cells With Specialized Properties – Unspecialized Cells Tend To Dominate – Cells Of Wrong Lineage Tend To Dominate Isolation, Cloning Of Specialized Cells Overgrowth Of Unspecialized Cells

Cloning • Cloning Is Relatively Easy For Continuous Cell Lines • Difficult In Primary

Cloning • Cloning Is Relatively Easy For Continuous Cell Lines • Difficult In Primary Cultures • Nevertheless Possible • A Serious Limitation Is Senescence • Cloning Of Attached Cells Carried Out In – Petri dishes – Multiwell Plates – Flasks • Not Hard To Distinguish Individual Colonies

Cloning • Cloning In Suspension – Accomplished By Seeding Cells In A Gel (agar)

Cloning • Cloning In Suspension – Accomplished By Seeding Cells In A Gel (agar) – Viscous Solution (Methocel) With Agar Underlay • Viscous Matrix Ensures That Daughter Cells Remain In Colony • Hematopoietic Cells Usually Clone In Suspension • However Most Normal Cells Typically Require Adherence • Suspension Cloning Is Used As Evidence For Transformation

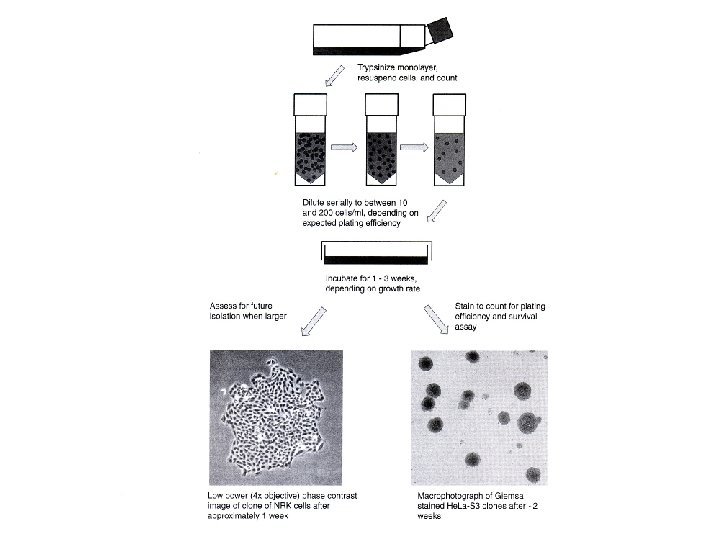

Dilution Cloning • Dilution Cloning Was First Introduced By Puck and Marcus, 1955 •

Dilution Cloning • Dilution Cloning Was First Introduced By Puck and Marcus, 1955 • It Is The Most Widely Used Technique • Based On Observation That Cells Diluted Below Certain Density Form Discrete Colonies

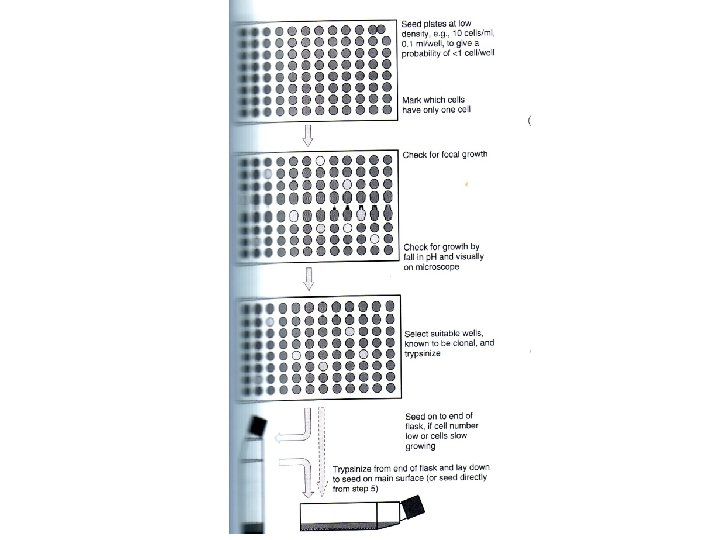

Dilution Cloning Protocol • Trypsinize CHO (Chinese Hamster Ovarian) Cells, Ensure Single Suspension •

Dilution Cloning Protocol • Trypsinize CHO (Chinese Hamster Ovarian) Cells, Ensure Single Suspension • When Detachment Is Observed Terminate Reaction With 5 m. L Medium/FBS • Count Cells And Dilute To 1 x 105 cells/m. L • Dilute To 10 cells/m. L – Ex. Take 200 L dilute to 20 m. L (1 x 103 cells/m. L) – Repeat above dilution (1 x 101 cells/m. L) • • Culture 0. 1 m. L in 96 well Plates (~1 cell/well) Wait For A Week, Hopefully Clones Will Be Visible If Not, Wait For An Additional Week If Doing This For First Time, Use 10, 20, 50, 100, 200 and 2, 000 cells/m. L To Determine Plating Efficiency

Number Of Cells Clonal Cell Yield 109 106 20 30 Number Of Doublings

Number Of Cells Clonal Cell Yield 109 106 20 30 Number Of Doublings

Plating Efficiency • Low Density Plating Results In Low Survival Rate • For Normal

Plating Efficiency • Low Density Plating Results In Low Survival Rate • For Normal Cells Plating Efficiency Drops To 0. 5%-5% • Reasons For Low Plating Efficiency – Loss By Leakage – Cell Derived Diffusible Factors Too Dilute • Capillary Technique Overcomes The Above Limitations – Confines Of Capillary Tube Allow For Locally Enriched Environment • Improved Media In Conjunction With Feeder Cells Increase Plating Efficiency

Improving Clonal Growth • Select Rich Medium – Ex. Ham’s F 12 • Hormones

Improving Clonal Growth • Select Rich Medium – Ex. Ham’s F 12 • Hormones – Insulin 1 x 10 -10 IU/m. L – Dexamethasone 1 x 10 -5 M for glia, myoblasts, fibroblasts • Substrate Molecules – Polylysine 1 mg/m. L Plate Coating, wash with PBS to remove remaining – Fibronectin 5 g/m. L in medium • Conditioned Medium – Medium used to grow other cells and added to regular medium (care must be taken to avoid cross-contamination)

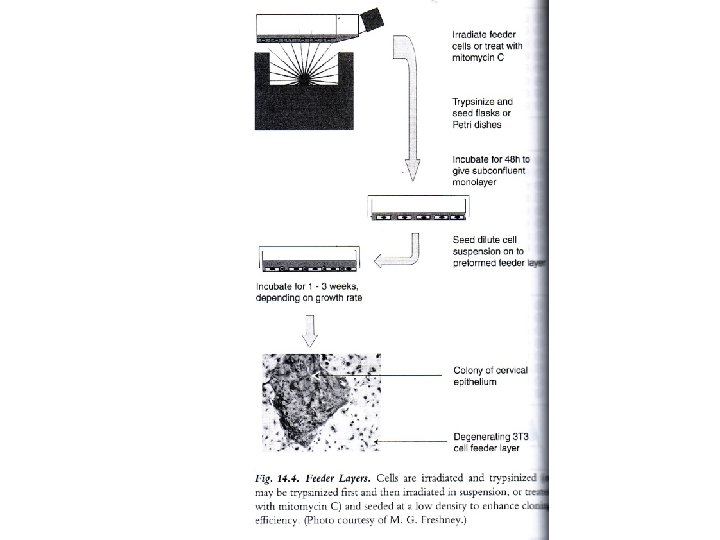

Improving Clonal Growth • Feeder Cells – Mimic high cell concentration – Must be

Improving Clonal Growth • Feeder Cells – Mimic high cell concentration – Must be growth-arrested (mitomycin C or irradiation) – May provide nutrients, growth factors, matrix • Feeder Cells Eventually Die • Ex Of Feeder Cells – 3 T 3, MRC-5 and STO cells • Sensitivity To Irradiation/mitomycin C Varies – Trial run is recommended

Cloning In Suspension • Hematopoietic Cells Are Cloned In Suspension • Colony Is Held

Cloning In Suspension • Hematopoietic Cells Are Cloned In Suspension • Colony Is Held Together By Viscous Medium – Agar – Methocel+Agar overlay • Methocel Offers Advantages – No impurities – Easier to handle • Colonies Form At Interface Between Methocel and Agar Overlay

Methocel Protocol • Prepare 0. 6 % Agar Underlay – 2 x Medium with

Methocel Protocol • Prepare 0. 6 % Agar Underlay – 2 x Medium with 40% FBS – 1. 2% Agar (UPW+1. 2 g agar) – Add 1 m. L to dishes, cover base, let set at R. T • Dilute 0. 8% Methocel with 2 x Medium, Keep On Ice • Prepare Cell Dilutions (1 x 105/m. L, 3. 3 x 104/m. L, 1. 1 x 104/m. L, 3. 7 x 103/m. L) • Add 40 L of each Dilution To Labeled Tubes + 4 m. L Of 0. 8% Methocel, Vortex (Final Concentrations: 1, 000; 330; 110; 37 per dish) • Use Syringe To Add 1 m. L Of Each Dilution To Dishes • Incubate In Humid Incubator Until Colonies Form

Isolation Of Clones (Adherent) • Adherent Cells In Multi-well Plates Are Trypsinized • If

Isolation Of Clones (Adherent) • Adherent Cells In Multi-well Plates Are Trypsinized • If In Petri Dishes No Physical Barrier Exists Between Colonies – Rings (ceramic, steel, plastic) are used • Irradiation Can Also Be Used (30 Gy) – Clone of interest is shielded with lead disk • Clones Grown On Small Or Fragments Of Cover Slips Are Physically Removed To New Environment

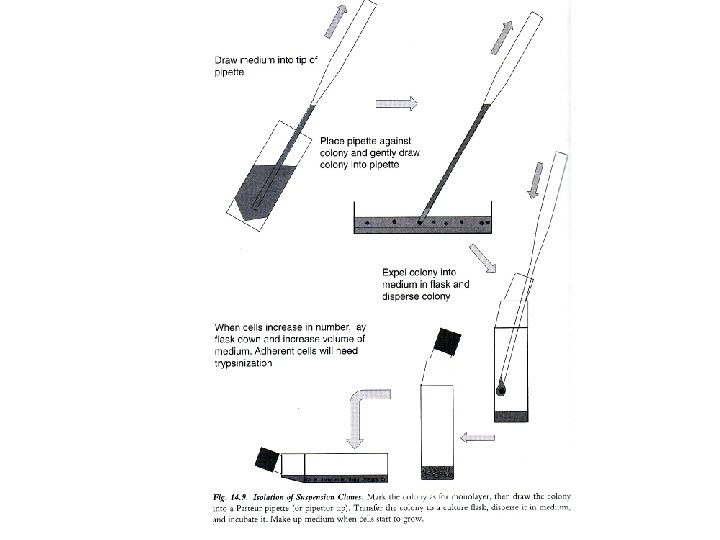

Isolation Of Clones (Suspension) • Isolation Is Easy But Requires Dissection Microscope • See

Isolation Of Clones (Suspension) • Isolation Is Easy But Requires Dissection Microscope • See Next Slide
