Car Trailer - Program For over 20 years, WAP Fahrzeugtechnik Gmb. H has stood for quality vehicle parts As a family business, WAP has become an outstanding European axle manufacturer. 16 February 2017

Overview 1. Introduction 2. Presentation • • Axles, unbraked Axle suspension systems Wheel brakes Overrun brakes 3. Packaging and shipping

Since 2008 Borchen with Made in Germany 1999 -2008 Borchen with 1994 -1999 about 3, 500 m² of production space about 6, 000 m² of production space on a site with an area of about 12, 000 m² Paderborn Elsen with about 1, 000 m² of production space Founded in 1994 by Mr. Bröckling and Mr. Gröpper History

90 Number of employees 80 70 60 50 40 30 20 10 0 Year 1995 2000 2005 2010 2015 2017 We know what our customers need and how they work, which is why our employees are very thorough, manufacture with care, and test our products meticulously. Number of employees

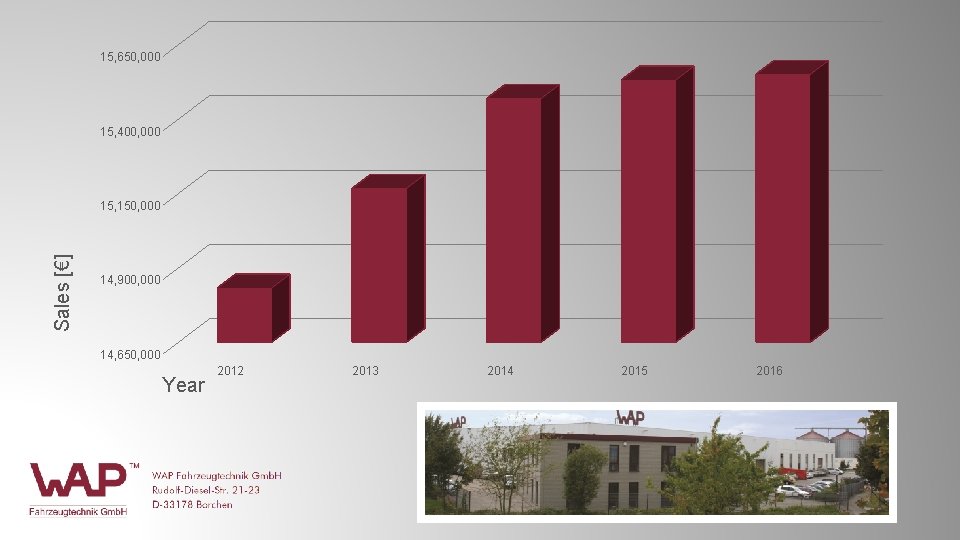

15, 650, 000 15, 400, 000 Sales [€] 15, 150, 000 14, 900, 000 14, 650, 000 Year 2012 2013 2014 2015 2016

Overview 1. Introduction 2. Presentation • • Axles, unbraked Axle suspension systems Wheel brakes Overrun brakes 3. Packaging and shipping

With oil bearing Without oil bearing Oil Axles, unbraked

Overview 1. Introduction 2. Presentation • • Axles, unbraked Axle suspension systems Wheel brakes Overrun brakes 3. Packaging and shipping

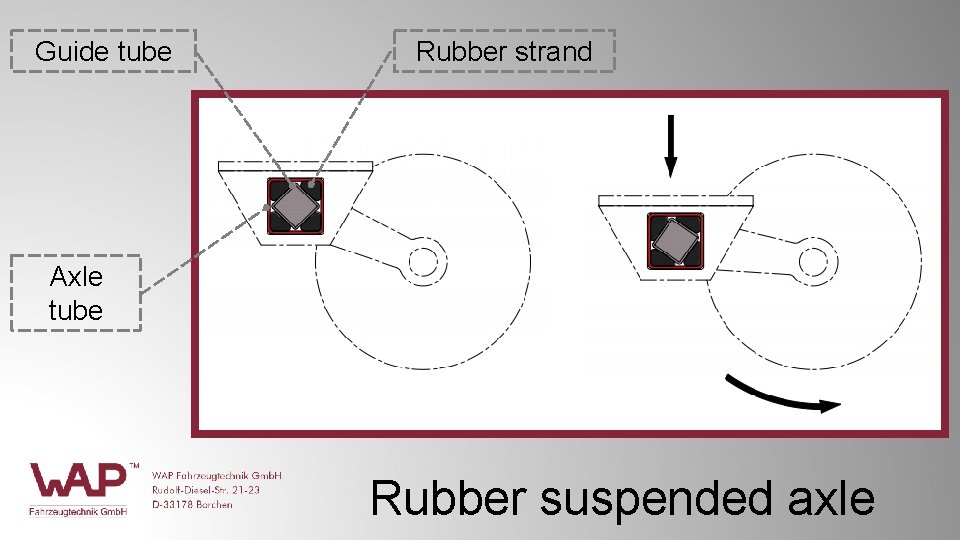

Guide tube Rubber strand Axle tube Rubber suspended axle

Torsion bar, spring steel Axle tube Torsion bar spring axles

Single-wheel suspension Helical spring Axle tube Shock absorber Helical spring axle

Overview 1. Introduction 2. Presentation • • Axles, unbraked Axle suspension systems Wheel brakes Overrun brakes 3. Packaging and shipping

Brake load per axle up to 1000 kg Taper roller bearings 30204 / 30206 Drum brake, type: W 184 RS

Brake load per axle up to 1500 kg Compact bearing Drum brake, type: W 205 RS

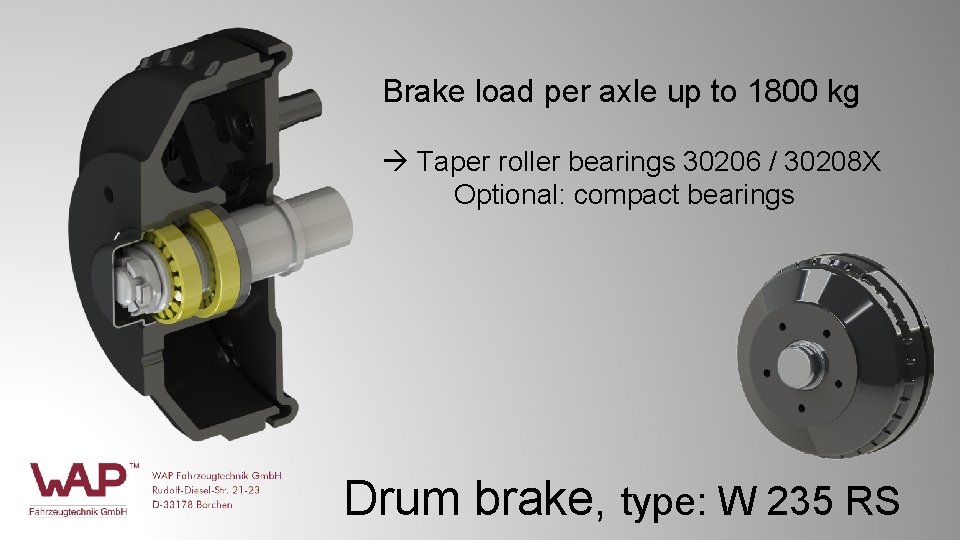

Brake load per axle up to 1800 kg Taper roller bearings 30206 / 30208 X Optional: compact bearings Drum brake, type: W 235 RS

Direction of rotation Trailing brake shoe F Lead brake shoe Brake drum Brake shoe bearings Simplex brake

Direction of rotation Stop Lead brake shoe F Brake drum Brake shoe Lead brake shoe Floating bearings Servo brake

Direction of Direction rotation of rotation Spring cup package Brake cylinder Brake shoe Primary brake shoe makes contact Forward Retainer spring Reverse Adjusting lever Secondary brake shoe Hex nut Return spring Adjusting lever Wheel brake, type: W 205 RS

Subsequently mounted brake cable Cable connector Cable strand Wheel brake, type: W 205 RS

Type: WS 245 • Brake load per axle up to 1500 kg • Taper roller bearings 30204 / 30206 Optionally available with oil bearing Type: WS 284 • Brake load per axle up to 1800 kg • Taper roller bearings 30206 / 30208 X Optionally available with oil bearing Disk brakes

Overview 1. Introduction 2. Presentation • • Axles, unbraked Axle suspension systems Wheel brakes Overrun brakes 3. Packaging and shipping

Permissible maximum weight Coupling shock • WAP 15 750 – 1500 kg Manual brake lever • WAP 24 1300 – 2400 kg • WAP 35 1750 – 3500 kg Pneumatic spring absorber Pivot arm Overrun shock absorber Trailer ball coupler Overrun brakes

Service brake function Overrun brakes

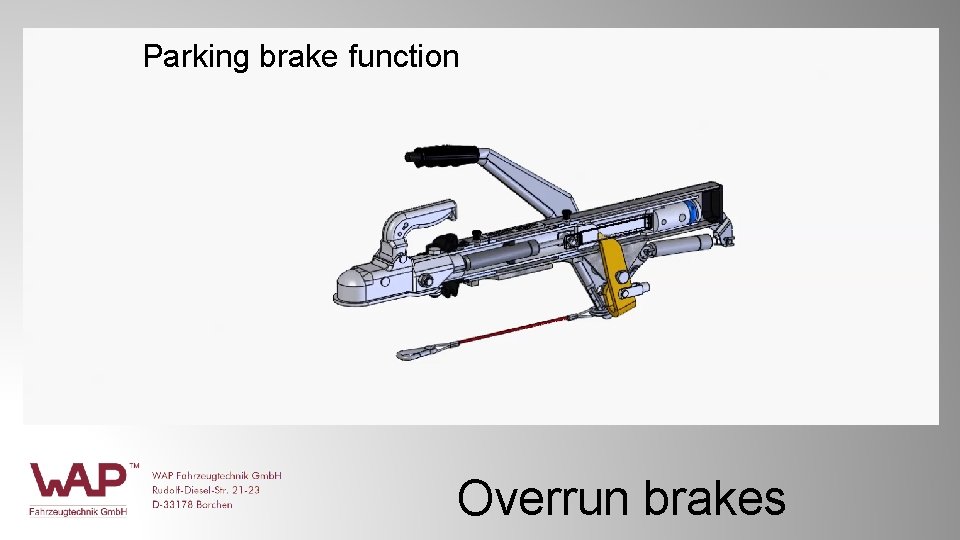

Parking brake function Overrun brakes

Overview 1. Introduction 2. Presentation • • Axles, unbraked Axle suspension systems Wheel brakes Overrun brakes 3. Packaging and shipping

Packaging and shipping

Europe-wide dealer network
