Automated Attendance System By Worod zafer Shoroq abu
(Automated Attendance System) By : Worod zafer Shoroq abu omar
Outlines • • Introduction Why ? … the main idea Procedure Flowchart Hardware Software Applications
Introduction Our project is an electronic absent checker , which detect the absent using a wires detecting matrix.
Why ? • Students are less and less motivated to come to the lecture rooms due to availability of almost all information on the internet. • Doctors and instructors have to ensure student attendance and that is a time consuming. • Ease of use , just a single click • This idea insure that the students are available along the lecture time
Procedure • Using floor mat scanning as soon as that student take his place, then he is automatically register in the data base. • Using a Relay to turn on adevice as student taken his/her place. • By using infrared we enabled the doctor to control the door of lab from distance.
Flow chart Objects Detecting Mat Microprocessor Devices LCD Display

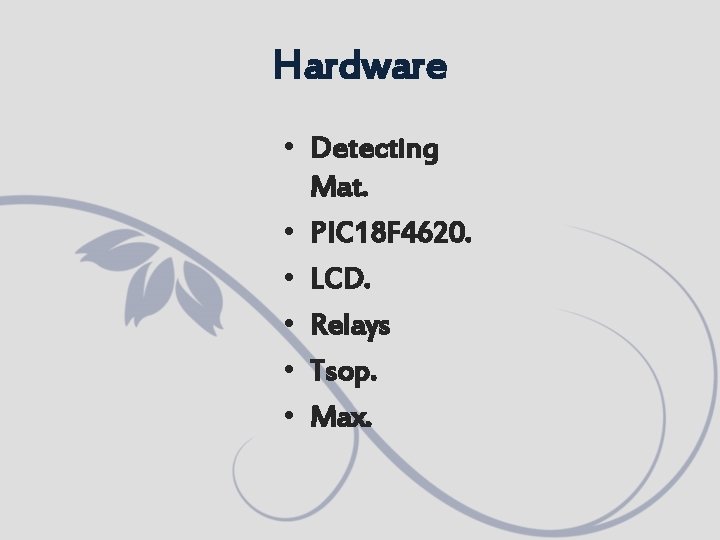

Hardware • Detecting Mat. • PIC 18 F 4620. • LCD. • Relays • Tsop. • Max.
Detecting Mat • Wood board. • Wires are connected in a grid matrix vertically and horizontally • Vertical wires are placed 2 mm higher than horizontal wires • Contact is made by pressing down vertical wires to horizontal wires
Software • • Transmit chosen row to hardware. Receive occupant’s data from hardware. Display student number. Turn on/off devices.
Applications • Less power consumption in homes • Security detection system • In cars.
The End
