HEVELES Fully Automated Electrophoresis System Main technical characteristics

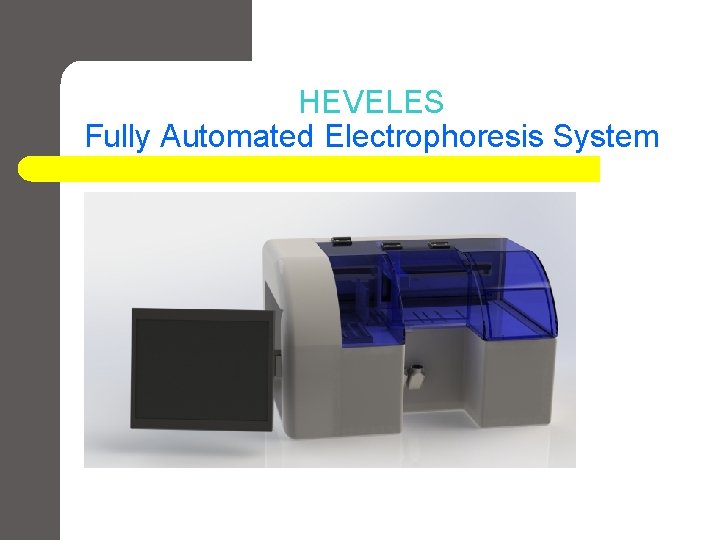

HEVELES Fully Automated Electrophoresis System

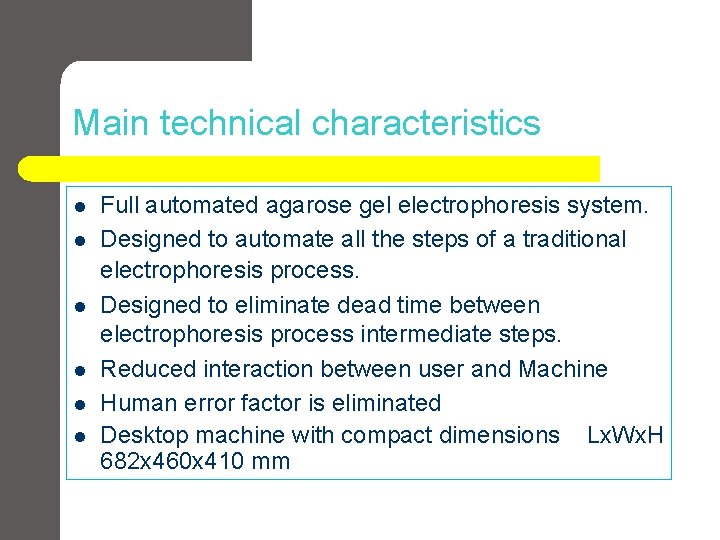

Main technical characteristics l l l Full automated agarose gel electrophoresis system. Designed to automate all the steps of a traditional electrophoresis process. Designed to eliminate dead time between electrophoresis process intermediate steps. Reduced interaction between user and Machine Human error factor is eliminated Desktop machine with compact dimensions Lx. Wx. H 682 x 460 x 410 mm

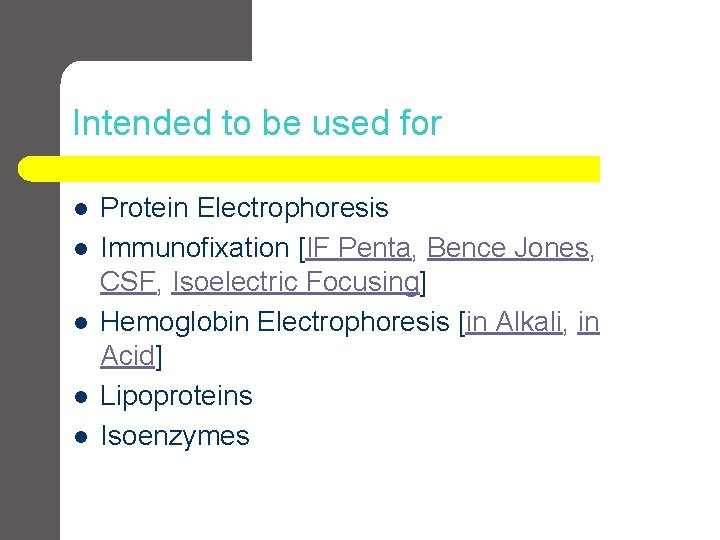

Intended to be used for l l l Protein Electrophoresis Immunofixation [IF Penta, Bence Jones, CSF, Isoelectric Focusing] Hemoglobin Electrophoresis [in Alkali, in Acid] Lipoproteins Isoenzymes

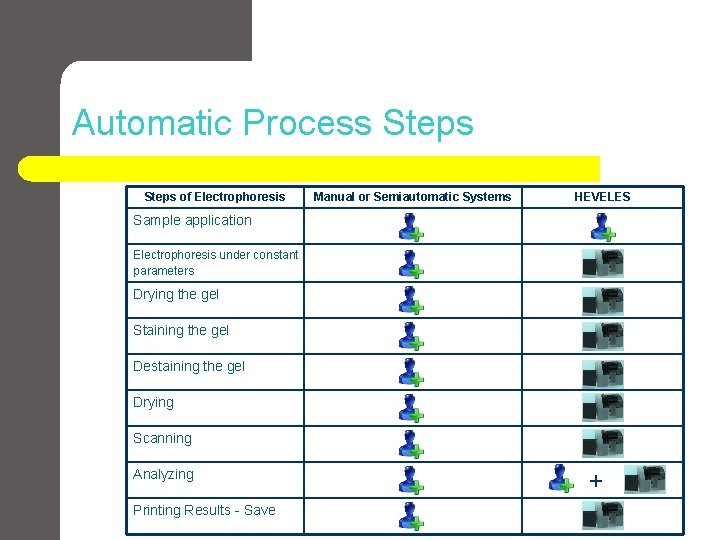

Automatic Process Steps of Electrophoresis Manual or Semiautomatic Systems HEVELES Sample application Electrophoresis under constant parameters Drying the gel Staining the gel Destaining the gel Drying Scanning Analyzing Printing Results - Save +

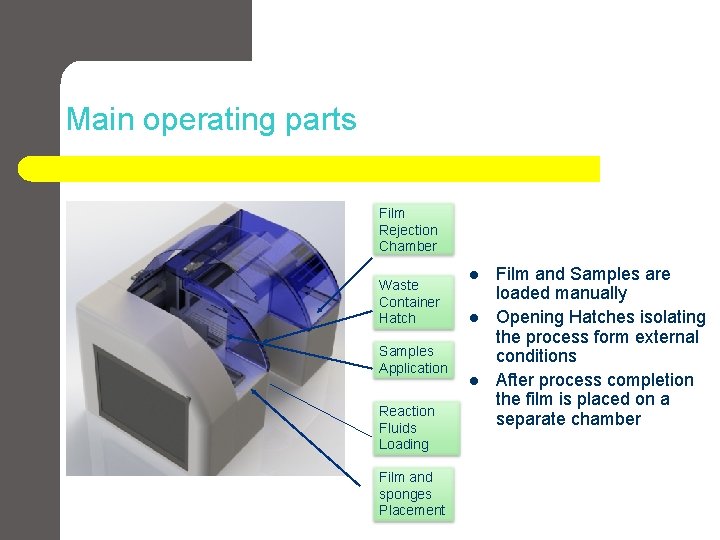

Main operating parts Film Rejection Chamber Waste Container Hatch Samples Application Reaction Fluids Loading Film and sponges Placement l l l Film and Samples are loaded manually Opening Hatches isolating the process form external conditions After process completion the film is placed on a separate chamber

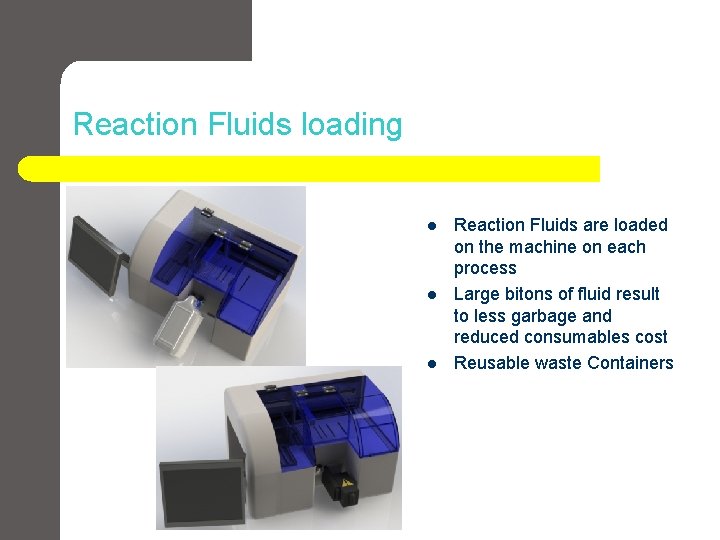

Reaction Fluids loading l l l Reaction Fluids are loaded on the machine on each process Large bitons of fluid result to less garbage and reduced consumables cost Reusable waste Containers

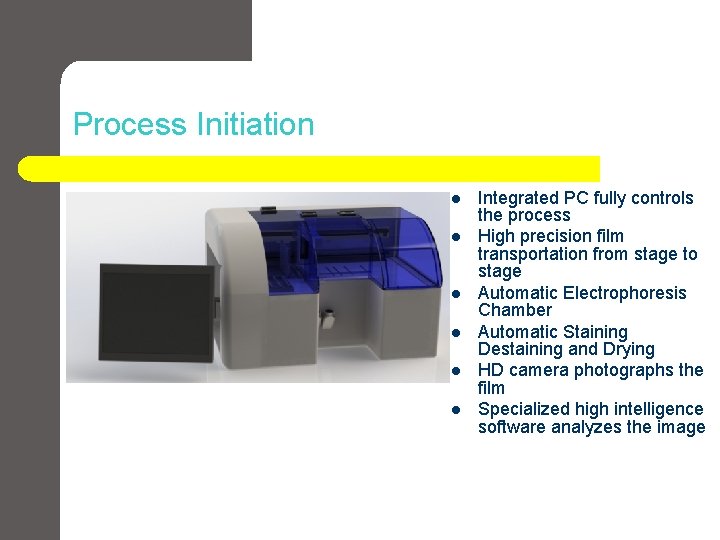

Process Initiation l l l Integrated PC fully controls the process High precision film transportation from stage to stage Automatic Electrophoresis Chamber Automatic Staining Destaining and Drying HD camera photographs the film Specialized high intelligence software analyzes the image

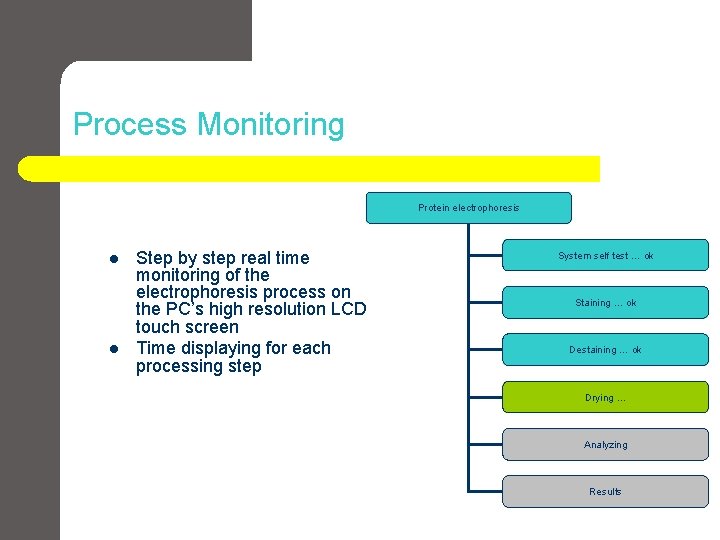

Process Monitoring Protein electrophoresis l l Step by step real time monitoring of the electrophoresis process on the PC’s high resolution LCD touch screen Time displaying for each processing step System self test … ok Staining … ok Destaining … ok Drying … Analyzing Results

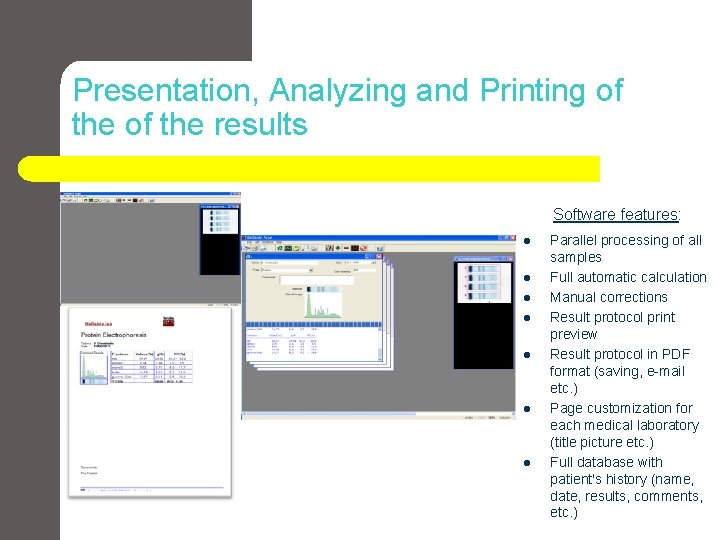

Presentation, Analyzing and Printing of the results Software features: l l l l Parallel processing of all samples Full automatic calculation Manual corrections Result protocol print preview Result protocol in PDF format (saving, e-mail etc. ) Page customization for each medical laboratory (title picture etc. ) Full database with patient's history (name, date, results, comments, etc. )

DIMITRIADIS IOANNIS AND SON PC HELLABIO Production Of Diagnostic Reagents Business Incubator Thermi 9 th km Thessaloniki - Thermi PO BOX 60053 Thermi, Greece e-mail hellabio@thermokoitida. gr web: www. hellabio. com Tel. +302311 999911 Fax +302311 999912 EVRESIS S. A. Computer Applications 12 a str. Industrial Area Sindos Thessaloniki Greece PO BOX 1029 57022 Sindos, Greece e-mail info@evresis. gr web: www. evresis. com Tel. +302310 796906 Fax +302310 795418
