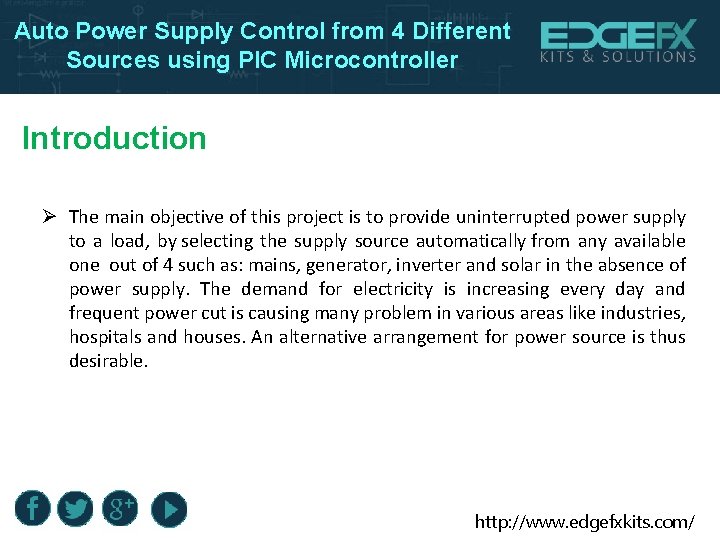

Auto Power Supply Control from 4 Different Sources using PIC Microcontroller Introduction Ø The main objective of this project is to provide uninterrupted power supply to a load, by selecting the supply source automatically from any available one out of 4 such as: mains, generator, inverter and solar in the absence of power supply. The demand for electricity is increasing every day and frequent power cut is causing many problem in various areas like industries, hospitals and houses. An alternative arrangement for power source is thus desirable. http: //www. edgefxkits. com/

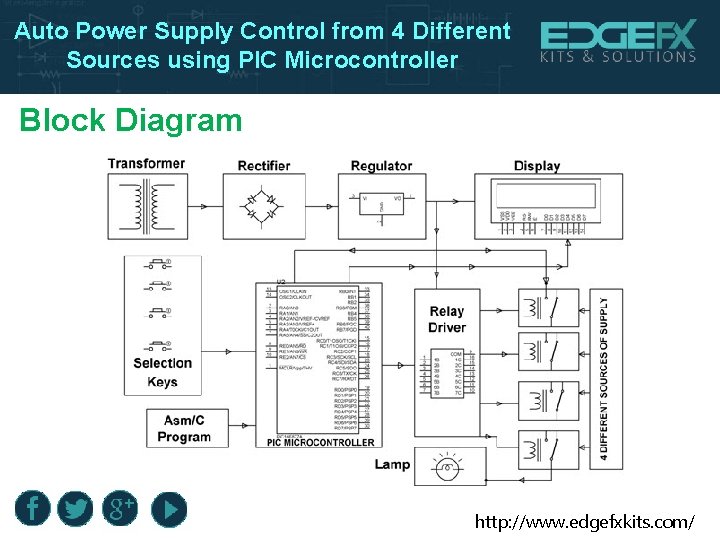

Auto Power Supply Control from 4 Different Sources using PIC Microcontroller Block Diagram http: //www. edgefxkits. com/

Auto Power Supply Control from 4 Different Sources using PIC Microcontroller Hardware Requirements Ø Ø Ø Ø PIC 16 F 8 series Microcontroller Relay Driver IC Relays LCD Lamp Push Buttons Transformer Diodes Voltage Regulator Crystal LEDS Capacitors Resistors. http: //www. edgefxkits. com/

Auto Power Supply Control from 4 Different Sources using PIC Microcontroller Software Requirements Ø MPLAB & CCS C Compiler Ø Languages: Embedded C or Assembly http: //www. edgefxkits. com/

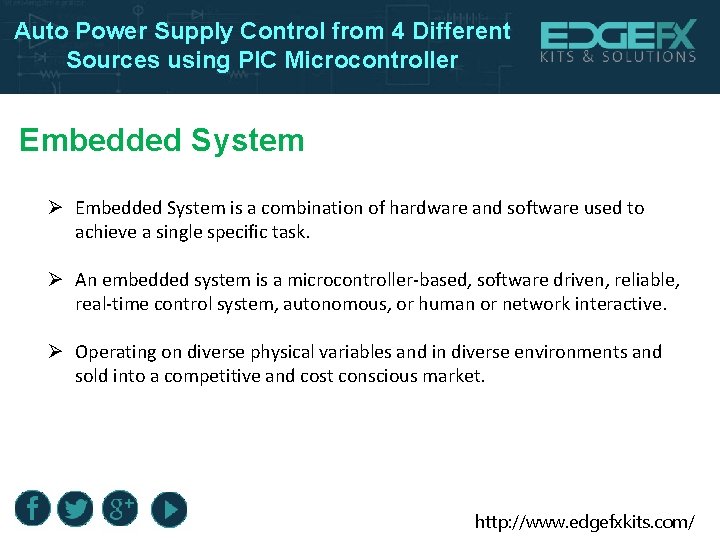

Auto Power Supply Control from 4 Different Sources using PIC Microcontroller Embedded System Ø Embedded System is a combination of hardware and software used to achieve a single specific task. Ø An embedded system is a microcontroller-based, software driven, reliable, real-time control system, autonomous, or human or network interactive. Ø Operating on diverse physical variables and in diverse environments and sold into a competitive and cost conscious market. http: //www. edgefxkits. com/

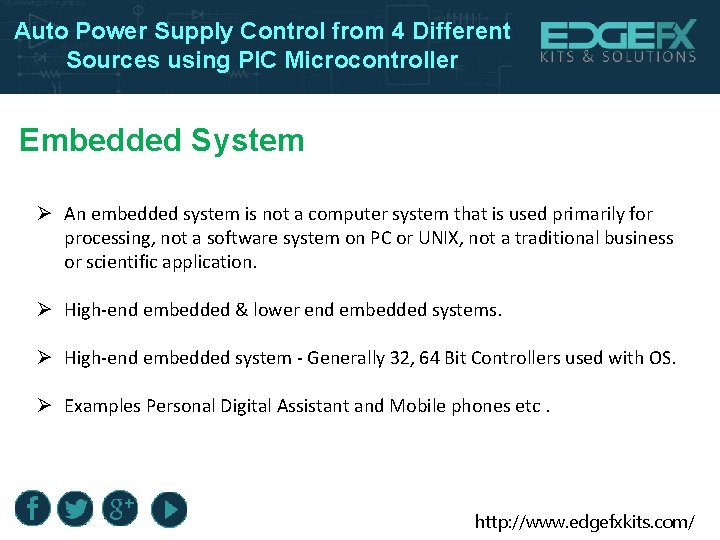

Auto Power Supply Control from 4 Different Sources using PIC Microcontroller Embedded System Ø An embedded system is not a computer system that is used primarily for processing, not a software system on PC or UNIX, not a traditional business or scientific application. Ø High-end embedded & lower end embedded systems. Ø High-end embedded system - Generally 32, 64 Bit Controllers used with OS. Ø Examples Personal Digital Assistant and Mobile phones etc. http: //www. edgefxkits. com/

Auto Power Supply Control from 4 Different Sources using PIC Microcontroller Embedded System Ø Lower end embedded systems - Generally 8, 16 Bit Controllers used with an minimal operating systems and hardware layout designed for the specific purpose. Ø Examples Small controllers and devices in our everyday life like Washing Machine, Microwave Ovens, where they are embedded in. http: //www. edgefxkits. com/

Auto Power Supply Control from 4 Different Sources using PIC Microcontroller Characteristics of Embedded System Ø An embedded system is any compute system hidden inside a product other than a computer. Ø There will encounter a number of difficulties when writing embedded system software in addition to those we encounter when we write applications. http: //www. edgefxkits. com/

Auto Power Supply Control from 4 Different Sources using PIC Microcontroller Applications of Embedded System Throughput : § Our system may need to handle a lot of data in a short period of time. Response : § Our system may need to react to events quickly. Testability : § Setting up equipment to test embedded software can be difficult. Debugability : § Without a screen or a keyboard, finding out what the software is doing wrong (other than not working) is a troublesome problem. http: //www. edgefxkits. com/
