12 6 Segment Relationshipsinin Circles Warm Up Lesson

12 -6 Segment. Relationshipsinin. Circles Warm Up Lesson Presentation Lesson Quiz Holt. Mc. Dougal Geometry Holt

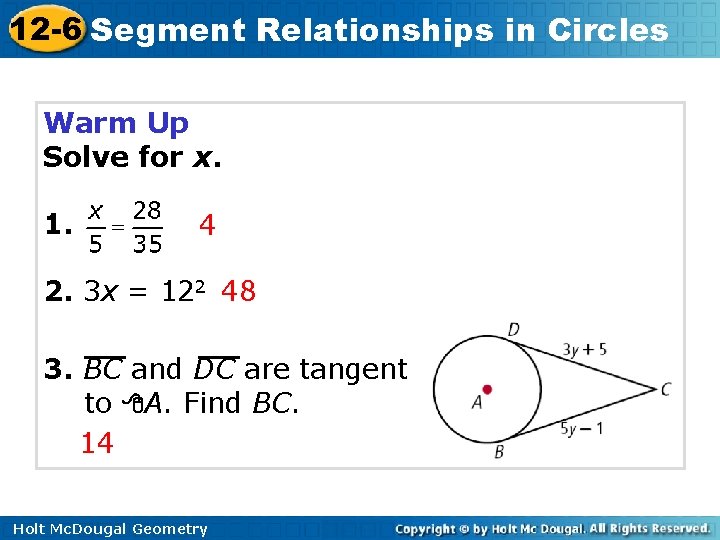

12 -6 Segment Relationships in Circles Warm Up Solve for x. 1. 4 2. 3 x = 122 48 3. BC and DC are tangent to A. Find BC. 14 Holt Mc. Dougal Geometry

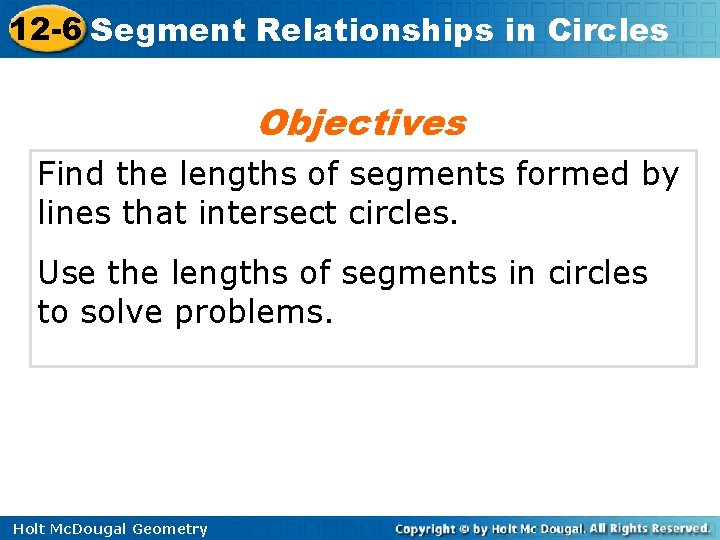

12 -6 Segment Relationships in Circles Objectives Find the lengths of segments formed by lines that intersect circles. Use the lengths of segments in circles to solve problems. Holt Mc. Dougal Geometry

12 -6 Segment Relationships in Circles Vocabulary secant segment external secant segment tangent segment Holt Mc. Dougal Geometry

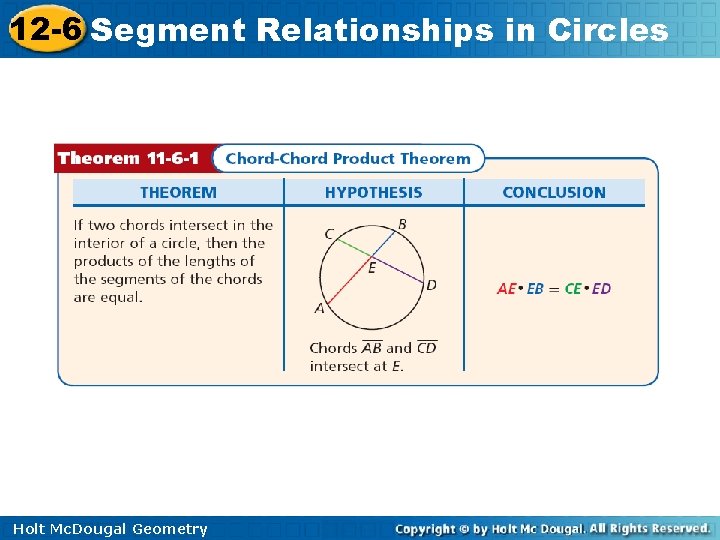

12 -6 Segment Relationships in Circles Holt Mc. Dougal Geometry

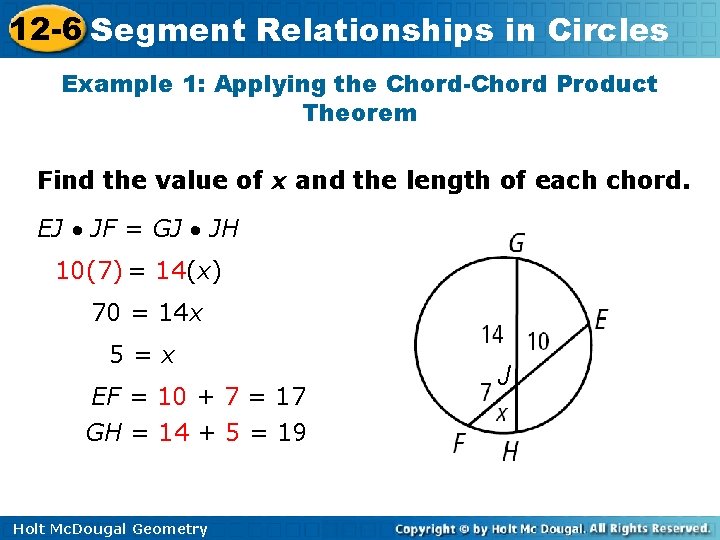

12 -6 Segment Relationships in Circles Example 1: Applying the Chord-Chord Product Theorem Find the value of x and the length of each chord. EJ JF = GJ JH 10(7) = 14(x) 70 = 14 x 5=x EF = 10 + 7 = 17 GH = 14 + 5 = 19 Holt Mc. Dougal Geometry J

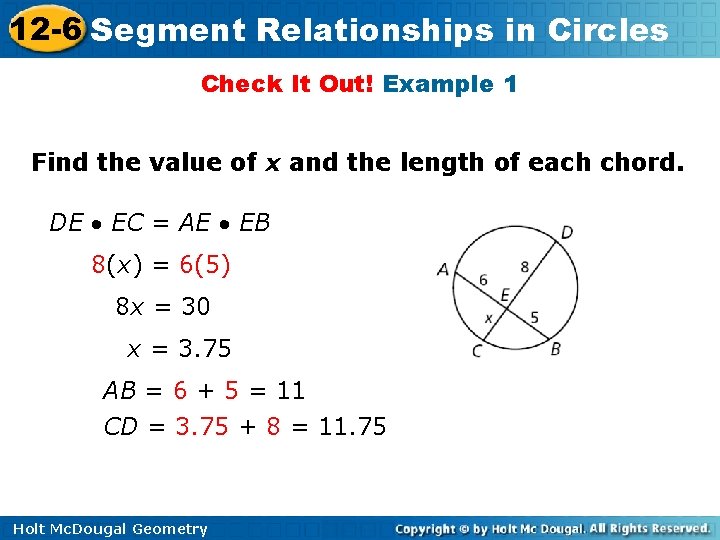

12 -6 Segment Relationships in Circles Check It Out! Example 1 Find the value of x and the length of each chord. DE EC = AE EB 8(x) = 6(5) 8 x = 30 x = 3. 75 AB = 6 + 5 = 11 CD = 3. 75 + 8 = 11. 75 Holt Mc. Dougal Geometry

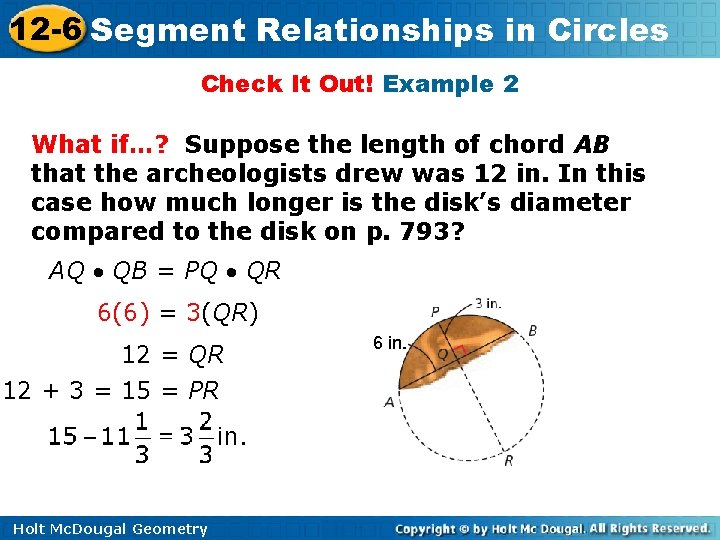

12 -6 Segment Relationships in Circles Check It Out! Example 2 What if…? Suppose the length of chord AB that the archeologists drew was 12 in. In this case how much longer is the disk’s diameter compared to the disk on p. 793? AQ QB = PQ QR 6(6) = 3(QR) 12 = QR 12 + 3 = 15 = PR Holt Mc. Dougal Geometry 6 in.

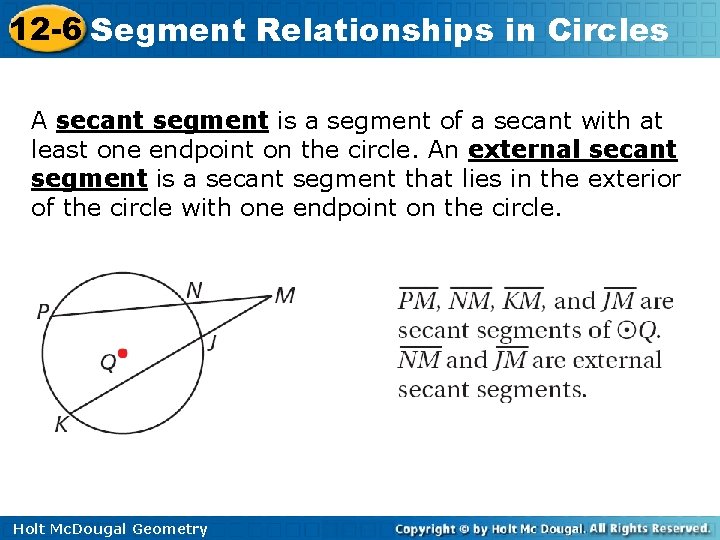

12 -6 Segment Relationships in Circles A secant segment is a segment of a secant with at least one endpoint on the circle. An external secant segment is a secant segment that lies in the exterior of the circle with one endpoint on the circle. Holt Mc. Dougal Geometry

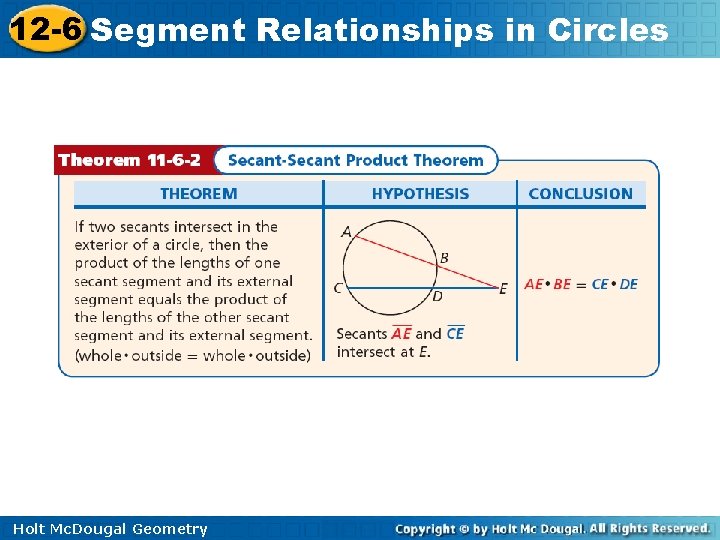

12 -6 Segment Relationships in Circles Holt Mc. Dougal Geometry

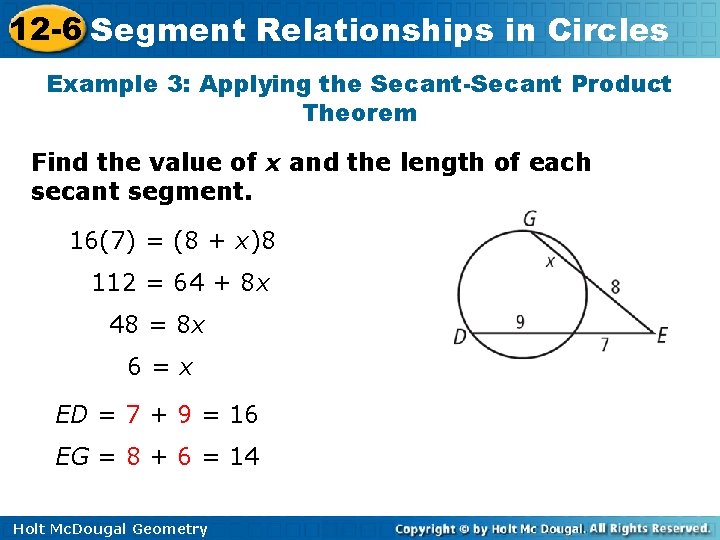

12 -6 Segment Relationships in Circles Example 3: Applying the Secant-Secant Product Theorem Find the value of x and the length of each secant segment. 16(7) = (8 + x)8 112 = 64 + 8 x 48 = 8 x 6=x ED = 7 + 9 = 16 EG = 8 + 6 = 14 Holt Mc. Dougal Geometry

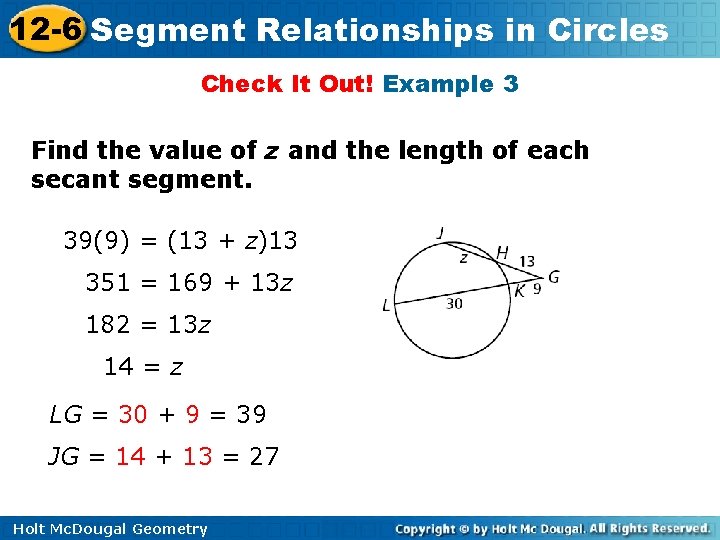

12 -6 Segment Relationships in Circles Check It Out! Example 3 Find the value of z and the length of each secant segment. 39(9) = (13 + z)13 351 = 169 + 13 z 182 = 13 z 14 = z LG = 30 + 9 = 39 JG = 14 + 13 = 27 Holt Mc. Dougal Geometry

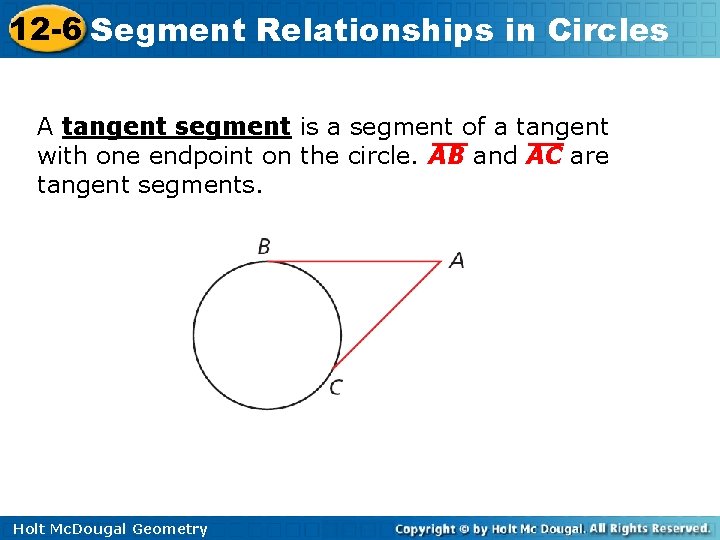

12 -6 Segment Relationships in Circles A tangent segment is a segment of a tangent with one endpoint on the circle. AB and AC are tangent segments. Holt Mc. Dougal Geometry

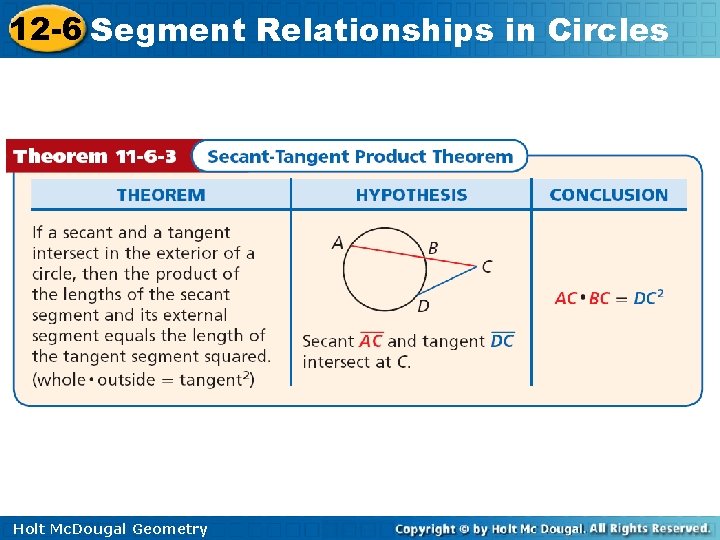

12 -6 Segment Relationships in Circles Holt Mc. Dougal Geometry

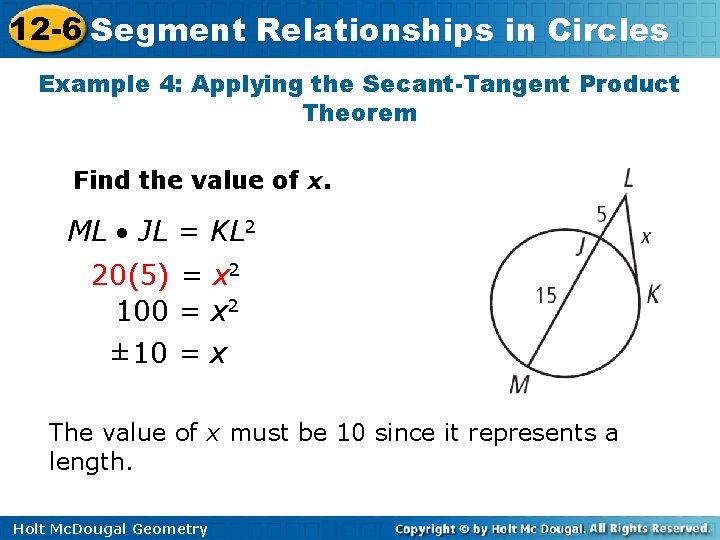

12 -6 Segment Relationships in Circles Example 4: Applying the Secant-Tangent Product Theorem Find the value of x. ML JL = KL 2 20(5) = x 2 100 = x 2 ± 10 = x The value of x must be 10 since it represents a length. Holt Mc. Dougal Geometry

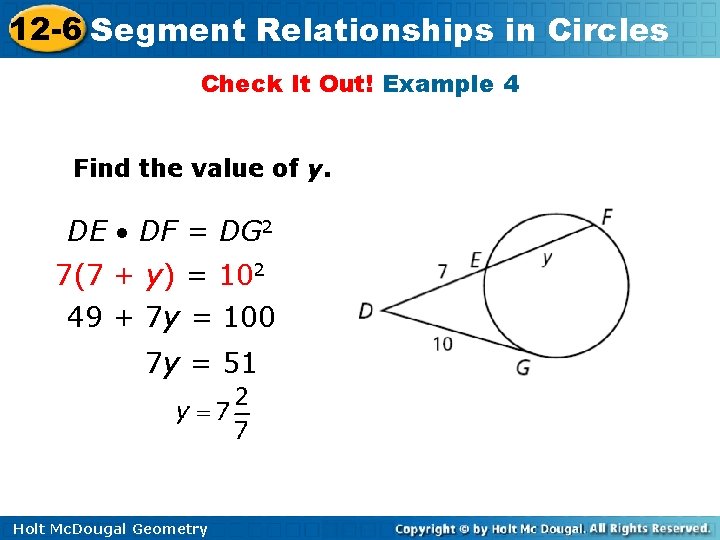

12 -6 Segment Relationships in Circles Check It Out! Example 4 Find the value of y. DE DF = DG 2 7(7 + y) = 102 49 + 7 y = 100 7 y = 51 Holt Mc. Dougal Geometry

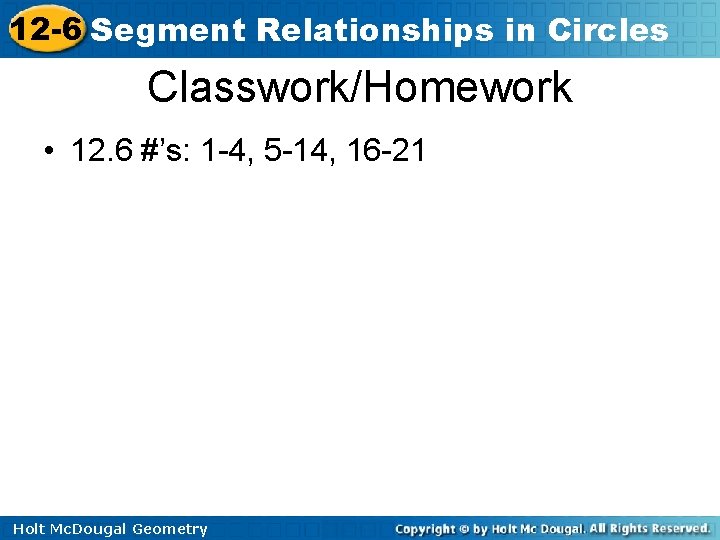

12 -6 Segment Relationships in Circles Classwork/Homework • 12. 6 #’s: 1 -4, 5 -14, 16 -21 Holt Mc. Dougal Geometry
