10 3 Arcs Of A Circle After studying
- Slides: 17
10. 3 Arcs Of A Circle After studying this section, you will be able to identify the different types of arcs, determine the measure of an arc, recognize congruent arcs, apply the relationships between congruent arcs, chords, and central angles.
Types of Arcs Definition An arc consists of two points on a circle and all points on the circle needed to connect the points by a single path.
Definition The center of an arc is the center of the circle of which the arc is a part. Definition A central angle is an angle whose vertex is at the center of a circle. A B O
Definition A minor arc is an arc whose points are on or between the sides of a central angle. Definition A major arc is an arc whose points are on or outside the sides of a central angle. A B O
Definition A semi circle is an arc whose endpoints are the endpoints of a diameter. B O A E The symbol is used to label arcs. The minor arc is named with 2 letters. The major arc is named with 3 letters. The middle letter helps indicate the direction of a major arc. Can you name a major and a minor arc? F X
The measure of an arc Definition The measure of a minor arc or a semicircle is the same as the measure of the central angle that intercepts the arc. Definition The measure of a major arc is 360 minus the measure of the minor arc with the same endpoints. Example A Given: m. AB = 20 C Find: m. ACB B P X Y Q D
Congruent Arcs Two arcs that have the same measure are not A necessarily congruent arcs. D E B O In concentric circles above, arcs AB and DE have the same measure but they are not congruent. Why do you think they are not congruent? Definition Two arcs are congruent whenever they have the same measure and are parts of the same circle or congruent circles.
A 80 We may conclude B O C 80 E D Q 98 G F P 98 H If circle P is congruent to circle Q, we may conclude that
Relating Congruent Arcs, Chords, and Central Angles A In the diagram, points A and B determine one central angle, one chord, and two arcs (one major and one minor). minor arc cho rd central angle major arc B
Theorem congruent. If two central angles of a circle (or of congruent circles) are congruent, then their intercepted arcs are congruent. If two arcs of a circle (or of congruent circles) are congruent, then their corresponding central angles are

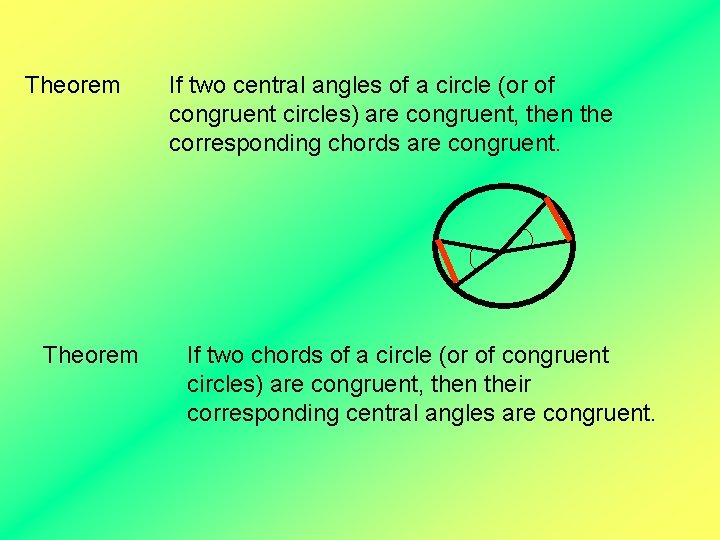

Theorem If two central angles of a circle (or of congruent circles) are congruent, then the corresponding chords are congruent. If two chords of a circle (or of congruent circles) are congruent, then their corresponding central angles are congruent.
Theorem If two arcs of a circle (or of congruent circles) are congruent, then their corresponding chords are congruent. Theorem If two chords of a circle (or of congruent circles) are congruent, then their corresponding arcs are congruent.
Example 1 A Given: Circle B D D is the midpoint of AC Conclusion: B C
Example 2 A 102 If in circle O, O B
Example 3 A. What fractional part of a circle is 36 ? Of 200 ? B. Find the measure of an arc that is of its circle.
Example 4 R Given: Circles P and Q D A P 3. ) If , then B C Q
Summary Summarize what you have learned about arcs of a circle. Homework: worksheet
