Zurn Floor Sinks Overview July 25 2019 agenda

Zurn Floor Sinks - Overview July 25, 2019

agenda what you’ll learn 01 value proposition 02 features & benefits 03 how it works 04 design & specify 05 summary 06 resources page 02

Z 1900 Sani-Flor receptor For engineers, architects, and building owners, Zurn Industries provides floor sinks that offers sanitary surface drainage unlike any competitor allowing you to receive indirect waste and send it to the waste system, in compliance with code

voice of customer industries building owner “I need products that are aesthetically pleasing, durable and have a low total cost of ownership + require minimum downtime for maintenance. ” architect & engineer “I need products that are aesthetically pleasing, durable and cost-effective. ” contractor “I need products that are easy and costeffective to install and maintain, that are assembled and packaged in a manner that streamlines labor. ” Healthcare | Retail | Food Service | Hospitality | Restaurants | Institutional/Education | Government page 04

features & benefits floor sinks (receptors) Z 1900 -RL replacement floor sink liner overview • Easy installation - time and money savings • For commercial kitchen environments, especially those featuring indirect waste connections • Wide variety of sizes and sanitary finishes including porcelain enamel coated, stainless steel, and PVC • Stainless models are customizable Zurn sink types & applications Porcelain enamel coated Sani. Flor receptors Stainless steel food service floor sinks Retrofit / replacement Sinks PVC sanitary sinks page 05

features & benefits Sani-Flor receptors overview Z 1900 Sani-Flor deep cast-iron receptor • Zurn’s Sani-Flor receptors provide a 6”-10” deep cast iron body and grate with 1/2 openings • Ideal for installations in sanitary kitchen locations key features • Acid-resistant porcelain enamel or epoxy coating provides chemical resistance • Anti-splash interior bottom dome strainer to catch debris • Rounded body prevents bacteria buildup • Decorative grates optional • Sediment bucket available page 06

features & benefits food service floor sinks *All food service sinks are Sani-Flor receptors, but not all Sani-Flor receptors are for food service. Z 1750 Sani-Flor stainless steel receptor overview • Corrosion resistant stainless steel • Sanitary design ideal for food service and dairy operations • 12”x 12” square body available in sump depths ranging from 4”-10” key features • Available in 304 and 316 stainless steel body • Anti-splash stainless steel interior dome strainer • Options: • stainless steel receptor with non-tilt cover and perimeter drainage • trap primer connections • extra-heavy-duty top frame and grate • sediment bucket available page 07

features & benefits retrofit / replacement floor sinks overview 4 sizes that reflect some of the most popular floor sink sizes • 12” x 12” top size with 6”, 8”, and 10” sump depth • 8” x 8” top size with 6” sump depth • No downtime key features • Save time and money of installation versus costly reconstruction associated with traditional floor sink replacement • Universal drop-in design fits most floor sinks • Easy and secure installation with push-fit gasket connection and no messy caulking • Sanitary, attractive stainless steel finish • Standard dome strainer 4: 03 Video: Zurn Floor Sinks Z 1900 -RL Retrofit Stainless Floor Sink Liners page 08

problem & retrofit floor sink solution Zurn makes floor sink replacement easy! page 09

how it works step-by-step simple installation for retrofit 1 prep 2 placement 3 post-install • Measure top of liner and cut grout and surrounding tile to correct size • Clean flange, removing all dust • Apply silicone lubricant to gasket • Apply adhesive around the sink flange • Insert grate into sink and insert grate into liner • Place weights on sink until adhesive cures • Grout around liner

Test Your Knowledge How are Zurn retrofit floor sinks installed? Place the following in the correct order: A. Apply adhesive B. Place weights on sink until adhesive cures C. Measure top of liner

features & benefits stainless floor sinks Costco began using our stainless steel floor sinks that included dome strainers to help protect the outlet. After a few years, they noticed debris was still getting down into the trunk lines and they were spending unnecessary maintenance fees on plumbers to unclog the pipes. We listened to their concerns and made changes to the design. Now all our stainless steel floor sinks include sediment baskets, replacing the less effective dome strainers. + anti-splash ledge to the inside of the floor sinks Features: Floor Sinks are available in 304 or 316 Stainless Steel and are available with 8” to 36” Outer Diameter (Width and Length) - 5. 5" to 24" Interior Diameter of Sink and 4" to 36" Depth 2”, 3”, 4” Outlet sizes available with Schedule 10 or Schedule 40 Outlet Bead Blast Finish (Satin) *Cleanouts are fully customizable. Please contact Zurn customer care for custom applications. *

TAPERED FLOOR SINK ENGINEERING SPECIFICATIONS features & benefits stainless tapered floor sinks STANDARD OPTIONS 304 or 316 Stainless Steel 14 Gauge Body Grate Height 1 ½” Start Depth 6” Outlet Sizes: 2” – 4” Schedule 10 or 40 outlet Anchor Tabs Bead Blast Finish • allows a positive flow to the outlet without standing water or debris • available with sediment baskets, sediment cups, & many grate options • cost saving alternative • meets all U. S. FDA standards CUSTOM OPTIONS 12 Gauge Body ½” Trap Primer Connection Anchor Flange / Clamp Device with or without Weep Holes Top Flange Threaded Male or Female Outlet 45° , 90°, Tees, Crosses & Wyes Available Custom Logo Grates Electro- polished / Pickled / Passivated Finishes Epoxy Ledge Sediment Basket Vandal Proof Grates TAPERED FLOOR SINK APPLICATIONS Food & Beverage Manufacturing Plants Hospitality Industry Construction & Engineering Restaurants & Food Service Meat & Dairy Plants Consumer Goods Distribution Food Processing Hospitals & Healthcare Pharmaceutical Plants page 013

ENGINEERING SPECIFICATIONS features & benefits stainless round floor sinks • corrosion-resistant • comply with U. S. FDA Standards STANDARD OPTIONS 304 or 316 Stainless Steel 12 Gauge Body Square or Round Top Grate Height ½” Start Depths: 8” – 14” Outlet Sizes: 2” – 6” Schedule 10 or 40 outlet Anchor Tabs Bead Blast Finish CUSTOM OPTIONS ½” Trap Primer Connection Grate Height 1” Anchor Flange / Clamp Device with or without Weep Holes Top Flange Threaded Male or Female Outlet 45° , 90°, Tees, Crosses & Wyes Available Custom Logo Grates Electro-polished / Pickled / Passivated Finishes Sediment Basket Vandal Proof Grates page 014

features & benefits PVC sanitary floor sinks FD 2370 PVC floor sink overview • • PVC body 14” x 14” top size with 5 -5/8” sump depth For light commercial use More cost-effective option (codes dictate sink material needed) key features • • Sanitary installation Available with 2”-4” pipe connections Full, 1/2, or 3/4 grates Dome strainer available page 015

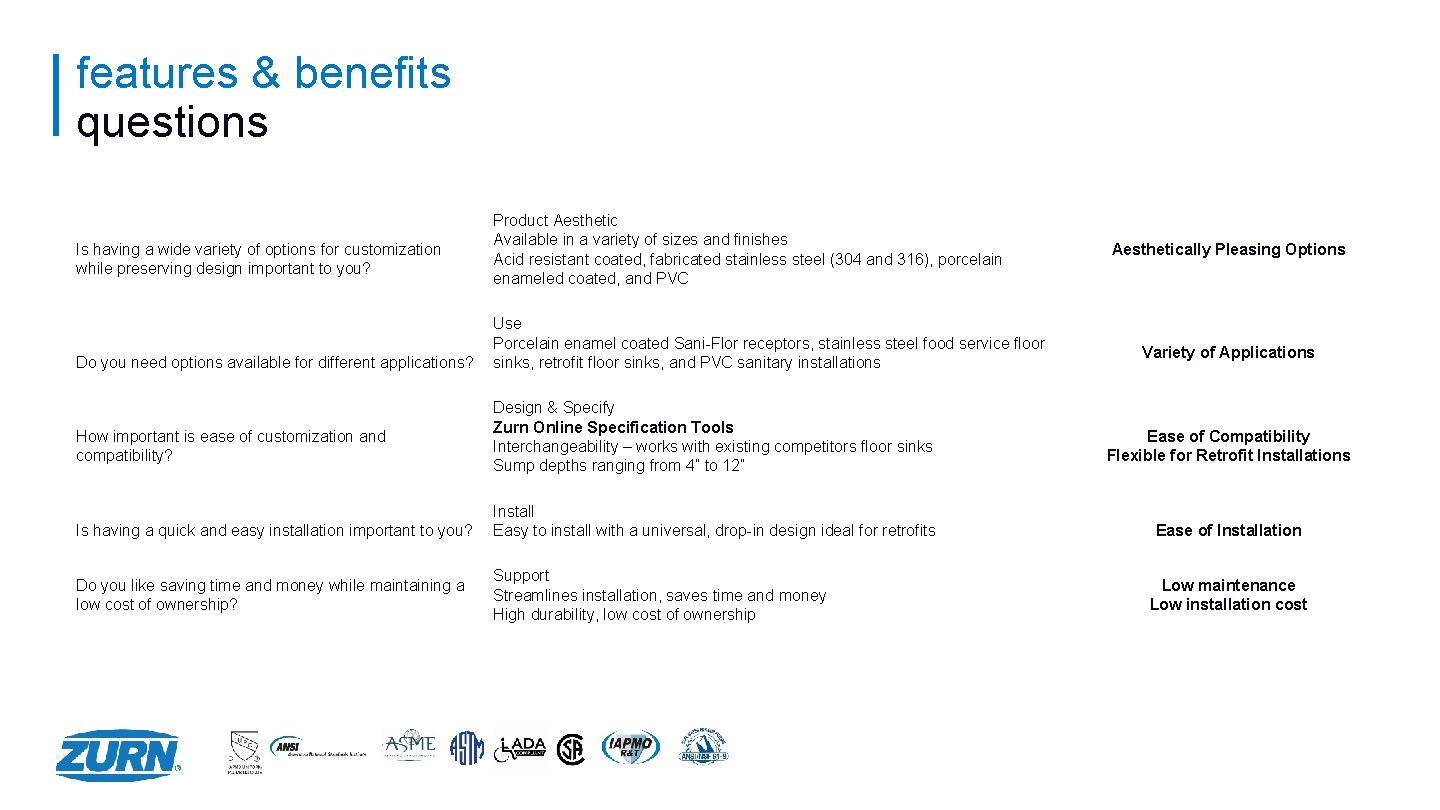

features & benefits questions Is having a wide variety of options for customization while preserving design important to you? Do you need options available for different applications? How important is ease of customization and compatibility? Is having a quick and easy installation important to you? Do you like saving time and money while maintaining a low cost of ownership? Product Aesthetic Available in a variety of sizes and finishes Acid resistant coated, fabricated stainless steel (304 and 316), porcelain enameled coated, and PVC Use Porcelain enamel coated Sani-Flor receptors, stainless steel food service floor sinks, retrofit floor sinks, and PVC sanitary installations Design & Specify Zurn Online Specification Tools Interchangeability – works with existing competitors floor sinks Sump depths ranging from 4” to 12” Install Easy to install with a universal, drop-in design ideal for retrofits Support Streamlines installation, saves time and money High durability, low cost of ownership Aesthetically Pleasing Options Variety of Applications Ease of Compatibility Flexible for Retrofit Installations Ease of Installation Low maintenance Low installation cost

Test Your Knowledge What are Zurn floor sinks’ top 3 benefits? A. Universal design B. Easy installation C. Sanitary design D. Ideal for retrofit

how to specify step-by-step 1 material Stainless steel, acid resistant coated, porcelain enameled coated, PVC 2 sump depth 2”-17” 3 size and shape 8”-24” square, round, rectangle 4 additional options Floor sink liner, adjustable clamp frame, can wash, sanitary, connection types

design & specify floor sinks FLOOR SINKS Sump Depth STAINLESS STEEL 3” ACID RESISTANT EPOXY COATED ACID RESISTANT PORCELAIN ENAMELED COATED PVC Z 1900 12” Square 6” Sump Depth Z 1910 8” Square or Round 6” Sump Depth Z 1960 8” Round 6” Sump Depth FD 2370 14” Square 2, 3, or 4” Hub Connection For Sanitary Installations Z 1970 9” Round 3” Sump Depth 4” Z 1749 12” Square 4” Sump Depth 6” Z 1750 12” Square 6” Sump Depth Z 1755 13 -3/8” Square 6” Sump Depth with Adjustable Clamp Frame Z 1910 -RL 8” Square 6” Sump Depth Replacement Floor Sink Liner Z 1900 -RL 12” Square 6” Sump Depth Replacement Floor Sink Liner 7” Z 1930 8”x 4” 4” Sump Depth Z 1920 16” Square 7” Sump Depth 8” Z 1751 12” Square 8” Sump Depth Z 1940 12”x 6” 8” Sump Depth Z 1982 12” Square 8” Sump Depth Sani-Flor Can Wash Z 1901 -RL 12” Square 8” Sump Depth Replacement Floor Sink Liner Z 1901 12” Square 8” Sump Depth Z 1950 12” Round 8” Sump Depth 10” Z 1752 12” Square 10” Sump Depth Z 1902 -RL 12” Square 10” Sump Depth Replacement Floor Sink Liner Z 1902 12” Square 10” Sump Depth

design & specify grate options material selection A. R. C. Acid Resisting Epoxy Coating is a baked-on powder coating which produces a smooth, hard, high gloss finish. This epoxy based coating offers high impact resistance and excellent life expectancy in all drainage applications. A. R. E. Acid Resisting Porcelain Enamel is a substantially vitreous inorganic coating bonded to metal by fusion at a high temperature above 800 °F. This coating offers excellent acid, abrasion, and wear resistance. The coating is extremely hard and is the ultimate for sanitation in drainage applications.

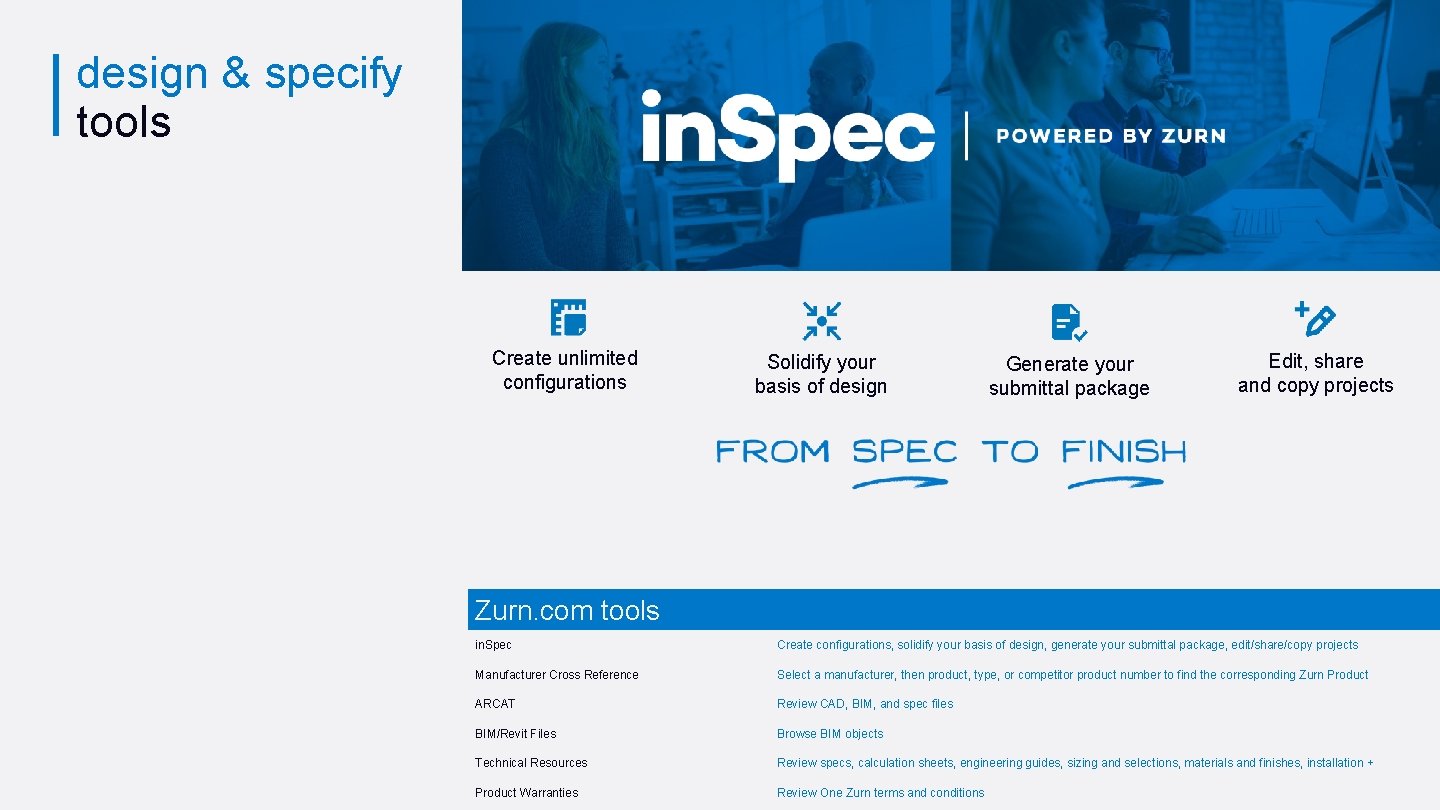

design & specify tools Create unlimited configurations Solidify your basis of design Generate your submittal package Edit, share and copy projects Zurn. com tools in. Spec Create configurations, solidify your basis of design, generate your submittal package, edit/share/copy projects Manufacturer Cross Reference Select a manufacturer, then product, type, or competitor product number to find the corresponding Zurn Product ARCAT Review CAD, BIM, and spec files BIM/Revit Files Browse BIM objects Technical Resources Product Warranties page Review specs, calculation sheets, engineering guides, sizing and selections, materials and finishes, installation + 021 Review One Zurn terms and conditions

specify tools Zurn. com tools description Manufacturer Cross Reference Select a manufacturer, then product, type, or competitor product number to find the corresponding Zurn Product ARCAT Review CAD, BIM, and spec files BIM/Revit Files Browse BIM objects Technical Resources Review specs, calculation sheets, engineering guides, sizing and selections, materials and finishes, installation + Product Warranties Review One Zurn terms and conditions page 022

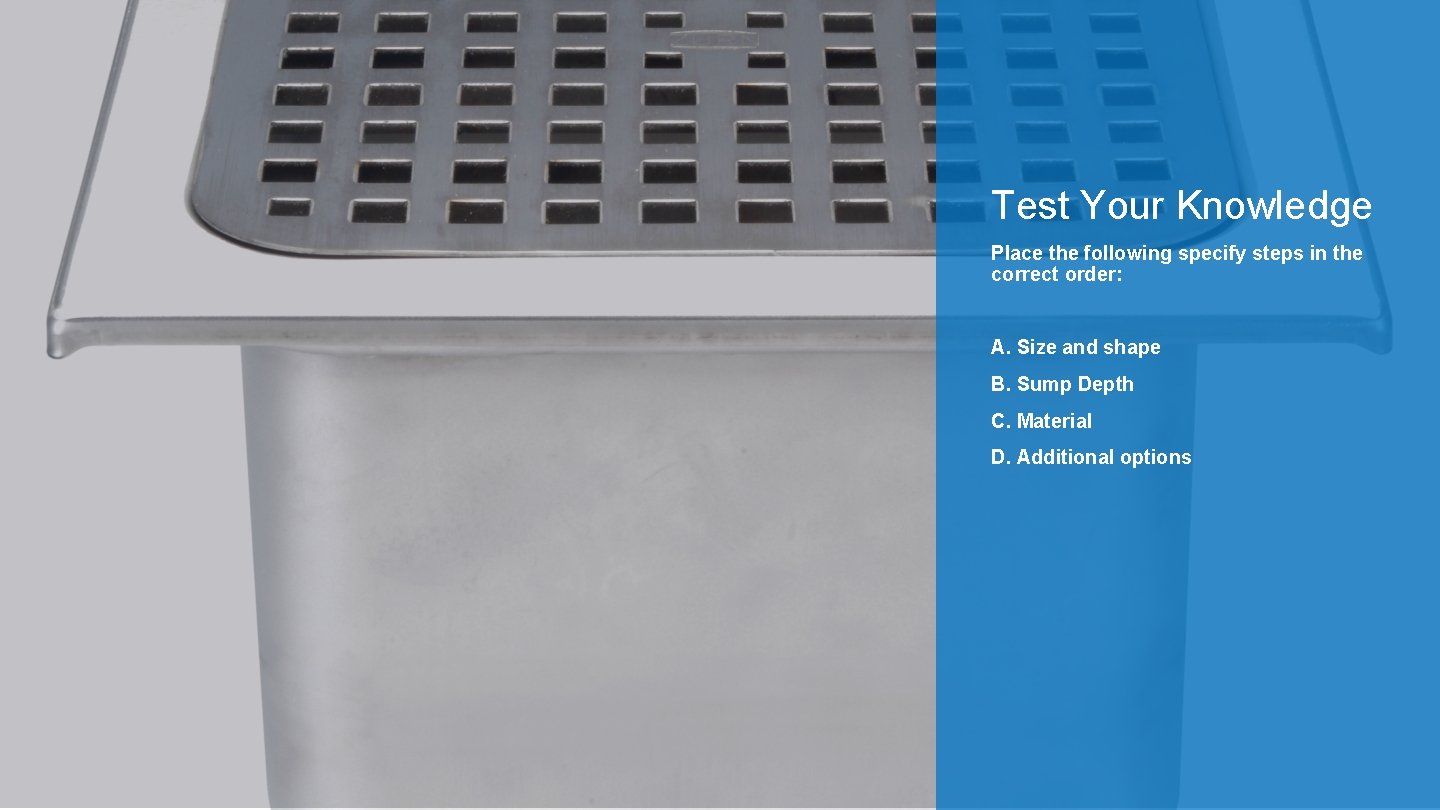

Test Your Knowledge Place the following specify steps in the correct order: A. Size and shape B. Sump Depth C. Material D. Additional options

summary what you learned building owner Low Cost of Ownership, Minimum Maintenance Stainless Steel, Sanitary Finish Retrofit Compatibility architect & engineer contractor Aesthetically Pleasing Customization Durable and Corrosion Resistant Design Wide Variety of Applications and Sizes Ease of Installation – Save Time & Money Interchangeable with Competitor Products Low Maintenance page 024

summary Zurn overview For more than a century, Zurn Engineered Water Solutions® has established itself as an innovator and leading manufacturer of highly engineered water product solutions. Markets We Serve Zurn Engineered Water Solutions is a recognized leader in commercial, municipal, and industrial markets, delivering sustainable building solutions for new construction and retrofit applications. Industry Leading Product Lines The Zurn product offering includes items such as specification drainage products, manual and sensor operated flush valves, radiant heating systems, snow melt systems, trench drain systems, backflow and fire protection systems, and much, much more. Solutions We Provide At Zurn we are committed to providing smart solutions that save time and money. Our goal is serving the customer through innovation, continuous improvement, and assurance behind every installation. One Choice. One Zurn. Choose Zurn for a reliable, recognized manufacturer to supply your entire installation, from behind the wall rough-in, to finished trim product and fixture systems. page 025

resources support address phone online 511 Freshwater Way toll-free 1 -855 -ONE-ZURN zurn. com Milwaukee, WI 53204 Product Pages | Tools, Specifications, & Resources | Vertical Market Solutions in. Spec | Manufacturer Cross Reference | ARCAT | Master. Spec | Spec. Builder | Specifiers | BIM/Revit Files zurn. com/resources/product-training Zurn Product - Overview How to Install and Support facebook. com/Zurn. Industries twitter. com/Zurn. Industries linkedin. com/company/Zurn. Industries youtube. com/Zurn. Industries. LLC page 026
