Why MIFAB Interceptors? A Comparative Guide

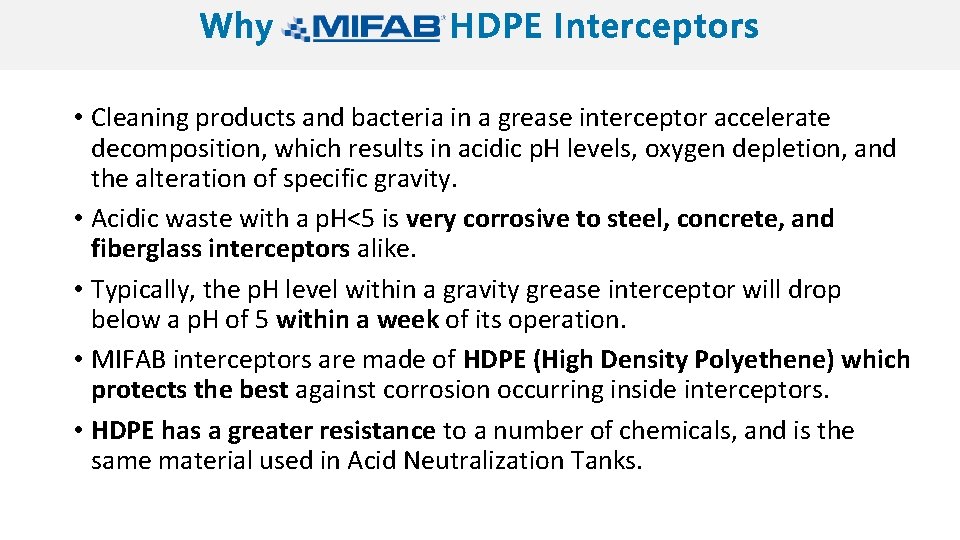

MIFAB • Cleaning products and bacteria in a grease interceptor accelerate decomposition, which results in acidic p. H levels, oxygen depletion, and the alteration of specific gravity. • Acidic waste with a p. H<5 is very corrosive to steel, concrete, and fiberglass interceptors alike. • Typically, the p. H level within a gravity grease interceptor will drop below a p. H of 5 within a week of its operation. • MIFAB interceptors are made of HDPE (High Density Polyethene) which protects the best against corrosion occurring inside interceptors. • HDPE has a greater resistance to a number of chemicals, and is the same material used in Acid Neutralization Tanks.

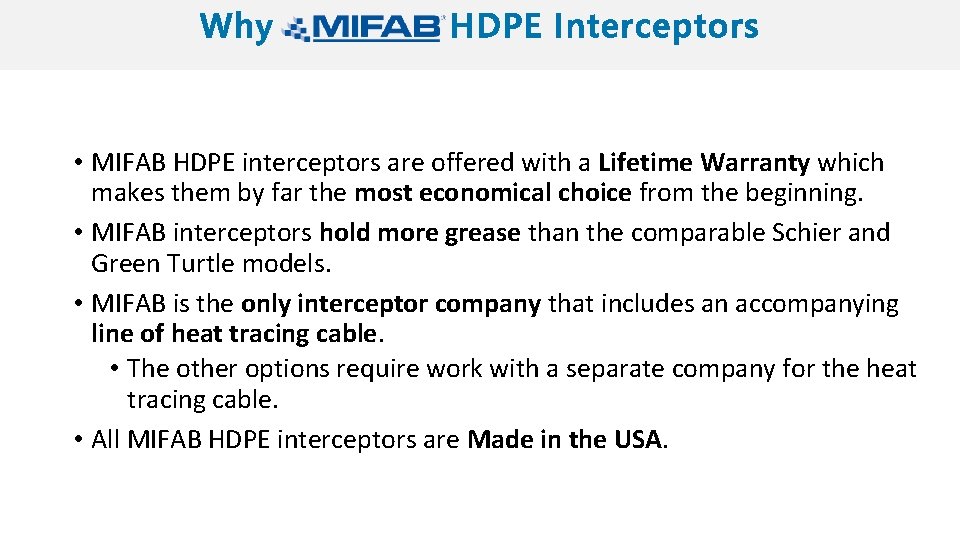

MIFAB • MIFAB HDPE interceptors are offered with a Lifetime Warranty which makes them by far the most economical choice from the beginning. • MIFAB interceptors hold more grease than the comparable Schier and Green Turtle models. • MIFAB is the only interceptor company that includes an accompanying line of heat tracing cable. • The other options require work with a separate company for the heat tracing cable. • All MIFAB HDPE interceptors are Made in the USA.
• • Hydromechanical Grease Interceptor 7 GPM to 50 GPM

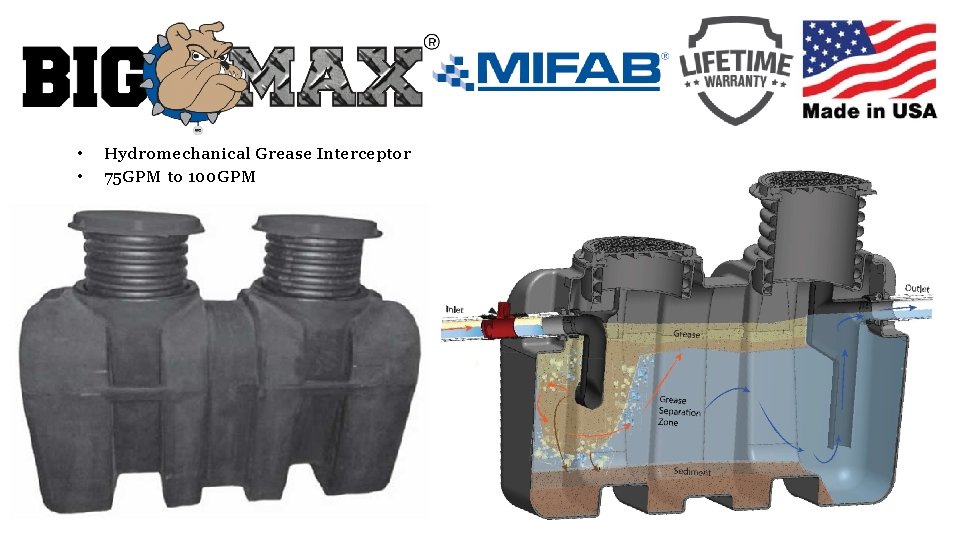

• • Hydromechanical Grease Interceptor 75 GPM to 100 GPM
• • Hydromechanical Grease Interceptor 75 GPM to 100 GPM

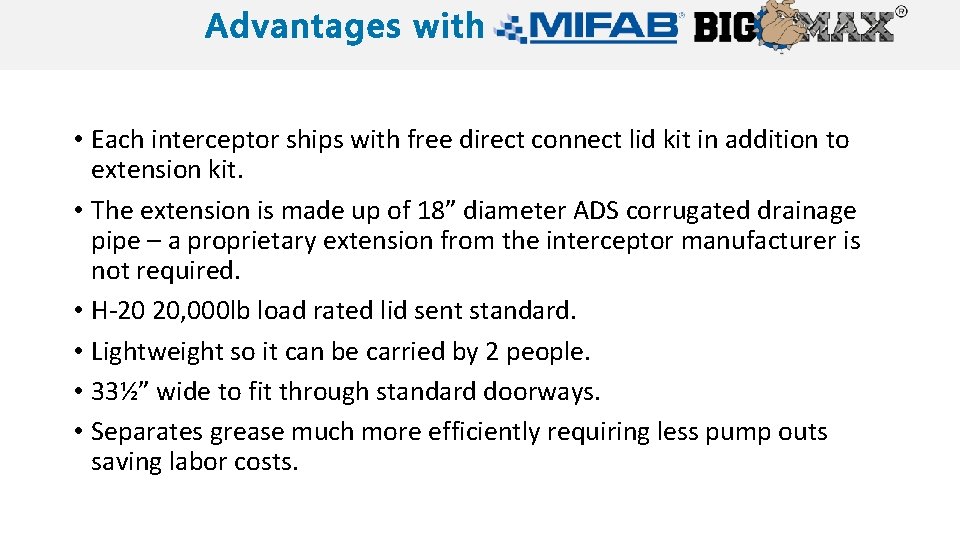

MIFAB Big Max • Each interceptor ships with free direct connect lid kit in addition to extension kit. • The extension is made up of 18” diameter ADS corrugated drainage pipe – a proprietary extension from the interceptor manufacturer is not required. • H-20 20, 000 lb load rated lid sent standard. • Lightweight so it can be carried by 2 people. • 33½” wide to fit through standard doorways. • Separates grease much more efficiently requiring less pump outs saving labor costs.

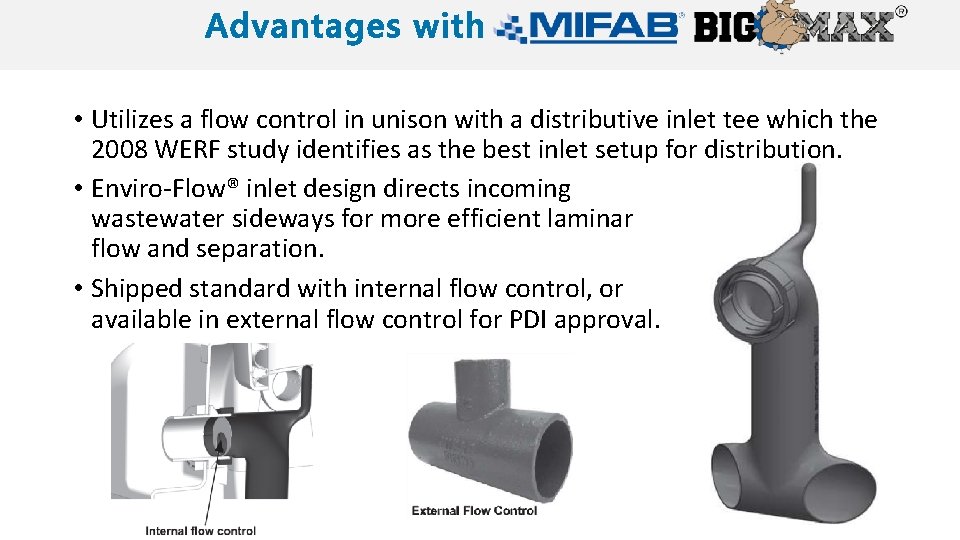

MIFAB Big Max • Utilizes a flow control in unison with a distributive inlet tee which the 2008 WERF study identifies as the best inlet setup for distribution. • Enviro-Flow® inlet design directs incoming wastewater sideways for more efficient laminar flow and separation. • Shipped standard with internal flow control, or available in external flow control for PDI approval.
• • Gravity Grease Interceptor 500, 750, 1000, 1300, 1500 Gallons Liquid Holding Capacity
MIFAB SUPER MAX • Interceptors ship with base included as a standard. • Each interceptor ships with free direct connect lid kit in addition to extension kit. • The extension is made up of 24” diameter ADS corrugated drainage pipe – a proprietary extension from the interceptor manufacturer is not required. • H-20 20, 000 lb load rated lid sent standard. • Greatest range of sizes compared to any manufacturer for most accurate sizing. • Can be put into place using a back hoe; no crane rental needed.
Schier ZURN MIFAB GB-75 GMC 150 XL-MI-G-PL-750 Liquid Holding Capacity 125 gal 150 gal 140 gal Schier ZURN MIFAB GB-250 GMC 300 XL-MI-G-PL-1150 275 gal 300 gal MFG P/N Max Grease Capacity 616 lbs 553 lbs 750 lbs Max Solids Capacity 19. 2 gal 54 gal 70 gal 1076 lbs 1064 lbs 1150 lbs 105 gal 127 gal 105 gal Flow Rate Unit Weight 75 gpm 110 gpm 75 gpm 130 lbs 175 lbs 150 lbs 100 gpm 175 gpm 100 gpm 275 lbs 225 lbs 275 lbs • Gravity Grease Interceptors follow the 25% pump out rule, so the biggest differentiating factor among them is the material used. • For the same grease holding capability, the gravity equivalent would be: • XL-MI-G-PL-1150 = 1, 000 gal gravity grease interceptor
MIFAB • What’s on your MASTER SPECIFICATION? • The time it takes to change the spec pales in comparison to the time it takes to replace a corroded interceptor. • With your company name on the project, what do you want to have representing your reputation? • Don’t forget: Hydromechanical Grease Interceptors save costs over the long run holding more grease, therefore requiring less pumping visits. • Next time your interceptor needs replacing, specifying MIFAB and never worry about it again.
