![Triggers 1 Triggers 1](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-1.jpg)
Triggers 1
![What is a Trigger A trigger is a PLSQL block that is automatically What is a Trigger? • A trigger is a PL/SQL block that is automatically](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-2.jpg)

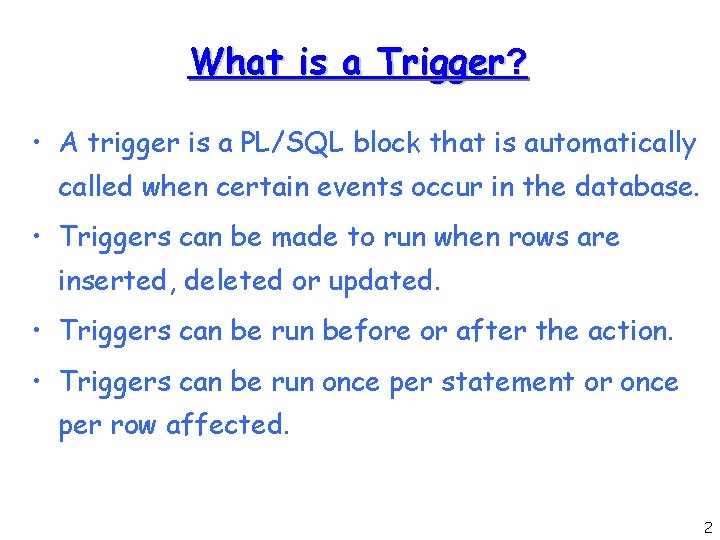

What is a Trigger? • A trigger is a PL/SQL block that is automatically called when certain events occur in the database. • Triggers can be made to run when rows are inserted, deleted or updated. • Triggers can be run before or after the action. • Triggers can be run once per statement or once per row affected. 2
![General Form of a Trigger CREATE or REPLACE TRIGGER trigname BEFORE AFTER General Form of a Trigger CREATE [or REPLACE] TRIGGER trig_name {BEFORE | AFTER |](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-3.jpg)

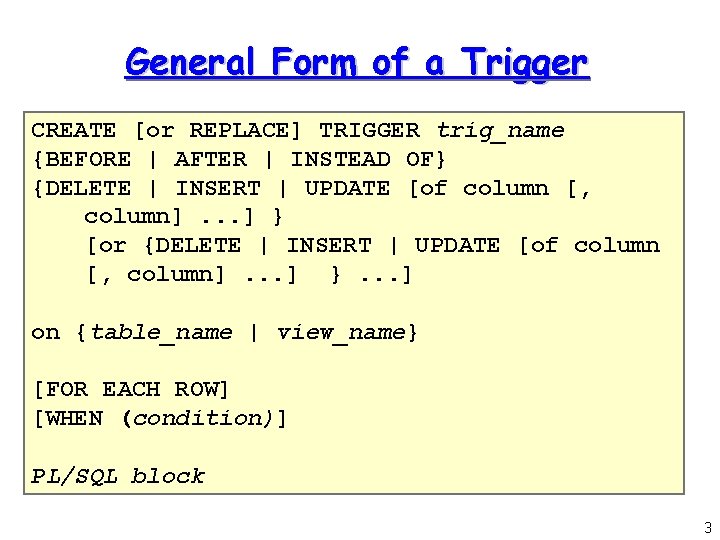

General Form of a Trigger CREATE [or REPLACE] TRIGGER trig_name {BEFORE | AFTER | INSTEAD OF} {DELETE | INSERT | UPDATE [of column [, column]. . . ] } [or {DELETE | INSERT | UPDATE [of column [, column]. . . ] }. . . ] on {table_name | view_name} [FOR EACH ROW] [WHEN (condition)] PL/SQL block 3
![Creating Triggers Trigger timing For table BEFORE AFTER For view INSTEAD Creating Triggers • Trigger timing – For table: BEFORE, AFTER – For view: INSTEAD](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-4.jpg)

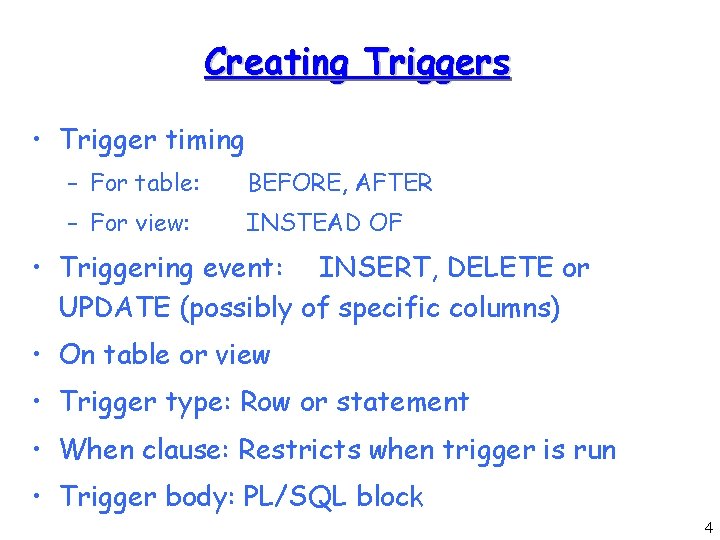

Creating Triggers • Trigger timing – For table: BEFORE, AFTER – For view: INSTEAD OF • Triggering event: INSERT, DELETE or UPDATE (possibly of specific columns) • On table or view • Trigger type: Row or statement • When clause: Restricts when trigger is run • Trigger body: PL/SQL block 4
![BeforeAfterInstead of Trigger Trigger timing When should the trigger fire BEFORE Execute Before/After/Instead of Trigger • Trigger timing: When should the trigger fire? • BEFORE: Execute](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-5.jpg)

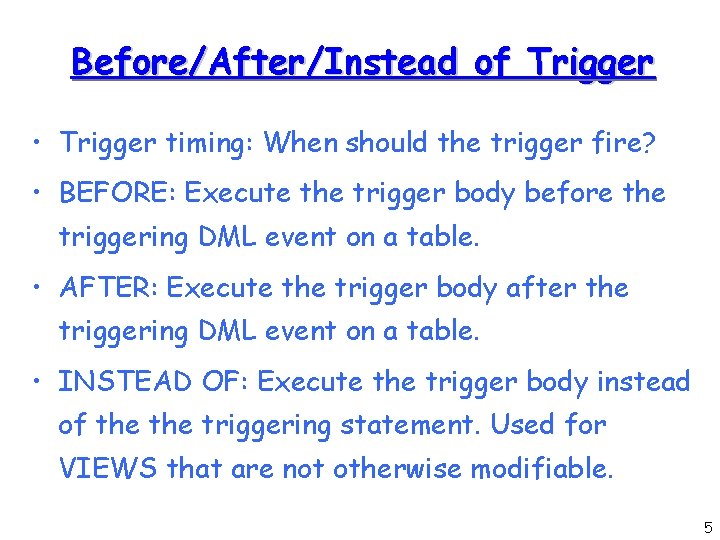

Before/After/Instead of Trigger • Trigger timing: When should the trigger fire? • BEFORE: Execute the trigger body before the triggering DML event on a table. • AFTER: Execute the trigger body after the triggering DML event on a table. • INSTEAD OF: Execute the trigger body instead of the triggering statement. Used for VIEWS that are not otherwise modifiable. 5
![RowStatement Trigger Should the trigger body execute for each row the statement affects Row/Statement Trigger • Should the trigger body execute for each row the statement affects](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-6.jpg)

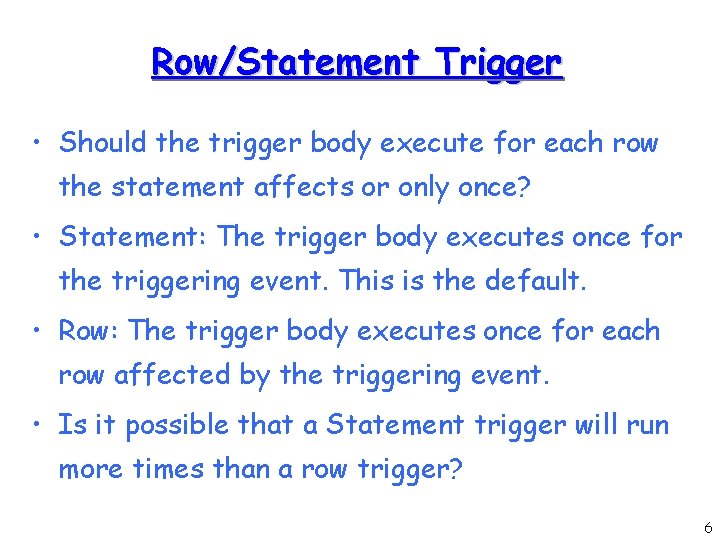

Row/Statement Trigger • Should the trigger body execute for each row the statement affects or only once? • Statement: The trigger body executes once for the triggering event. This is the default. • Row: The trigger body executes once for each row affected by the triggering event. • Is it possible that a Statement trigger will run more times than a row trigger? 6
![Backing Up Data create table sailors sid number sname VARCHAR 230 rating number checkrating Backing Up Data create table sailors( sid number, sname VARCHAR 2(30), rating number check(rating](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-7.jpg)

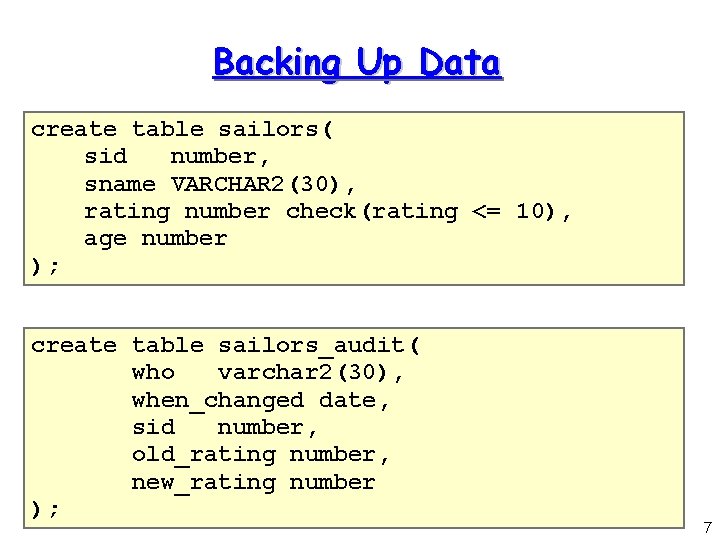

Backing Up Data create table sailors( sid number, sname VARCHAR 2(30), rating number check(rating <= 10), age number ); create table sailors_audit( who varchar 2(30), when_changed date, sid number, old_rating number, new_rating number ); 7
![Backing Up Data CREATE or REPLACE TRIGGER backupsailorstrig AFTER UPDATE of Rating on Sailors Backing Up Data CREATE or REPLACE TRIGGER backup_sailors_trig AFTER UPDATE of Rating on Sailors](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-8.jpg)

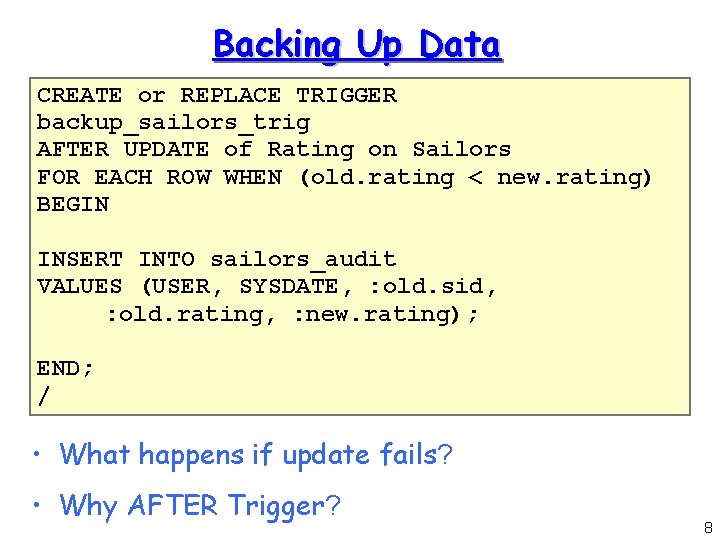

Backing Up Data CREATE or REPLACE TRIGGER backup_sailors_trig AFTER UPDATE of Rating on Sailors FOR EACH ROW WHEN (old. rating < new. rating) BEGIN INSERT INTO sailors_audit VALUES (USER, SYSDATE, : old. sid, : old. rating, : new. rating); END; / • What happens if update fails? • Why AFTER Trigger? 8
![Ensuring Upper Case CREATE or REPLACE TRIGGER snametrig BEFORE INSERT or UPDATE of sname Ensuring Upper Case CREATE or REPLACE TRIGGER sname_trig BEFORE INSERT or UPDATE of sname](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-9.jpg)

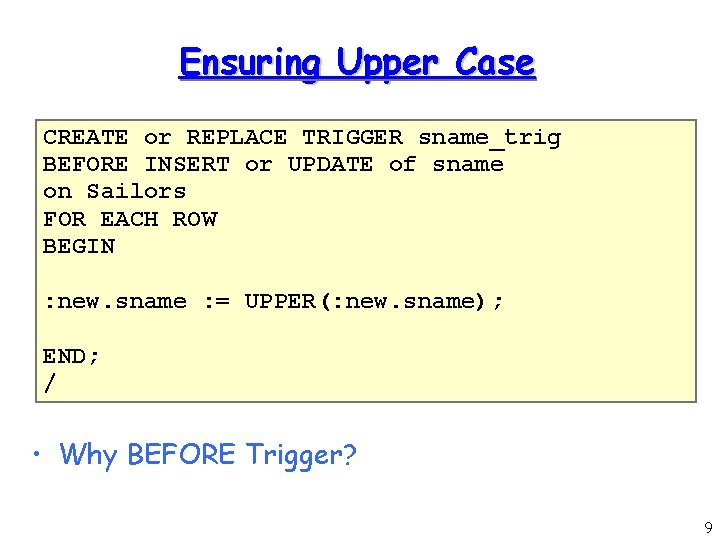

Ensuring Upper Case CREATE or REPLACE TRIGGER sname_trig BEFORE INSERT or UPDATE of sname on Sailors FOR EACH ROW BEGIN : new. sname : = UPPER(: new. sname); END; / • Why BEFORE Trigger? 9
![Instead Of Trigger create view sailorsreserves as select sailors reserves bid reserves day Instead Of Trigger create view sailors_reserves as select sailors. *, reserves. bid, reserves. day](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-10.jpg)

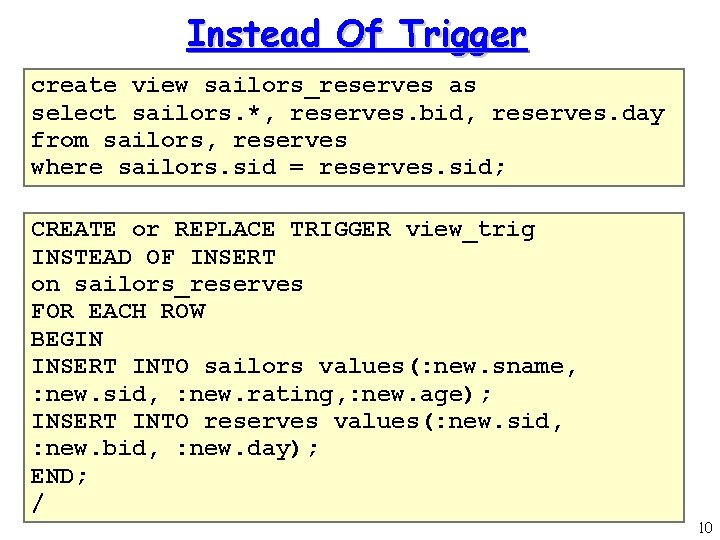

Instead Of Trigger create view sailors_reserves as select sailors. *, reserves. bid, reserves. day from sailors, reserves where sailors. sid = reserves. sid; CREATE or REPLACE TRIGGER view_trig INSTEAD OF INSERT on sailors_reserves FOR EACH ROW BEGIN INSERT INTO sailors values(: new. sname, : new. sid, : new. rating, : new. age); INSERT INTO reserves values(: new. sid, : new. bid, : new. day); END; / 10
![Statement Trigger CREATE or REPLACE TRIGGER shabbattrig BEFORE INSERT or DELETE or UPDATE on Statement Trigger CREATE or REPLACE TRIGGER shabbat_trig BEFORE INSERT or DELETE or UPDATE on](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-11.jpg)

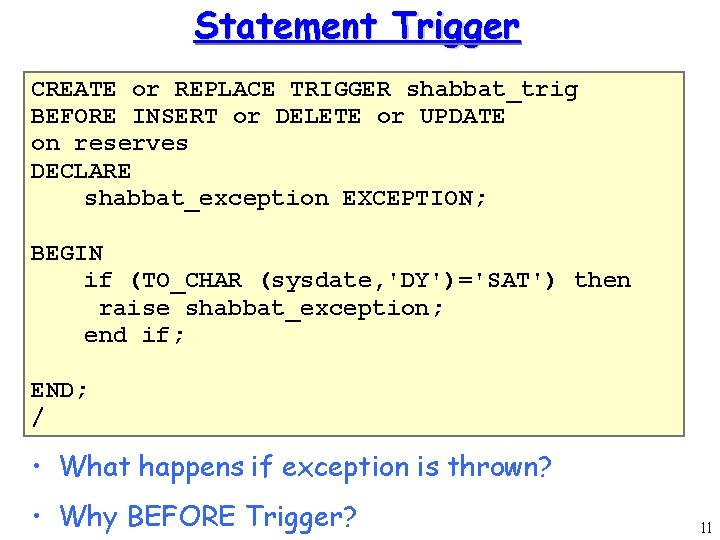

Statement Trigger CREATE or REPLACE TRIGGER shabbat_trig BEFORE INSERT or DELETE or UPDATE on reserves DECLARE shabbat_exception EXCEPTION; BEGIN if (TO_CHAR (sysdate, 'DY')='SAT') then raise shabbat_exception; end if; END; / • What happens if exception is thrown? • Why BEFORE Trigger? 11
![Mutating Table You cannot selectinsertdeleteupdate a table in a trigger that is currently Mutating Table • You cannot select/insert/delete/update a table in a trigger, that is currently](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-12.jpg)

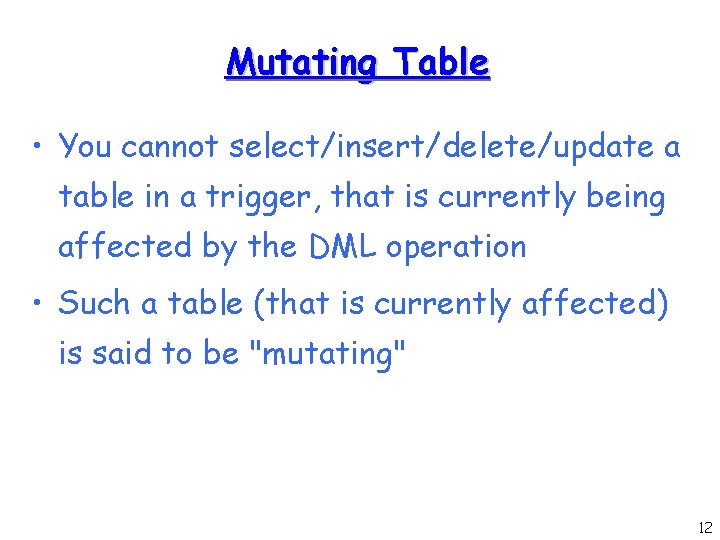

Mutating Table • You cannot select/insert/delete/update a table in a trigger, that is currently being affected by the DML operation • Such a table (that is currently affected) is said to be "mutating" 12
![Bad Trigger CREATE or REPLACE TRIGGER mutatingtrig BEFORE DELETE reserves on You cannot Bad Trigger CREATE or REPLACE TRIGGER mutating_trig BEFORE DELETE reserves • on. You cannot](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-13.jpg)

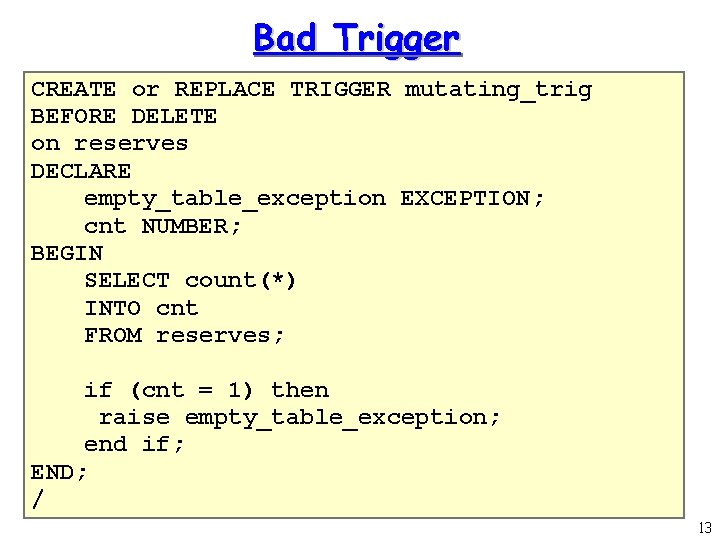

Bad Trigger CREATE or REPLACE TRIGGER mutating_trig BEFORE DELETE reserves • on. You cannot select/insert/delete/update a DECLARE empty_table_exception table in a trigger, that EXCEPTION; is currently being cnt NUMBER; affected by the DML operation BEGIN SELECT count(*) INTO cnt FROM reserves; if (cnt = 1) then raise empty_table_exception; end if; END; / 13
![Additional Types of Triggers Can also define triggers for logging in and Additional Types of Triggers • Can also define triggers for – logging in and](https://slidetodoc.com/presentation_image_h2/7743502ba532317e11b31600cea70617/image-14.jpg)

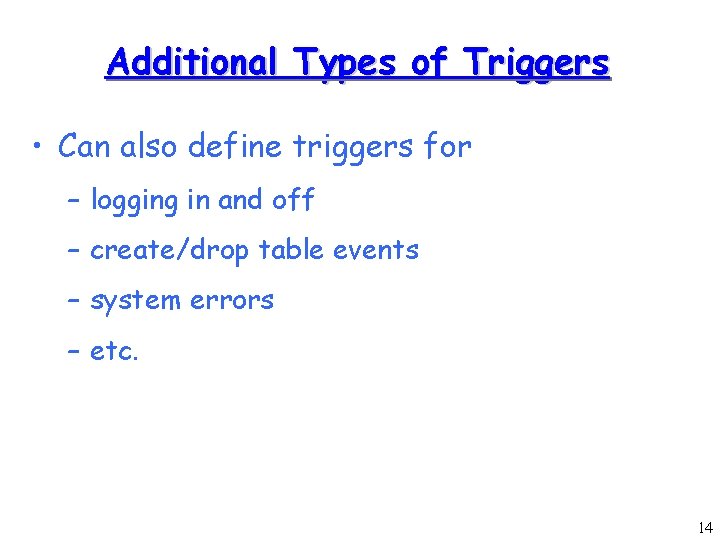

Additional Types of Triggers • Can also define triggers for – logging in and off – create/drop table events – system errors – etc. 14
