TRACI Oxford Status 20/11/2015 Pawel Okonski 1

TRACI Oxford Status 20/11/2015 Pawel Okonski 1

Leak issue: When the commissioning test was provided we've detected leaks in TRACI. In

Leak issue: When the commissioning test was provided we've detected leaks in TRACI. In order to locate these leaks we used CO 2 sniffer and we made tightness tests. 20/11/2015 Leaks Pawel Okonski 2

Leaks: • a leak caused by connections in the pump (inlet and outlet). In

Leaks: • a leak caused by connections in the pump (inlet and outlet). In this connections we found cooper gaskets and we changed it for stainless steel gaskets. • a leak caused by connections in the inline filter. • a leak caused by temperature sensor connection. • a leak caused by dummy load connection 20/11/2015 Pawel Okonski 3

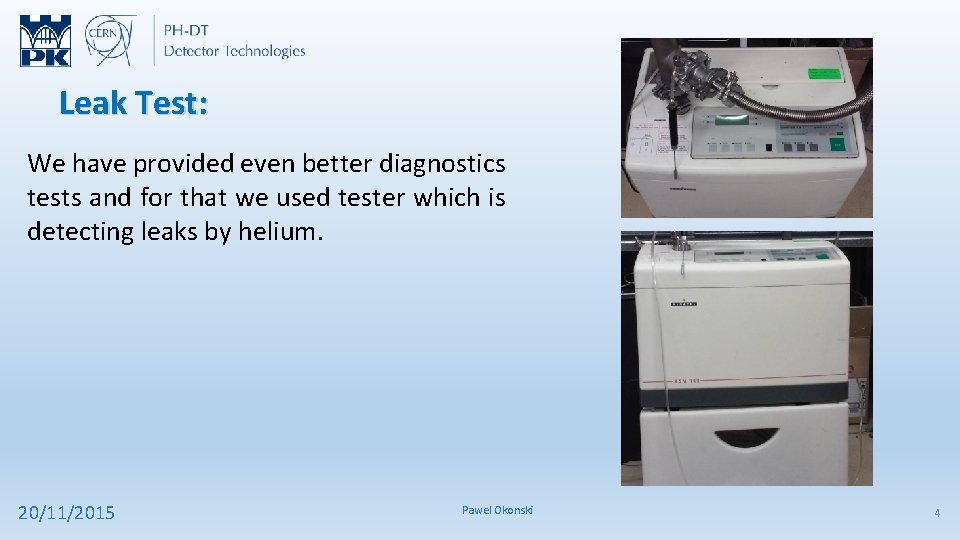

Leak Test: We have provided even better diagnostics tests and for that we used

Leak Test: We have provided even better diagnostics tests and for that we used tester which is detecting leaks by helium. 20/11/2015 Pawel Okonski 4

11 -18 -2015 17: 50: 00 11 -18 -2015 18: 50: 00 11 -18

11 -18 -2015 17: 50: 00 11 -18 -2015 18: 50: 00 11 -18 -2015 19: 50: 00 11 -18 -2015 20: 50: 00 11 -18 -2015 21: 50: 00 11 -18 -2015 22: 50: 00 11 -18 -2015 23: 50: 00 11 -19 -2015 00: 50: 00 11 -19 -2015 01: 50: 00 11 -19 -2015 02: 50: 00 11 -19 -2015 03: 50: 00 11 -19 -2015 04: 50: 00 11 -19 -2015 05: 50: 00 11 -19 -2015 06: 50: 00 11 -19 -2015 07: 50: 00 11 -19 -2015 08: 50: 00 11 -19 -2015 09: 50: 00 11 -19 -2015 10: 50: 00 11 -19 -2015 11: 50: 00 11 -19 -2015 12: 50: 00 11 -19 -2015 13: 50: 00 11 -19 -2015 14: 50: 00 11 -19 -2015 15: 50: 00 11 -19 -2015 16: 50: 00 11 -19 -2015 17: 50: 00 11 -19 -2015 18: 50: 00 11 -19 -2015 19: 50: 00 11 -20 -2015 08: 50: 00 11 -20 -2015 09: 50: 01 11 -20 -2015 10: 29: 55 Av(P)/Av(T) Leak Test: 20/11/2015 Average pressure/Average Temperature as a function of time Now we are waiting for new measurements. 0. 1575 0. 157 0. 1565 0. 156 0. 1555 0. 1545 Average(PT 101, PT 103, PT 110)/ Average(TT 101, TT 102, TT 103, T T 106, TT 107, TT 110, TT 205 A, TT 205 B) 0. 154 Pawel Okonski 5

TRACI Sheffield Status TRACI Sheffield is ready for commissioning test. 20/11/2015 Pawel Okonski 6

TRACI Sheffield Status TRACI Sheffield is ready for commissioning test. 20/11/2015 Pawel Okonski 6

TRACI Milano Status The material inside the pump seems to be not suitable for

TRACI Milano Status The material inside the pump seems to be not suitable for low temperature application. Actually we are waiting for M-pump specialist. 20/11/2015 Pawel Okonski 7
