TDE Pressure Alarms & Vacuum System Commissioning G. Pigny TE/VSC/ICM February 17 th 2017

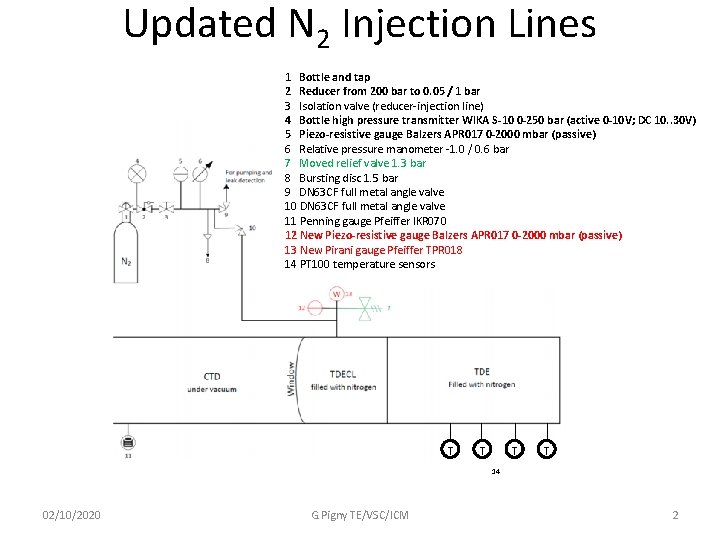

Updated N 2 Injection Lines 1 Bottle and tap 2 Reducer from 200 bar to 0. 05 / 1 bar 3 Isolation valve (reducer-injection line) 4 Bottle high pressure transmitter WIKA S-10 0 -250 bar (active 0 -10 V; DC 10. . 30 V) 5 Piezo-resistive gauge Balzers APR 017 0 -2000 mbar (passive) 6 Relative pressure manometer -1. 0 / 0. 6 bar 7 Moved relief valve 1. 3 bar 8 Bursting disc 1. 5 bar 9 DN 63 CF full metal angle valve 10 DN 63 CF full metal angle valve 11 Penning gauge Pfeiffer IKR 070 12 New Piezo-resistive gauge Balzers APR 017 0 -2000 mbar (passive) 13 New Pirani gauge Pfeiffer TPR 018 14 PT 100 temperature sensors T T 14 02/10/2020 G. Pigny TE/VSC/ICM 2

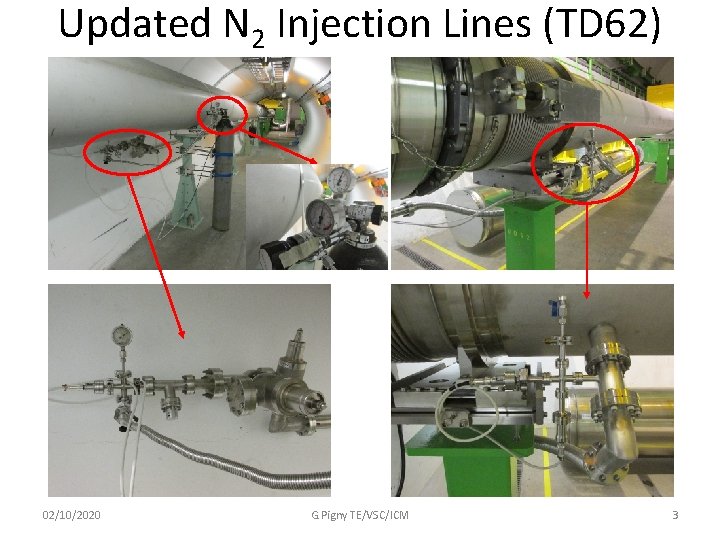

Updated N 2 Injection Lines (TD 62) 02/10/2020 G. Pigny TE/VSC/ICM 3
Cabling in TD 6 x 1 x NF 26 cable (TD 6 x UA 6 x): • 1 x high pressure transmitter • 2 x piezo gauges 1 x NF 26 cable (TD 6 x UA 6 x): • 4 x. PT 100 temperature sensors 3 x NE 4 cables (gauges terminals): • 1 x high pressure transmitter • 2 x piezo gauges 02/10/2020 G. Pigny TE/VSC/ICM 4 x NE 4 cables (PT 100 terminals): • 4 x PT 100 temperature sensors 4

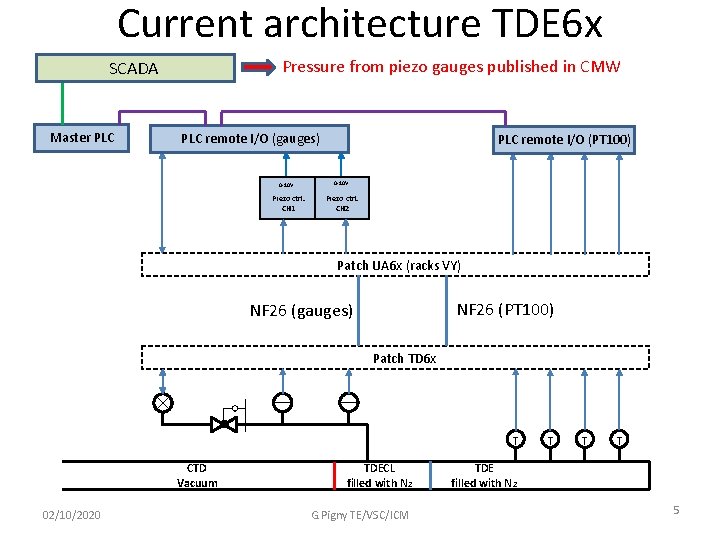

Current architecture TDE 6 x Pressure from piezo gauges published in CMW SCADA Master PLC remote I/O (gauges) 0 -10 V Piezo ctrl. CH 1 PLC remote I/O (PT 100) 0 -10 V Piezo ctrl. CH 2 Patch UA 6 x (racks VY) NF 26 (PT 100) NF 26 (gauges) Patch TD 6 x T CTD Vacuum 02/10/2020 TDECL filled with N 2 G. Pigny TE/VSC/ICM T TDE filled with N 2 5
Proposed architecture TDE 6 x Pressure/temperatures + relay statuses can be published in CMW SCADA Master PLC remote I/O (gauges) 0 -10 V New controller Piezo Ctrl. CH 1 PLC remote I/O (PT 100) 0 -10 V Owner Piezo Ctrl. CH 2 Patch UA 6 x (racks VY) NF 26 (PT 100) NF 26 (gauges) Patch TD 6 x T CTD Vacuum 02/10/2020 TDECL filled with N 2 G. Pigny TE/VSC/ICM T TDE filled with N 2 6
New piezo gauge controller Initially designed for insulation vacuum measurement in the SA and IT, provides alarms to Cryogenic system. AC/24 VDC 0 -10 V 4 -20 m. A CH 1 2 x NO relays with (locally) programmable thresholds 0 -10 V or 4 -20 m. A outputs available 0 -10 V 4 -20 m. A CH 2 0 -10 V 4 -20 m. A CH 3 Current bridge excitation (4 m. A) and differential measurement Common 24 VDC switching power supply for all 3 channels Piezo-resistive gauge (passive) 02/10/2020 G. Pigny TE/VSC/ICM 7

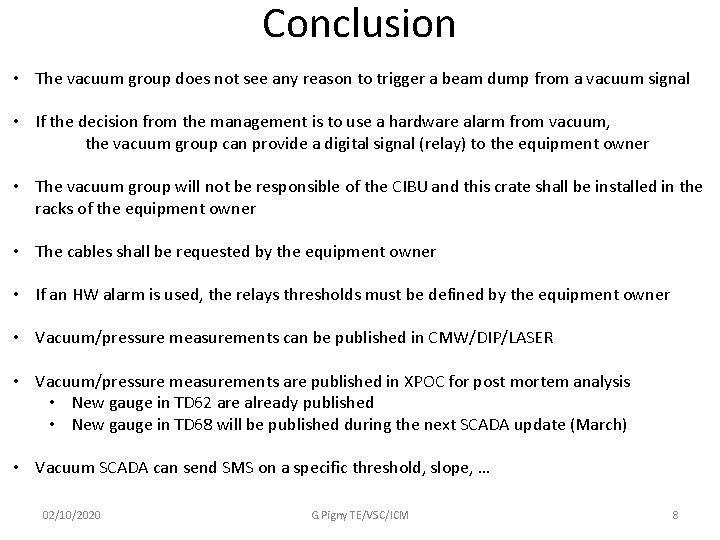

Conclusion • The vacuum group does not see any reason to trigger a beam dump from a vacuum signal • If the decision from the management is to use a hardware alarm from vacuum, the vacuum group can provide a digital signal (relay) to the equipment owner • The vacuum group will not be responsible of the CIBU and this crate shall be installed in the racks of the equipment owner • The cables shall be requested by the equipment owner • If an HW alarm is used, the relays thresholds must be defined by the equipment owner • Vacuum/pressure measurements can be published in CMW/DIP/LASER • Vacuum/pressure measurements are published in XPOC for post mortem analysis • New gauge in TD 62 are already published • New gauge in TD 68 will be published during the next SCADA update (March) • Vacuum SCADA can send SMS on a specific threshold, slope, … 02/10/2020 G. Pigny TE/VSC/ICM 8
Changes during EYETS Beam dump lines: • TD 6 x: New piezo gauges with HW alarms Interlock for Vacuum sector valves: • A 6 L 1. R: new ion pump and configuration • C 4 L 2. C: new interlock cabling in UA 23 • LSS 7: new ion pumps cabling distribution • A 4 L 8. C: new interlock cabling in UA 83 • I 5 R 8. B: new Penning gauge Alarms to cryogenics: • SA, IT Pt 1: New piezo controllers for insulation vacuum 02/10/2020 G. Pigny TE/VSC/ICM 9
Commissioning after EYETS TDE 6 x HW alarms: • Procedure shall be added in the MPS commissioning document • Complete HW and SW alarms have to be tested up to the BIS/SIS Vacuum sector valves interlocks: • Complete HW interlock chain has to be tested up to the BIS Vacuum alarms provided to other systems: • Complete test up to the user systems has to be performed • MKI • MKB • RF • CRYO (insulation vacuum) All the procedures (except the new TDE interlocks) are described in the MPS aspects of the Vacuum System Commissioning LHC-OP-MPS-006 02/10/2020 G. Pigny TE/VSC/ICM 10
