Supervisory Control and Data Acquisition (SCADA) Software
Supervisory Control and Data Acquisition (SCADA) Software o o The next generation of Data Acquisition, User login activities tracking and System Control Software. The system can data log: n n # of cycles Transfer error logging Daily, monthly, annual reports User Log in information o o o n n User ID Date and time they log on and off System access information. UP-TIME, MTBF, MTTR, MTBA Preventative Maintenance Notification
User login and activities tracking User Login, Tracking by Name and User ID Software has a security module that mandates User login and tracks activities of users. The login module allows the setup of floor administrators that can manage accounts but not change other aspects of system security. This feature allows the system to act as a data collector for not only processes but user actions such as changes to system configuration that can be written to the audit logs. Security related events related to logins are recorded in the login security module.

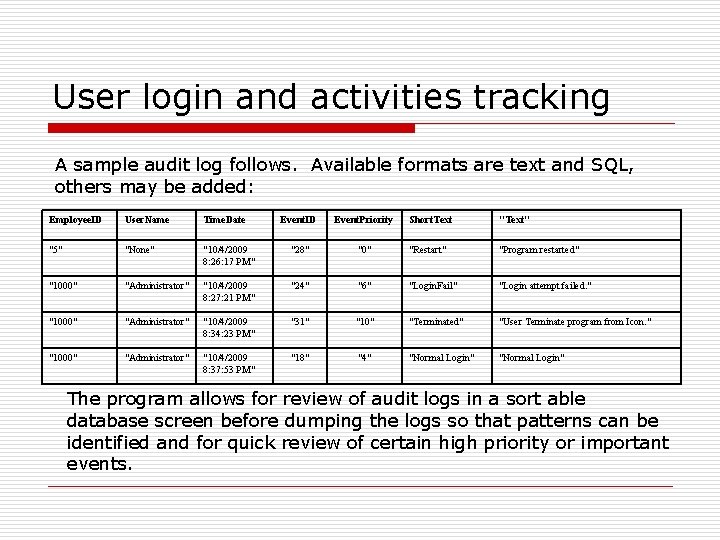

User login and activities tracking A sample audit log follows. Available formats are text and SQL, others may be added: Employee. ID User. Name Time. Date Event. ID Event. Priority Short. Text "Text" "5" "None" "10/4/2009 8: 26: 17 PM" "28" "0" "Restart" "Program restarted" "1000" "Administrator" "10/4/2009 8: 27: 21 PM" "24" "6" "Login. Fail" "Login attempt failed. " "1000" "Administrator" "10/4/2009 8: 34: 23 PM" "31" "10" "Terminated" "User Terminate program from Icon. " "1000" "Administrator" "10/4/2009 8: 37: 53 PM" "18" "4" "Normal Login" The program allows for review of audit logs in a sort able database screen before dumping the logs so that patterns can be identified and for quick review of certain high priority or important events.
System Control Software o o Maintenance Modes Maintenance mode settings in the system can be password protected through the optional login security manager and allow integration of user access to all screens and can control access to individual graphical objects on the user interface.
