Subroutines Harder Problems Examples so far sum sum
Subroutines
Harder Problems ® Examples so far: sum, sum between, minimum – straightforward computation – small number of intermediate variables – single control structure ® How do we design algorithms for more complicated problems? – complex computation – many intermediate variables – multiple control structures
Solving Complex Problems ® Often it is difficult visualize all the details of a complete solution to a problem ® Top-down design – original problem is divided into simpler independent subproblems – successive refinement: these subproblems may require further division into smaller subproblems – continue until all subproblems can be easily solved

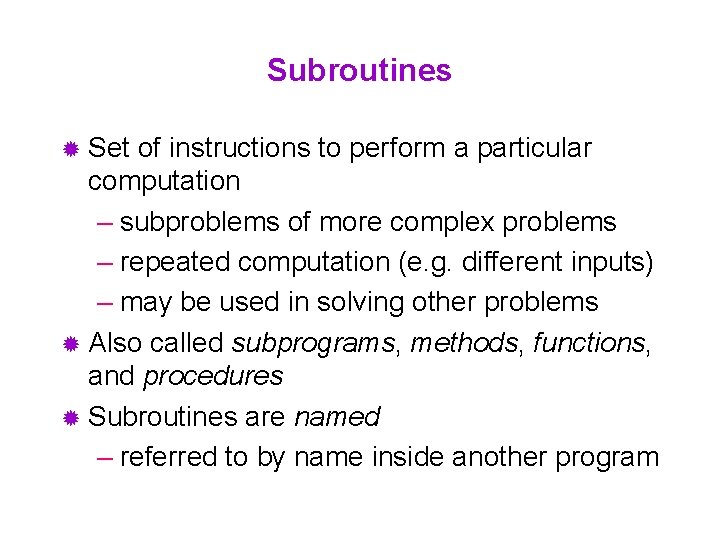

Subroutines ® Set of instructions to perform a particular computation – subproblems of more complex problems – repeated computation (e. g. different inputs) – may be used in solving other problems ® Also called subprograms, methods, functions, and procedures ® Subroutines are named – referred to by name inside another program
Declaring subroutines ® Adding two integers return value type (output) subroutine name parameters (input) int sum_two_numbers(int x, int y) { return x+y; } return statement output value
Subroutine: Minimum of two integers int minimum(int x, int y) { if(x < y) return x; else return y; }
Minimum of three numbers ® Problem: Design an algorithm to compute the minimum of three integers x, y, and z
Top-down design Compute minimum of x, y, z Get input values x, y, z Perform computations Compute min_tmp = minimum of x and y Return output value Compute minimum of min_tmp and z
Calling subroutines ® Use subroutines for repeated tasks – We can call the minimum subroutine twice to compute the minimum of three integers: int min 3(int x, int y, int z) { min_temp = minimum(x, y); return minimum(min_temp, z); }
Example: Computing combinations ®A combination C(n, k) is the number of ways to select a group of k objects from a population of n distinct objects n! C(n, k) = k! (n-k)! ® n! is the factorial function n! = n (n – 1) (n -2) … 3 2 1 ® Problem: Compute C(n, k)
Top-down design n! Compute C(n, k) = k! (n-k)! Get input values n, k Compute n! Perform computations Compute k! Return output value C(n, k) Compute (n-k)!
Analysis ® Computing C(n, k) can be divided into three factorial computations – Compute n! – Compute k! – Compute (n-k)! ® Use subroutines for repeated tasks – we can write a factorial subroutine rather than computing C(n, k) directly
Algorithm to compute C(n, k) Inputs: n, k ® Output: combination ® 1. Get input values for n and k 2. Perform computation: factorial(n) combination = factorial(k) factorial(n-k) 3. Return combination
Algorithm to compute C(n, k) int combination(int n, int k) { return factorial(n)/ (factorial(k)*factorial(n-k)); }
Exercises You can use any of the subroutines we discussed in class without declaring them ® Design an algorithm to compute n! ® Suppose we have a subroutine sum_n that computes the sum of the first n integers int sum_n(int n) Use the subroutine sum_n to compute the inclusive sum between two integers
Exercises ® Design an algorithm to compute the minimum of four numbers ® Design an algorithm to compute the inclusive product between two numbers – for example, the product between 3 and 6 is 3 4 5 6 = 360
