Representations of signed numbers In binary systems an
Representations of signed numbers In binary systems , an n-bit string can represent 2 n different numbers ! Unsigned: 0— 2 n-1 signed: -(2 n-1 -1)— 2 n-1 -1

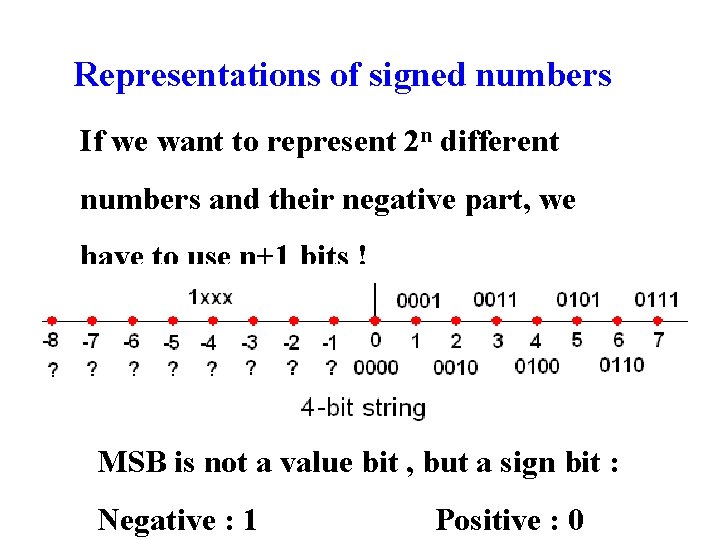

Representations of signed numbers If we want to represent 2 n different numbers and their negative part, we have to use n+1 bits ! MSB is not a value bit , but a sign bit : Negative : 1 Positive : 0

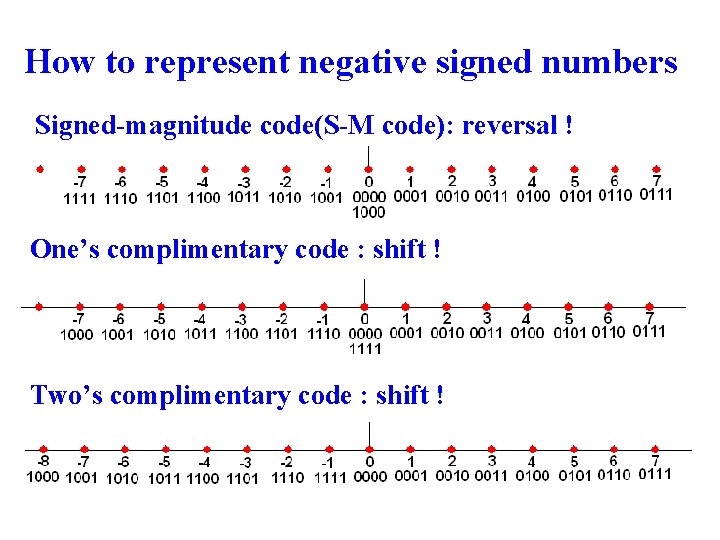

How to represent negative signed numbers Signed-magnitude code(S-M code): reversal ! One’s complimentary code : shift ! Two’s complimentary code : shift !

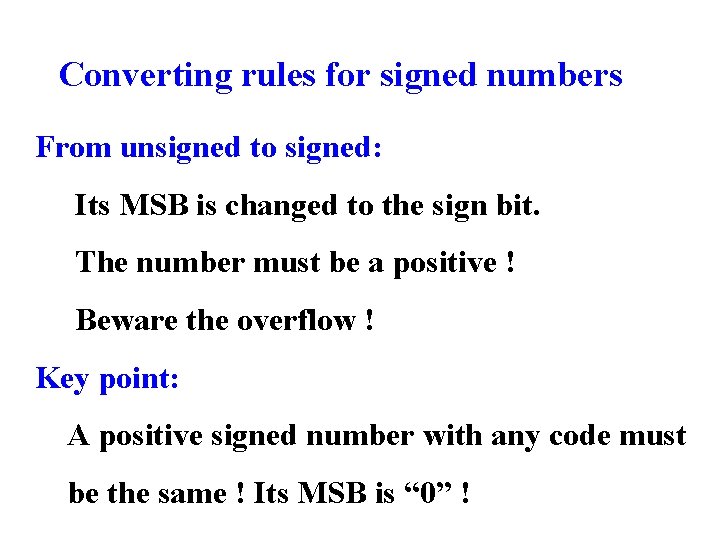

Converting rules for signed numbers From unsigned to signed: Its MSB is changed to the sign bit. The number must be a positive ! Beware the overflow ! Key point: A positive signed number with any code must be the same ! Its MSB is “ 0” !
Change the sign of a signed number signed-magnitude : change the sign-bit; +21: 0001 0101 -21: 1001 0101 one’s complement: change every bit; +21: 0001 0101 -21: 1110 1010 two’s complement: change every bit, and add 1 at LSB; +21: 0001 0101 -21: 1110 1010 note: keep the width of the string in addition !

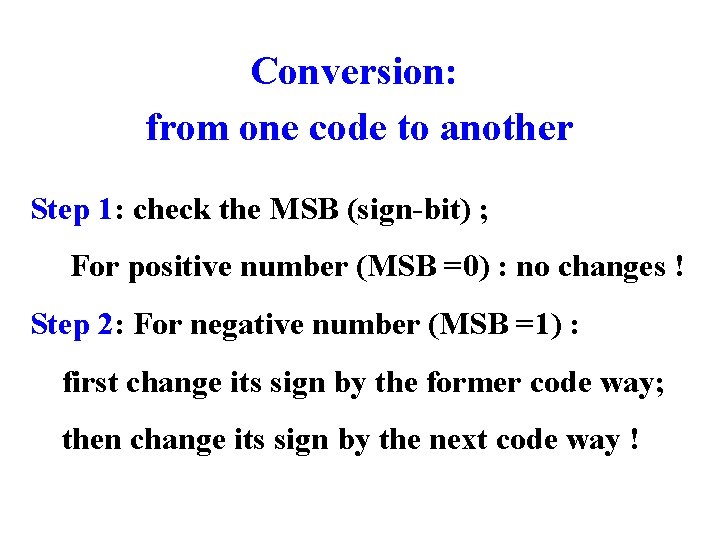

Conversion: from one code to another Step 1: check the MSB (sign-bit) ; For positive number (MSB =0) : no changes ! Step 2: For negative number (MSB =1) : first change its sign by the former code way; then change its sign by the next code way !

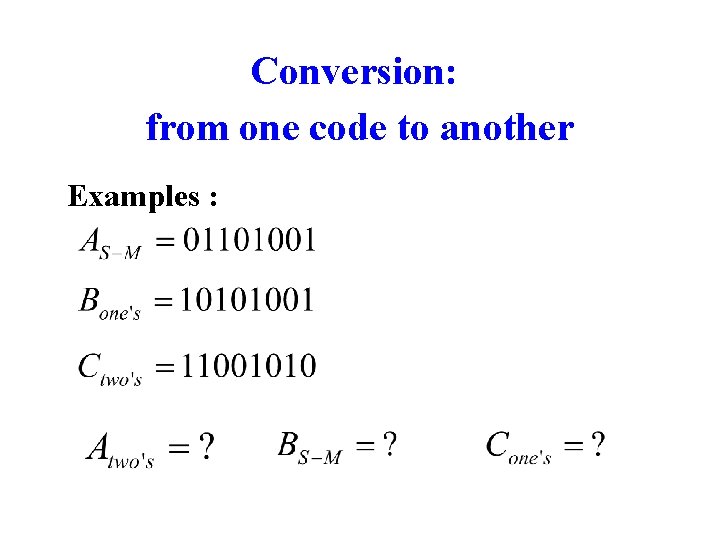

Conversion: from one code to another Examples :

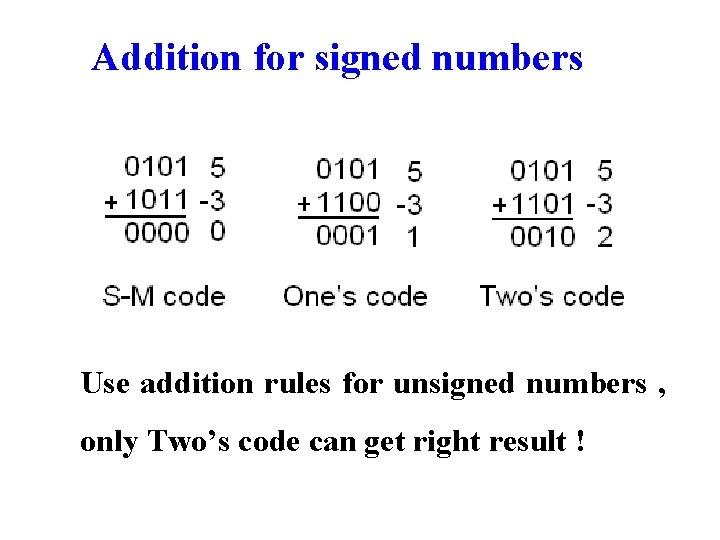

Addition for signed numbers Use addition rules for unsigned numbers , only Two’s code can get right result !

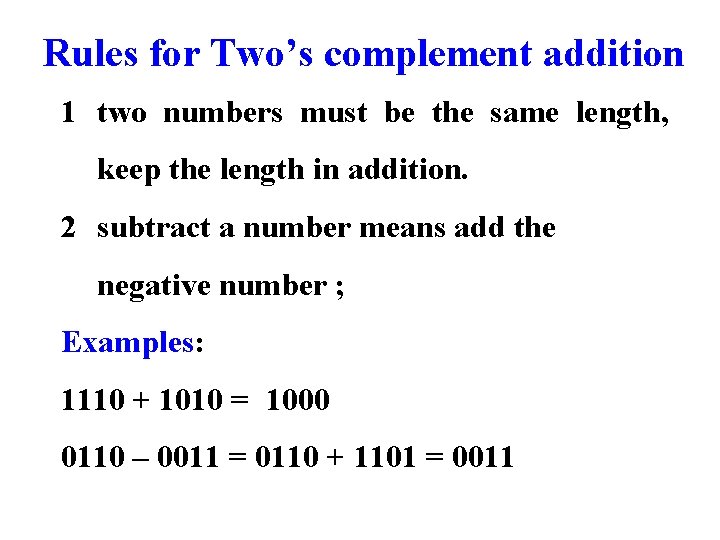

Rules for Two’s complement addition 1 two numbers must be the same length, keep the length in addition. 2 subtract a number means add the negative number ; Examples: 1110 + 1010 = 1000 0110 – 0011 = 0110 + 1101 = 0011

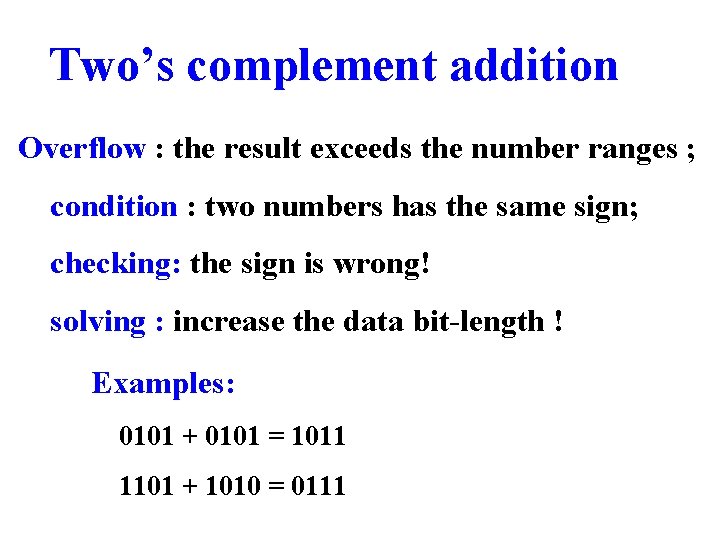

Two’s complement addition Overflow : the result exceeds the number ranges ; condition : two numbers has the same sign; checking: the sign is wrong! solving : increase the data bit-length ! Examples: 0101 + 0101 = 1011 1101 + 1010 = 0111

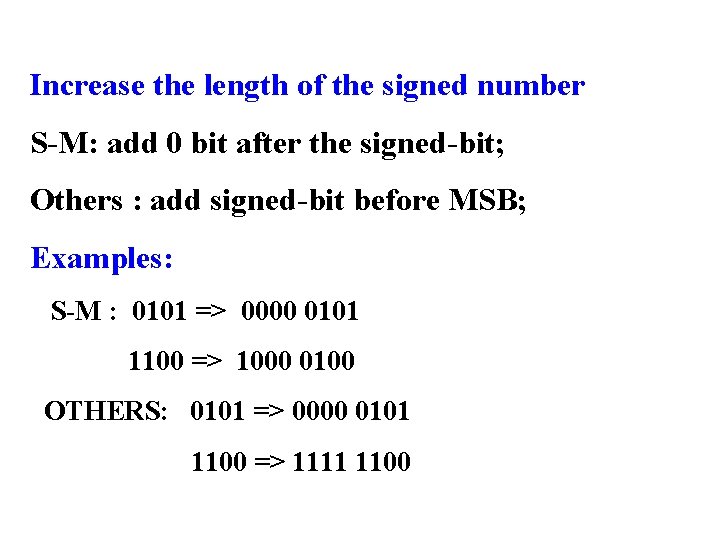

Increase the length of the signed number S-M: add 0 bit after the signed-bit; Others : add signed-bit before MSB; Examples: S-M : 0101 => 0000 0101 1100 => 1000 0100 OTHERS: 0101 => 0000 0101 1100 => 1111 1100
Multiplication for signed numbers The sign-bits of the result is the XOR of the sign-bits of the inputs! The value-bits of the result is decided by the multiplication rules for the unsigned numbers! Only S-M’s code can get right result !
