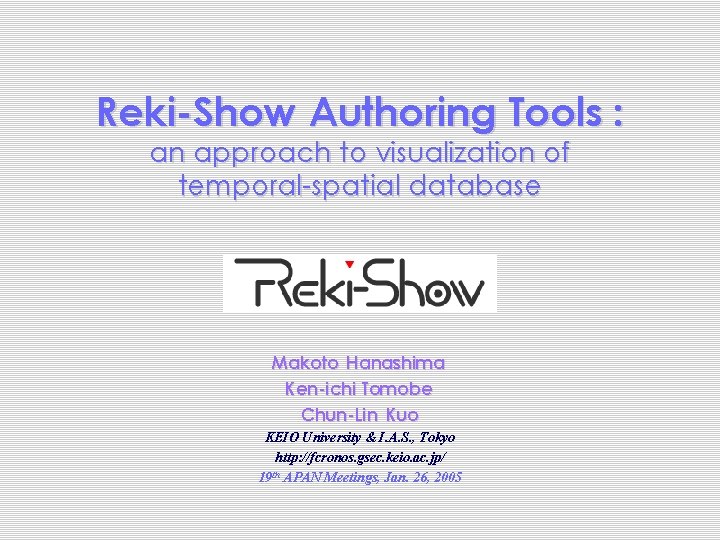

Reki-Show Authoring Tools : an approach to visualization of temporal-spatial database Makoto Hanashima Ken-ichi Tomobe Chun-Lin Kuo KEIO University & I. A. S. , Tokyo http: //fcronos. gsec. keio. ac. jp/ 19 th APAN Meetings, Jan. 26, 2005

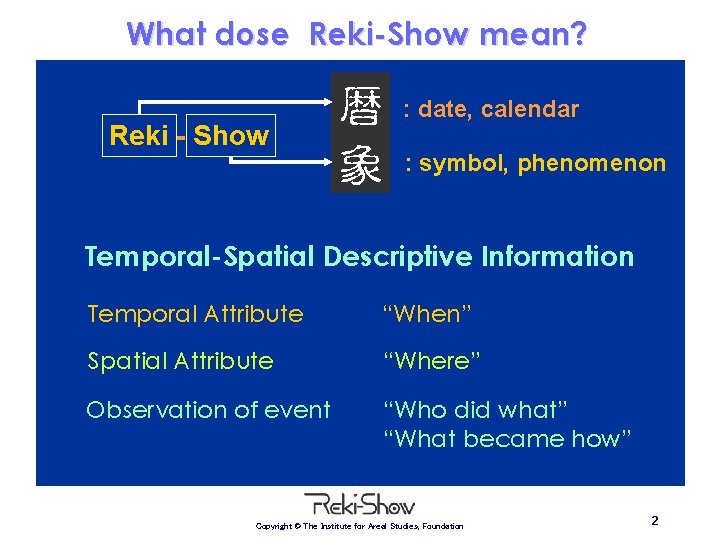

What dose Reki-Show mean? Reki - Show 暦 象 : date, calendar : symbol, phenomenon Temporal-Spatial Descriptive Information Temporal Attribute “When” Spatial Attribute “Where” Observation of event “Who did what” “What became how” Copyright © The Institute for Areal Studies, Foundation 2

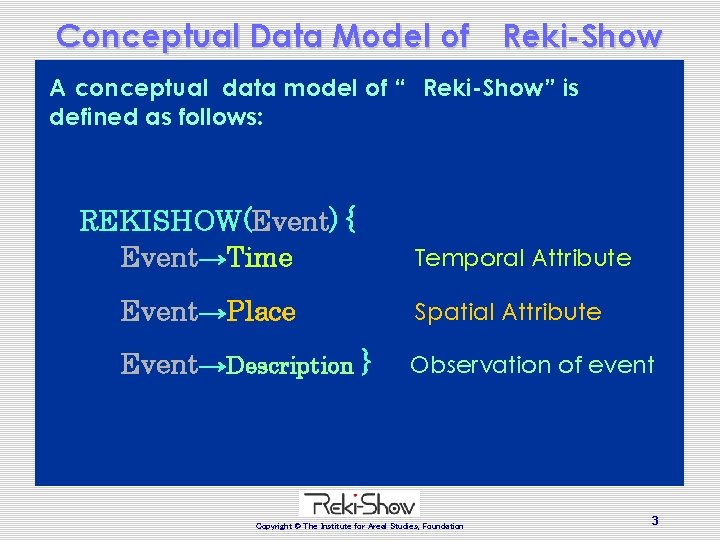

Conceptual Data Model of Reki-Show A conceptual data model of “ Reki-Show” is defined as follows: REKISHOW(Event) { Event→Time Temporal Attribute Event→Place Spatial Attribute Event→Description } Observation of event Copyright © The Institute for Areal Studies, Foundation 3

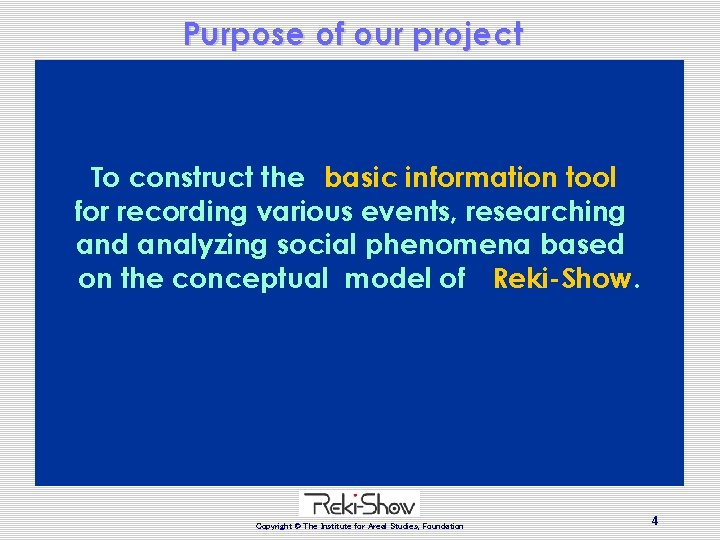

Purpose of our project To construct the basic information tool for recording various events, researching and analyzing social phenomena based on the conceptual model of Reki-Show. Copyright © The Institute for Areal Studies, Foundation 4

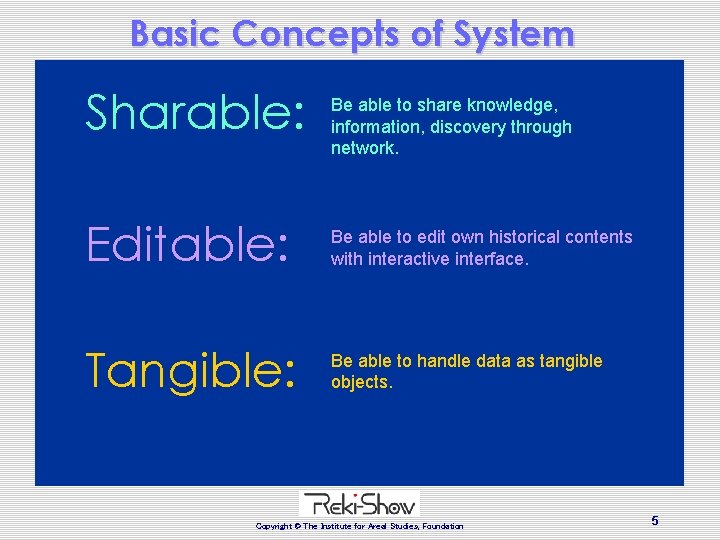

Basic Concepts of System Sharable: Be able to share knowledge, information, discovery through network. Editable: Be able to edit own historical contents with interactive interface. Tangible: Be able to handle data as tangible objects. Copyright © The Institute for Areal Studies, Foundation 5

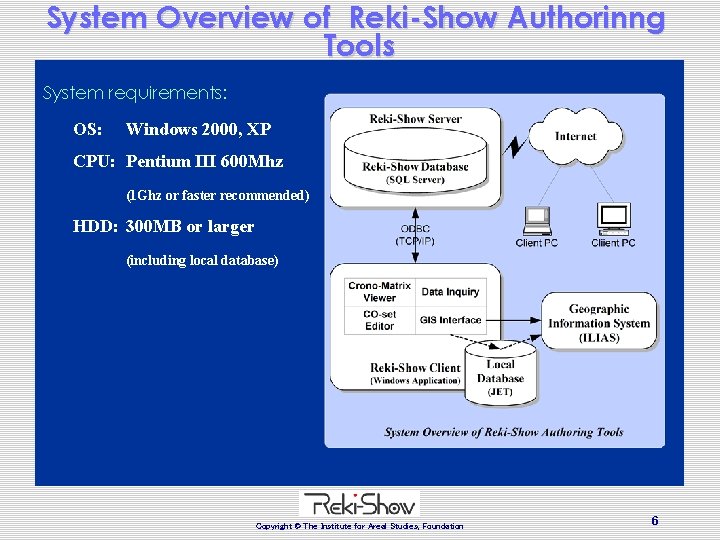

System Overview of Reki-Show Authorinng Tools System requirements: OS: Windows 2000, XP CPU: Pentium III 600 Mhz (1 Ghz or faster recommended) HDD: 300 MB or larger (including local database) Copyright © The Institute for Areal Studies, Foundation 6

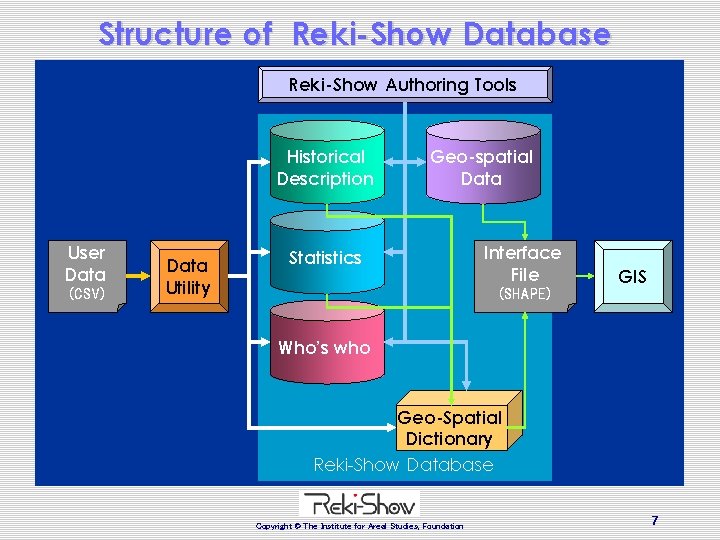

Structure of Reki-Show Database Reki-Show Authoring Tools Historical Description User Data (CSV) Data Utility Geo-spatial Data Statistics Interface File GIS (SHAPE) Who’s who Geo-Spatial Dictionary Reki-Show Database Copyright © The Institute for Areal Studies, Foundation 7

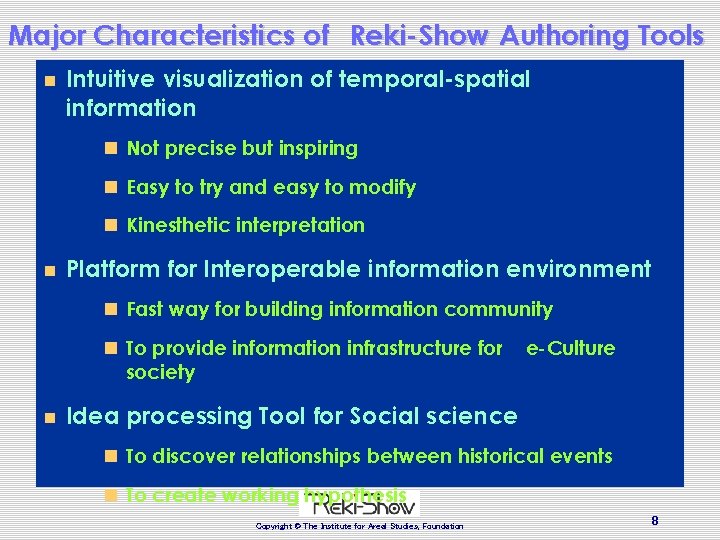

Major Characteristics of Reki-Show Authoring Tools n Intuitive visualization of temporal-spatial information n Not precise but inspiring n Easy to try and easy to modify n Kinesthetic interpretation n Platform for Interoperable information environment n Fast way for building information community n To provide information infrastructure for society n e-Culture further information, please visit our project’s WEB site: Idea. For processing Tool for Social science http: // fcronos. gsec. keio. ac. jp events n To discover relationships between historical n To create working hypothesis Copyright © The Institute for Areal Studies, Foundation 8

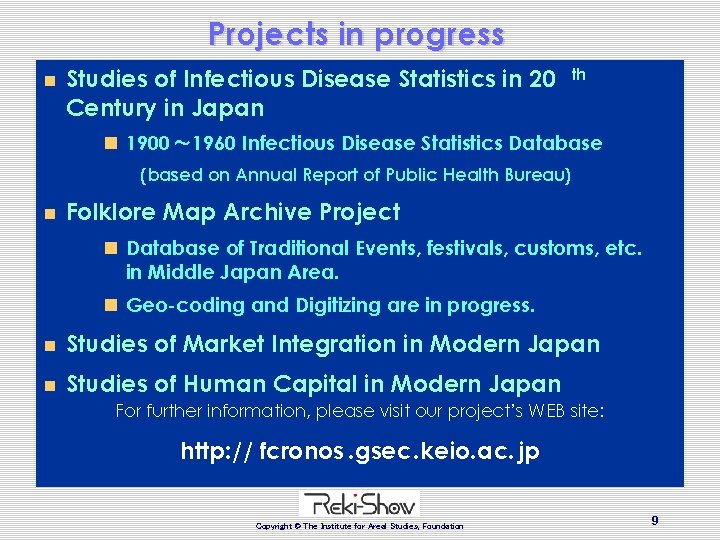

Projects in progress n Studies of Infectious Disease Statistics in 20 Century in Japan th n 1900～ 1960 Infectious Disease Statistics Database (based on Annual Report of Public Health Bureau) n Folklore Map Archive Project n Database of Traditional Events, festivals, customs, etc. in Middle Japan Area. n Geo-coding and Digitizing are in progress. n Studies of Market Integration in Modern Japan n Studies of Human Capital in Modern Japan For further information, please visit our project’s WEB site: http: // fcronos. gsec. keio. ac. jp Copyright © The Institute for Areal Studies, Foundation 9

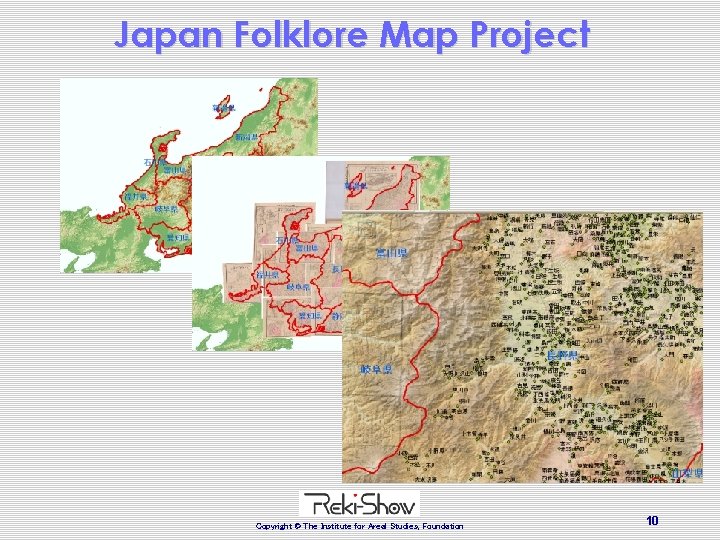

Japan Folklore Map Project Copyright © The Institute for Areal Studies, Foundation 10

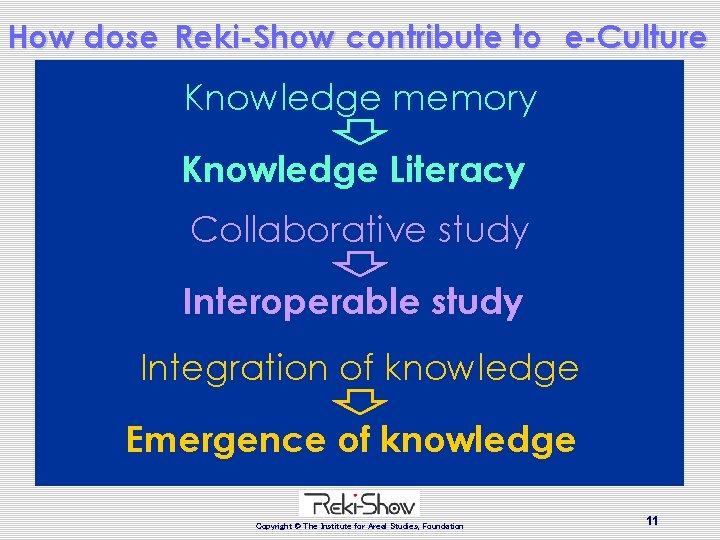

How dose Reki-Show contribute to e-Culture Knowledge memory Knowledge Literacy Collaborative study Interoperable study Integration of knowledge Emergence of knowledge Copyright © The Institute for Areal Studies, Foundation 11

Thank you. Copyright © The Institute for Areal Studies, Foundation 12

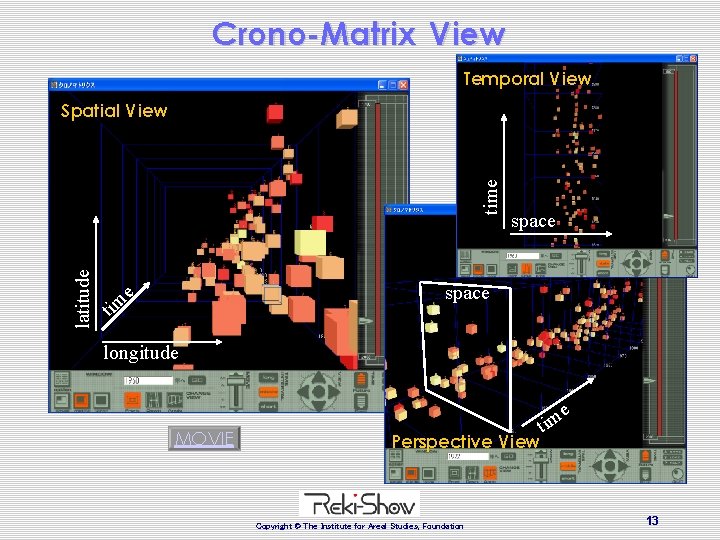

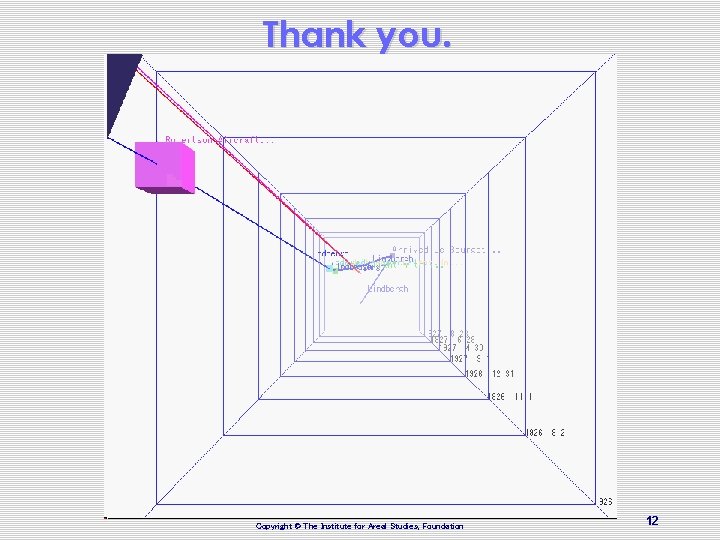

Crono-Matrix View Temporal View latitude time Spatial View e space tim longitude MOVIE Perspective View Copyright © The Institute for Areal Studies, Foundation tim e 13

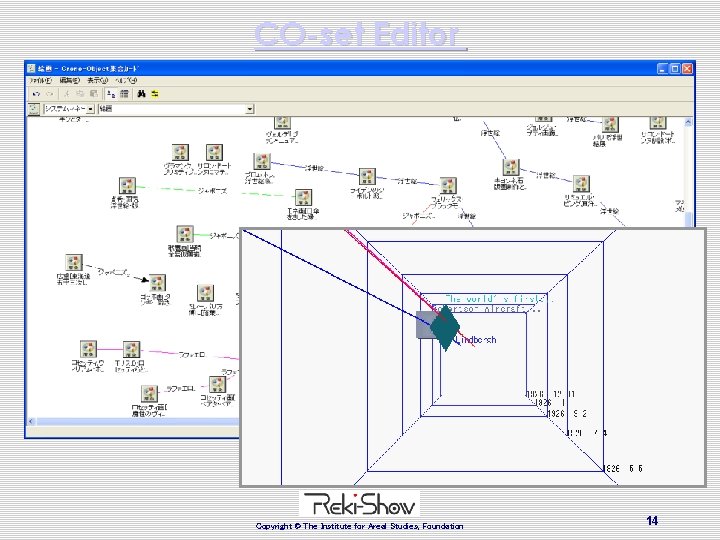

CO-set Editor Copyright © The Institute for Areal Studies, Foundation 14

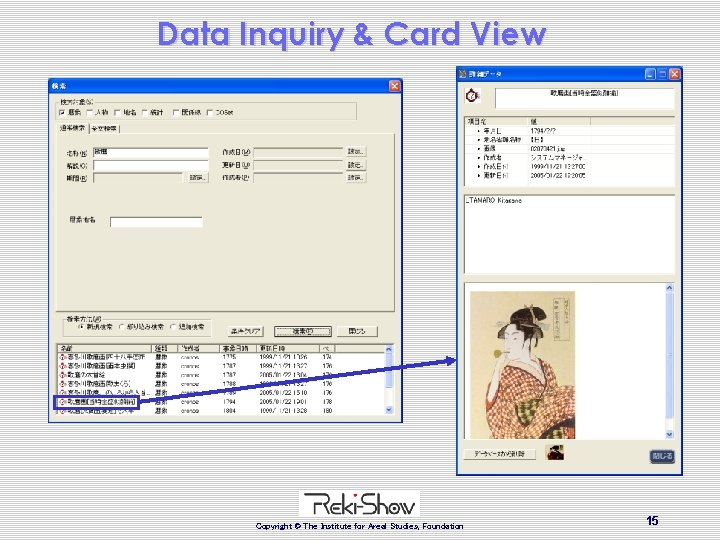

Data Inquiry & Card View Copyright © The Institute for Areal Studies, Foundation 15

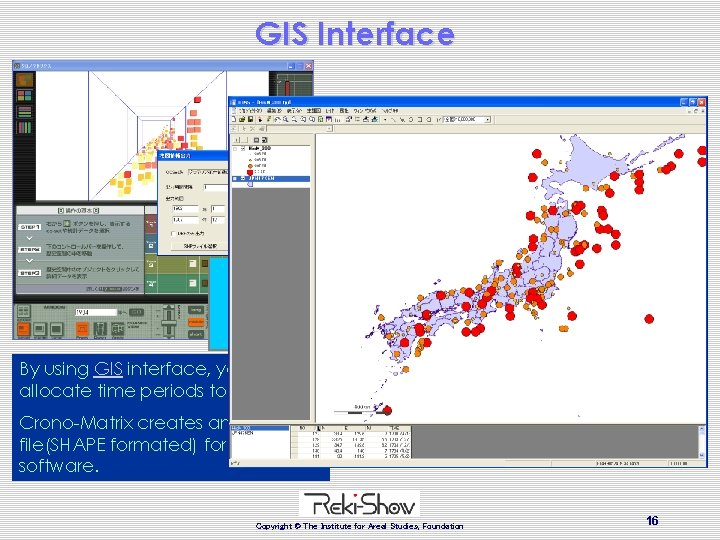

GIS Interface By using GIS interface, you can allocate time periods to GIS layers. Crono-Matrix creates an interfacefile(SHAPE formated) for GIS software. Copyright © The Institute for Areal Studies, Foundation 16
