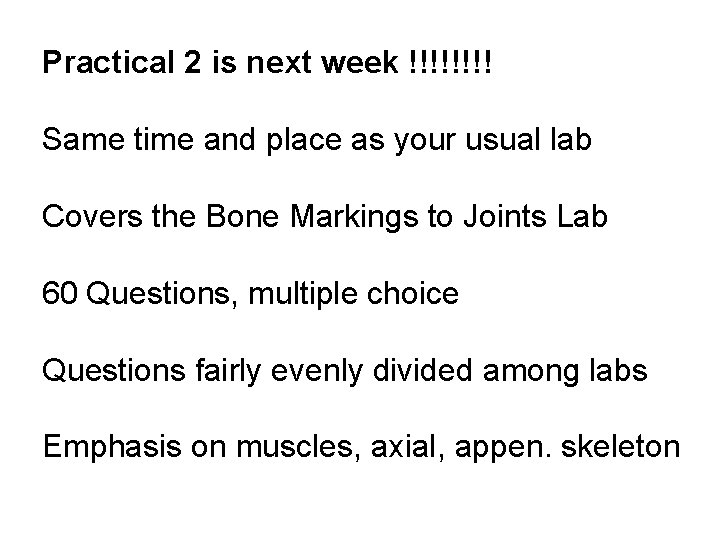

Practical 2 is next week !!!! Same time and place as your usual lab

Practical 2 is next week !!!! Same time and place as your usual lab Covers the Bone Markings to Joints Lab 60 Questions, multiple choice Questions fairly evenly divided among labs Emphasis on muscles, axial, appen. skeleton

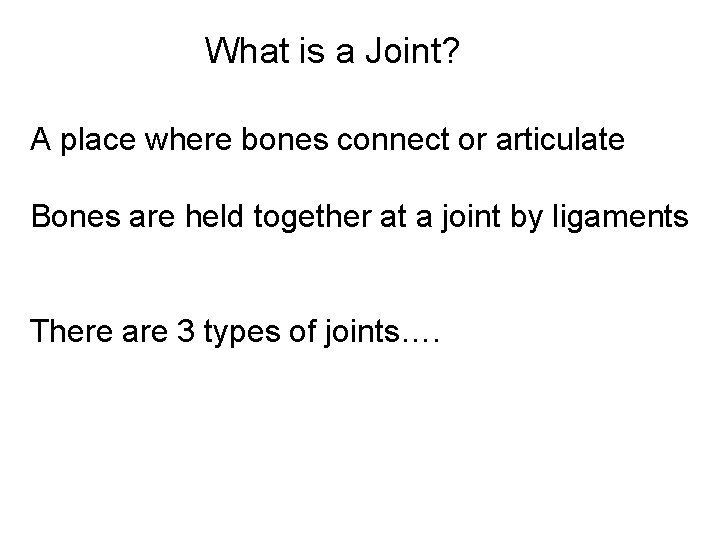

What is a Joint? A place where bones connect or articulate Bones are held

What is a Joint? A place where bones connect or articulate Bones are held together at a joint by ligaments There are 3 types of joints….

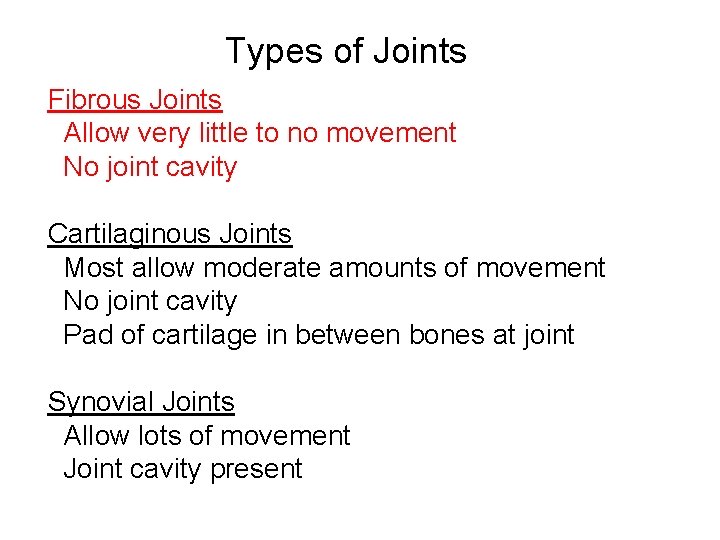

Types of Joints Fibrous Joints Allow very little to no movement No joint cavity

Types of Joints Fibrous Joints Allow very little to no movement No joint cavity Cartilaginous Joints Most allow moderate amounts of movement No joint cavity Pad of cartilage in between bones at joint Synovial Joints Allow lots of movement Joint cavity present

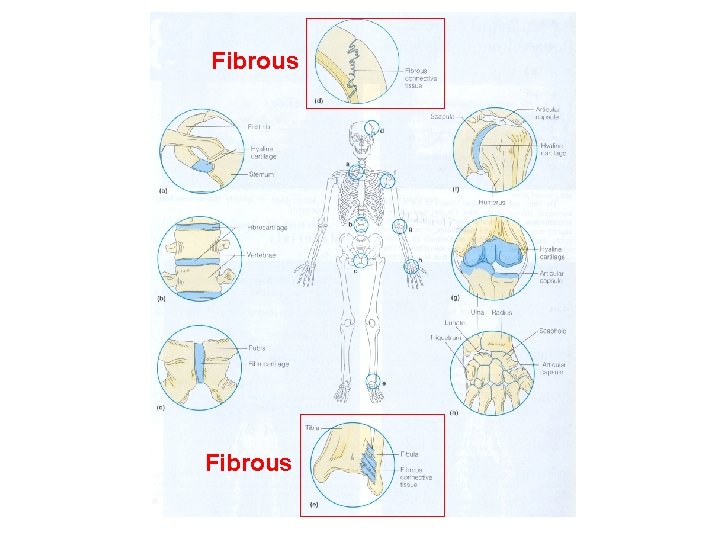

Fibrous

Fibrous

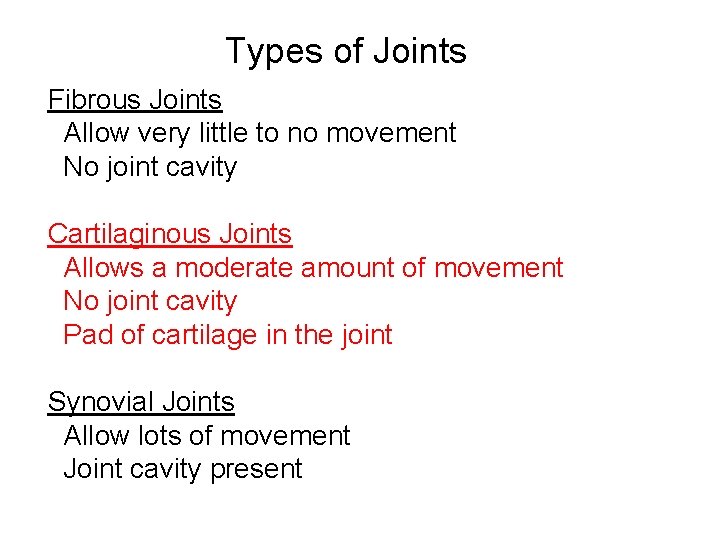

Types of Joints Fibrous Joints Allow very little to no movement No joint cavity

Types of Joints Fibrous Joints Allow very little to no movement No joint cavity Cartilaginous Joints Allows a moderate amount of movement No joint cavity Pad of cartilage in the joint Synovial Joints Allow lots of movement Joint cavity present

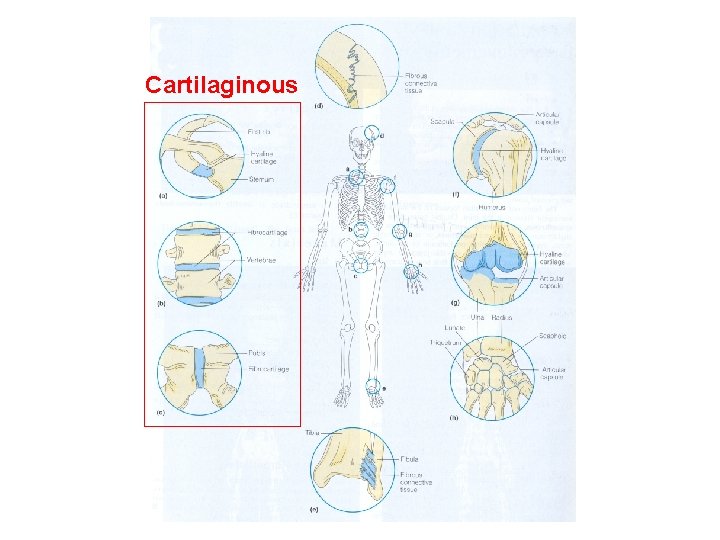

Cartilaginous

Cartilaginous

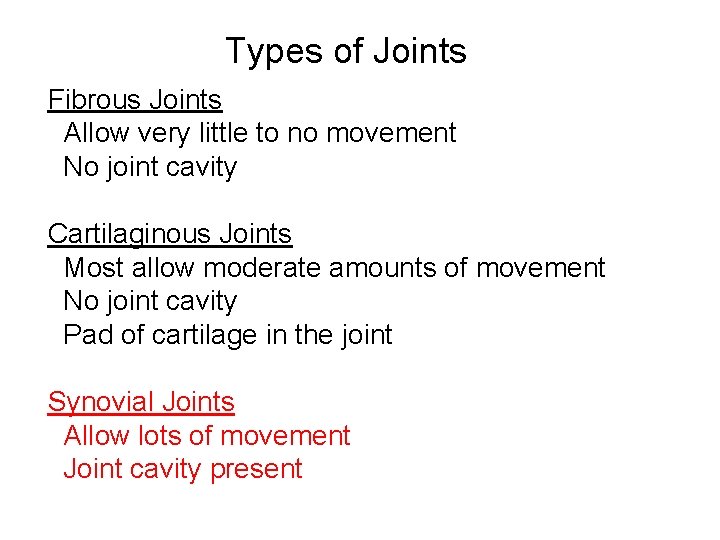

Types of Joints Fibrous Joints Allow very little to no movement No joint cavity

Types of Joints Fibrous Joints Allow very little to no movement No joint cavity Cartilaginous Joints Most allow moderate amounts of movement No joint cavity Pad of cartilage in the joint Synovial Joints Allow lots of movement Joint cavity present

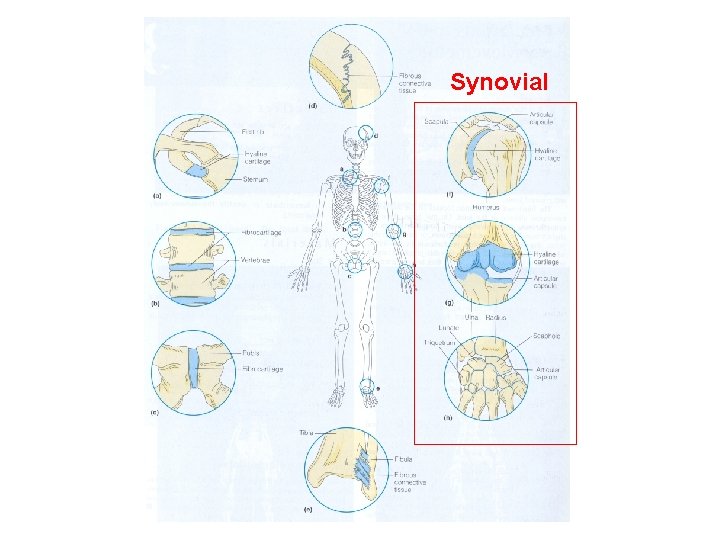

Synovial

Synovial

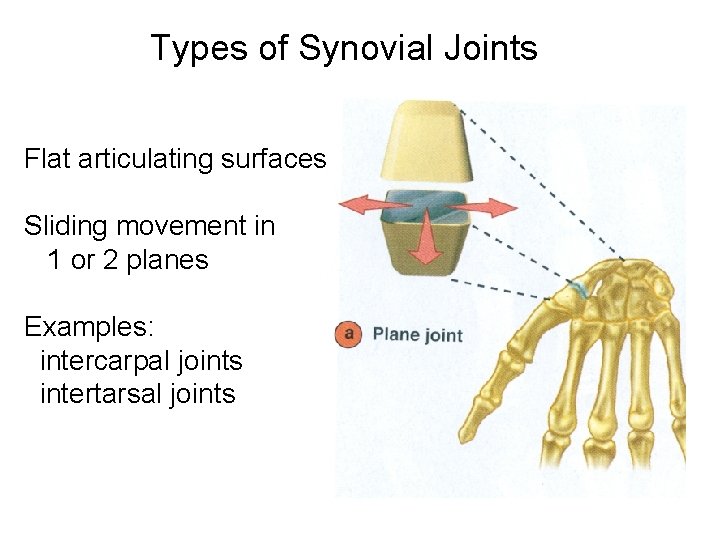

Types of Synovial Joints Flat articulating surfaces Sliding movement in 1 or 2 planes

Types of Synovial Joints Flat articulating surfaces Sliding movement in 1 or 2 planes Examples: intercarpal joints intertarsal joints

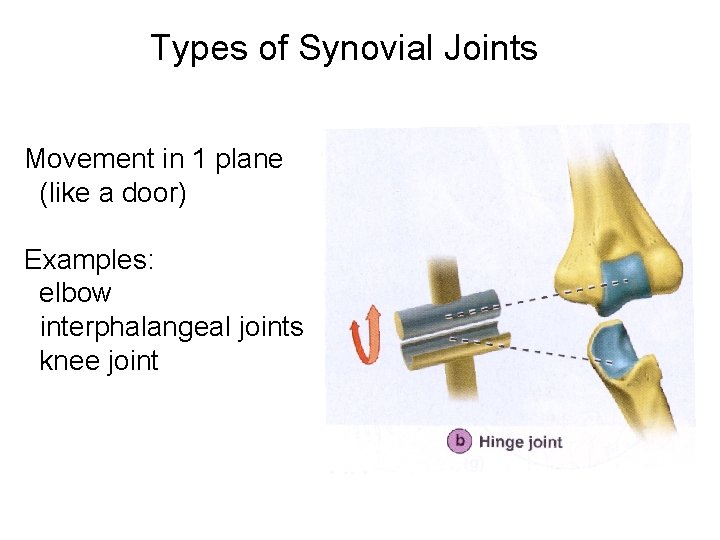

Types of Synovial Joints Movement in 1 plane (like a door) Examples: elbow interphalangeal

Types of Synovial Joints Movement in 1 plane (like a door) Examples: elbow interphalangeal joints knee joint

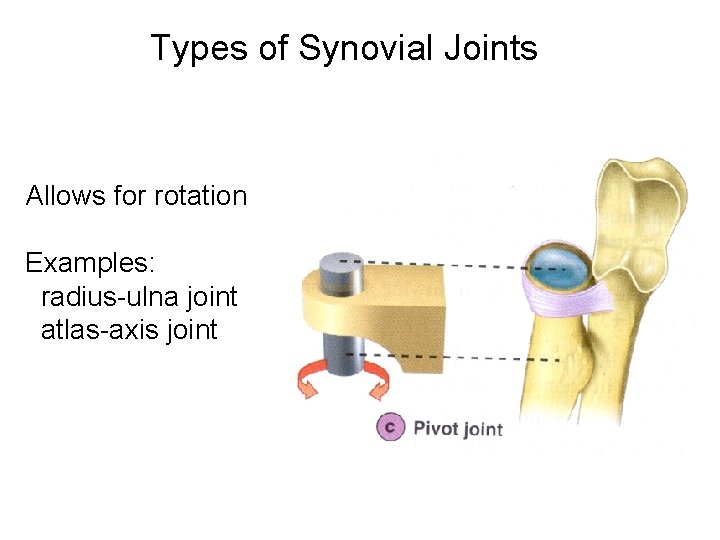

Types of Synovial Joints Allows for rotation Examples: radius-ulna joint atlas-axis joint

Types of Synovial Joints Allows for rotation Examples: radius-ulna joint atlas-axis joint

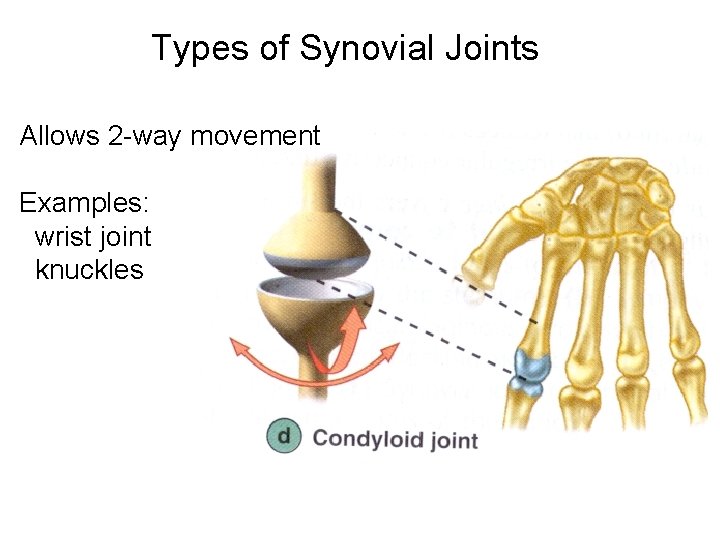

Types of Synovial Joints Allows 2 -way movement Examples: wrist joint knuckles

Types of Synovial Joints Allows 2 -way movement Examples: wrist joint knuckles

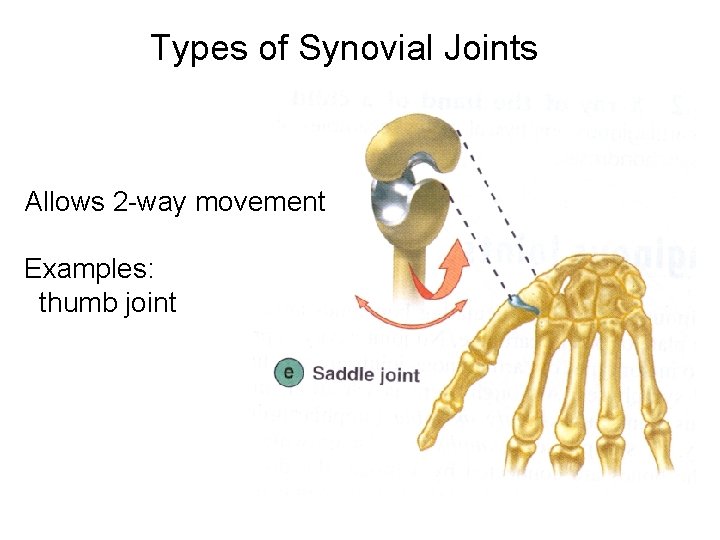

Types of Synovial Joints Allows 2 -way movement Examples: thumb joint

Types of Synovial Joints Allows 2 -way movement Examples: thumb joint

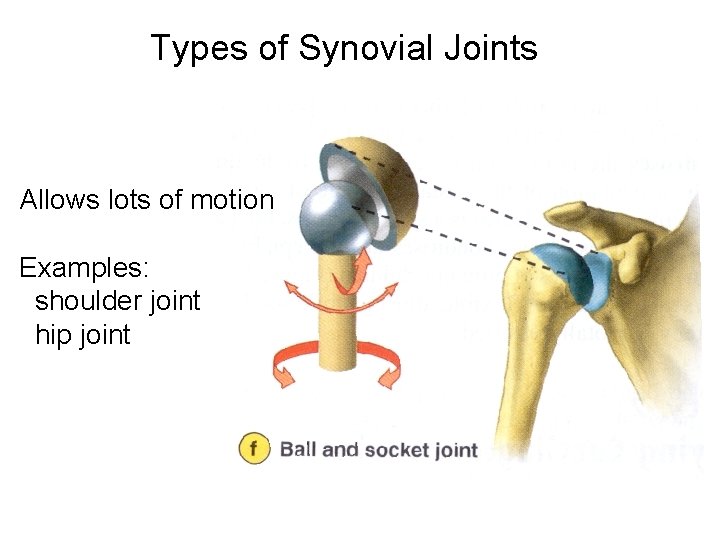

Types of Synovial Joints Allows lots of motion Examples: shoulder joint hip joint

Types of Synovial Joints Allows lots of motion Examples: shoulder joint hip joint

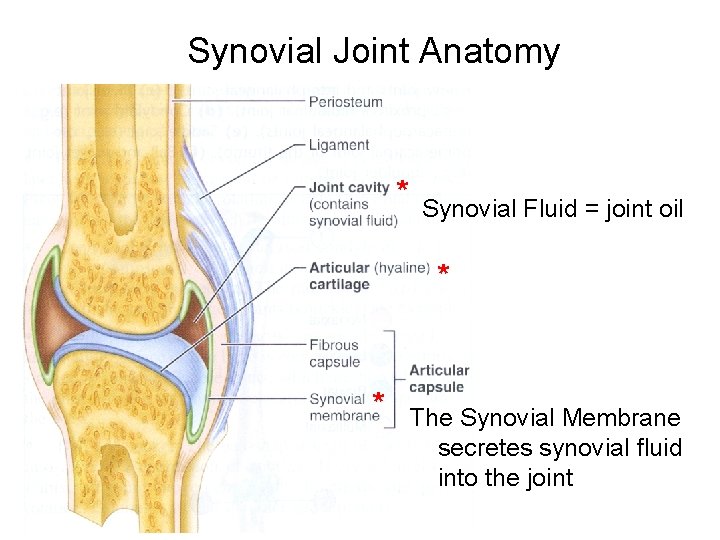

Synovial Joint Anatomy * Synovial Fluid = joint oil * * The Synovial Membrane

Synovial Joint Anatomy * Synovial Fluid = joint oil * * The Synovial Membrane secretes synovial fluid into the joint

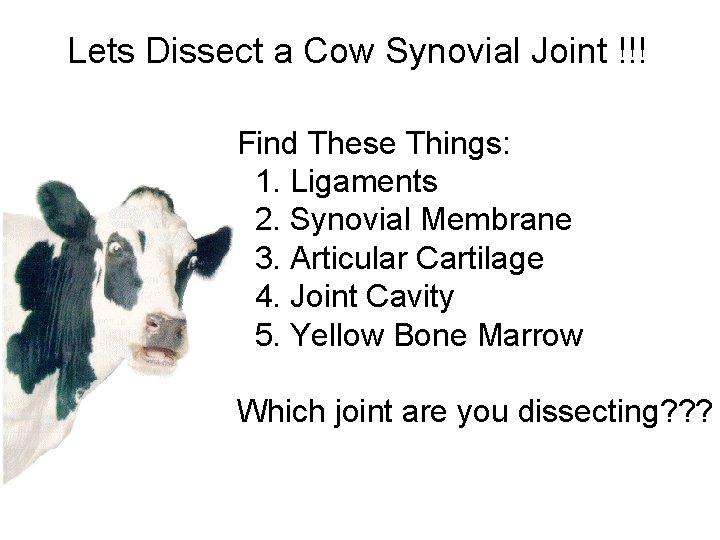

Lets Dissect a Cow Synovial Joint !!! Find These Things: 1. Ligaments 2. Synovial

Lets Dissect a Cow Synovial Joint !!! Find These Things: 1. Ligaments 2. Synovial Membrane 3. Articular Cartilage 4. Joint Cavity 5. Yellow Bone Marrow Which joint are you dissecting? ? ?

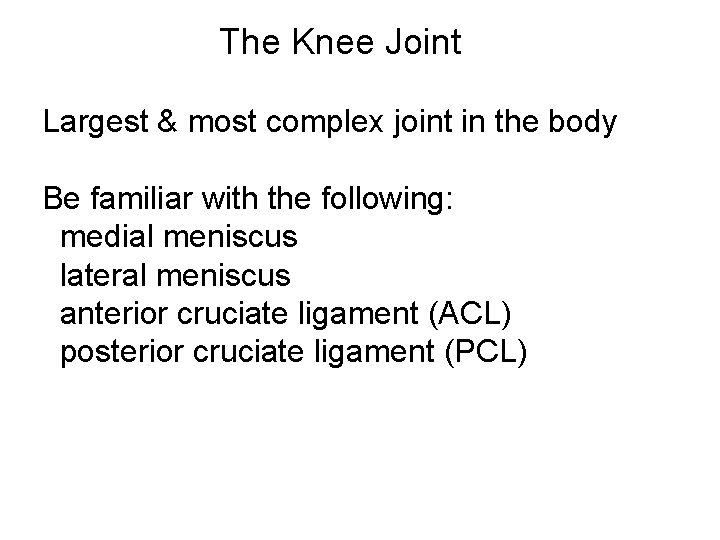

The Knee Joint Largest & most complex joint in the body Be familiar with

The Knee Joint Largest & most complex joint in the body Be familiar with the following: medial meniscus lateral meniscus anterior cruciate ligament (ACL) posterior cruciate ligament (PCL)

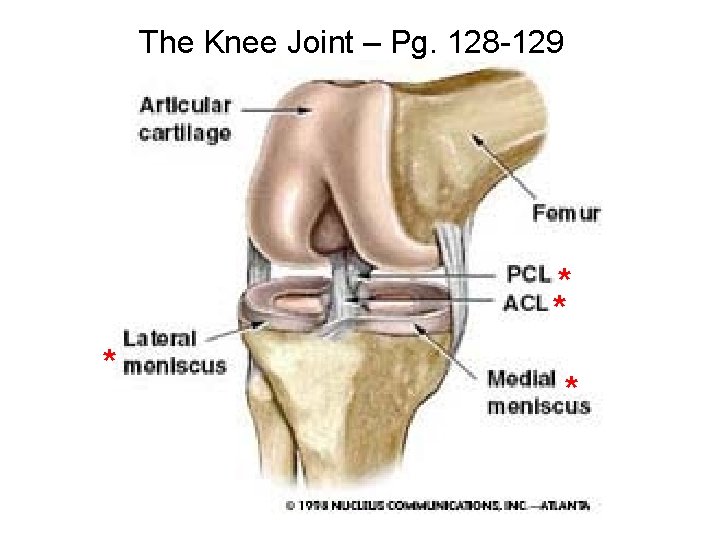

The Knee Joint – Pg. 128 -129 * *

The Knee Joint – Pg. 128 -129 * *

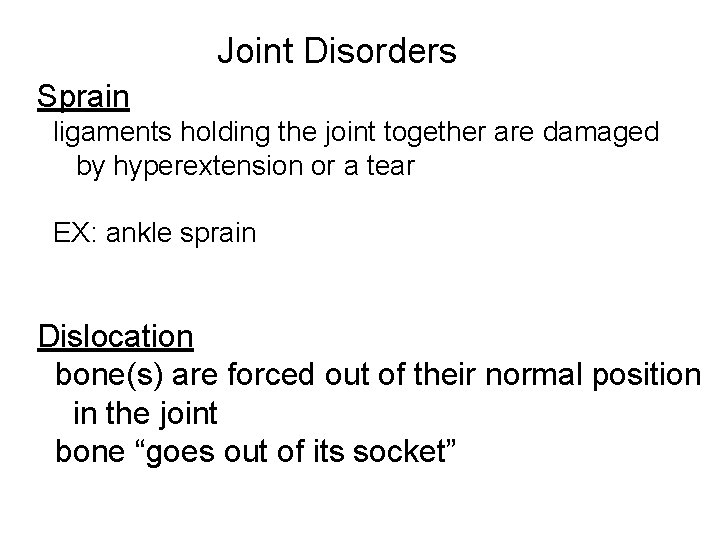

Joint Disorders Sprain ligaments holding the joint together are damaged by hyperextension or a

Joint Disorders Sprain ligaments holding the joint together are damaged by hyperextension or a tear EX: ankle sprain Dislocation bone(s) are forced out of their normal position in the joint bone “goes out of its socket”
