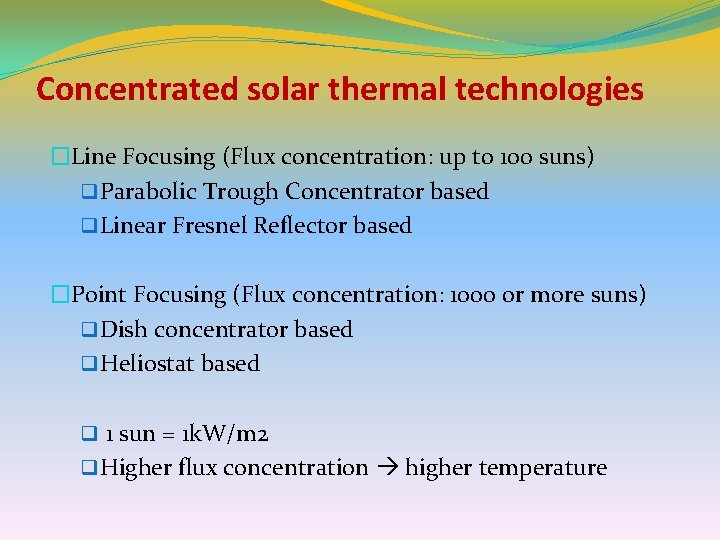

Concentrated solar thermal technologies �Line Focusing (Flux concentration: up to 100 suns) q Parabolic Trough Concentrator based q Linear Fresnel Reflector based �Point Focusing (Flux concentration: 1000 or more suns) q Dish concentrator based q Heliostat based q 1 sun = 1 k. W/m 2 q Higher flux concentration higher temperature

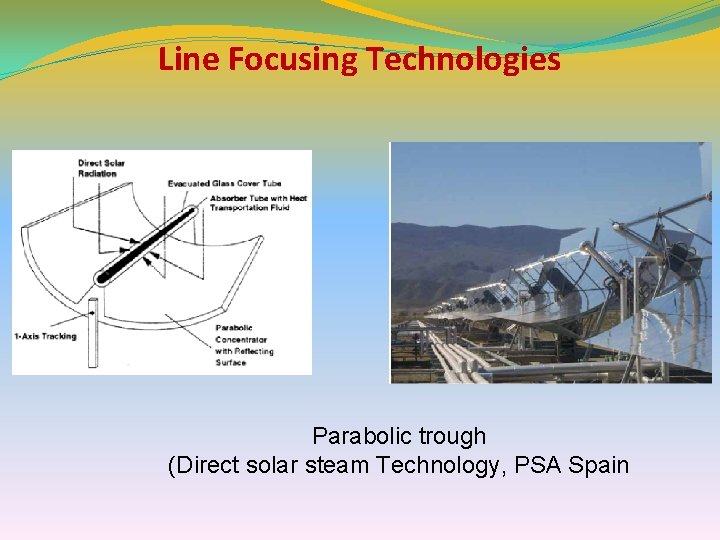

Line Focusing Technologies Parabolic trough (Direct solar steam Technology, PSA Spain

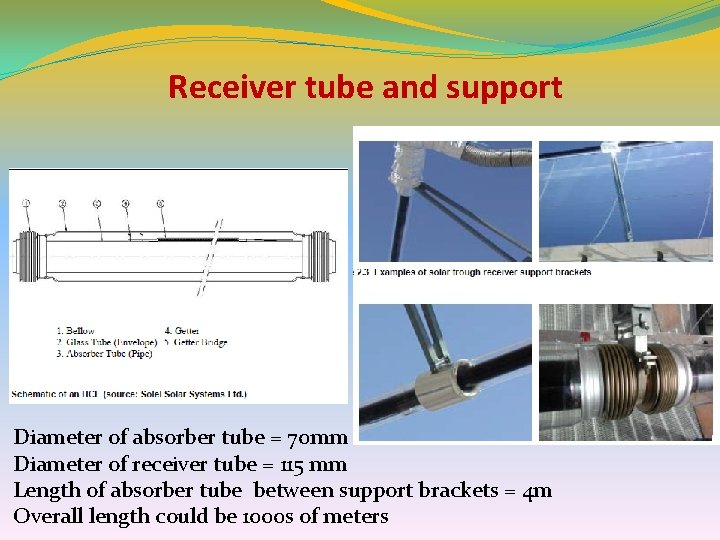

Receiver tube and support Diameter of absorber tube = 70 mm Diameter of receiver tube = 115 mm Length of absorber tube between support brackets = 4 m Overall length could be 1000 s of meters

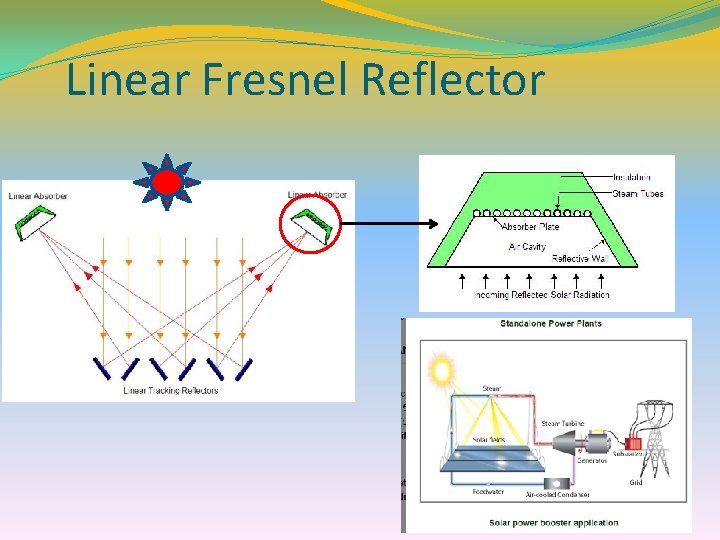

Linear Fresnel Reflector

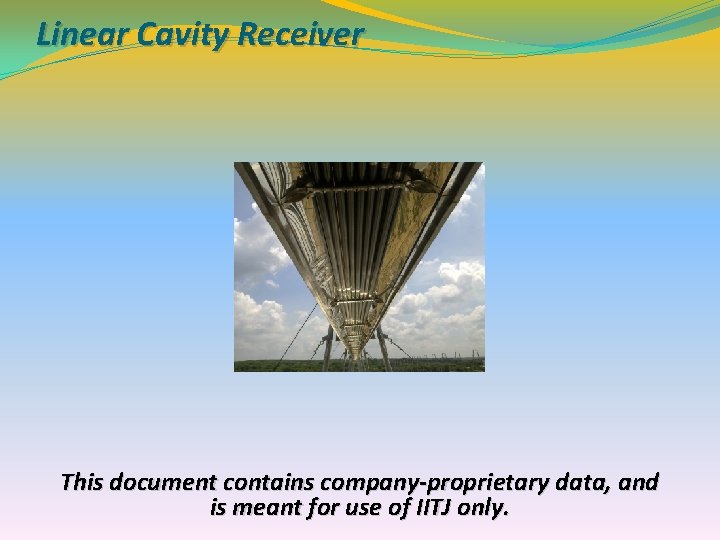

Linear Cavity Receiver This document contains company-proprietary data, and is meant for use of IITJ only.

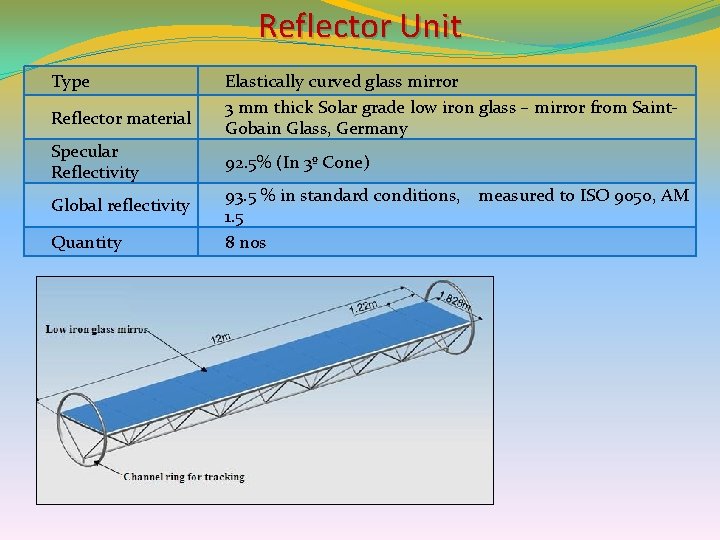

Reflector Unit Type Reflector material Specular Reflectivity Global reflectivity Quantity Elastically curved glass mirror 3 mm thick Solar grade low iron glass – mirror from Saint. Gobain Glass, Germany 92. 5% (In 3º Cone) 93. 5 % in standard conditions, 1. 5 8 nos measured to ISO 9050, AM

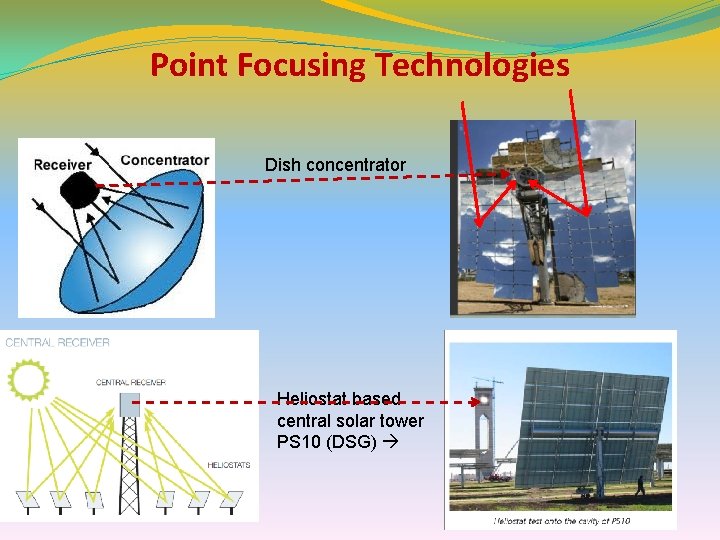

Point Focusing Technologies Dish concentrator Heliostat based central solar tower PS 10 (DSG)

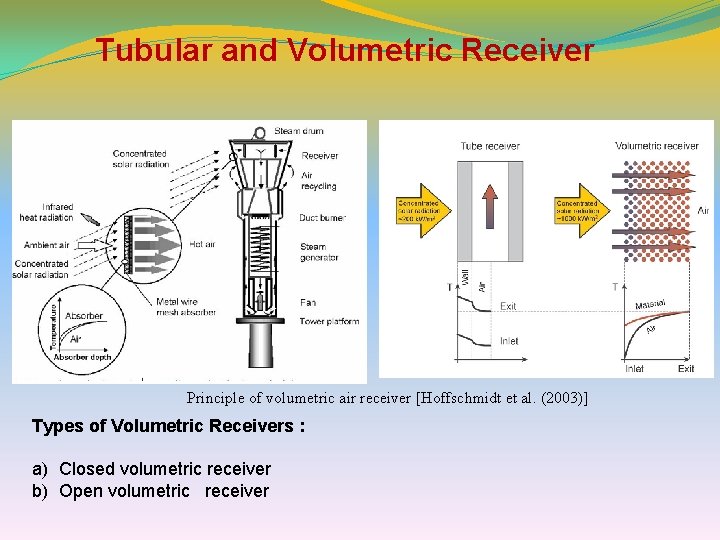

Tubular and Volumetric Receiver Principle of volumetric air receiver [Hoffschmidt et al. (2003)] Types of Volumetric Receivers : a) Closed volumetric receiver b) Open volumetric receiver

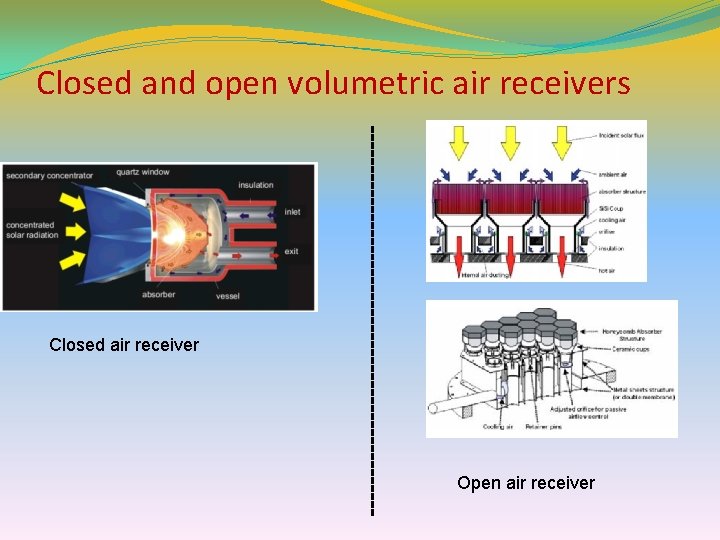

Closed and open volumetric air receivers Closed air receiver Open air receiver
