OPENSTACK HA @PAYPAL Open Stack Summit – Hong Kong - 2013

ABOUT PAYPAL Pay. Pal offers flexible and innovative payment solutions for consumers and merchants of all sizes. • 137, 000 users • $300, 000 payments processed each minute • 193 markets / 26 currencies • The World’s Most Widely Used Digital Wallet 2

AGENDA Why HA is important for Pay. Pal? Our Learning Our Solution What is not solved? Q&A 3

WHY HA IS IMPORTANT? “no perceived downtime” for cloud users Enterprise Class Auto Scaling & Flex up/down can never break API Integrations always succeed Everyone expected to use the cloud 4

AVAILABILITY REQUIREMENTS No SPOF “Under the Cloud” Scale Across the Data Center(s) Scale Across Racks & Containers Respect natural availability zones within the data centers No ‘cloud’ can impact any other ‘cloud’ 5

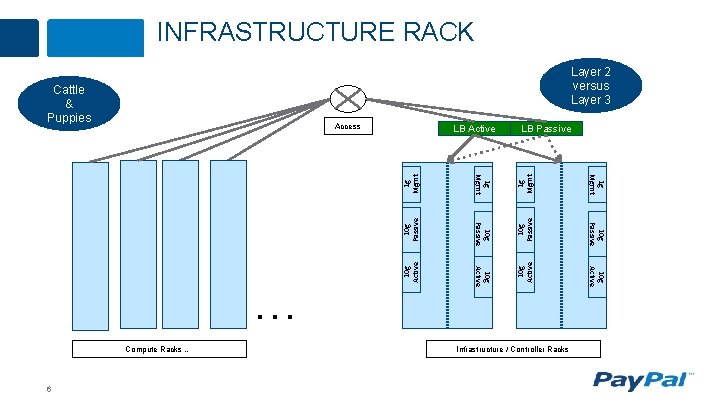

INFRASTRUCTURE RACK Layer 2 versus Layer 3 10 g Active 10 g Passive 1 g Mgmt Infrastructure / Controller Racks 10 g Passive 10 g Active LB Passive 1 g Mgmt 6 10 g Active Compute Racks … 10 g Passive … 1 g Mgmt LB Active 10 g Passive Access 10 g Active Cattle & Puppies

INFRASTRUCTURE RACK Open. Stack Services are all VM on KVM Every infra component resides on 2+ nodes Redundant physical racks Redundant power/switches in each rack Layer-3 connectivity between racks (no Layer 2) Enterprise Grade Physical LB (floating VIP) 7

COMPUTE 1 2 LB Active Access LB Passive LB Active LB Passive 1 g Mgmt 10 g Passive 10 g Active 10 g Passive 10 g Active 10 g Passive 10 g Active Compute Node 96 Hyperscale 16 Core 256 GB Ram 1. 1 T Disk 1 g Mgmt 10 g Passive Compute Node 96 Hyperscale 16 Core 256 GB Ram 1. 1 T Disk 1 g Mgmt 10 g Active 8 10 g Passive Compute Node 96 Hyperscale 16 Core 256 GB Ram 1. 1 T Disk 1 g Mgmt 3 Compute Node 96 Hyperscale 16 Core 256 GB Ram 1. 1 T Disk

COMPUTE 10 g 10 g bond 0 Active 1 g Top Of Rack Management Passive 10 g bond 0 Hyperscale Raid-10 1 g 9 10 g 1 g Top Of Rack 1 g Hyperscale Raid-10

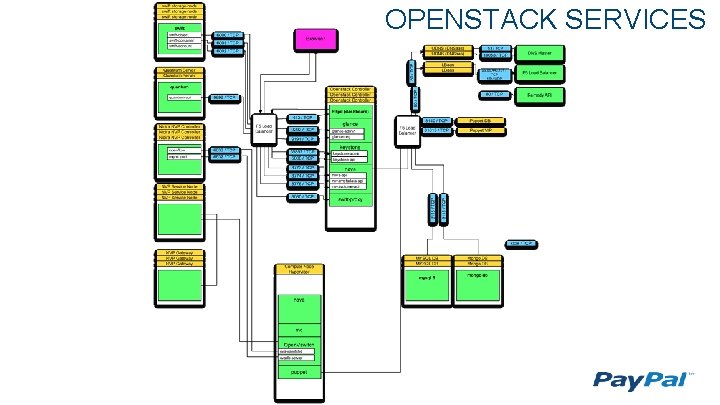

OPENSTACK SERVICES

OPENSTACK CONSIDERATIONS LB VIP for every service (unless it can’t) Connect to LB VIP, not individual nodes Script to close Server Connections Pacemaker only works inside a single Layer-2 (not a large enterprise) Auto Restart using Monit My. SQL Swift Cluster 11

CONTINUED… HEAT with Corosync/Pacemaker/keepalived (for now) Key. Stone / Nova / Glance / Swift Proxy Rabbit MQ Cluster Cinder Volume Service 12

CINDER SERVICES WORKFLOW User request (create volume) 1 Cinder API 2 AMPQ 5 Cinder Volume 6 Storage Backend 1 13 Cinder Scheduler 3 Storage Backend 2 4 Figure shows a typical interaction between Cinder components to serve a end user request. (create new volume in this example).

CINDER SERVICES WITH HA User request (create volume) 1 How HA is implemented for Cinder Components: Load Balancer Cinder Scheduler A 2 Cinder API A Cinder Scheduler B Cinder API B AMPQ Cluster 3 4 5 Cinder Volume A Cinder Volume B 6 14 Storage Backend 1 Storage Backend 2 • API (stateless) – Load Balancer (A/A or A/P); • Scheduler (stateless) – Pacemaker, Queue itself (A/A or A/P); • Volume – Pacemaker, Queue itself (A/A or A/P).

UNRESOLVED VIP-friendly Cinder Volume service Seamless Upgrade Flip Failed DB TX Reconciliation Consistent API Response Time 15

cloud@paypal. com 16 Confidential and Proprietary

THANK YOU HTTP: //GITHUB. COM/PAYPAL/AURORA SCOTT CARLSON - @RELAXED 137 RAJ GEDA ZHITENG HUANG IRC: WINSTON-D
