Moreno Valley Regional Water Reclamation Facility (RWRF) SCADA System Upgrade Project Matthew Melendrez, P. E. September 27, 2018 | emwd. org

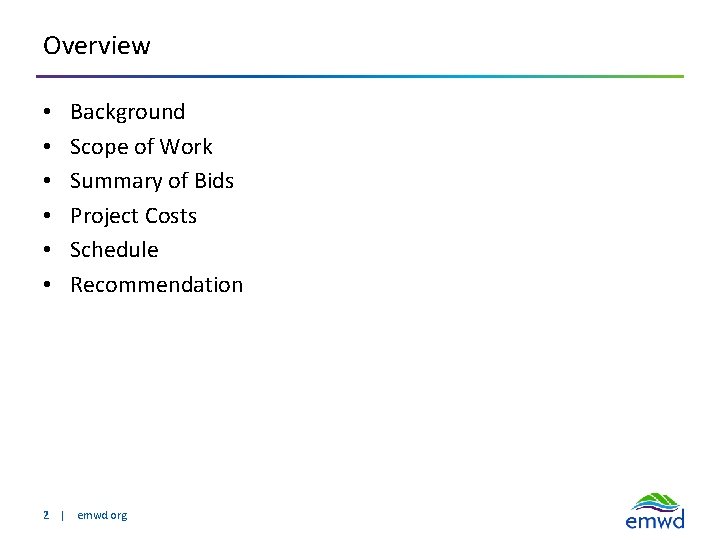

Overview • • • Background Scope of Work Summary of Bids Project Costs Schedule Recommendation 2 | emwd. org

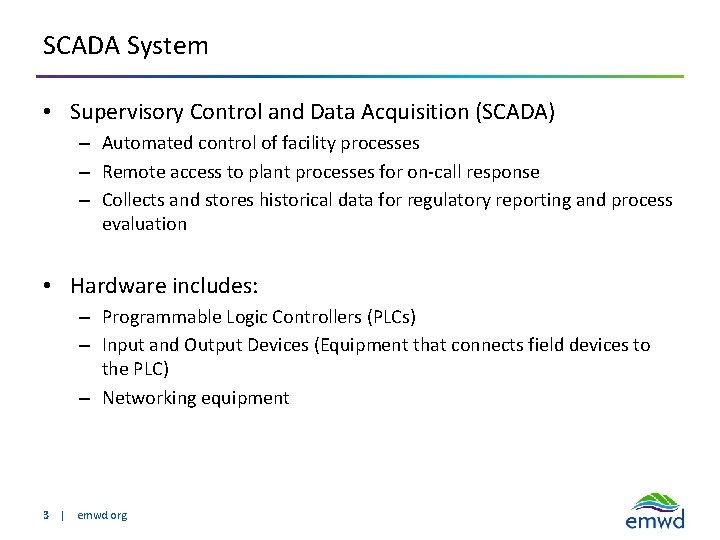

SCADA System • Supervisory Control and Data Acquisition (SCADA) – Automated control of facility processes – Remote access to plant processes for on-call response – Collects and stores historical data for regulatory reporting and process evaluation • Hardware includes: – Programmable Logic Controllers (PLCs) – Input and Output Devices (Equipment that connects field devices to the PLC) – Networking equipment 3 | emwd. org

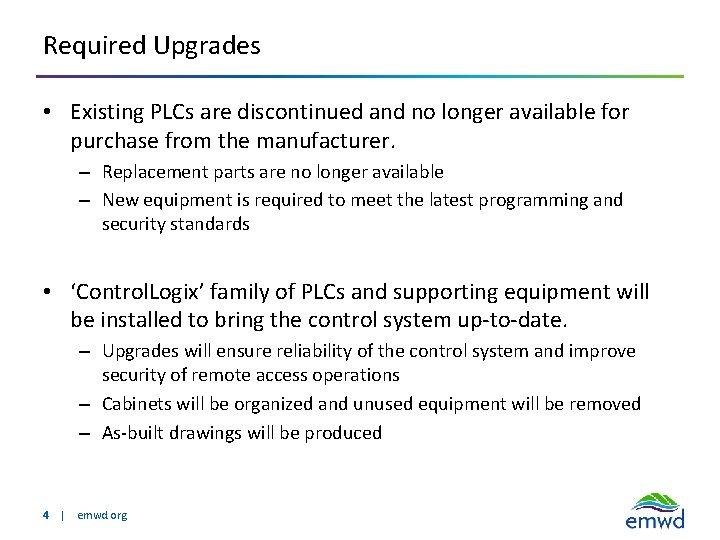

Required Upgrades • Existing PLCs are discontinued and no longer available for purchase from the manufacturer. – Replacement parts are no longer available – New equipment is required to meet the latest programming and security standards • ‘Control. Logix’ family of PLCs and supporting equipment will be installed to bring the control system up-to-date. – Upgrades will ensure reliability of the control system and improve security of remote access operations – Cabinets will be organized and unused equipment will be removed – As-built drawings will be produced 4 | emwd. org

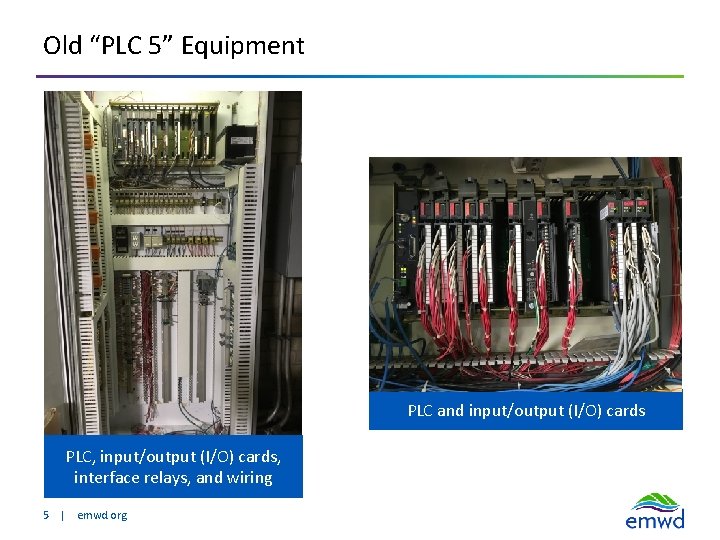

Old “PLC 5” Equipment PLC and input/output (I/O) cards PLC, input/output (I/O) cards, interface relays, and wiring 5 | emwd. org

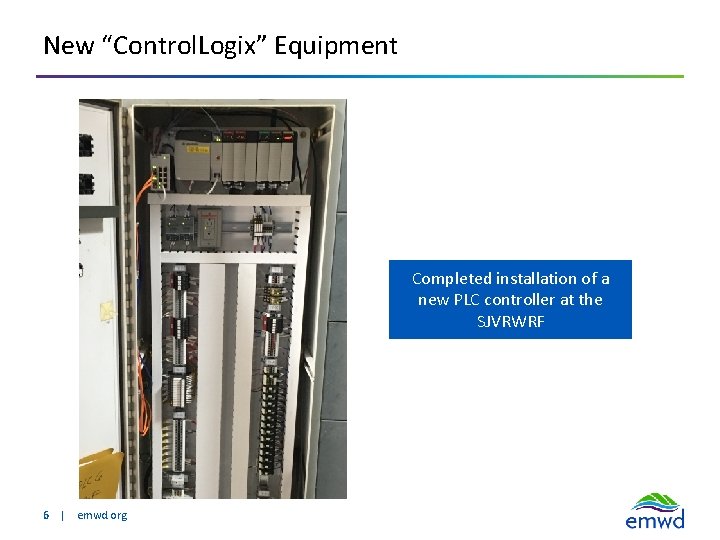

New “Control. Logix” Equipment Completed installation of a new PLC controller at the SJVRWRF 6 | emwd. org

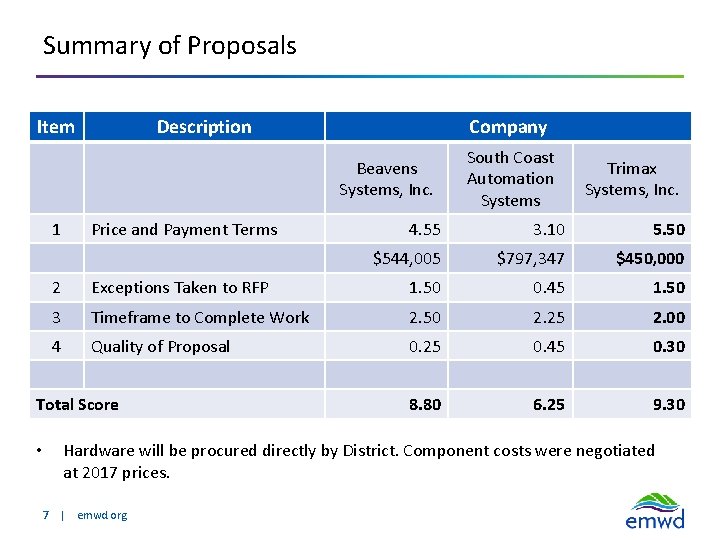

Summary of Proposals Item Description Company Beavens Systems, Inc. 1 Price and Payment Terms Trimax Systems, Inc. 4. 55 3. 10 5. 50 $544, 005 $797, 347 $450, 000 2 Exceptions Taken to RFP 1. 50 0. 45 1. 50 3 Timeframe to Complete Work 2. 50 2. 25 2. 00 4 Quality of Proposal 0. 25 0. 45 0. 30 8. 80 6. 25 9. 30 Total Score • South Coast Automation Systems Hardware will be procured directly by District. Component costs were negotiated at 2017 prices. 7 | emwd. org

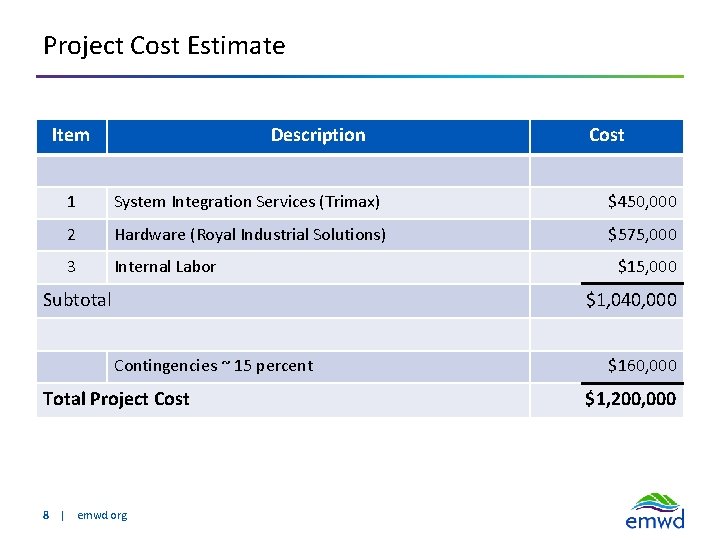

Project Cost Estimate Item Description Cost 1 System Integration Services (Trimax) $450, 000 2 Hardware (Royal Industrial Solutions) $575, 000 3 Internal Labor Subtotal $15, 000 $1, 040, 000 Contingencies ~ 15 percent Total Project Cost 8 | emwd. org $160, 000 $1, 200, 000

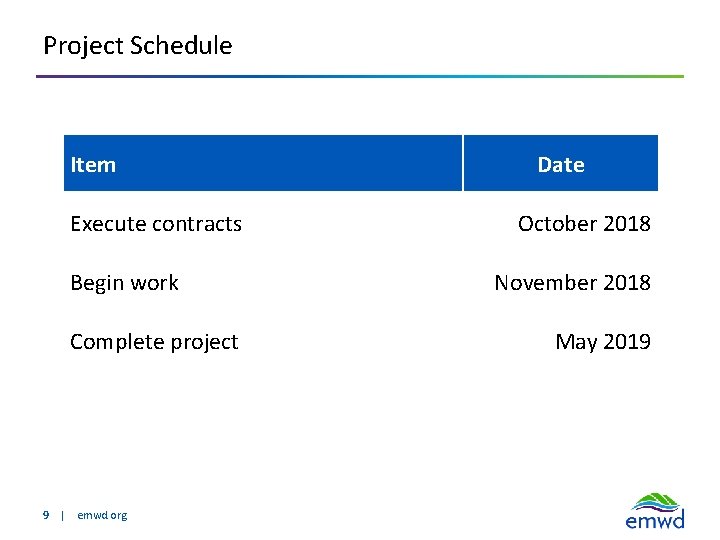

Project Schedule Item Execute contracts Begin work Complete project 9 | emwd. org Date October 2018 November 2018 May 2019

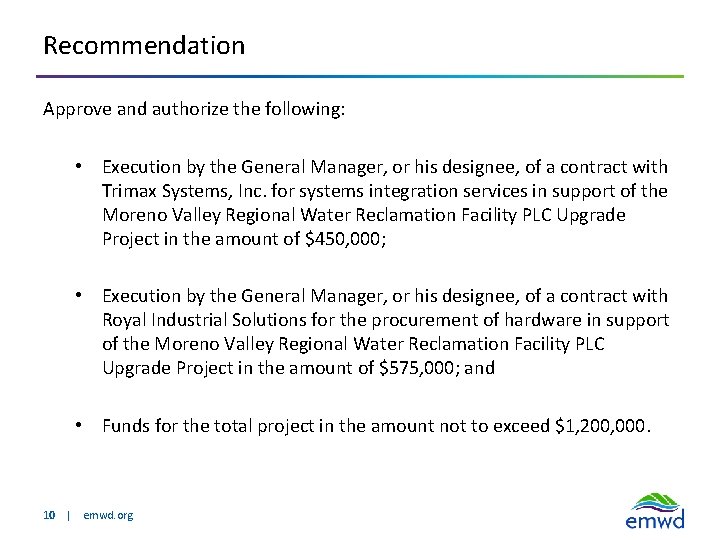

Recommendation Approve and authorize the following: • Execution by the General Manager, or his designee, of a contract with Trimax Systems, Inc. for systems integration services in support of the Moreno Valley Regional Water Reclamation Facility PLC Upgrade Project in the amount of $450, 000; • Execution by the General Manager, or his designee, of a contract with Royal Industrial Solutions for the procurement of hardware in support of the Moreno Valley Regional Water Reclamation Facility PLC Upgrade Project in the amount of $575, 000; and • Funds for the total project in the amount not to exceed $1, 200, 000. 10 | emwd. org
Contact Information Matthew Melendrez, P. E. Director of Water Reclamation (951) 928 -3777 Ext. 4303 Email: melendrm@emwd. org 11 | emwd. org
