Modeling and Simulations of Fluid-Structure Interactions (FSI) FSI Community in Dr. Jinchao Xu’s Group (in alphabetic order): Gong, Shihua Leng, Wei Sun, Pengtao Wang, Lu (Ph. D Stud, PKU) (Res Asst, CAS) (Assoc Prof, UNLV) (Postdoc, LLNL) Yang, Kai Xu, Jinchao Zhang, Chensong Zhang, Lixiang (Postdoc, Stanford) (Prof, PSU) (Res Assoc, CAS) (Prof, KMUST)

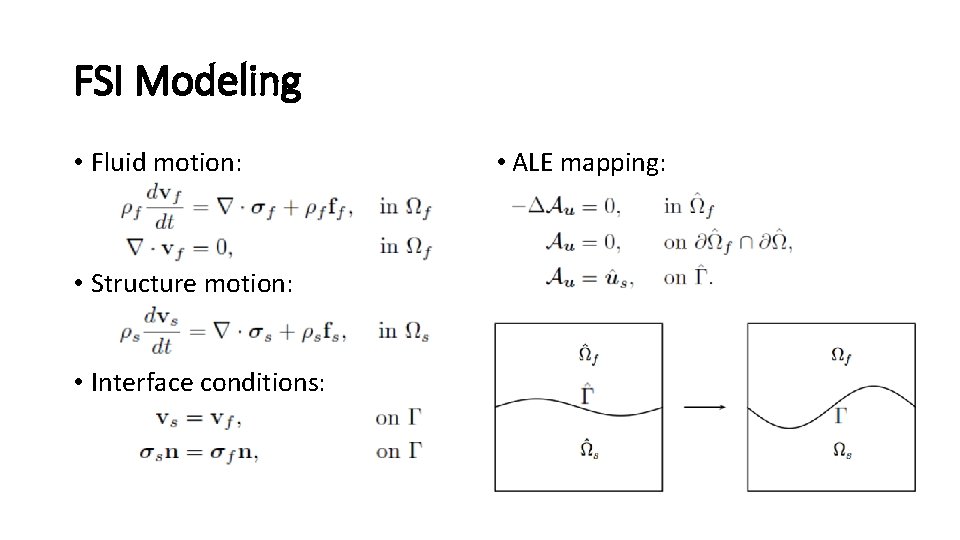

FSI Modeling • Fluid motion: • Structure motion: • Interface conditions: • ALE mapping:

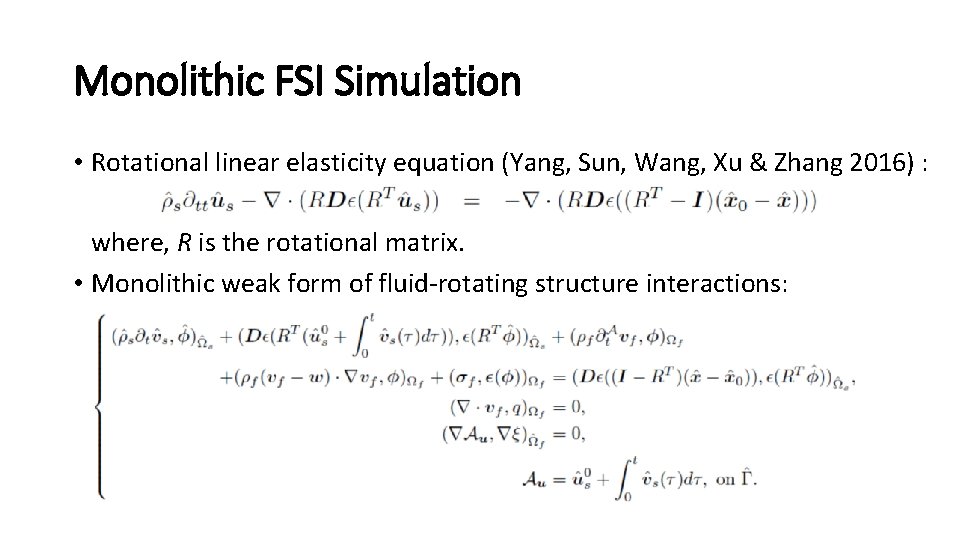

Monolithic FSI Simulation • Rotational linear elasticity equation (Yang, Sun, Wang, Xu & Zhang 2016) : where, R is the rotational matrix. • Monolithic weak form of fluid-rotating structure interactions:

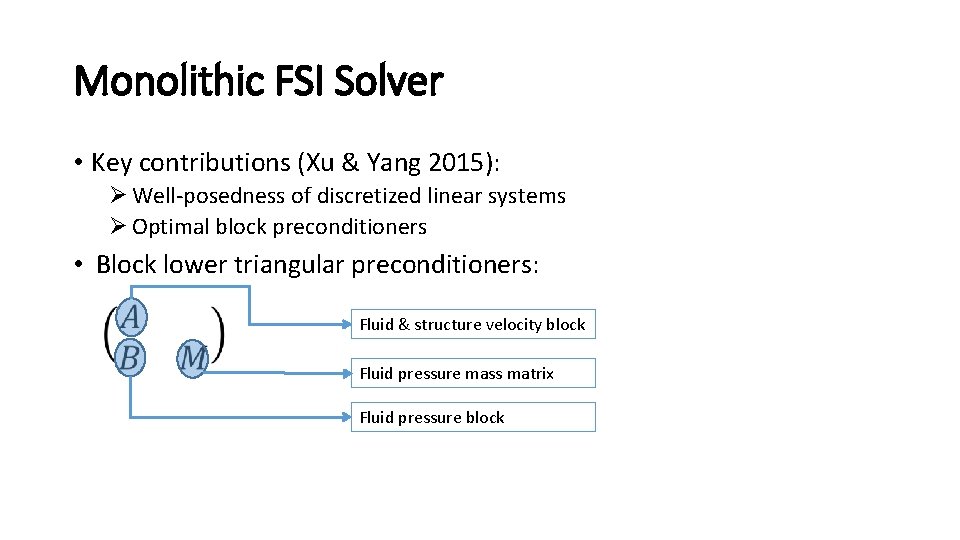

Monolithic FSI Solver • Key contributions (Xu & Yang 2015): Ø Well-posedness of discretized linear systems Ø Optimal block preconditioners • Block lower triangular preconditioners: Fluid & structure velocity block Fluid pressure mass matrix Fluid pressure block

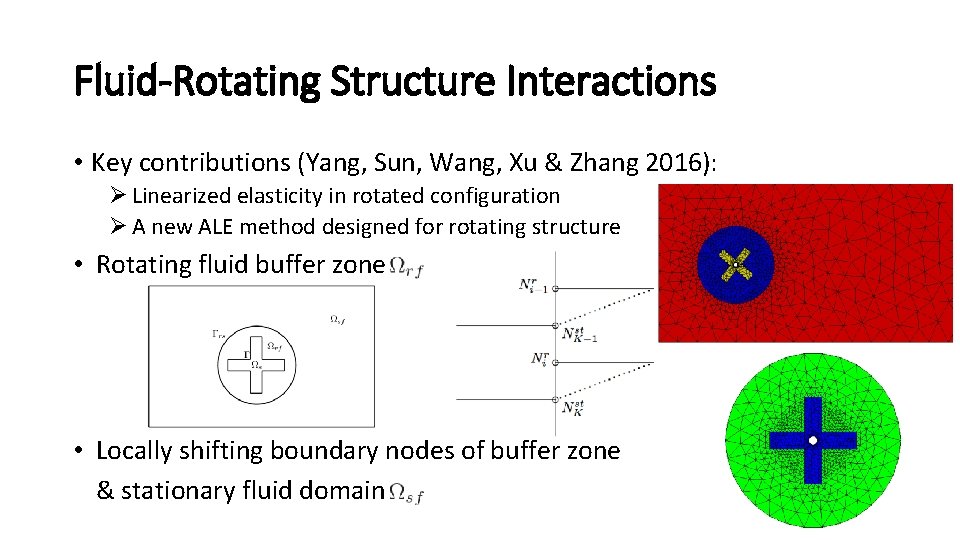

Fluid-Rotating Structure Interactions • Key contributions (Yang, Sun, Wang, Xu & Zhang 2016): Ø Linearized elasticity in rotated configuration Ø A new ALE method designed for rotating structure • Rotating fluid buffer zone • Locally shifting boundary nodes of buffer zone & stationary fluid domain

FSI Applications • Example 1: 3 D simulation of a propeller/turbine (Sun, Wang & Yang 2014)

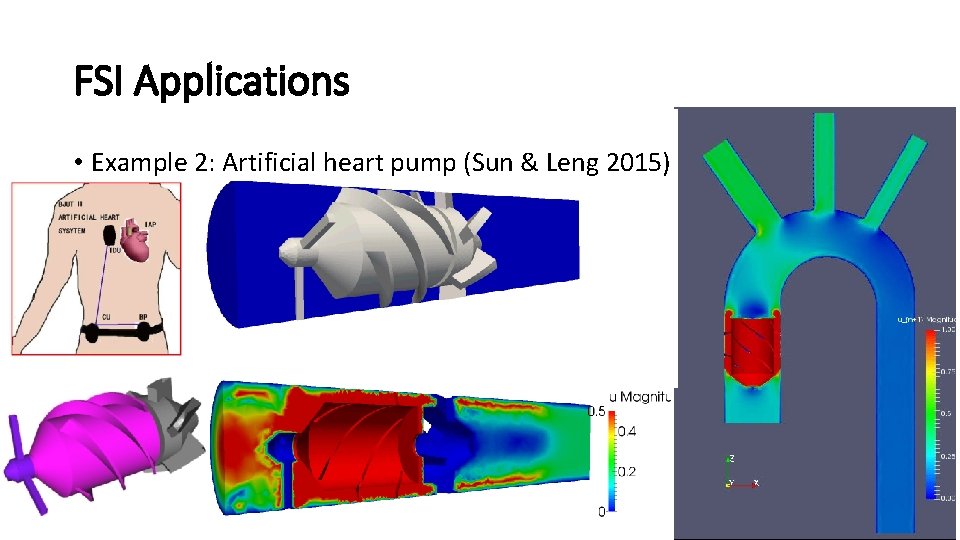

FSI Applications • Example 2: Artificial heart pump (Sun & Leng 2015)

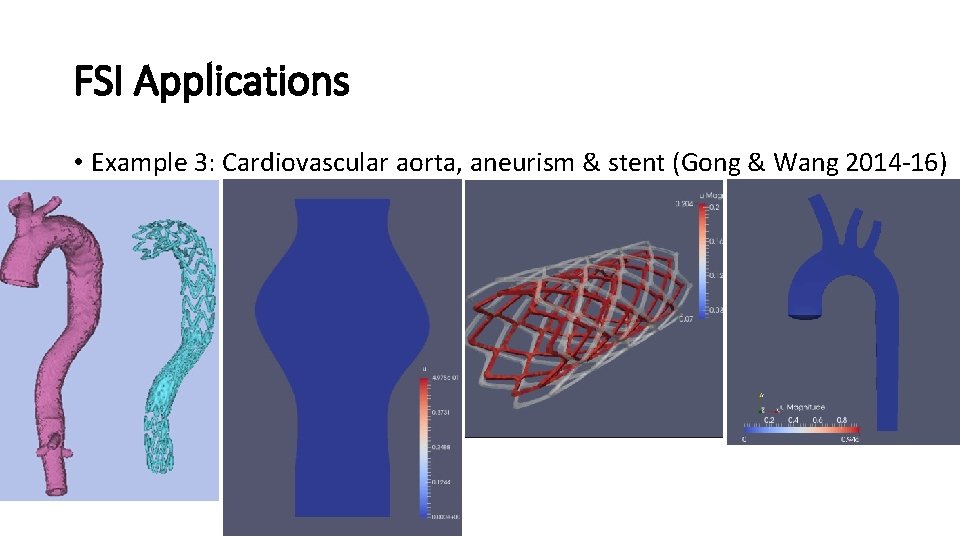

FSI Applications • Example 3: Cardiovascular aorta, aneurism & stent (Gong & Wang 2014 -16)

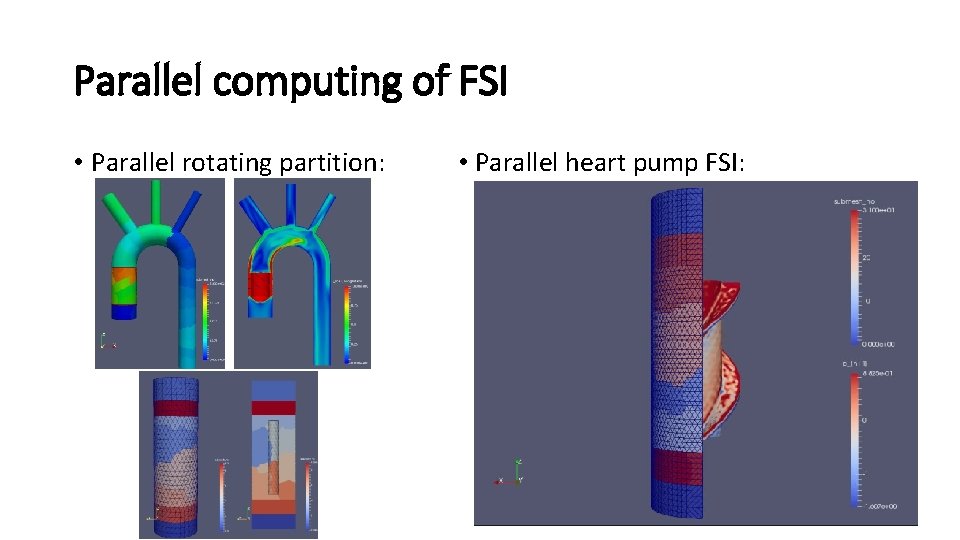

Parallel computing of FSI • Parallel rotating partition: • Parallel heart pump FSI:

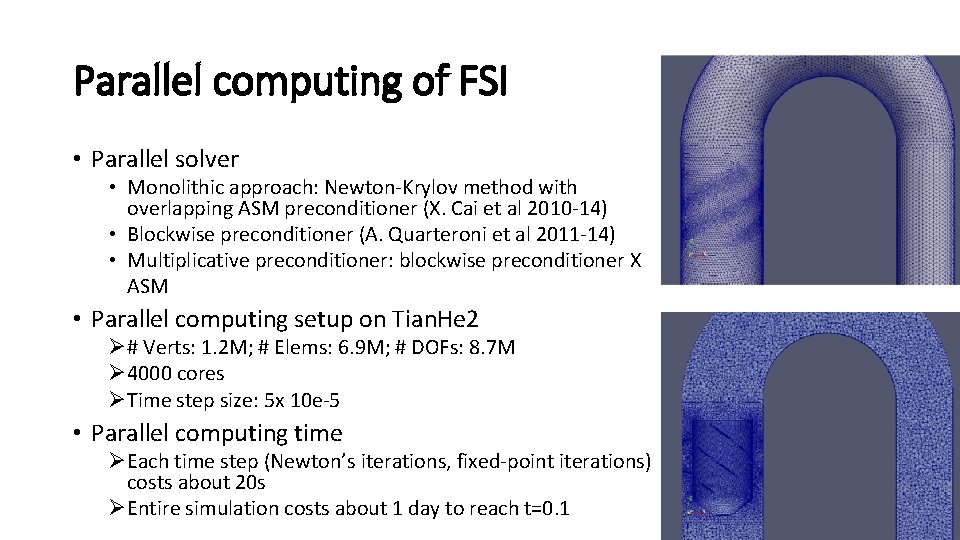

Parallel computing of FSI • Parallel solver • Monolithic approach: Newton-Krylov method with overlapping ASM preconditioner (X. Cai et al 2010 -14) • Blockwise preconditioner (A. Quarteroni et al 2011 -14) • Multiplicative preconditioner: blockwise preconditioner X ASM • Parallel computing setup on Tian. He 2 Ø# Verts: 1. 2 M; # Elems: 6. 9 M; # DOFs: 8. 7 M Ø 4000 cores ØTime step size: 5 x 10 e-5 • Parallel computing time ØEach time step (Newton’s iterations, fixed-point iterations) costs about 20 s ØEntire simulation costs about 1 day to reach t=0. 1
