MM 60 PCIe Interface Connectors FEATURES MM 60

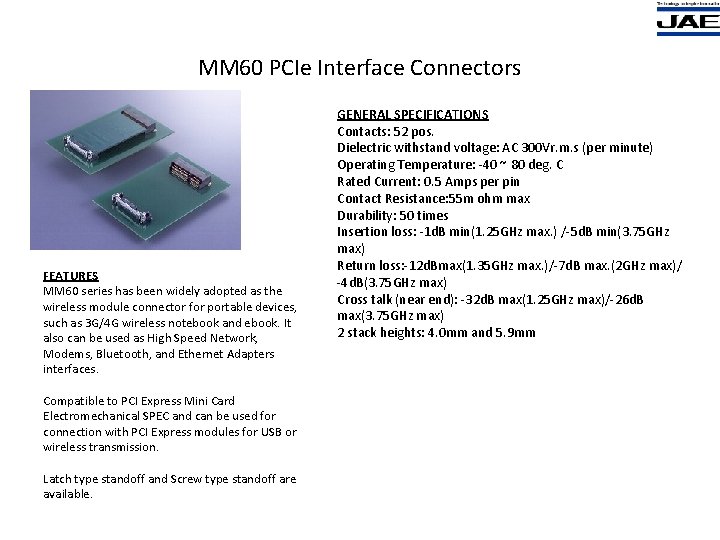

MM 60 PCIe Interface Connectors FEATURES MM 60 series has been widely adopted as the wireless module connector for portable devices, such as 3 G/4 G wireless notebook and ebook. It also can be used as High Speed Network, Modems, Bluetooth, and Ethernet Adapters interfaces. Compatible to PCI Express Mini Card Electromechanical SPEC and can be used for connection with PCI Express modules for USB or wireless transmission. Latch type standoff and Screw type standoff are available. GENERAL SPECIFICATIONS Contacts: 52 pos. Dielectric withstand voltage: AC 300 Vr. m. s (per minute) Operating Temperature: -40 ~ 80 deg. C Rated Current: 0. 5 Amps per pin Contact Resistance: 55 m ohm max Durability: 50 times Insertion loss: -1 d. B min(1. 25 GHz max. ) /-5 d. B min(3. 75 GHz max) Return loss: -12 d. Bmax(1. 35 GHz max. )/-7 d. B max. (2 GHz max)/ -4 d. B(3. 75 GHz max) Cross talk (near end): -32 d. B max(1. 25 GHz max)/-26 d. B max(3. 75 GHz max) 2 stack heights: 4. 0 mm and 5. 9 mm

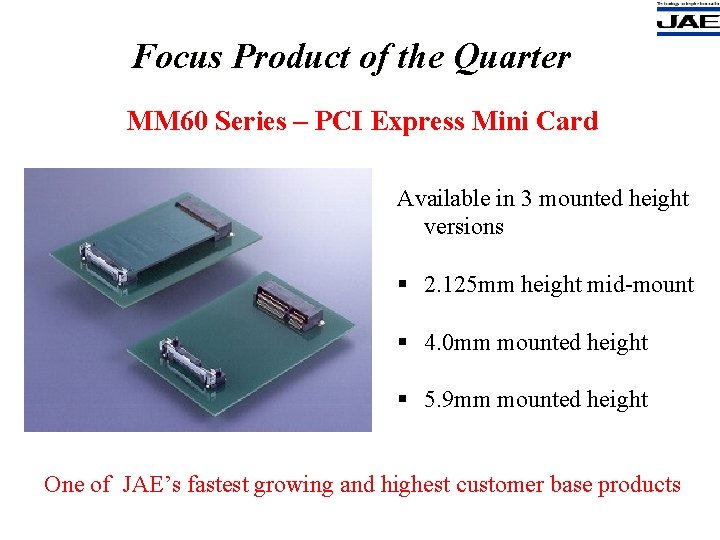

Focus Product of the Quarter MM 60 Series – PCI Express Mini Card Available in 3 mounted height versions § 2. 125 mm height mid-mount § 4. 0 mm mounted height § 5. 9 mm mounted height One of JAE’s fastest growing and highest customer base products

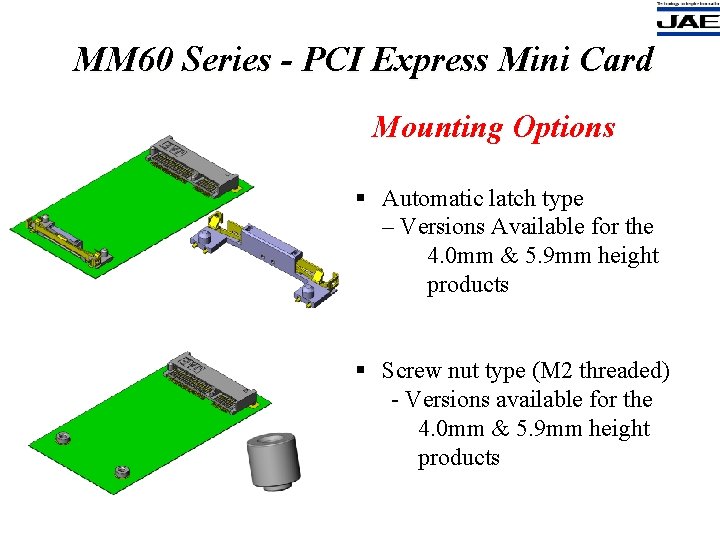

MM 60 Series - PCI Express Mini Card Mounting Options § Automatic latch type – Versions Available for the 4. 0 mm & 5. 9 mm height products § Screw nut type (M 2 threaded) - Versions available for the 4. 0 mm & 5. 9 mm height products

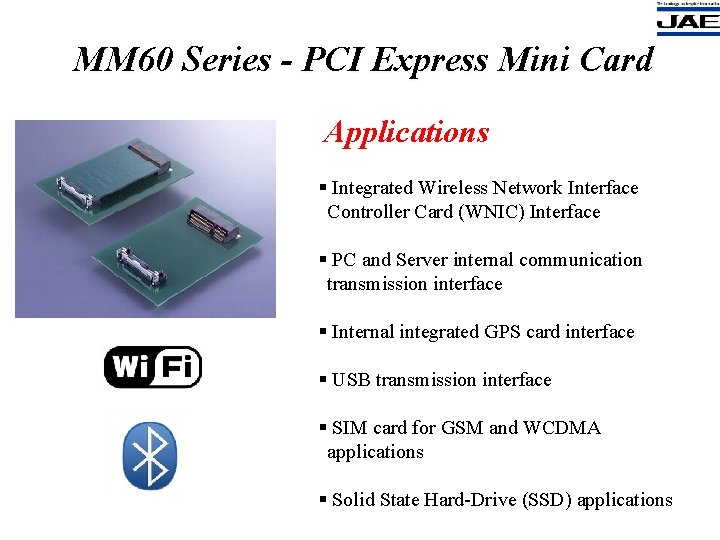

MM 60 Series - PCI Express Mini Card Applications § Integrated Wireless Network Interface Controller Card (WNIC) Interface § PC and Server internal communication transmission interface § Internal integrated GPS card interface § USB transmission interface § SIM card for GSM and WCDMA applications § Solid State Hard-Drive (SSD) applications
