Max+Plus II 사용법.

Max+Plus II 사용법.

비교기 진리표. GT(x, y) =xy’ EQ(x, y) =x’y’+xy x y GT(x, y)= x>y EQ(x,

비교기 진리표. GT(x, y) =xy’ EQ(x, y) =x’y’+xy x y GT(x, y)= x>y EQ(x, y)= x == y 0 0 0 1 0 1 0 1

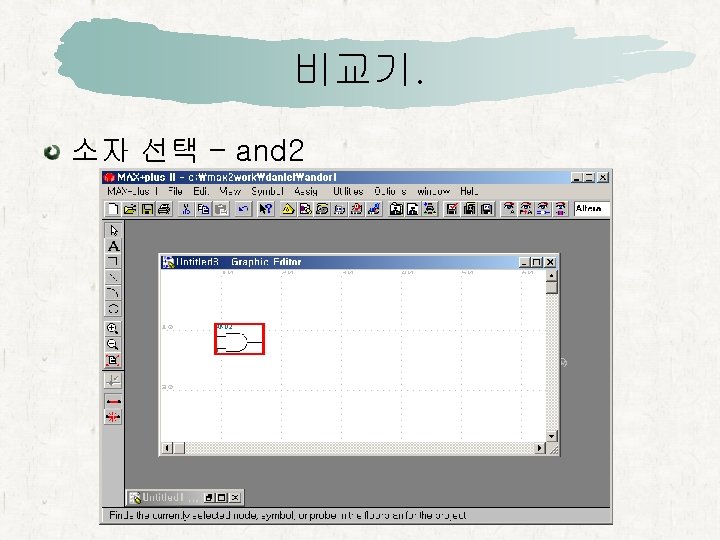

비교기. New(tool-bar)/우클릭 enter symbol 선택.

비교기. New(tool-bar)/우클릭 enter symbol 선택.

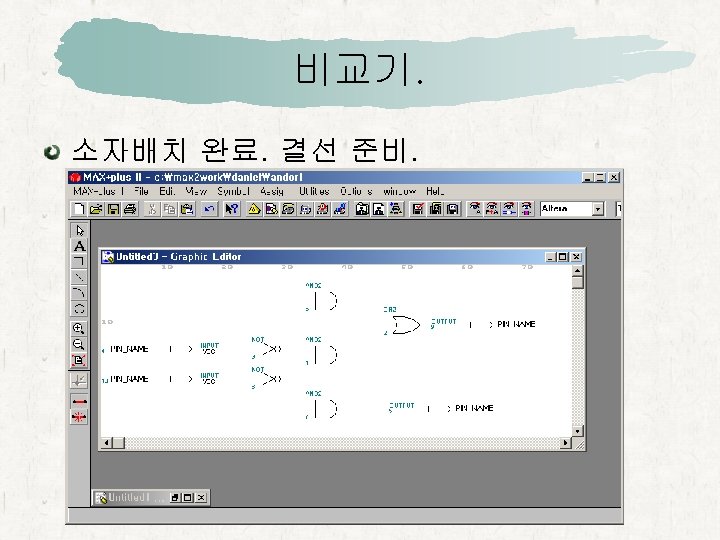

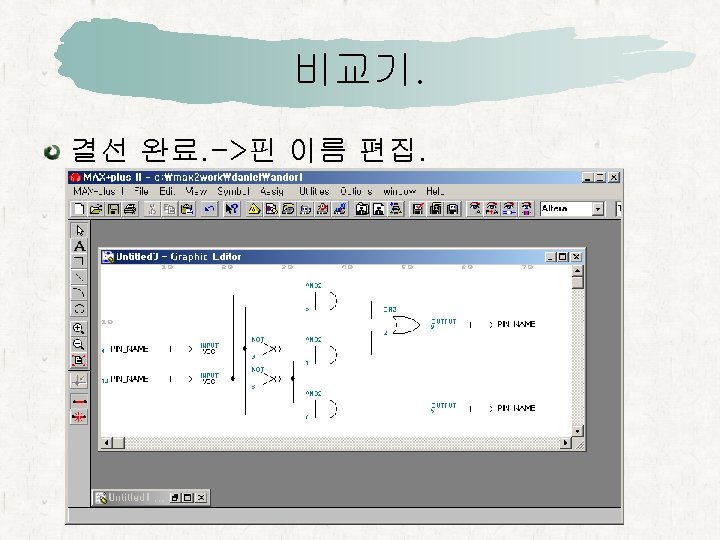

비교기. or 2, not, input, output symbols 입력. Symbol 위에서 클릭, to move, copy

비교기. or 2, not, input, output symbols 입력. Symbol 위에서 클릭, to move, copy 등 선택. Symbol의 개수를 다음과 같이 만든다. and : 3개 not : 2개 input : 2개 output : 2개 or : 1개

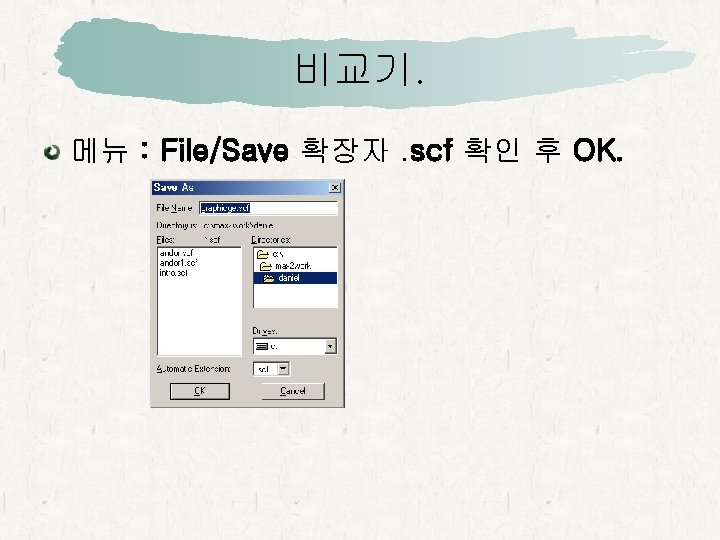

비교기. 파일-> Save As… 다음과 같이 메뉴 선택. File/Project/Set Project to Current File/Project/Save and

비교기. 파일-> Save As… 다음과 같이 메뉴 선택. File/Project/Set Project to Current File/Project/Save and Compile

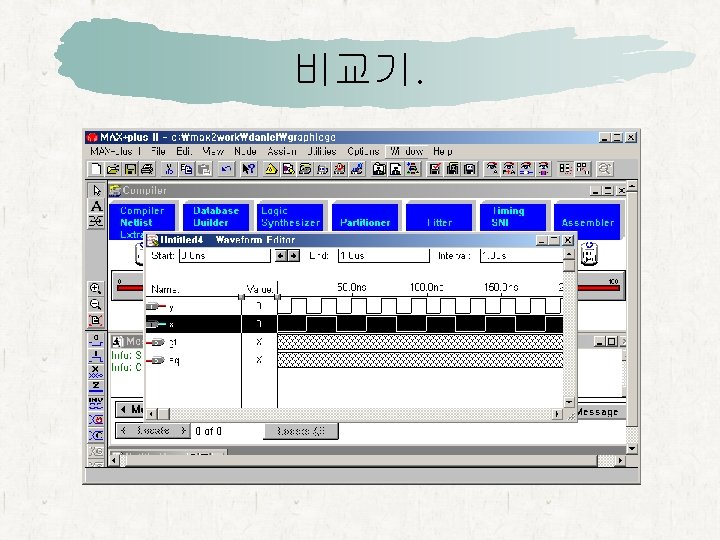

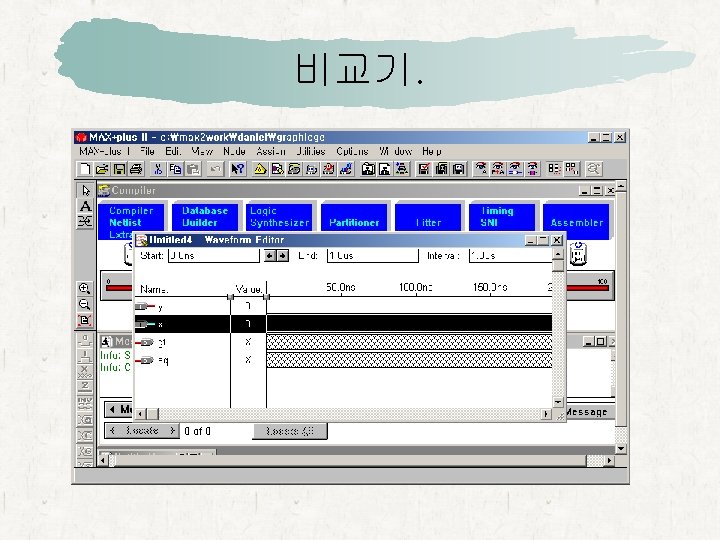

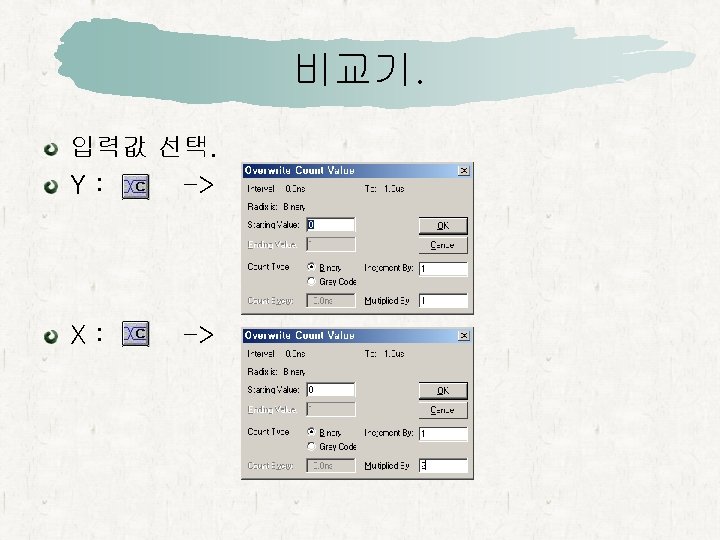

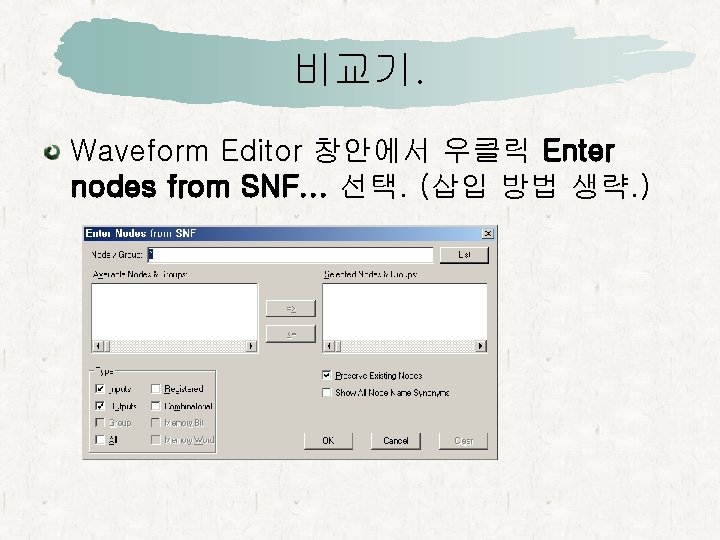

비교기. 메뉴 : MAX+plus II/Waveform Editor

비교기. 메뉴 : MAX+plus II/Waveform Editor

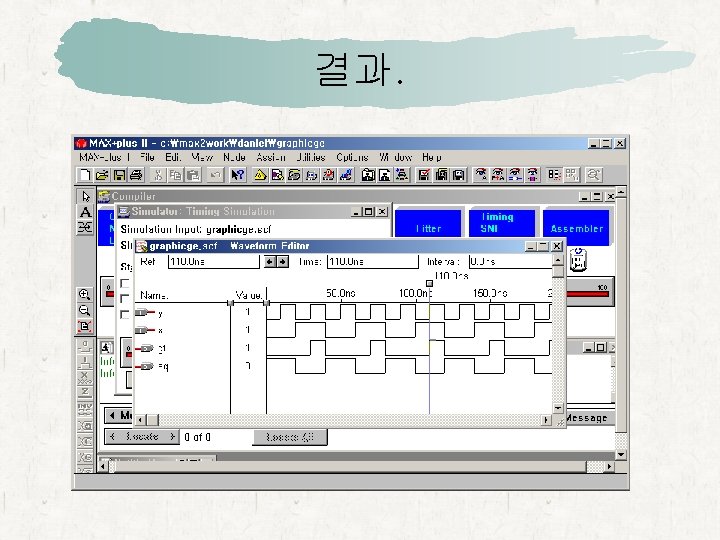

비교기. 메뉴 선택 : MAX+plus II / Simulator -> Start / Open SCF 또는

비교기. 메뉴 선택 : MAX+plus II / Simulator -> Start / Open SCF 또는 선택.

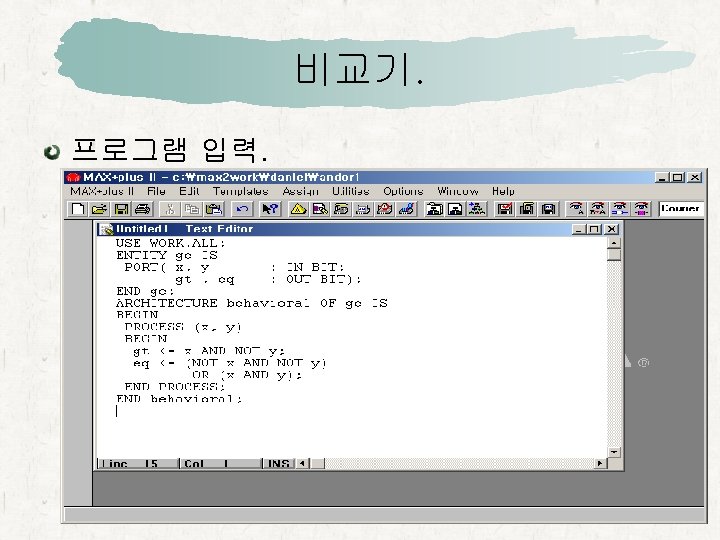

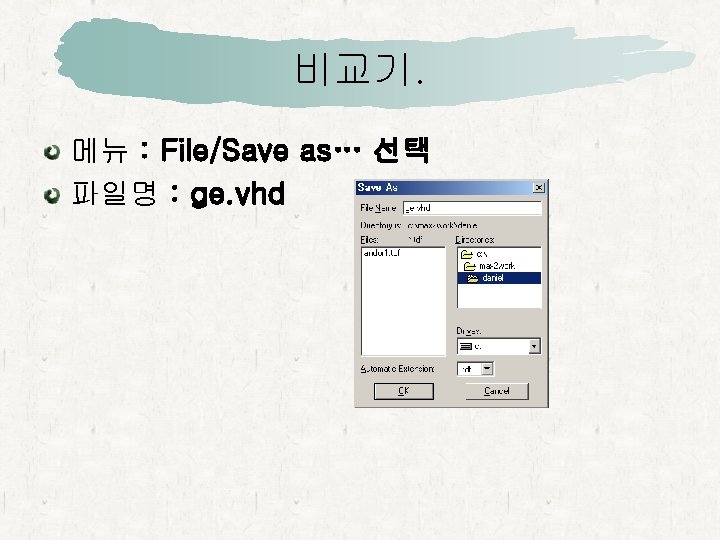

비교기. 메뉴 : File/New. Text Editor file 선택.

비교기. 메뉴 : File/New. Text Editor file 선택.

비교기. 메뉴 : File/Project/Set Project to Current File 메뉴 : MAX+plus II/Compiler/Start 또는 툴

비교기. 메뉴 : File/Project/Set Project to Current File 메뉴 : MAX+plus II/Compiler/Start 또는 툴 바에서 선택 Start. 이하 같은 방식으로…

숙제 : 반가산기 설계. 1. 진리표 완성. 2. Graphic Editor 사용. 3. Text Editor

숙제 : 반가산기 설계. 1. 진리표 완성. 2. Graphic Editor 사용. 3. Text Editor 사용. 4. 결과 비교. 5. Create Default symbol. Max Plus 2. ppt 참조. 25쪽. x y sum(x, y) carry(x, y) 00 01 10 11
