LINES CUT BY A TRANSVERSAL Vocabulary PARALLEL TRANSVERSAL
![LINES CUT BY A TRANSVERSAL LINES CUT BY A TRANSVERSAL](https://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-1.jpg)
LINES CUT BY A TRANSVERSAL
![Vocabulary • • • PARALLEL TRANSVERSAL ANGLE CONGRUENT VERTICAL ANGLE CORRESPONDING ANGLE ALTERNATE INTERIOR Vocabulary • • • PARALLEL TRANSVERSAL ANGLE CONGRUENT VERTICAL ANGLE CORRESPONDING ANGLE ALTERNATE INTERIOR](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-2.jpg)
Vocabulary • • • PARALLEL TRANSVERSAL ANGLE CONGRUENT VERTICAL ANGLE CORRESPONDING ANGLE ALTERNATE INTERIOR ANGLE ALTERNATE EXTERIOR ANGLE SUPPLEMENTARY ANGLES STRAIGHT ANGLE
![Non-Parallel Lines Cut by a Transversal 2 1 3 4 6 5 7 8 Non-Parallel Lines Cut by a Transversal 2 1 3 4 6 5 7 8](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-3.jpg)
Non-Parallel Lines Cut by a Transversal 2 1 3 4 6 5 7 8
![Non-parallel lines cut by a transversal 2 1 3 4 6 7 5 8 Non-parallel lines cut by a transversal 2 1 3 4 6 7 5 8](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-4.jpg)
Non-parallel lines cut by a transversal 2 1 3 4 6 7 5 8 < 1 and < 2 are SUPLEMENTARY ANGLES They form a straight angle measuring 180 degrees.
![Non-parallel lines cut by a transversal 2 3 1 4 6 5 7 8 Non-parallel lines cut by a transversal 2 3 1 4 6 5 7 8](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-5.jpg)
Non-parallel lines cut by a transversal 2 3 1 4 6 5 7 8 Name other supplementary pairs.
![Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-6.jpg)
Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 < 1 and < 3 are VERTICAL ANGLES They are congruent, so m <1 = m <3.
![Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-7.jpg)
Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 Name other vertical angles.
![Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-8.jpg)
Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 < 1 and < 5 are CORRESPONDING ANGLES They are congruent, so m <1 = m <5. Corresponding angles occupy the same relative position on the same side of the transversal.
![Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-9.jpg)
Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 Name other corresponding pairs.
![Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-10.jpg)

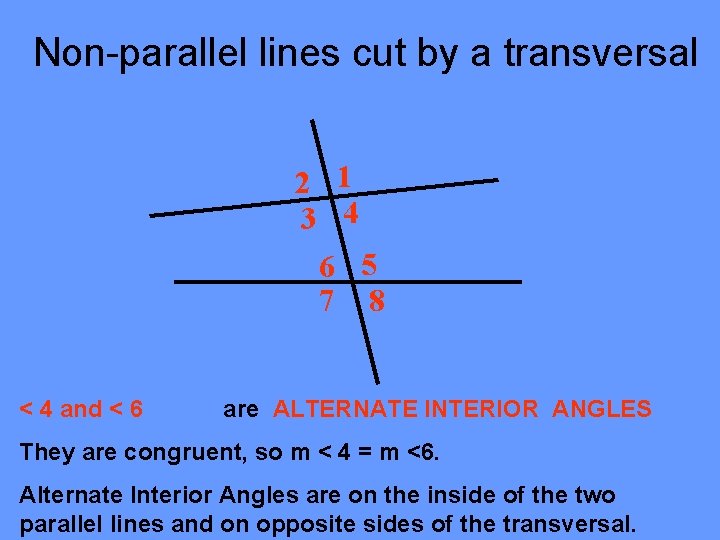

Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 < 4 and < 6 are ALTERNATE INTERIOR ANGLES They are congruent, so m < 4 = m <6. Alternate Interior Angles are on the inside of the two parallel lines and on opposite sides of the transversal.
![Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-11.jpg)

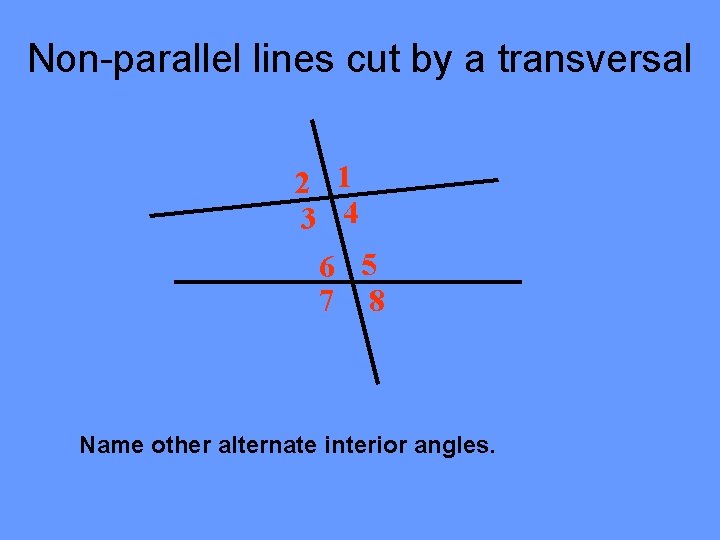

Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 Name other alternate interior angles.
![Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-12.jpg)

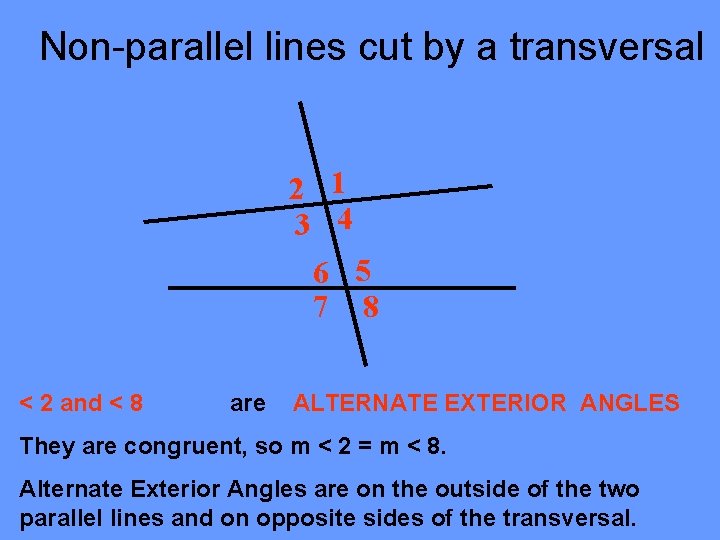

Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 < 2 and < 8 are ALTERNATE EXTERIOR ANGLES They are congruent, so m < 2 = m < 8. Alternate Exterior Angles are on the outside of the two parallel lines and on opposite sides of the transversal.
![Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-13.jpg)

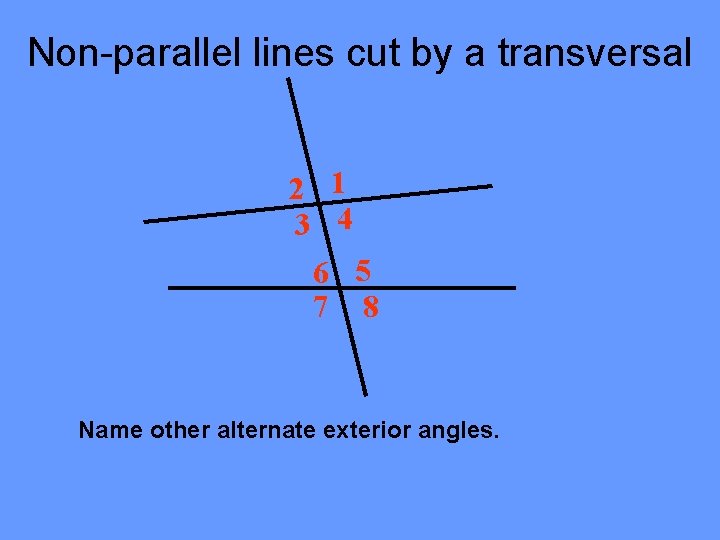

Non-parallel lines cut by a transversal 2 1 3 4 6 5 7 8 Name other alternate exterior angles.
![Parallel lines cut by a transversal 1 2 3 7 6 4 5 8 Parallel lines cut by a transversal 1 2 3 7 6 4 5 8](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-14.jpg)
Parallel lines cut by a transversal 1 2 3 7 6 4 5 8 Are any of the different types of angle pairs congruent?
![Parallel Lines Cut by a Transversal What are the measures of the angles below? Parallel Lines Cut by a Transversal What are the measures of the angles below?](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-15.jpg)

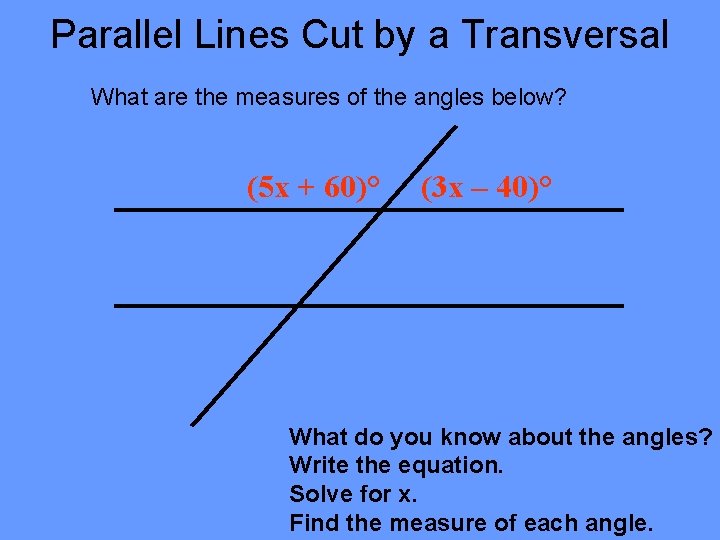

Parallel Lines Cut by a Transversal What are the measures of the angles below? (5 x + 60)° (3 x – 40)° What do you know about the angles? Write the equation. Solve for x. Find the measure of each angle.
![Parallel Lines Cut by a Transversal 2 3 7 The m < 1 is Parallel Lines Cut by a Transversal 2 3 7 The m < 1 is](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-16.jpg)

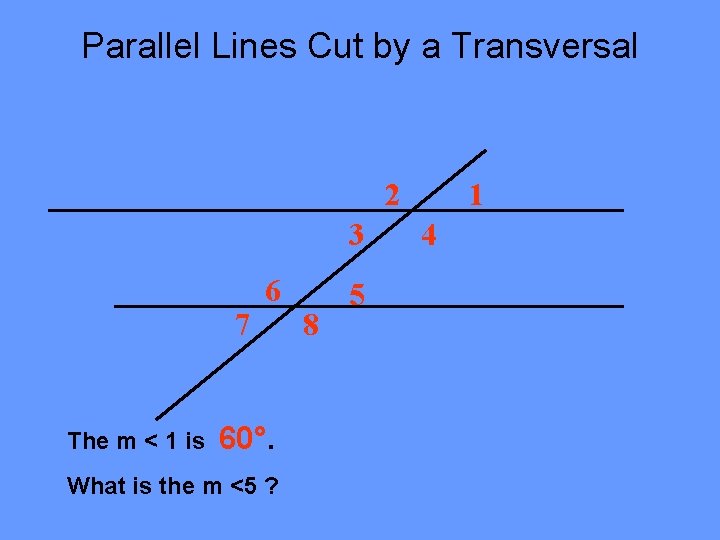

Parallel Lines Cut by a Transversal 2 3 7 The m < 1 is 6 60°. What is the m <5 ? 8 5 1 4
![Parallel Lines Cut by a Transversal 2 3 7 The m < 6 is Parallel Lines Cut by a Transversal 2 3 7 The m < 6 is](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-17.jpg)

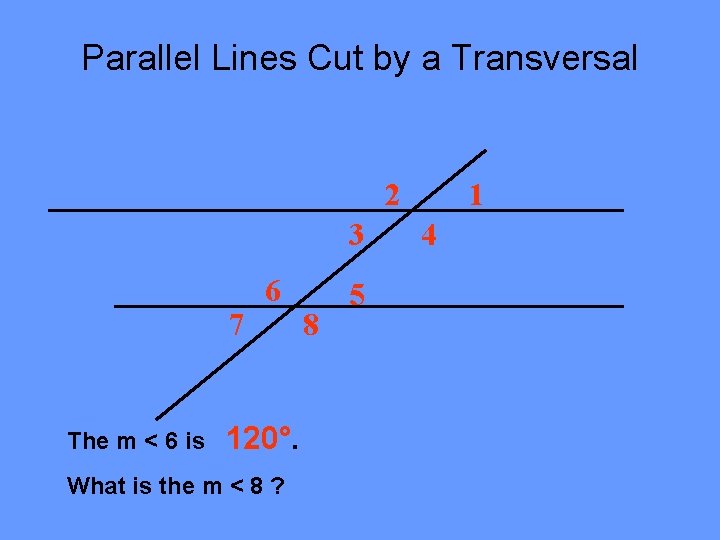

Parallel Lines Cut by a Transversal 2 3 7 The m < 6 is 6 120°. What is the m < 8 ? 8 5 1 4
![Parallel Lines Cut by a Transversal 120° 60° 60° 120° 60° 120 Parallel Lines Cut by a Transversal 120° 60° 60° 120° 60° 120](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-18.jpg)
Parallel Lines Cut by a Transversal 120° 60° 60° 120° 60° 120
![Parallel Lines Cut by a Transversal What are the measures of the angles below? Parallel Lines Cut by a Transversal What are the measures of the angles below?](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-19.jpg)

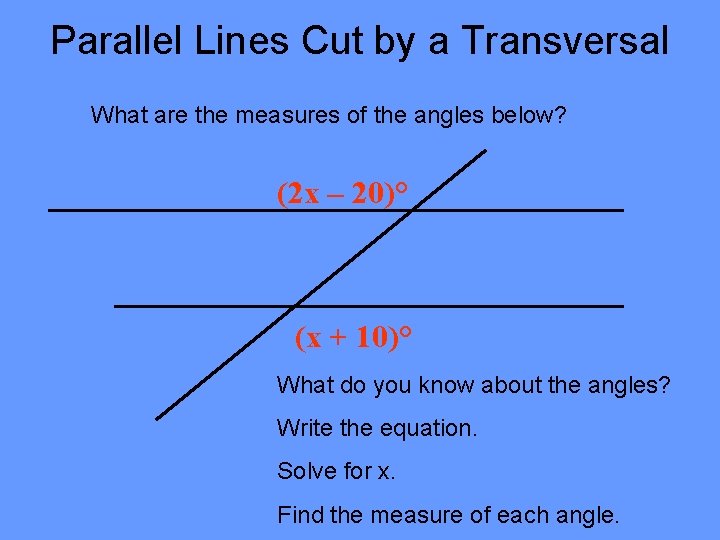

Parallel Lines Cut by a Transversal What are the measures of the angles below? (2 x – 20)° (x + 10)° What do you know about the angles? Write the equation. Solve for x. Find the measure of each angle.
![Parallel Lines Cut by a Transversal What are the measures of the angles below? Parallel Lines Cut by a Transversal What are the measures of the angles below?](http://slidetodoc.com/presentation_image/3d7f29d890fd2135b61ce847bfbfdd6a/image-20.jpg)

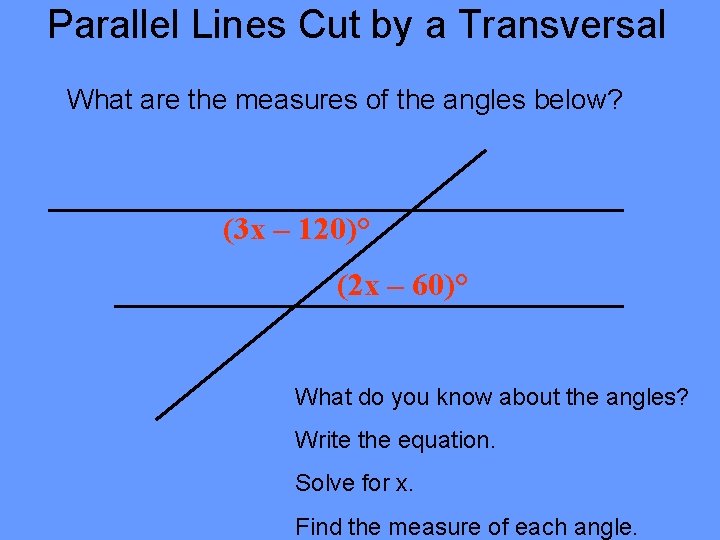

Parallel Lines Cut by a Transversal What are the measures of the angles below? (3 x – 120)° (2 x – 60)° What do you know about the angles? Write the equation. Solve for x. Find the measure of each angle.
